S30A-7111CL SICK S3000 PROFINET IO Advanced Sensor | Order

Engineering Architecture & Core Purpose

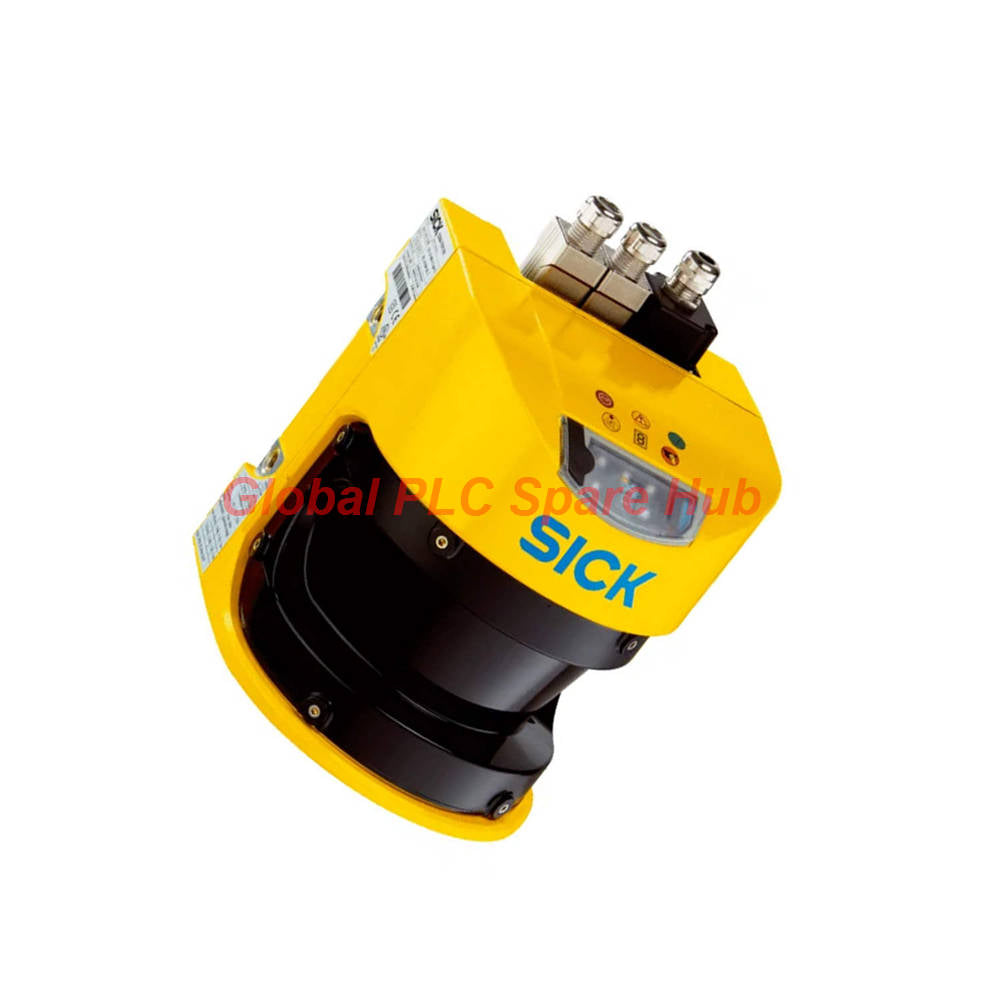

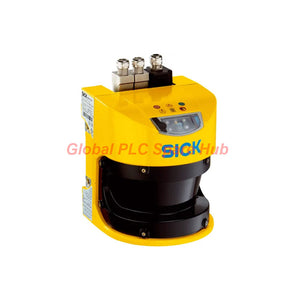

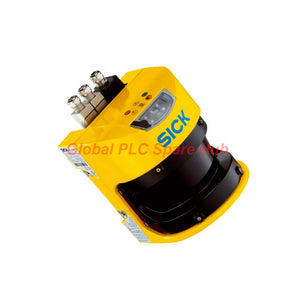

Advanced industrial safety systems require high-precision optical distance measurement and reliable network integration to protect personnel around automated machinery. The S30A-7111CL safety laser scanner, manufactured by SICK Sensors within the S3000 PROFINET IO Advanced series, delivers non-contact, area-monitoring intelligence. Designed for network-centric architectures, this sensor head operates without local hardwired I/O modules, communicating safety data entirely through the PLC controller infrastructure.

Technical Specifications & MECE Breakdown

Mechanical Installation Guidelines

• Mount the S30A-7111CL unit rigidly to prevent angular displacement or vibration-induced false trips.
• Ensure an unhindered 190° optical scanning window across the hazard zone boundary.
• Interconnect the scanner head through the PROFINET network controller since local inputs and outputs are absent.
• Verify alignment matches the configured 7-meter protective field parameters before system power-up.

Commissioning & Maintenance Usability

• PROFINET IO Advanced diagnostics allow remote monitoring of optical window contamination and field status via the controller.
• Configurable multi-sampling (2 to 16 scans) filters out airborne dust and steam interference to minimize nuisance shutdowns.
• Modular sensor head architecture permits fast replacement without altering network node addresses.

System Compatibility & Standards

• Fully compatible with safety controllers supporting PROFINET IO and PROFIsafe communication protocols.
• Matches industrial safety benchmarks under EN ISO 13849 and IEC 61496 Type 3 guidelines.
• Integrates seamlessly into automated guided vehicle (AGV) and robotic cell safety architectures.

Warranty & Global Logistics

• Protected by an industrial 12-month comprehensive operational performance warranty.
• Guaranteed 24 to 48-hour order dispatch window for urgent facility repairs.
• Reliable worldwide express shipping supported via FedEx, UPS, and DHL.

Target Industrial Applications & Diagnostic Capability

• Automated Guided Vehicles (AGVs): Dynamic field switching allows mobile robots to slow down or halt safely based on travel speed and obstacle proximity.
• Robotic Cell Access Control: Monitors hazardous approach zones around multi-axis welding and palletizing robots.
• Diagnostic Capability: Transmits real-time pollution warnings, contamination level data, and logic-0 safe-state error flags over the industrial network.

Global PLC Spare HUB's Insight

A common pitfall during safety network commissioning is neglecting optical window degradation caused by oily mist or fine particulate accumulation in heavy manufacturing plants. When deploying the S30A-7111CL, safety engineers should program warning thresholds to trigger preventive cleaning alerts before dirt build-up forces a safety-rated machine stop. Maintaining a clean optical lens ensures uninterrupted production flow while preserving Category 3 safety integrity.

Selection & Procurement Guidelines

• Verify that your control system utilizes a PROFINET IO safety PLC since this model lacks local hardwired safety outputs.
• Confirm that a 7-meter protective zone and 190-degree scanning angle completely cover your machinery hazard perimeter.
• Procure compatible system plugs and interface cabling separately if replacing a complete assembly rather than just the sensor head.

Frequently Asked Questions

Q: Why does this specific scanner model lack local hardwired I/O connections?
A: The S30A-7111CL is engineered specifically for network-based safety architectures, relying entirely on PROFINET IO communication with the main safety controller.

Q: How does multi-sampling configuration prevent unwanted machine stoppages?
A: By requiring an object to be detected across 2 to 16 consecutive scans before dropping the safety output to logic 0, it filters out transient dust or sparks.

Q: What occurs to the safety data output if an internal optical fault is detected?
A: The scanner immediately transitions all safety-related data to a safe state of logic 0, halting the connected machine.

Q: Can the warning field range differ from the protective field range?
A: Yes, the warning field extends up to 49 meters to provide early operator notification before someone reaches the 7-meter protective stopping zone.

Q: What courier options are available for emergency replacement orders?
A: We provide rapid 24 to 48-hour global dispatch using express shipping services via FedEx, UPS, and DHL.
