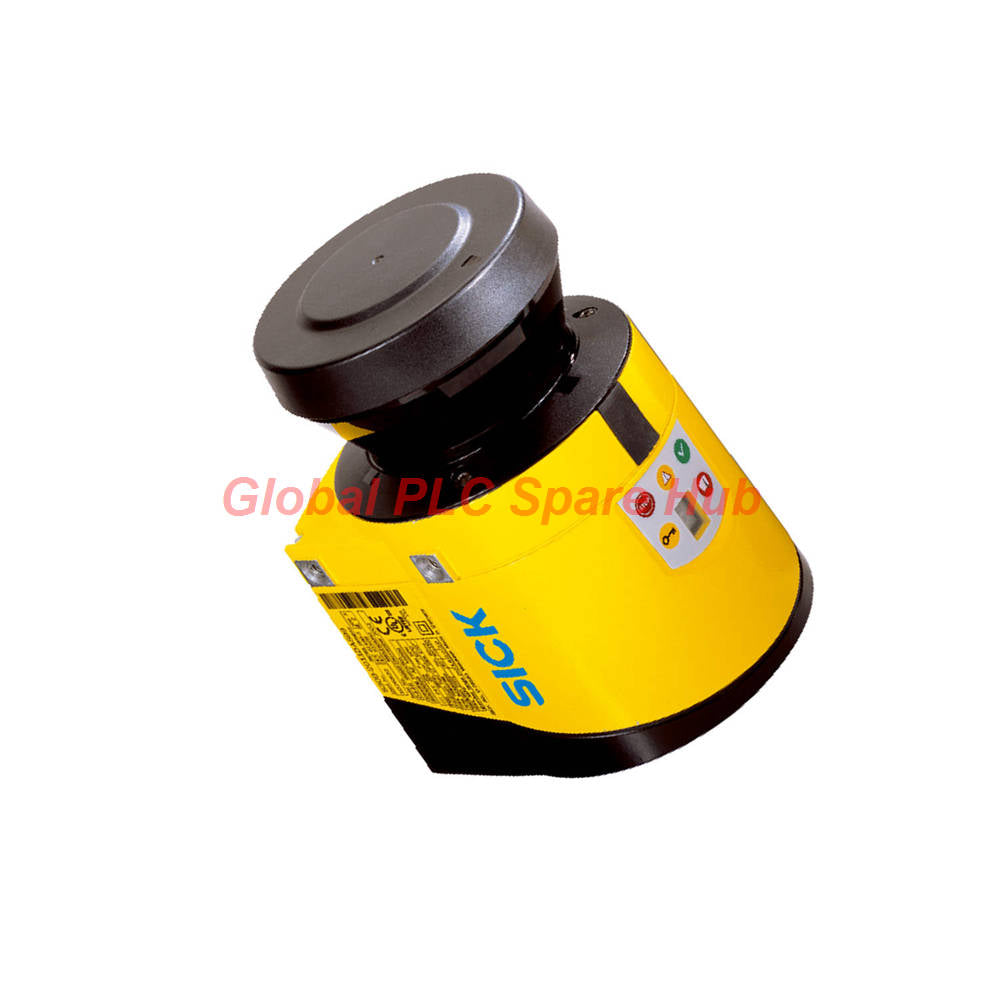

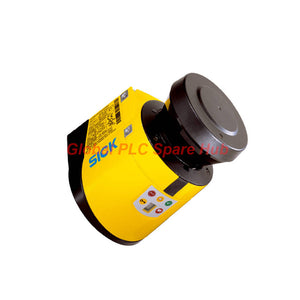

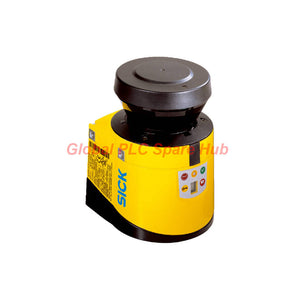

S30A-3011DA SICK S300 Professional Safety Laser Scanner - 8m Range

Engineering Overview & Optical Architecture

• The S30A-3011DA is an advanced safety laser scanner engineered by SICK within the robust S300 Series lineup to protect personnel in dynamic automated work cells.
• Featuring a 270-degree scanning aperture and a reliable 8-meter protective field operating range, it delivers real-time optical intrusion monitoring.
• Global PLC Spare HUB's Insight: Automation integration engineers rely on this specific 14mm high-resolution model for finger and hand detection applications around high-speed robotic assembly lines.

Configuration & Technical Specifications Table

Field Installation & Mechanical Alignment

• Mount the S30A-3011DA scanner securely to rigid machine framing using vibration-dampening brackets to prevent false optical trips from industrial floor resonance.
• Ensure the optical screen remains free from airborne oil mists and heavy dust accumulation during wiring termination.
• Global PLC Spare HUB Review: Maintenance teams note that utilizing pre-wired M12 5-pin system plugs during installation drastically reduces wiring errors and speeds up field replacement turnarounds.

Diagnostic Intelligence & Fault Monitoring

• Built-in cross-circuit monitoring continuously evaluates dual PNP semiconductor outputs for short circuits and ground faults.
• Integrated diagnostic LEDs and error-logging buffers provide instant visual feedback regarding optical window contamination and alignment drift.

Target Industrial Machinery & Applications

• Automated Guided Vehicles (AGVs) and autonomous mobile robot collision avoidance systems.
• Robotic welding cells and palletizing material handling transfer stations.
• Hazardous press brake and stamping machine perimeter safeguarding zones.
• Automated warehousing sorting and logistics conveyor lines.

Global Logistics, Traceability & Warranty

• Delivered in secure industrial packaging accompanied by factory calibration verification logs.
• Backed by a comprehensive 12-month operational warranty covering electronic and mechanical manufacturing defects.
• Expedited global dispatch within 24-48 hours through premier carriers: FedEx, UPS, and DHL.

Advanced Technical FAQ

Q: How does dust accumulation on the S30A-3011DA optical window impact operation?

A: The scanner features built-in contamination warning outputs that alert the PLC before minor dust buildup triggers a nuisance safety stop.

Q: Can the protective field zones be dynamically switched during machine operation?

A: Yes, the S300 Professional series supports multiple field sets, allowing safe speed monitoring and zone switching based on AGV steering angles.

Q: What causes synchronization errors between paired safety scanners in complex layouts?

A: Synchronization faults usually stem from improper cable shielding or incorrect grounding of the aluminum die-cast housing against electrical noise.

Q: How do I test the response time of the safety outputs during annual compliance checks?

A: Use a certified optical test piece matching the 14mm resolution threshold to break the field while logging output state transition times with a safety PLC.

Q: What precautions are necessary when mounting the unit near high-intensity strobe lighting?

A: Avoid pointing the optical lens directly at high-frequency flashing strobe lights or unshielded welding arcs to prevent ambient light saturation.

Procurement & Selection Guide

• Verify your safety zone distance requirements and resolution needs (such as 14mm for finger safety vs 30mm for body detection) prior to final ordering.
• Procure through authorized distribution channels like Global PLC Spare HUB to ensure genuine SICK hardware provenance and full safety certification validity.
• Keep a spare system plug and mounting bracket in your maintenance depot to support rapid swap-outs during scheduled plant safety audits.
