TC-OAV061 Honeywell Analog Output Module 6-Channel Isolated

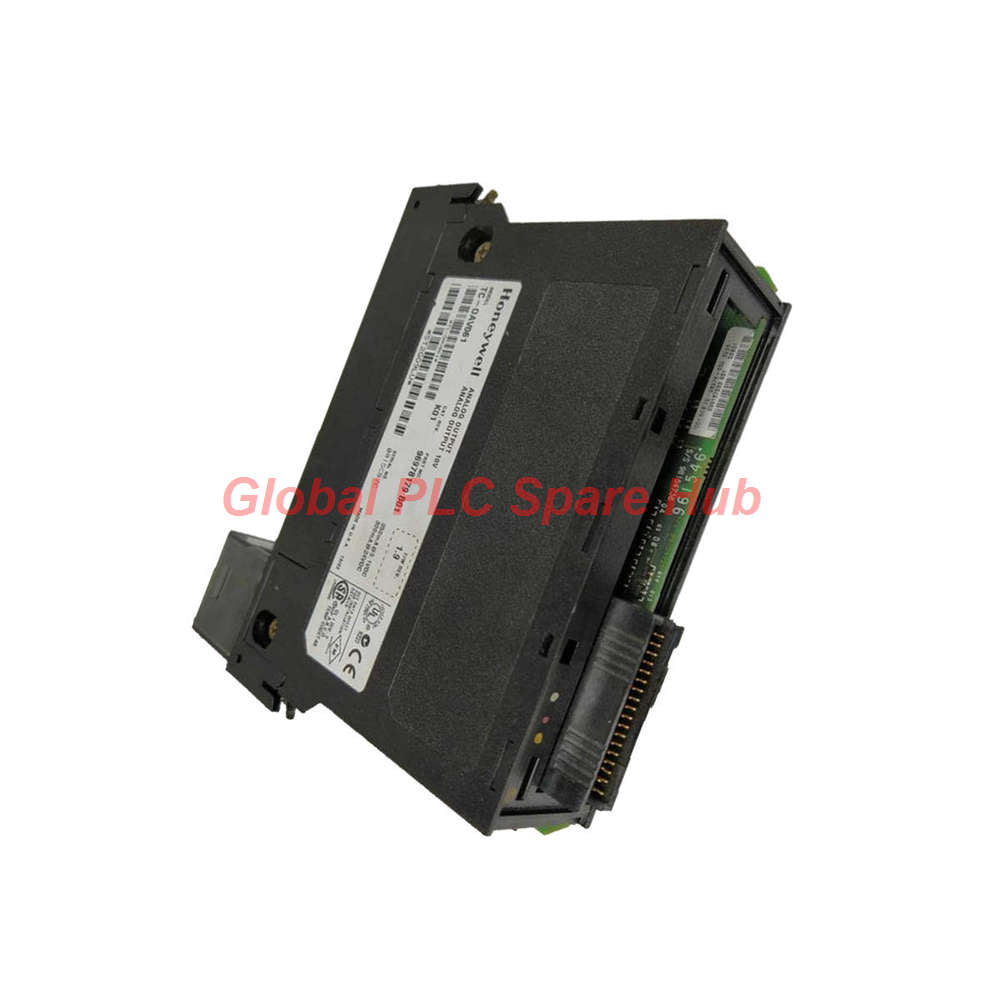

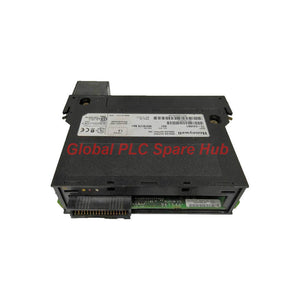

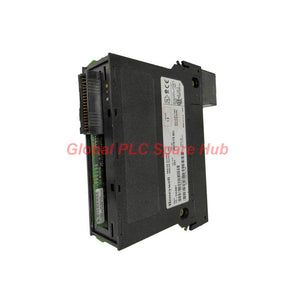

Honeywell TC-OAV061 | 6-Channel Isolated Analog Voltage Output Module

The Honeywell TC-OAV061 is a six-channel analog output module designed to provide isolated voltage signals for compatible industrial control systems. Each channel supports an output range of ±10.50 VDC, with 14-bit resolution across a 21 V span. The module is specified for loads of 1 kΩ or higher and has an output impedance below 3 Ω.

For control engineers, the key design characteristics are channel-to-channel and user-to-system isolation, fast output settling, electronic short-circuit current limiting, and a 25 ms update rate for all channels. The module connects through the specified TC-TBNH 20-position terminal block. Confirm the host controller, I/O base, terminal-block arrangement, and configuration requirements before ordering.

At a Glance: Signal Performance

Electrical Characteristics That Matter in the Field

• Isolated signal paths: Channel-to-channel and user-to-system isolation are each 100% tested at 2546 VDC for 1 second, according to the supplied specifications. This test rating should not be interpreted as a continuous operating voltage rating.
• Resolution and accuracy: The stated 14-bit resolution provides approximately 1.4 mV per step across the 21 V output span. Calibrated accuracy is better than 0.1% of range at 25°C.
• Low output impedance: An impedance below 3 Ω supports voltage signal delivery to compatible loads. The specified output range applies to loads of 1 kΩ or higher.
• Fast response: Settling to 95% of the final value takes less than 2 ms with resistive loads, while the module update rate for all channels is 25 ms. These are different performance measures and should not be treated as interchangeable.
• Output protection: The module provides continuous electronic current limiting for output short circuits. The stated overvoltage protection is 24 VAC/VDC continuous at room temperature; observe the manufacturer's wiring and fault-handling requirements.

Typical Control Applications

When installed in a compatible Honeywell control platform, the TC-OAV061 can supply analog voltage references to equipment that accepts the specified bipolar voltage signal. Actual use depends on the host system configuration and the receiving device's input requirements.

Compatibility reminder: The supplied specifications do not identify the exact host controller or I/O family. Verify the Honeywell system model, supported module list, firmware or configuration requirements, and terminal-block compatibility before selecting this part.

Installation & Commissioning: Engineer's Checklist

1. Check the hardware identity. Confirm the TC-OAV061 label and verify that the host system documentation specifies this module.
2. Verify the terminal block. Confirm the TC-TBNH 20-position terminal block and check the terminal assignments against the correct wiring diagram.
3. Review the receiving load. Ensure each connected device accepts the intended voltage range and presents a load of at least 1 kΩ, as specified.
4. Inspect isolation and grounding. Follow the approved system design for signal returns, shielding, and grounding. Do not bridge isolated channels through external wiring unless the design permits it.
5. Check output scaling. Verify the engineering-unit range, polarity, zero point, and full-scale command in the controller configuration.
6. Test the signal safely. Where permitted by the site procedure, compare the configured command with a calibrated meter reading at the designated test point before connecting or enabling the final load.
7. Confirm system behavior. Check the controller's module status, channel values, alarms, and receiving-device response before returning the loop to normal service.

Diagnostic Guide: From Symptom to Likely Cause

Important diagnostic limit: The supplied specification states that open-circuit detection is not provided. Therefore, do not assume the module will automatically identify a disconnected load. Use controller-side monitoring, external feedback, or a suitable measurement procedure if the application requires open-circuit detection.

Global PLC Spare HUB's Insight

For the TC-OAV061, the most important selection checks are the bipolar voltage range, minimum load impedance, isolation requirements, and terminal-block match. A six-channel output count alone is not enough to confirm suitability.

• When replacing an existing unit: Match the full part number and verify the host system's supported hardware list.
• When diagnosing poor control performance: Compare the commanded voltage, measured voltage, and receiving-device response. This helps separate scaling errors from wiring or module faults.
• When using isolated channels: Check the complete field wiring. External commons or grounded instruments can unintentionally create connections between circuits that are intended to remain isolated.
• When planning procurement: Confirm the TC-TBNH terminal block, unit condition, warranty, availability, and delivery timing before scheduling a shutdown or replacement.

Supply, Warranty & Shipping

• Product: Honeywell TC-OAV061 Analog Output Module
• Configuration: 6-channel isolated voltage output, ±10.50 VDC
• Condition: New and original factory packing, subject to stock confirmation
• Warranty: 12 months, subject to confirmed sales terms
• Shipping: FedEx, UPS, and DHL options
• Availability: Contact Global PLC Spare HUB for current stock, quotation, and estimated delivery.

Frequently Asked Questions

Q1: Can I use the TC-OAV061 to drive a 500 Ω input?

A: The supplied output specification is for loads of 1 kΩ or higher. A 500 Ω load falls outside that stated condition, so do not assume correct operation. Check the official hardware documentation or use an output device rated for the receiving load.

Q2: Is the 14-bit resolution the same as the module's total accuracy?

A: No. Resolution describes the smallest nominal output step, approximately 1.4 mV across the 21 V span. Accuracy describes how closely the actual output matches the commanded value; the supplied calibrated accuracy is better than 0.1% of range at 25°C. System-level error can also include wiring, measurement, and receiving-device errors.

Q3: What should I check if the output is correct at the terminal but the actuator does not respond properly?

A: Check the actuator's accepted input range, signal polarity, input impedance, common/reference wiring, scaling, and any enable or interlock conditions. If the voltage at the module terminal is correct, investigate the signal path and receiving device before replacing the output module.

Q4: Does galvanic isolation mean the six channels can be wired together freely?

A: No. Isolation is an electrical design feature, not permission to connect channel returns or external grounds arbitrarily. Follow the module's wiring instructions and the control-system grounding design to preserve the intended isolation.

Q5: What details should I send when requesting a replacement quotation?

A: Provide the full model number TC-OAV061, a photo of the installed module label, the host Honeywell control-system model, the terminal-block part number, required quantity, and delivery destination. If replacing a failed unit, include the symptom and measured output values to help clarify whether any associated hardware should also be checked.
