IS220PDIOH1B GE Speedtronic Mark VIe I/O Module
Manufacturer: GE
Product No.: IS220PDIOH1B
Condition： En stock
Product Type: Discrete I/O Pack
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Tiempo estimado de entrega: 12-26 días (Internacional), 3-6 días (Estados Unidos).
Devolución dentro de los 30 días siguientes a la compra. Los aranceles e impuestos no son reembolsables.
Pago Seguro Garantizado

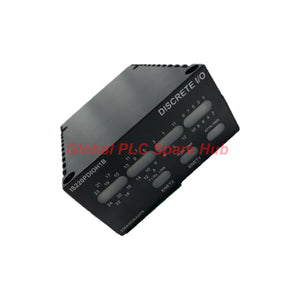

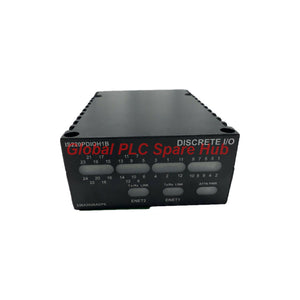

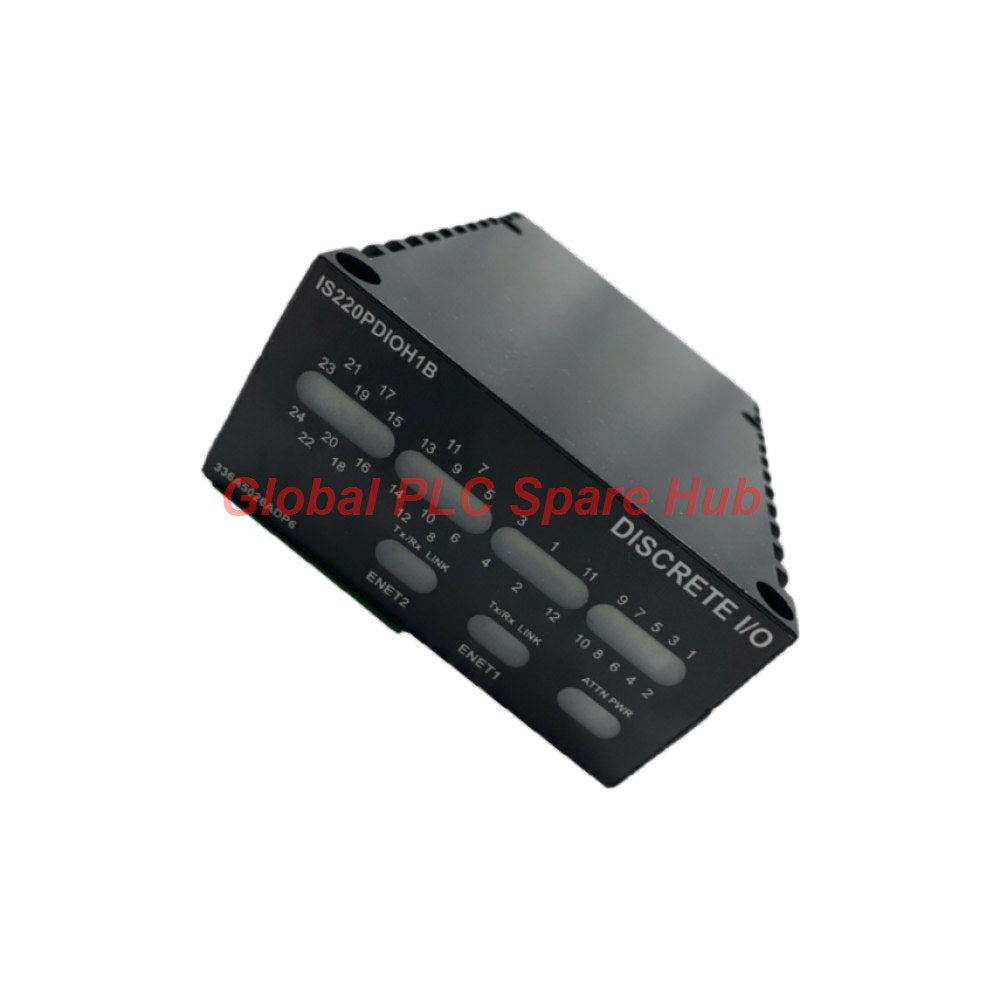

GE IS220PDIOH1B | Mark VIe Discrete I/O Pack
The GE IS220PDIOH1B is a Discrete I/O Pack used in the GE Speedtronic Mark VIe turbine control platform. It provides an interface between the control system and discrete field signals through a compatible terminal board assembly. The pack includes a local processor, data acquisition circuitry, and two Ethernet ports for integration with the Mark VIe control architecture.
For maintenance and retrofit work, correct terminal-board matching is essential. The supported terminal board determines the field wiring arrangement and the applicable signal connections. Confirm the full pack part number, terminal-board model, system configuration, and hazardous-area approval requirements before ordering or installation.
Hardware Profile
| Item | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Part Number | IS220PDIOH1B |
| Product Type | Discrete I/O Pack |
| Control Platform | GE Speedtronic Mark VIe |
| Ethernet Interfaces | 2 ports |
| Nominal Voltage Rating | 28.0 V DC |
| Minimum Voltage Rating | 27.4 V DC, as supplied |
| Contact Voltage Outputs | 32.0 V DC, as supplied; verify the applicable circuit specification |
| Ambient Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Dimensions (W × H × D) | 4.5 × 3.5 × 2.25 in |
| Unit Weight | Less than 2 lb |
| Shipping Weight | Approximately 2.5 lb, as supplied |
| Chassis Style | Vented |
| Front-Panel Indicators | Ethernet status, power, ATTN, and additional relay-related LEDs |
| Terminal-Board Examples | ISx0yTDBSH2A, ISx0yTDBSH8A, ISx0yTDBTH2A, ISx0yTDBTH8A; verify exact compatibility |
| Warranty | 12 months, subject to confirmed sales terms |
Specification note: Values above are based on the supplied product information. Verify electrical limits, terminal assignments, and approved configurations against the applicable GE documentation before commissioning.
How It Fits into the Mark VIe Architecture
The Mark VIe platform uses networked I/O and supports simplex, dual, and triple-redundant control configurations, depending on the system design. The IS220PDIOH1B is used as part of the discrete signal interface in compatible turbine-control installations. The pack's two Ethernet ports, local processing, and acquisition circuitry support communication and signal handling within the control architecture.
- Discrete field-signal interface: Connects compatible field circuits through the specified terminal-board arrangement.
- Networked control integration: Provides Ethernet interfaces for use within the supported Mark VIe architecture.
- Control-system diagnostics: Front-panel indicators and system-level diagnostic tools help maintenance personnel investigate power, communication, and I/O-related faults.
- Terminal-board dependency: Wiring and signal availability depend on the selected accessory board and the approved configuration.
Application Areas
| Equipment or Facility | Potential Application |
|---|---|
| Gas turbine control systems | Discrete I/O interfacing within compatible GE Mark VIe Speedtronic installations. |
| Steam turbine control systems | Signal interfacing in supported turbine-control configurations. |
| Power generation plants | Maintenance and lifecycle support for installed Mark VIe control hardware. |
| Industrial turbine-driven equipment | Control-system signal handling where the original equipment design specifies this pack. |
| Existing Mark VIe installations | Replacement of a failed or aging I/O pack after part-number and terminal-board verification. |
Compatibility is configuration-specific. Do not assume that the pack is suitable for every turbine or every Mark-series system. Confirm the control platform, terminal board, field circuit type, and required approval documentation before purchase.
Terminal Boards and Field Wiring
The supplied information identifies several TDBS and TDBT terminal-board families as examples of associated hardware. These are not interchangeable by assumption. The exact terminal-board suffix and hardware revision should be checked against the installed system's documentation.
- Confirm the full terminal-board part number before placing an order.
- Check whether the installation uses the stated 24 field terminals associated with the specified TDBS or TDBT arrangements.
- Follow the approved wiring diagram for positive and negative terminals. The supplied information identifies positive terminals as contact-wetting inputs; verify the complete terminal mapping in the applicable drawing.
- Use the specified wire size, stripping method, and screw torque. Incorrect termination can cause intermittent signals, excess resistance, or terminal damage.
- For hazardous-area applications, verify that the complete pack and terminal-board combination has the required approval for the intended location. Do not infer certification from the pack number alone.
Field Diagnostics: A Practical Fault-Isolation Sequence
The IS220PDIOH1B has front-panel status indicators, but the meaning of each indicator and the diagnostic messages available depend on the installed hardware and Mark VIe configuration. Use the system's supported ControlST tools and the applicable GE documentation to interpret faults.
| Symptom | Checks for Maintenance Personnel |
|---|---|
| No power indication | Measure the supply at the designated points, check the supply wiring and protection devices, and inspect connector seating. Compare the measured voltage with the approved hardware specification. |
| Ethernet communication fault | Inspect both network connections, cable condition, switch-port status, and network configuration. Review system diagnostics to determine whether the fault is local or network-wide. |
| Discrete signal does not change state | Check the field device, terminal-board wiring, common connections, signal polarity, and the expected input or output behavior. Compare the observed state with the controller's diagnostic view. |
| Intermittent field signals | Inspect terminal torque, conductor condition, grounding and noise sources, supply stability, and event timestamps. Look for correlation with vibration, temperature, or switching activity. |
| Pack fault or ATTN indication | Record the LED state and associated alarm message. Review ControlST or the installed system's diagnostic interface before reseating or replacing hardware. |
| Fault persists after replacement | Recheck terminal-board compatibility, wiring, controller configuration, network connections, and the replacement part number. A persistent alarm may originate outside the I/O pack. |
Maintenance recommendation: Save the alarm history and record the original LED states before removing the installed unit. This helps distinguish a hardware failure from a field wiring, network, configuration, or external-device problem. Perform work under the site's approved isolation and turbine-maintenance procedures.
Global PLC Spare HUB Review
For the GE IS220PDIOH1B, successful replacement depends on more than matching the product family. The pack must be suitable for the installed Mark VIe configuration, and the associated terminal board must match the field wiring and approval requirements.
- Before purchase: Compare the complete part number and revision with the existing unit's label.
- Before installation: Confirm the terminal-board model, wiring diagram, supply requirements, and network connections.
- During troubleshooting: Record power and Ethernet LED states alongside the system alarm history. Avoid replacing the pack based on a single symptom.
- For critical equipment: Confirm stock status, condition, warranty coverage, and delivery timing early enough to support the planned maintenance window.
GE Mark VIe electronics have a long installed base, and some components may be difficult to source as systems age. The supplied product information notes that the electronics technology is obsolete; confirm current product status and sourcing details with the supplier before planning a retrofit or long-term maintenance strategy.
Supply, Warranty and Delivery
- Product: GE Speedtronic Mark VIe Discrete I/O Pack
- Part Number: IS220PDIOH1B
- Condition: New and original factory packing, subject to stock confirmation
- Warranty: 12 months, subject to confirmed sales terms
- Shipping Options: FedEx, UPS, and DHL
- Availability: Contact Global PLC Spare HUB to confirm stock, lead time, and shipping arrangements.
Frequently Asked Questions
Q1: How can I confirm whether the IS220PDIOH1B is suitable for my existing turbine controller?
A: Check the installed pack's full part number, the Mark VIe system configuration, the terminal-board model, and the hardware documentation. If possible, provide photos of the nameplates and the associated terminal board when requesting a compatibility check.
Q2: Can I replace the I/O pack and keep the existing terminal board and wiring?
A: Only after confirming that the existing terminal board is approved for use with the replacement pack and matches the required signal configuration. Verify terminal assignments, wiring condition, and any hardware-revision requirements before reconnecting field circuits.
Q3: What information should I collect when an Ethernet LED or ATTN indicator shows a fault?
A: Record the exact LED state, controller alarm text, event timestamp, network-port status, and whether other I/O packs are affected. This information helps determine whether the issue is isolated to the pack or relates to network infrastructure, system configuration, or power supply.
Q4: Is the IS220PDIOH1B automatically approved for hazardous locations?
A: No. The supplied information states that certain pack and terminal-board combinations are approved for hazardous locations. Confirm the exact combination, certification documentation, installation method, and site classification before use in a hazardous area.
Q5: What should I verify when buying a replacement for an obsolete Mark VIe installation?
A: Confirm the full part number and revision, terminal-board compatibility, product condition, available documentation, warranty terms, stock status, and expected delivery date. For a scheduled outage, also verify whether the installed control configuration requires additional commissioning or post-replacement checks.
