3BHE032025R0101 ABB PC D235 UNITROL Excitation Control Interface Module

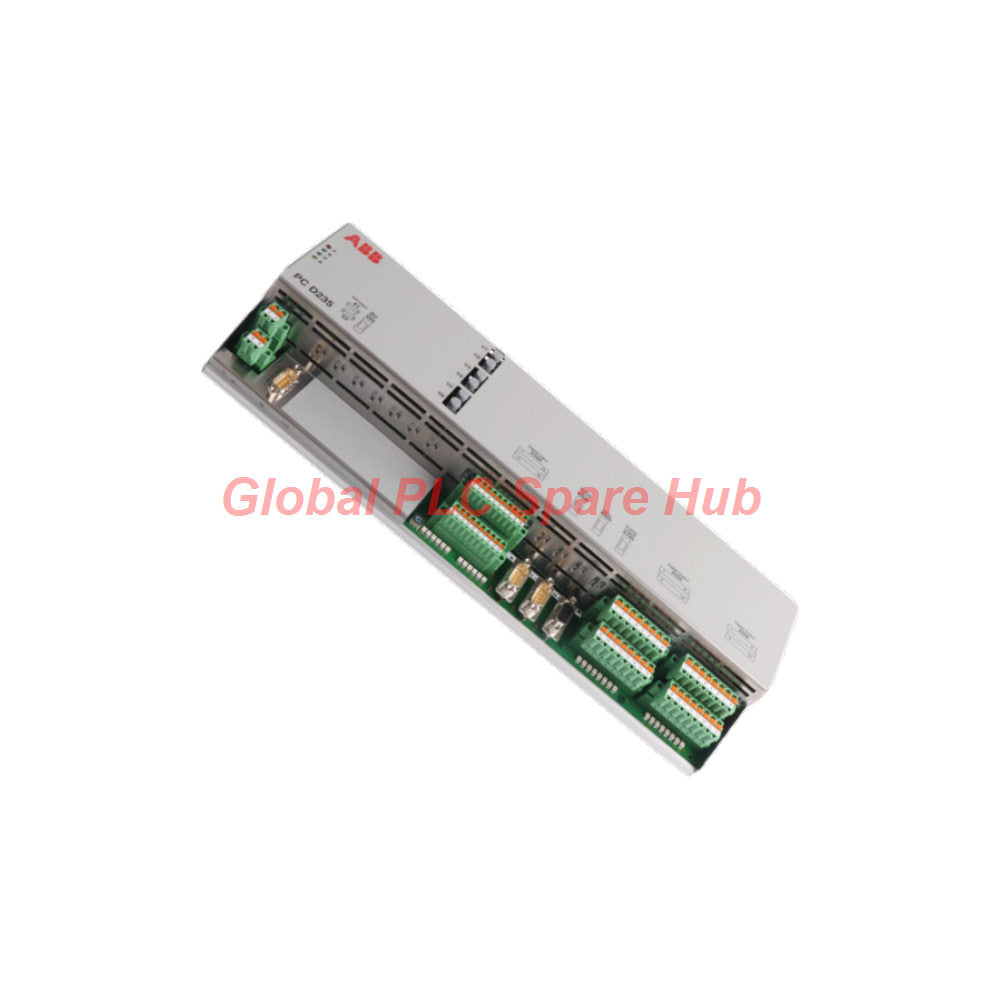

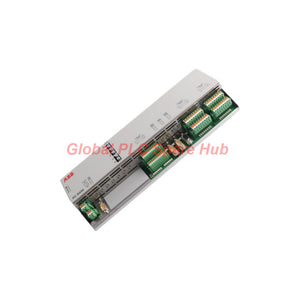

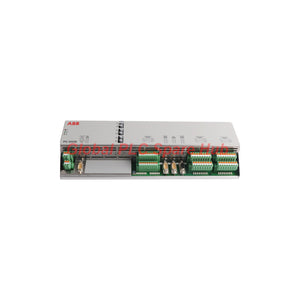

ABB UNITROL PC D235 Exciter Control Module – 3BHE032025R0101

The ABB PC D235, part number 3BHE032025R0101, is identified by ABB as PC D235 A: PEC80-CIO FU. It is associated with the ABB UNITROL excitation control and AC 800PEC control-system families. This module is intended for use in the relevant excitation-control architecture, where correct hardware identification and interface compatibility are essential to system reliability.

For maintenance engineers and plant operators, the key selection point is the exact part number and hardware designation. Before replacement, verify the installed module label, system configuration, electrical interface, firmware requirements, and approved installation documentation. The supplied input-voltage range is 24 V DC to 250 V DC; confirm the applicable connection and voltage requirements against the specific system documentation before energizing the unit.

01 | Hardware Identification & Key Data

02 | Role in an Excitation Control System

Excitation control systems regulate generator field excitation to support terminal-voltage control, reactive-power management, and stable generator operation. A module associated with this control architecture must match the system's hardware design and configured signal interfaces.

• Generator excitation systems: Potential use in compatible ABB UNITROL installations for synchronous generator control.
• Power generation facilities: Relevant to maintenance and lifecycle support for excitation-control equipment in power plants and industrial generating stations.
• AC 800PEC-based installations: Consider for service or replacement work only after confirming the exact controller platform and hardware configuration.
• Control-system refurbishment: May be considered when restoring an existing installation that specifies this exact part number.

Compatibility note: These are application contexts associated with the UNITROL and AC 800PEC product families, not confirmation that this module fits every system in those families. Check the original bill of materials, cabinet drawings, module location, and ABB documentation before ordering.

03 | Installation & Commissioning Checks

1. Confirm the identity. Compare the full part number 3BHE032025R0101 and designation PC D235 A: PEC80-CIO FU with the installed unit and equipment documentation.
2. Isolate the equipment. Follow the plant's approved lockout/tagout procedure and verify electrical isolation before removing or installing hardware.
3. Verify the supply. Check the documented supply voltage, polarity, terminal assignment, and protection requirements. Do not infer the permitted operating voltage from the broad 24–250 V DC range alone.
4. Inspect the installation. Check connectors, terminals, mounting, wiring condition, and signs of heat, corrosion, or mechanical damage.
5. Validate the configuration. Confirm controller compatibility, firmware or configuration dependencies, and any required parameter restoration using the applicable ABB documentation.
6. Commission under the approved procedure. Check system status, active alarms, relevant excitation-control signals, and operating feedback before returning the equipment to service.

04 | Diagnostic Approach for Maintenance Engineers

The exact diagnostic functions available on the PC D235 depend on the installed system architecture and supporting control software. Do not assume that the module provides standalone fault codes or onboard indicators unless these are confirmed in its hardware documentation.

Engineering caution: Excitation-control equipment is part of a safety- and availability-critical power system. Diagnostic work, parameter changes, and functional tests should be performed by qualified personnel under site procedures. Never bypass excitation protections or interlocks to test a suspected module.

05 | Global PLC Spare HUB's Insight

For the ABB PC D235, accurate hardware matching is more important than choosing by the general description “exciter control module.” The designation PC D235 A: PEC80-CIO FU should be treated as a key identification detail alongside part number 3BHE032025R0101.

• For urgent maintenance: Photograph the existing nameplate and connector arrangement, and compare them with the replacement unit before dispatch.
• For legacy installations: Confirm the exact UNITROL or AC 800PEC system version and the module's documented position in the hardware configuration.
• For fault replacement: Record the original alarm, controller status, supply measurement, and wiring checks. A module swap alone may not resolve faults caused by external wiring or system configuration.
• For purchasing teams: Request confirmation of the complete part number, unit condition, packaging, warranty terms, and dispatch schedule before placing the order.

06 | Supply, Warranty & Shipping

• Part Number: 3BHE032025R0101
• Product: ABB UNITROL PC D235 Exciter Control Module
• Condition: New and original factory packing, subject to stock confirmation
• Warranty: 12 months, subject to confirmed sales terms
• Shipping Carriers: FedEx, UPS, and DHL
• Availability: Please inquire to confirm current stock, lead time, and shipping options.

07 | Professional FAQ

Q1: What should I provide to confirm that 3BHE032025R0101 is the correct replacement?

A: Provide the complete nameplate details, the designation PC D235 A: PEC80-CIO FU, the installed system model, and—if available—the cabinet drawing or bill of materials. These details help verify hardware compatibility more reliably than a product description alone.

Q2: Does the stated 24–250 V DC input range mean any voltage in that range can be connected to any terminal?

A: No. The supplied specification does not identify terminal-level requirements or whether the full range applies to a particular connection. Confirm the approved supply terminals, polarity, protection, and voltage limits in the applicable ABB installation documentation before applying power.

Q3: If the controller reports a module fault after replacement, should I immediately replace the new unit?

A: Not immediately. First verify the module identity, seating, supply conditions, connectors, hardware configuration, and system diagnostics. If the fault remains, compare the event log and installation details with the ABB troubleshooting procedure to distinguish a hardware fault from a configuration or external-interface issue.

Q4: Can this module be used as a general-purpose PLC interface module?

A: It should not be selected on that assumption. The supplied designation associates it with the UNITROL / AC 800PEC control environment. Use it only where the system documentation specifies this hardware or confirms its intended function and compatibility.

Q5: What should I confirm before purchasing a unit for a planned shutdown?

A: Confirm the exact part number and type designation, system compatibility, physical dimensions, connector arrangement, condition, 12-month warranty terms, stock status, and delivery estimate. For a critical shutdown, also verify whether any configuration, parameter restoration, or commissioning work will be required after installation.
