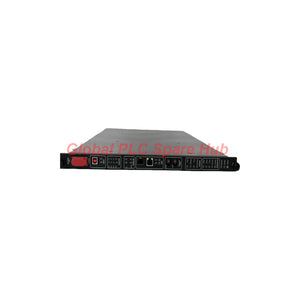

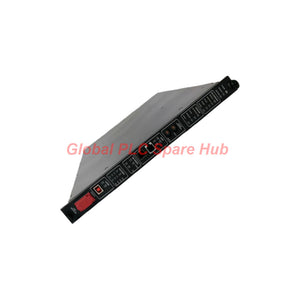

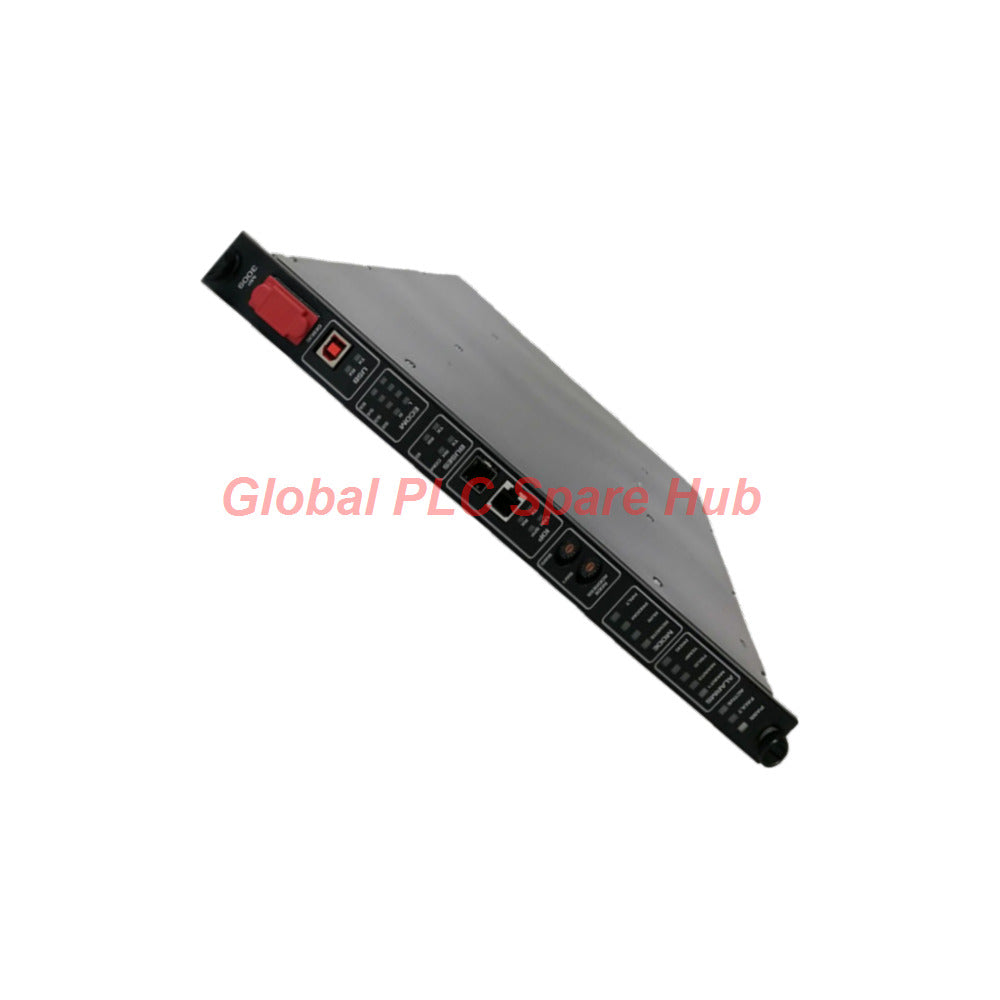

3009 Triconex Enhanced Main Processor UMP Module

3009 | Triconex Enhanced Main Processor (UMP) Module

The Triconex 3009 is an Enhanced Main Processor (UMP) module designed for compatible Triconex control system configurations. It manages processor-level operations and interfaces with the system's TriBus, communication interfaces, and I/O architecture.

Based on the supplied specifications, the module uses a QorIQ P1021 dual-core processor operating at 800 MHz. Its memory architecture includes 256 MB DRAM, 2 MB battery-backed SRAM, and 128 MB Flash PROM. A dedicated optically isolated RS-232 serial interface supports diagnostic analysis using diagread.

For replacement and maintenance projects, the key selection factor is the installed chassis configuration. The specified TriBus speed differs between the 8110 and 8100-1 main chassis and the 8120E Enhanced Performance Main Chassis. Confirm the complete system configuration before selecting a replacement processor.

Processor Architecture at a Glance

• Manufacturer: Triconex
• Model: 3009
• Product type: Enhanced Main Processor (UMP) Module
• Processor: QorIQ P1021, dual core
• Processor frequency: 800 MHz
• L1 cache: 32 KB
• L2 cache: 2 MB
• DRAM: 256 MB, without battery backup
• SRAM: 2 MB, with battery backup
• Flash memory: 128 MB Flash PROM
• Logic power: 14 W

01 | Memory, Clock and Data Retention

The module's memory architecture combines working memory, battery-backed SRAM, and non-volatile flash storage. These memory types serve different purposes and should not be treated as interchangeable when reviewing system behavior or planning maintenance.

Maintenance note: Battery-backed memory and clock functions make battery condition relevant to service planning. Follow Triconex instructions for battery inspection or replacement. Do not remove or replace batteries without checking the approved procedure and the consequences for retained data and clock settings.

02 | TriBus Performance Depends on the Chassis

TriBus provides the processor's internal system communication path. The supplied specification identifies 32-bit CRC protection and a 32-bit DMA interface described as fully isolated. The listed bus speed depends on the installed main chassis.

The 8120E's specified bus rate is substantially higher than the rates listed for the 8110 and 8100-1. However, bus speed alone does not establish full system compatibility. Chassis support, hardware revision, firmware requirements, system configuration, and applicable safety-system documentation must also be checked.

03 | Communication and Diagnostic Interfaces

The 3009 specification identifies separate interfaces for serial diagnostic access, system communication, and I/O communication. Their functions and stated rates should be considered independently.

• Diagnostic serial port: Optically isolated RS-232 interface on one 9-pin connector.
• Serial isolation: 500 V DC, as specified.
• Diagnostic software: diagread diagnostic analysis.
• Communication interface: RS-485, specified baud rate of 2 Mbps.
• I/O interface: RS-485, specified baud rate of 375 Kbps.
• TriBus data integrity: 32-bit CRC protection, as specified.

Do not assume the RS-485 communication interface and the RS-485 I/O interface share the same wiring, protocol configuration, or connection points. Confirm the intended interface and pin assignment from the relevant Triconex hardware documentation before connecting external equipment.

04 | Applications and System Context

The Triconex 3009 is relevant to maintenance and replacement projects involving compatible Triconex control system installations. The actual application depends on the system architecture, approved configuration, and associated safety documentation.

• Industrial process control: Processor-level support in compatible control architectures used in continuous process facilities.
• Oil and gas installations: Maintenance of installed Triconex control equipment where the processor is specified for the existing system.
• Petrochemical plants: Replacement planning for compatible processor hardware in established control cabinets.
• Power and utility facilities: Spare-parts planning for supported control-system installations.
• System maintenance: Processor replacement, hardware identification, and diagnostic investigation under approved maintenance procedures.
• Lifecycle support: Procurement of a specified processor for an existing installation after chassis and revision checks.

This application list describes potential industrial contexts rather than certification for a particular safety function. The exact system role, safety integrity requirements, and permitted replacement procedure must be confirmed against the approved project design and manufacturer documentation.

05 | Diagnostic Workflow for Maintenance Engineers

When investigating processor-related problems, separate the symptoms into chassis communication, serial diagnostic access, timekeeping, and system configuration. A processor fault should not be assumed until the associated power, chassis, and interface conditions have been checked.

• Diagnostic serial connection fails: Verify the correct 9-pin RS-232 interface, cable, port settings, and diagread procedure. Do not substitute an RS-485 connection or assume that the two interfaces are interchangeable.
• Communication problems occur on the chassis bus: Identify the exact main chassis model and compare it with the applicable TriBus specification. Check approved seating, power, and system status procedures before replacing the processor.
• System behavior changes after a processor replacement: Confirm the replacement model, hardware revision, firmware requirements, application configuration, and chassis compatibility.
• Event timestamps appear inaccurate: Check the clock-calendar settings, battery condition, and system time-synchronization arrangements. Consider the specified clock drift when reviewing long-duration records.
• Retained data or clock behavior is abnormal: Review battery-related maintenance history and the approved retention procedure. Avoid removing power or changing batteries without understanding the system's retention requirements.
• Intermittent system communication: Review system diagnostics and available status indications, then check the documented bus and interface configuration. Record fault codes and operating conditions before changing hardware.

Diagnostic capability boundary: The supplied specifications confirm a diagnostic RS-232 port for diagread and identify the TriBus protection method. They do not provide a complete list of fault codes, LEDs, online diagnostic coverage, or per-channel diagnostic functions. Use the relevant Triconex diagnostic manual for those details.

06 | Replacement and Procurement Checklist

Before ordering a replacement main processor, verify the items below. This is especially important when the original hardware is installed in a running industrial control system.

• Model identification: Confirm that the installed part number is 3009.
• Chassis model: Identify whether the system uses an 8110, 8100-1, 8120E, or another configuration requiring separate verification.
• Hardware revision: Record the installed revision and check applicable replacement guidance.
• Firmware and application: Confirm approved versions, configuration requirements, and the authorized transfer or restoration procedure.
• Battery-backed functions: Review the clock and SRAM retention requirements before maintenance.
• Interface requirements: Identify the required serial diagnostic connection and external communication interfaces.
• System authorization: Follow the site's change-management, validation, and safety-system maintenance procedures.

Do not assume that a processor with a similar appearance or product description is a direct substitute. Verify compatibility through the manufacturer's documentation or an authorized engineering review.

07 | Global PLC Spare HUB's Insight

For the 3009 Enhanced Main Processor, the chassis model is one of the first details to verify. The supplied TriBus figures vary significantly between the standard and enhanced-performance chassis, so a replacement decision should not rely on the part number alone.

For maintenance projects, we recommend providing the complete module label, chassis model, hardware revision, and any known firmware or configuration requirements when requesting a quotation. If the module is being replaced after a fault, include the diagnostic messages and the circumstances under which the fault occurred.

Global PLC Spare HUB supports industrial automation spare-parts sourcing and model verification for maintenance and repair projects. Our team can review the available identification details and help clarify the information needed for a compatibility check.

08 | Warranty, Shipping and Supply

• Product: Triconex 3009 Enhanced Main Processor (UMP) Module
• Warranty: 12 months, subject to the agreed warranty terms and confirmed product condition.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch timing: Typically arranged within 24–48 hours after stock and payment confirmation, where available.
• Before purchase: Confirm availability, product condition, hardware revision, lead time, and shipping charges with our sales team.

09 | Frequently Asked Questions

Q1. Can the 3009 be installed in an 8120E chassis if the existing system uses an 8110?

Do not assume that a chassis upgrade is a direct processor swap. The specified TriBus rates differ, and chassis compatibility may depend on approved hardware revisions, firmware, system configuration, and engineering requirements. Confirm the complete configuration against the applicable Triconex documentation before changing chassis or processor hardware.

Q2. What should I record before removing a processor from an operating system?

Record the full part number, hardware revision, chassis model, active diagnostic messages, and relevant configuration information. Follow the site's approved shutdown, backup, replacement, and validation procedures. Because this is processor hardware for a control system, removal should be managed by qualified personnel under the site's change-control requirements.

Q3. Does the 500 V DC serial isolation rating mean any RS-232 adapter can be used?

No. The isolation rating does not establish compatibility with every adapter, cable, pinout, or diagnostic tool. Use the specified RS-232 interface and the documented connection method for diagread. Check the cable wiring and interface requirements before connecting a laptop or diagnostic device.

Q4. How should I investigate a clock drift or timestamp mismatch?

Compare the processor's clock with the site's reference time, review the configured time-synchronization method, and check the battery-backed clock requirements. The supplied figures list typical drift of ±2 seconds per day and maximum drift of ±2.16 seconds per day. Investigate time-source and configuration issues before concluding that the processor is defective.

Q5. What information helps determine whether a replacement 3009 is suitable?

Provide the installed module's nameplate photo, full part number, chassis model, hardware revision, firmware or configuration requirements where known, and the fault or maintenance context. These details support a more reliable compatibility review than the model number alone.

Request a Quote for Triconex 3009

Looking for a Triconex 3009 Enhanced Main Processor for maintenance or replacement? Contact Global PLC Spare HUB with the part number, chassis details, required quantity, and delivery destination. Request a quotation for availability, lead time, shipping options, and compatibility review.
