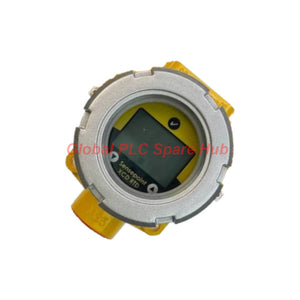

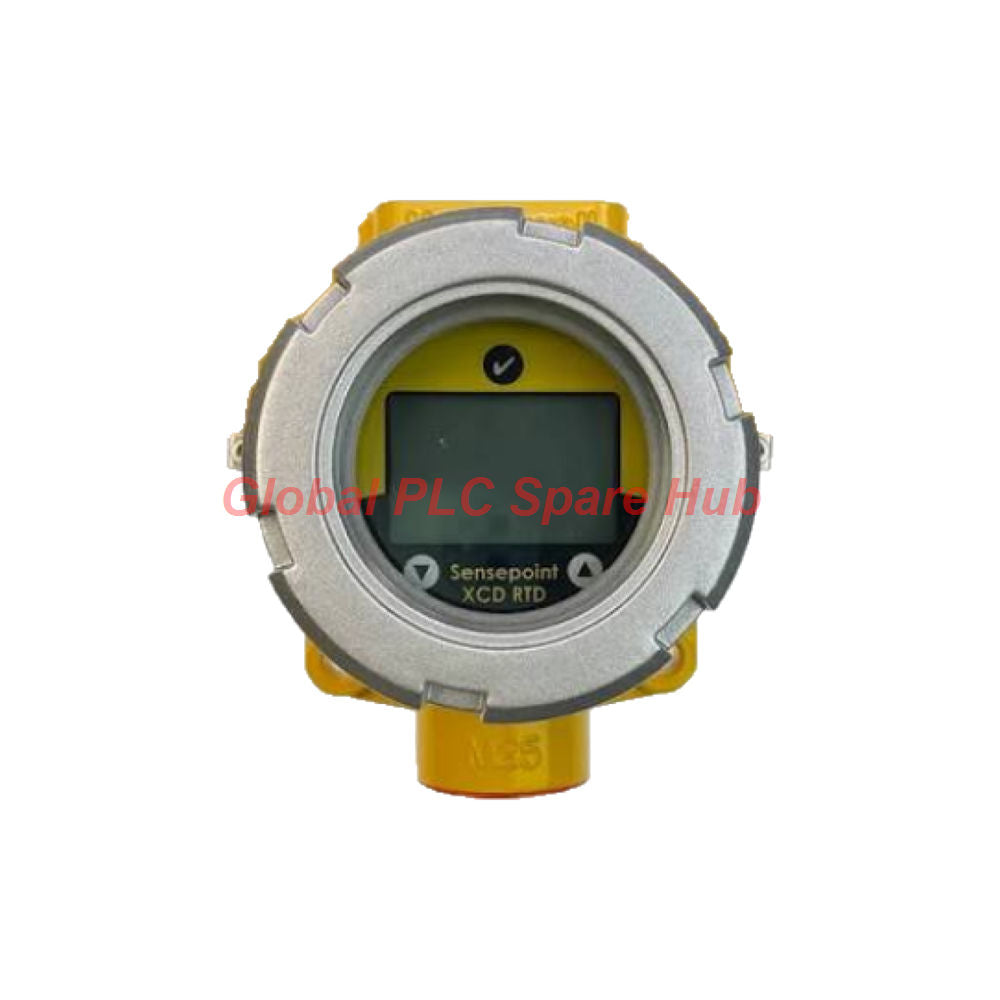

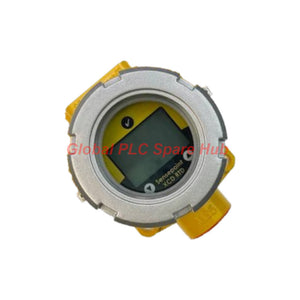

SPXCDULNFX Honeywell Sensepoint XCD Flammable Gas Detector

Overview

Engineered for reliable combustible gas monitoring in hazardous areas, the SPXCDULNFX detector represents a robust variant of the Sensepoint XCD series by Honeywell. Integrated with a pre-installed catalytic bead sensor for methane detection (0-100% LEL), this SPXCDULNFX unit operates across a voltage range of 12 to 32 VDC. Built within an epoxy-painted LM25 aluminum alloy housing rated at IP66, it provides precise 4-20 mA analog feedback and flexible SPDT relay integration for mission-critical industrial safety loops.

Technical Specification Matrix

Mechanical Installation Protocol

• Mount the SPXCDULNFX securely onto flat surfaces using the integral mounting plate with four M8 bolt holes, or utilize an optional pipe mounting kit.
• Route incoming power and signal cables through the two 3/4" NPT conduit entries, ensuring proper sealing to maintain the IP66 rating.
• Verify that the DC supply voltage stays within the 12 to 32 VDC window while accounting for the 800 mA maximum inrush current draw.
• Ground the enclosure properly to prevent electromagnetic interference from disrupting the analog output loop.

Commissioning and Operational Maintenance

• Configure the selectable sink or source 4-20 mA output wiring to match your centralized control system or safety PLC architecture.
• Test the three SPDT relays (5 A at 250 VAC) during loop verification to confirm that alarm and fault conditions trigger correctly.
• Inspect the catalytic bead sensor element periodically for poisoning or performance degradation in aggressive chemical environments.
• Store spare units within the safe temperature range of -25 °C to 65 °C when not deployed in active service.

System Compatibility and Integration

• Fully compatible with standard analog control panels and safety instrumented systems accepting 4-20 mA current loops.
• Interfaces seamlessly with external emergency shutdown systems and visual beacons via its dedicated SPDT fault and alarm relays.
• Designed for direct drop-in integration into existing brownfield industrial gas detection networks.

Fulfillment, Warranty, and Logistics

• Package Contents: One SPXCDULNFX gas detector unit with pre-installed catalytic sensor and installation guide.
• Warranty Coverage: Backed by an exhaustive 12-month replacement and repair warranty covering manufacturer defects.
• Shipping Logistics: Expedited global dispatch within 24-48 hours via FedEx, UPS, and DHL.

Target Industrial Applications

• Oil and gas upstream production facilities and downstream tank farms.
• Chemical manufacturing plants processing combustible hydrocarbons.
• Water and wastewater treatment anaerobic digestion plants.
• Industrial battery charging rooms and hydrogen storage facilities.

Advanced Diagnostic Architecture

• Dedicated fault relay provides immediate hardware-level notification of internal sensor or power supply failures.
• Continuous loop monitoring safeguards against open circuits and signal distortion across long cable runs.
• Transient voltage suppression protects internal circuitry from electrical spikes during high inrush cycles.

Frequently Asked Questions (FAQ)

What type of sensor is included with the SPXCDULNFX detector?

The unit comes equipped with a pre-installed catalytic bead sensor optimized for detecting flammable gases like methane across a 0-100% LEL range.

Does this specific model support digital communication protocols like Modbus?

No, the SPXCDULNFX provides traditional analog 4-20 mA output signals and discrete relay contacts, and does not support Modbus communication.

How are alarm and fault conditions signaled externally?

It utilizes three SPDT relays rated at 5 A and 250 VAC, configured specifically as two independent alarm outputs and one dedicated fault output.

What is the purpose of managing the 800 mA inrush current?

The 800 mA maximum inrush current rating at 24 VDC must be accounted for when sizing your DC power supply distribution breakers to prevent inadvertent low-voltage dropouts during startup.

What factors should I evaluate when selecting a gas detector for outdoor hydrocarbon service?

When purchasing safety monitors, always verify that the enclosure material (such as epoxy-painted LM25 aluminum), environmental rating (IP66), and operating temperature range (-40 °C to 65 °C) align with your site's weather extremes and explosion-proof requirements.

Global PLC Spare HUB's Insight & Field Experience

Deploying catalytic bead gas detectors like the SPXCDULNFX in heavy industrial process areas often introduces challenges related to sensor poisoning and signal calibration drift. During a recent petrochemical facility upgrade, our engineering team noticed sluggish response times on a detector positioned near heavy silicone-based lubricant vapors. Investigation confirmed that airborne silicone compounds had coated the catalytic bead active sites, degrading its sensitivity. By replacing the sensor cartridge and relocating sample intake monitoring away direct chemical mist paths, we restored full 0-100% LEL measurement accuracy and ensured continuous SIL loop compliance.
