SM812 ABB Safety Supervisor Module AC800M Controller Unit | Buy Now
Manufacturer: ABB
Product No.: SM812
Condition： En stock
Product Type: Safety Supervisor Module
Product Origin: SE
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Tiempo estimado de entrega: 12-26 días (Internacional), 3-6 días (Estados Unidos).
Devolución dentro de los 30 días siguientes a la compra. Los aranceles e impuestos no son reembolsables.
Pago Seguro Garantizado
Executive Overview & Safety Architecture

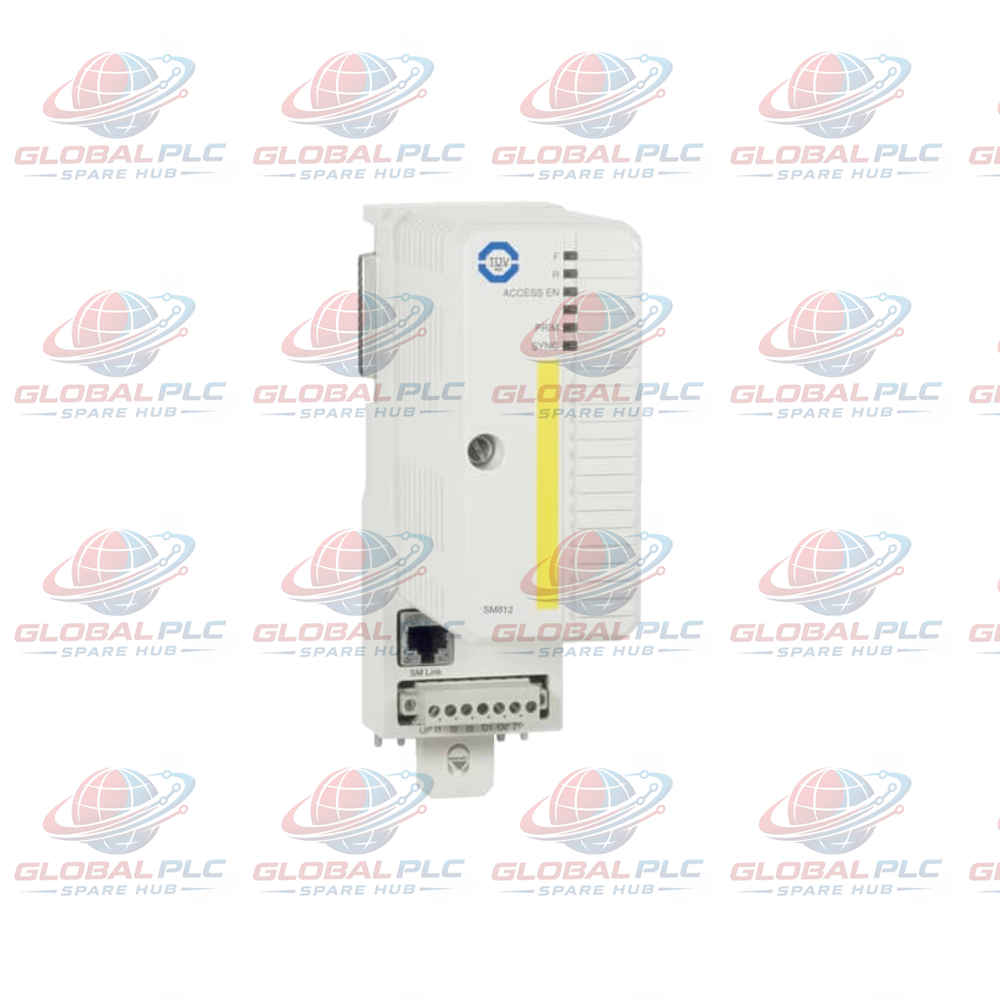

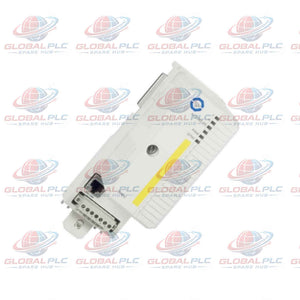

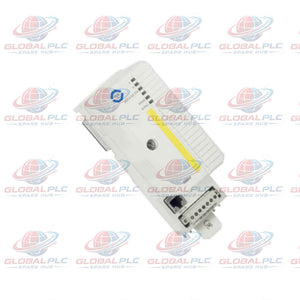

The ABB SM812 operates as a high-integrity safety supervisor module engineered for ABB controller architectures. Its primary function is to provide intelligent supervision during non-SIL and SIL1-2 operations, and to form a 1oo2 diverse structure with PM867 CPUs for SIL3 applications. Engineers deploy the SM812 to ensure fail-safe operation in critical industrial loops. Global PLC Spare HUB supplies this certified safety unit to support robust plant automation protection.
Technical Blueprint & Hardware Specifications
| Technical Parameter | Operational Specification |
|---|---|
| Brand | ABB (Compatible with AC800M System) |
| Model Number | SM812 |
| Article Number | 3BSE072270R1 |
| Processor & Memory | MPC866 Microprocessor at 133 MHz, 64 MB RAM, 4 MB Flash PROM |
| Controller Compatibility | Supervision for PM857, PM863, and PM867 controllers |
| Power Supply & Dissipation | 24 V DC (19.2-30 V DC); Current: 160/250 mA; Dissipation: 3.8 W |
| Switch-Over Time (Redundancy) | Maximum 10 ms in redundant configuration |
| Environmental & Protection | IP20 rating, G3 corrosive protection (ISA 71.04), Operating temp: +5 to +55 °C |
| Physical Dimensions & Weight | Width: 59 mm, Height: 186 mm, Depth: 127.5 mm; Weight: 0.7 kg (1.5 lbs) |
Deployment Protocol & Synchronization Guide
- Mount the unit onto the standard control rack enclosure, ensuring proper clearance for the 59 mm module width.
- Connect the dedicated SM Link between redundant SM812 pairs to enable active-to-redundant synchronization data copying.
- Wire safety-related digital I/O devices to the integrated connector featuring three digital inputs and two digital outputs.
- Verify that the 24V DC power supply meets the 19.2 to 30 V DC operating range before energizing the backplane.
- Confirm that controller firmware revisions match across CPU and supervisor modules to support smooth hot-insert procedures.
Diagnostic Capabilities & System Monitoring
- Over-Voltage Monitoring: Continuously checks rail stability to prevent logic corruption during power transients.
- Internal Voltage Tracking: Monitors onboard power conversion circuits for early degradation detection.
- Redundancy Handshaking: Dedicated synchronization links manage smooth data handover during online upgrades and hot-swap tasks.
- Fault Reporting: Communicates diagnostic flags directly to the primary controller environment for fast troubleshooting.
Safety Certifications & Compliance Matrix
- TUV Approval: Fully certified for high-integrity safety applications up to SIL3 thresholds.
- Hazardous Location Ratings: cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X compliance.
- Marine Certifications: Approved by ABS, BV, and DNV-GL for offshore marine installations.
- Electrical Safety Standards: Conforms to EN 50178, IEC 61131-2, and UL 61010-1 specifications.
Target Equipment & Industrial Application Sectors
- Emergency Shutdown Systems (ESD): Managing critical safety loops in oil refineries and petrochemical plants.
- Burner Management Systems (BMS): Providing diverse 1oo2 architecture for high-risk furnace control.
- Offshore Production Platforms: Overseeing safety instrumented systems in harsh corrosive marine environments.
- Chemical Processing Plants: Protecting high-pressure reactor loops requiring SIL3 integrity ratings.
Fulfillment, Logistics & Warranty Framework
- Processing Speed: In-stock safety modules are processed, tested, and dispatched within 24 to 48 hours.
- Global Carriers: Expedited international shipping handled through trusted partners FedEx, UPS, and DHL.
- Warranty Terms: Covered by a comprehensive 12-month replacement warranty backed by Global PLC Spare HUB.
Global PLC Spare HUB's Insight & Buying Guide
- Field Engineering Insight: When performing an online upgrade or hot-insert of a redundant SM812 pair, ensure the SM Link cable is securely locked before initiating data copying. A loose synchronization link will halt the memory transfer state and trigger a safety controller mismatch alarm.
- Selection Guidance: Verify whether your safety loop requires SIL1-2 supervision or a full SIL3 1oo2 diverse architecture. While the module supports PM857 and PM863 for lower SIL ratings, achieving SIL3 requires pairing with a PM867 controller.
Frequently Asked Questions
Q: What is the primary role of the ABB SM812 module in a control rack?
A: It provides intelligent controller supervision during non-SIL and SIL1-2 operations, and forms a diverse 1oo2 structure with PM867 CPUs for SIL3 safety loops.
Q: Can this safety supervisor module operate in redundant configurations?
A: Yes, it supports high availability setups with redundant SM812 units working alongside dual CPUs, utilizing a dedicated synchronization link for hot-swap operations.
Q: What are the integrated digital I/O channels used for?
A: The onboard connector provides three digital inputs and two digital outputs dedicated strictly to safety-related internal logic functions rather than standard process I/O.
Q: What is the maximum switch-over time during redundancy failover?
A: The module maintains a maximum switch-over time of 10 milliseconds in a redundant configuration.
Q: What corrosion protection rating does this hardware possess?
A: It features G3 corrosive gas compliance according to the ISA 71.04 standard, making it well-suited for harsh industrial atmospheres.
