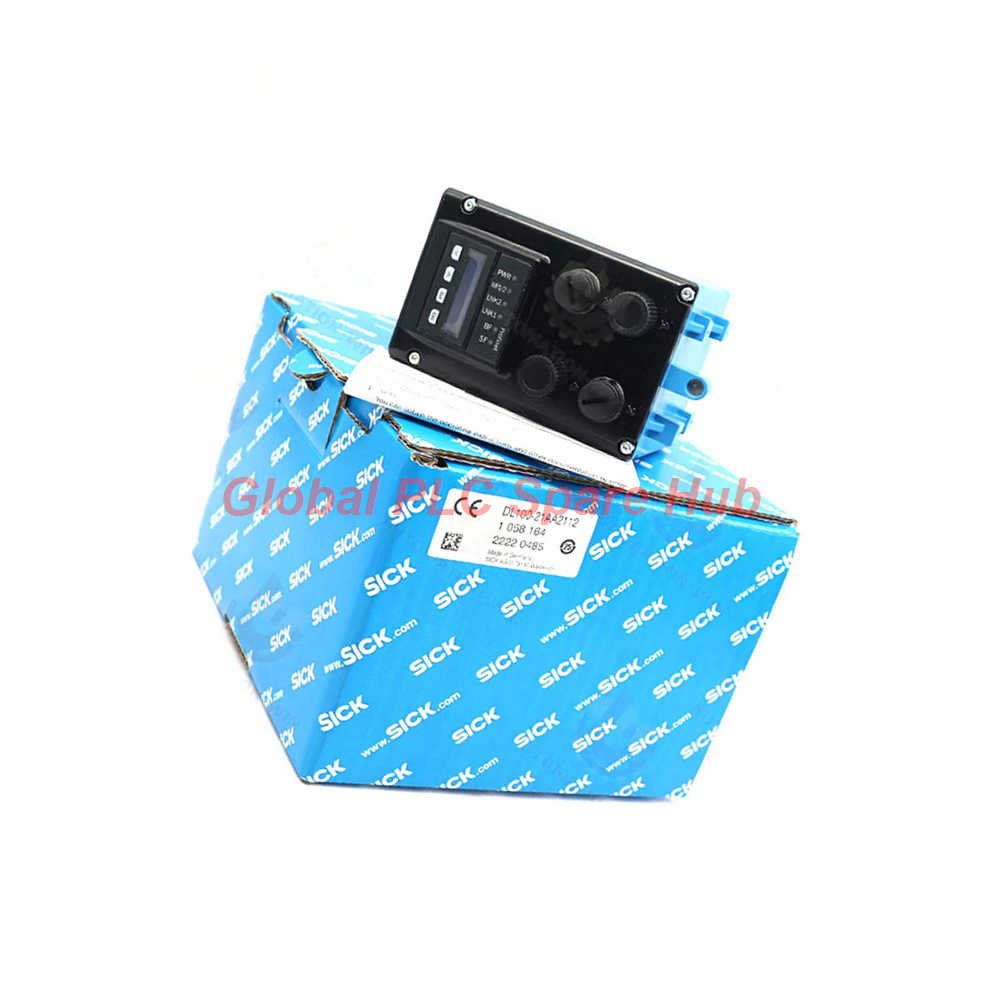

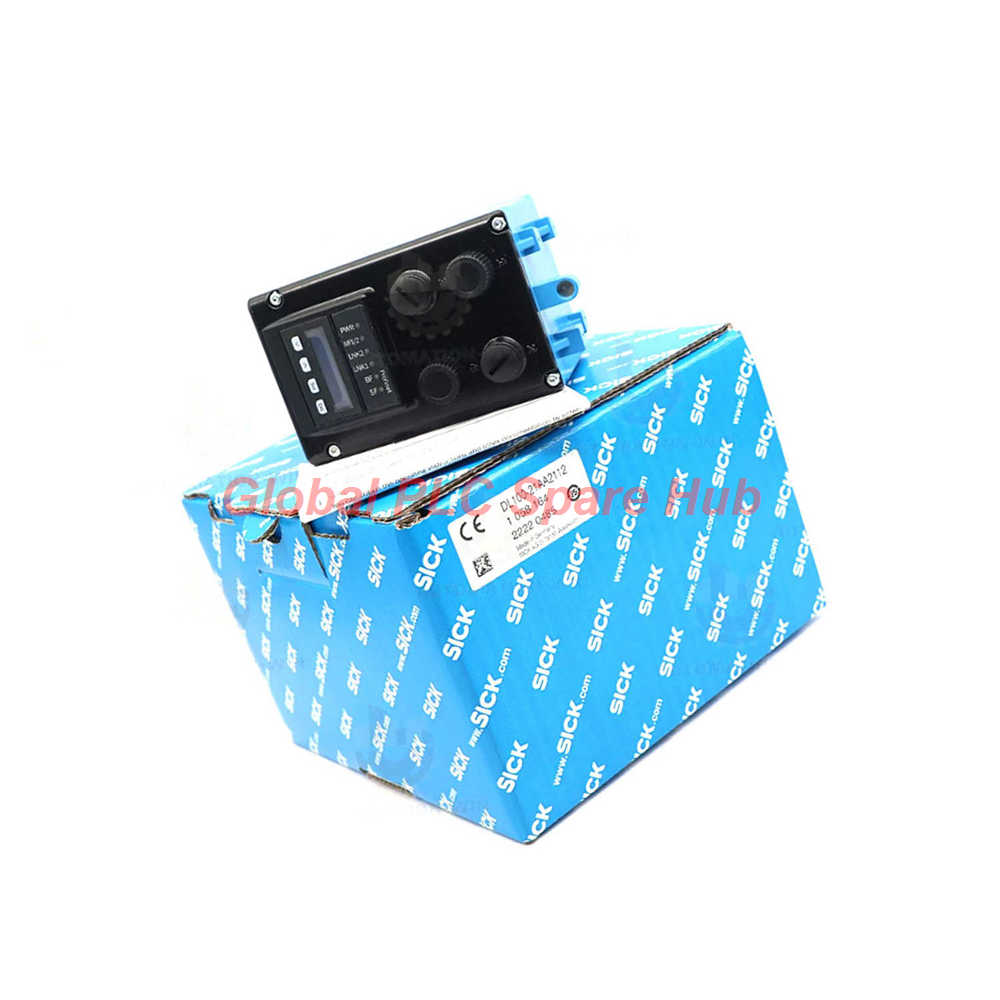

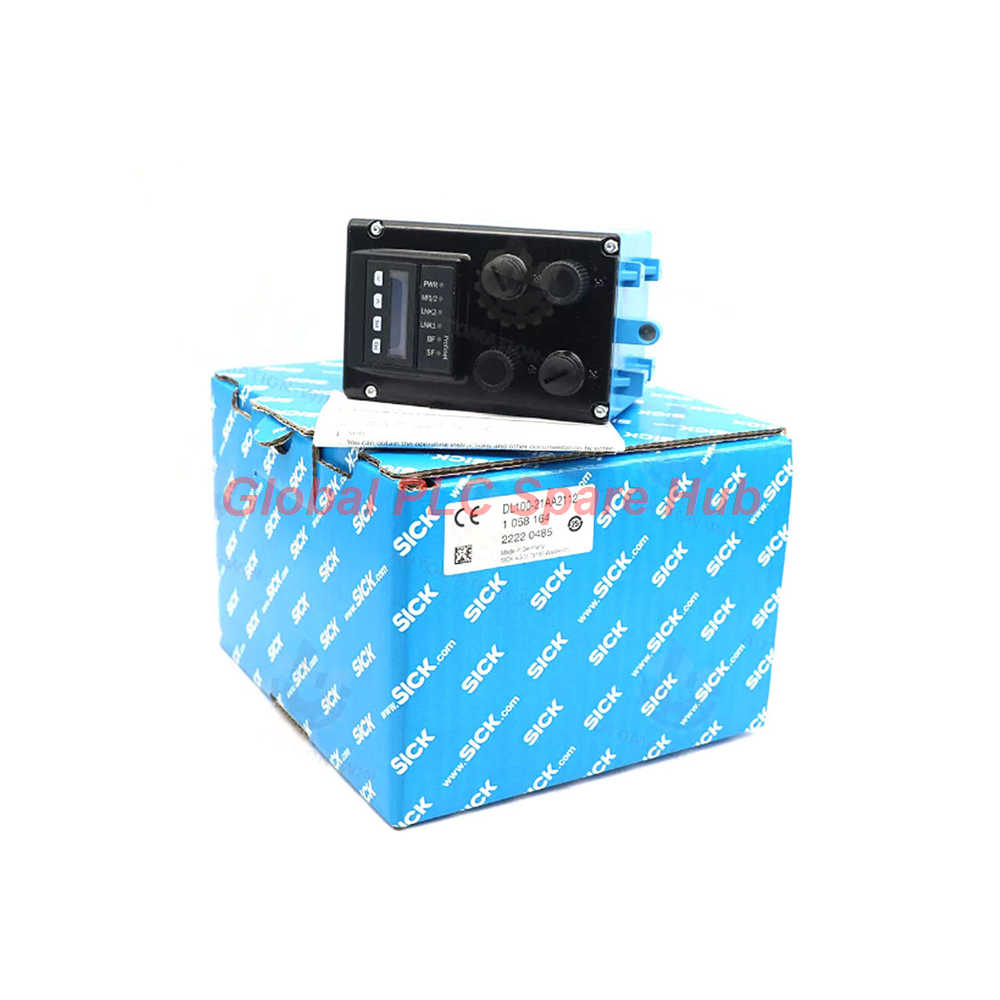

SICK DL100-21AA2112 Dx100 Distance Sensor PROFINETMeasuring Device

Executive Summary & Sensing Architecture

The DL100-21AA2112 time-of-flight distance sensor from the Dx100 series engineers high-speed, long-range linear positioning for demanding automated logistics floors. Leveraging advanced optical time-of-flight technology paired with visible red laser diodes, this instrument captures high-accuracy coordinate data over distances up to 100 meters on reflective targets. Industrial motion control designers deploy this robust aluminum die-cast unit to eliminate slip errors in high-acceleration transport networks.

Comprehensive Technical Parameters Matrix

Advanced Operational Features & Functional Highlights

• Freely Adjustable Resolution: Configure output step sizes from 0.1 mm down to 100 mm depending on application precision constraints.
• Embedded PROFINET Connectivity: Streamlines real-time telegram data exchanges directly with industrial PLC controllers without external protocol gateways.
• Dual Push-Pull Outputs: Provides flexible PNP/NPN switching channels configurable for distance triggers or velocity monitoring.
• High Ambient Light Immunity: Operates reliably under intense factory illumination up to 100,000 lx without optical saturation.
• Rugged Enclosure Build: Built inside a heavy-duty aluminum die-cast housing rated to IP65 for harsh shop-floor environments.
• Extended Temperature Tolerance: Supports operational ranges from -20 °C to +55 °C natively, expandable up to +75 °C utilizing optional cooling accessories.

Target Industrial Equipment & Application Scenarios

• Automated Storage & Retrieval Systems (AS/RS): Delivers exact vertical and horizontal positional tracking for high-speed warehouse stacker cranes.
• Transfer Carriages & Gantry Cranes: Prevents longitudinal tracking errors across long-span rail-guided industrial transport bridges.
• Automated Guided Vehicles (AGVs): Provides reliable absolute positioning feedback along lengthy manufacturing transit corridors.

Built-In Diagnostic & Fault Monitoring Capacities

• Aging & Contamination Warnings: Automatically flags optical lens damping threshold breaches before signal loss halts production.
• Internal Thermal Tracking: Generates warning outputs if internal device operating temperatures exceed safe hardware thresholds.
• Plausibility Error Checks: Validates return beam integrity in real time to instantly catch missing reflector targets or severe signal echoes.

Global Logistics & Warranty Assurance

• Fulfillment Window: Guaranteed rapid dispatch within 24 to 48 hours of order confirmation.
• Courier Partners: Secure international air freight routing via FedEx, UPS, and DHL.
• Warranty Protection: Fully covered by a 12-month operational replacement warranty.

Global PLC Spare HUB's Insight & Field Experience

Positioning high-speed stacker cranes over 80-meter tracks frequently introduces mechanical vibration errors that confuse standard encoders. During a recent high-bay warehouse retrofit, integrating the DL100-21AA2112 optical distance sensor bypassed mechanical slippage entirely. Field engineers should ensure that the diamond-grade reflective tape is mounted flat without air bubbles, and regularly clean the PMMA optic window using isopropyl alcohol to maintain the device's sub-millimeter positioning fidelity.

Frequently Asked Questions

How does the sensor handle sudden target loss during high-speed crane movement?
The unit features an internal recovery algorithm that re-establishes tracking within milliseconds after target acquisition is restored, minimizing positional drift faults in safety logic.

What is the primary advantage of selecting the PROFINET variant over standard analog outputs?
PROFINET communication delivers noise-immune, high-resolution digital position data directly to the controller while simultaneously transmitting internal diagnostic parameters like lens contamination warnings.

What criteria should guide my purchasing selection for harsh thermal environments?
If ambient operating temperatures near or exceed 55 °C—such as near industrial furnaces or uninsulated roof spaces—you must order the sensor alongside its designated cooling case to preserve unit longevity.

How can maintenance teams catch optical degradation before unexpected line stoppages occur?
Monitor the integrated warning bit mapped in the service output layer; it triggers automatically when dust accumulation exceeds the acceptable damping limit.

Is specialized software required to configure the measurement resolution settings?
Resolution adjustments and parameter presets can be managed efficiently through the on-board dot matrix display interface or via configuration commands over the PROFINET network.
