Manufacturer: HIMA
Product No.: F3237
Condition： En stock
Product Type: Safety Input Module
Product Origin: DE
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Cantidad

Selected quantity: 1

Tiempo estimado de entrega: 12-26 días (Internacional), 3-6 días (Estados Unidos).

Devolución dentro de los 30 días siguientes a la compra. Los aranceles e impuestos no son reembolsables.

Pago Seguro Garantizado

Product Overview

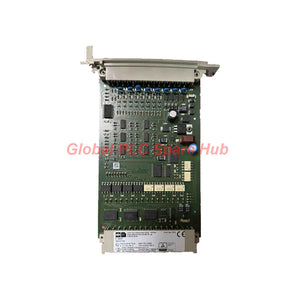

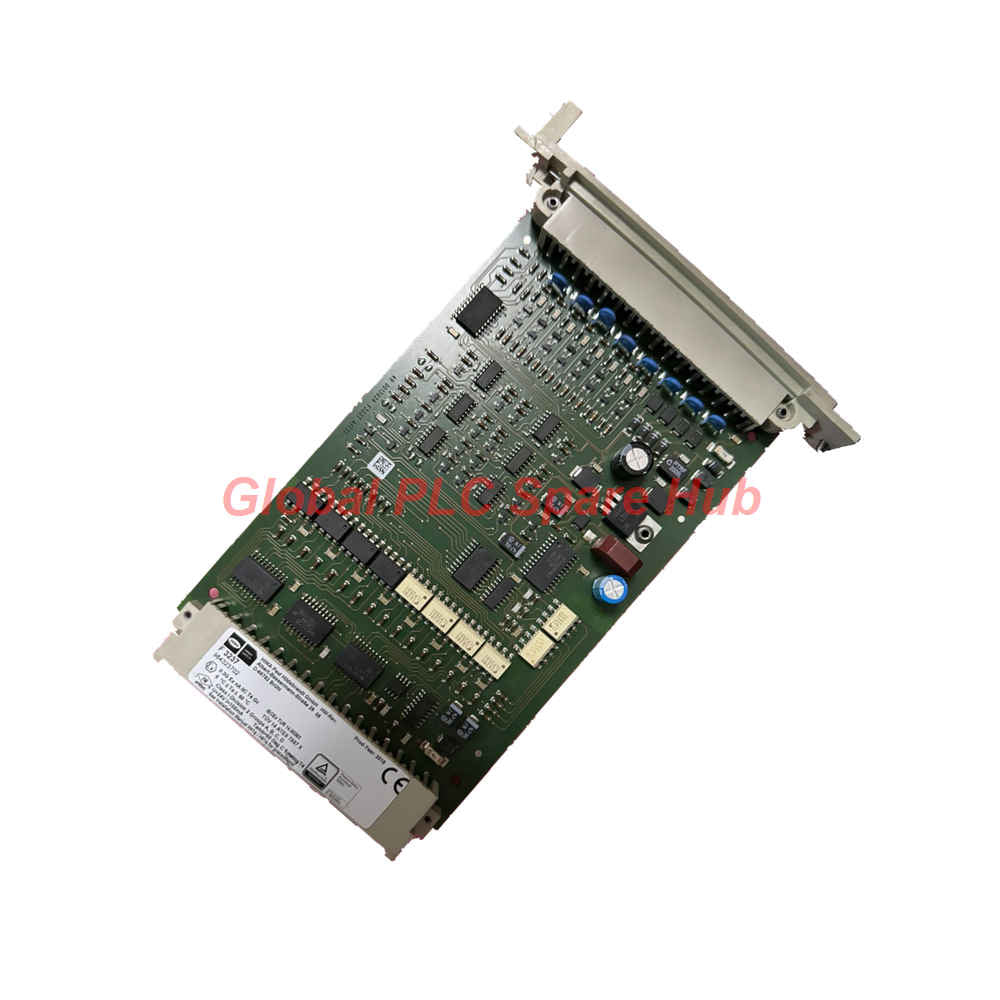

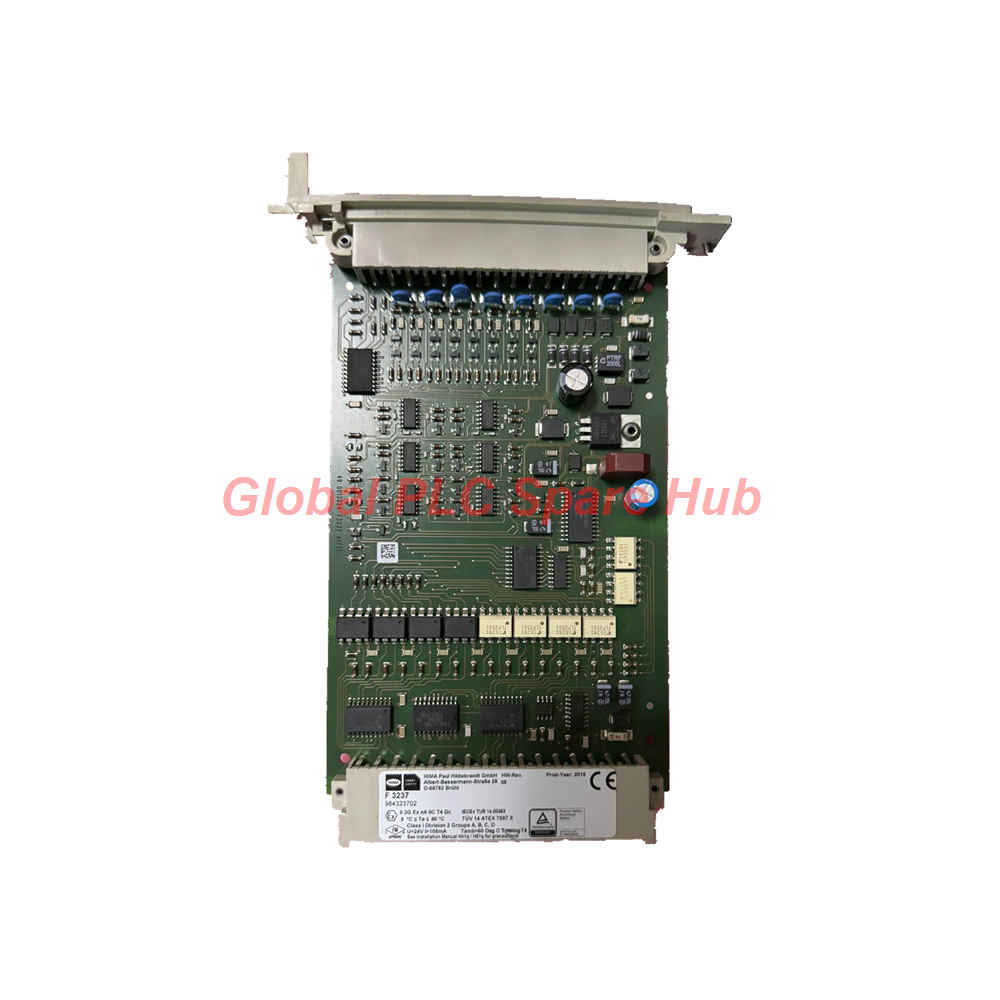

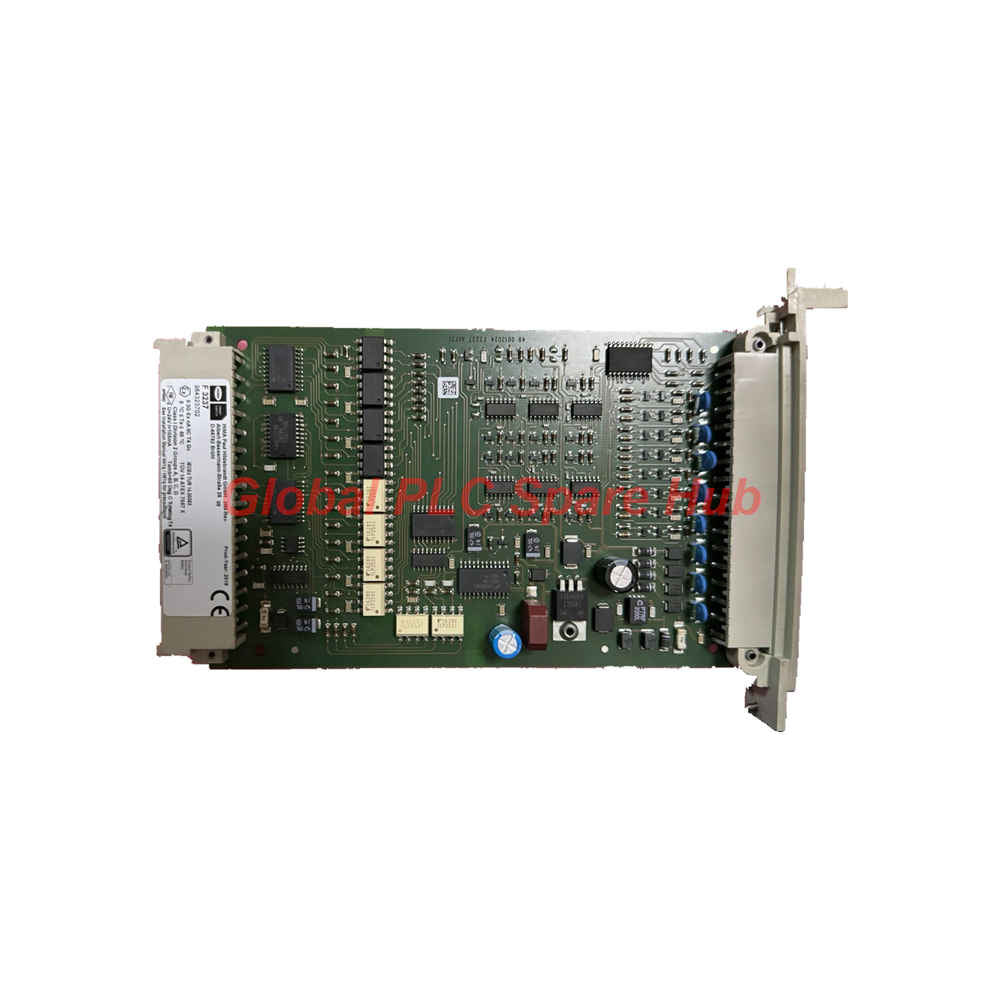

The F3237 8-fold safety input module delivers high-integrity signal processing for critical industrial automation environments. Engineers deploy this unit to connect safety-related proximity switches, NAMUR sensors (DIN 19234), and resistor-wired devices. It fulfills rigorous safety requirements up to requirement class AK 1 to AK 6, ensuring maximum operational reliability.

Global PLC Spare HUB's Insight

Field engineering experience shows that safety loops often fail due to undetected line degradation or improper sensor impedance matching. In our extensive project deployments across petrochemical plants, integrating the F3237 module significantly reduced nuisance trips. For instance, when retrofitting older NAMUR proximity switches like the NJ 5-30GK-S1N, technicians successfully eliminated false line-break alarms by simply applying the parallel 47 kΩ resistor strategy. This practical approach maintains full diagnostic coverage without compromising safety integrity levels.

Technical Specifications

Technical Parameter	Specification Value
Brand & Model	F3237 8-Fold Input Module
Input Channels	8 independent safety input channels
Switching Time	Approximately 10 ms
0 Signal Operating Point	0.35 mA to 1.2 mA
1 Signal Operating Point	2.1 mA to 6.0 mA
Wire Break Threshold	Less than or equal to 0.28 mA
Short Circuit Threshold	Greater than or equal to 6.5 mA
Line Impedance	Less than or equal to 50 Ohm (DIN 19234)
Maximum Line Length	1000 meters (Cross-section = 0.5 mm²)
Supply Voltage	8.2 V DC
Shunt Resistor	681 Ohm, 1%, 0.25 W (R17 to R24)
Space Requirement	4 TE width
Power Consumption	5V DC at 90 mA; 24V DC at 170 mA
Operating Temperature	Standard industrial temperature range
Anti-Interference Capability	High noise immunity for harsh plant floors

Diagnostic Capabilities

The F3237 module performs complete automated self-tests during normal operation. System routines continuously verify:

Switch-on and switch-off capability
Input circuit crosstalk via walking zero tests
Internal input filter functionality
Overall module hardware health
Sensor line short-circuit and wire-break status

Compatibility & Installation Guidelines

The F3237 operates seamlessly with standard NAMUR sensors. When using non-standard sensors like the P&F NJ 5-30GK-S1N, technicians must connect a 47 kΩ resistor in parallel. This adjustment raises the non-damped output current to 170 µA, preventing false line-break trips. Installers must run shielded cables within the 1000-meter limit and verify proper integration using the HB-RTE software building block.

Certification & Compliance

Engineers design this unit for safety-related applications meeting requirement classes AK 1 through AK 6. The module complies with industrial safety standards and DIN 19234 NAMUR specifications, ensuring reliable performance in hazardous environments.

Packing List & Warranty Terms

One F3237 8-Fold Safety Input Module
Factory calibration and test certificate
Standard protective industrial packaging
Comprehensive 12-month quality warranty

Shipping & Logistics

We process and dispatch all orders within 24 to 48 hours. Reliable global logistics partners including FedEx, UPS, and DHL ensure fast and secure delivery directly to your facility.

Frequently Asked Questions & Buying Guide

Q: How do I select the right input module for my safety instrumented system?

A: Verify your sensor type (NAMUR vs. standard dry contact), channel count requirements, and required safety integrity level (AK 1 to AK 6). The F3237 suits multi-channel NAMUR applications perfectly.

Q: What causes false line-break alarms with certain proximity switches?

A: Some non-standard proximity switches deliver extremely low current in non-damped states, triggering the module's wire-break threshold.

Q: How can I resolve low-current proximity switch compatibility issues?

A: Install a 47 kΩ resistor in parallel across the sensor terminals to boost the non-damped current to 170 µA without affecting safety loops.

Q: Are LED indicator functions tested during routine module self-tests?

A: No, LED indicator functions are excluded from the automated internal test routines.
