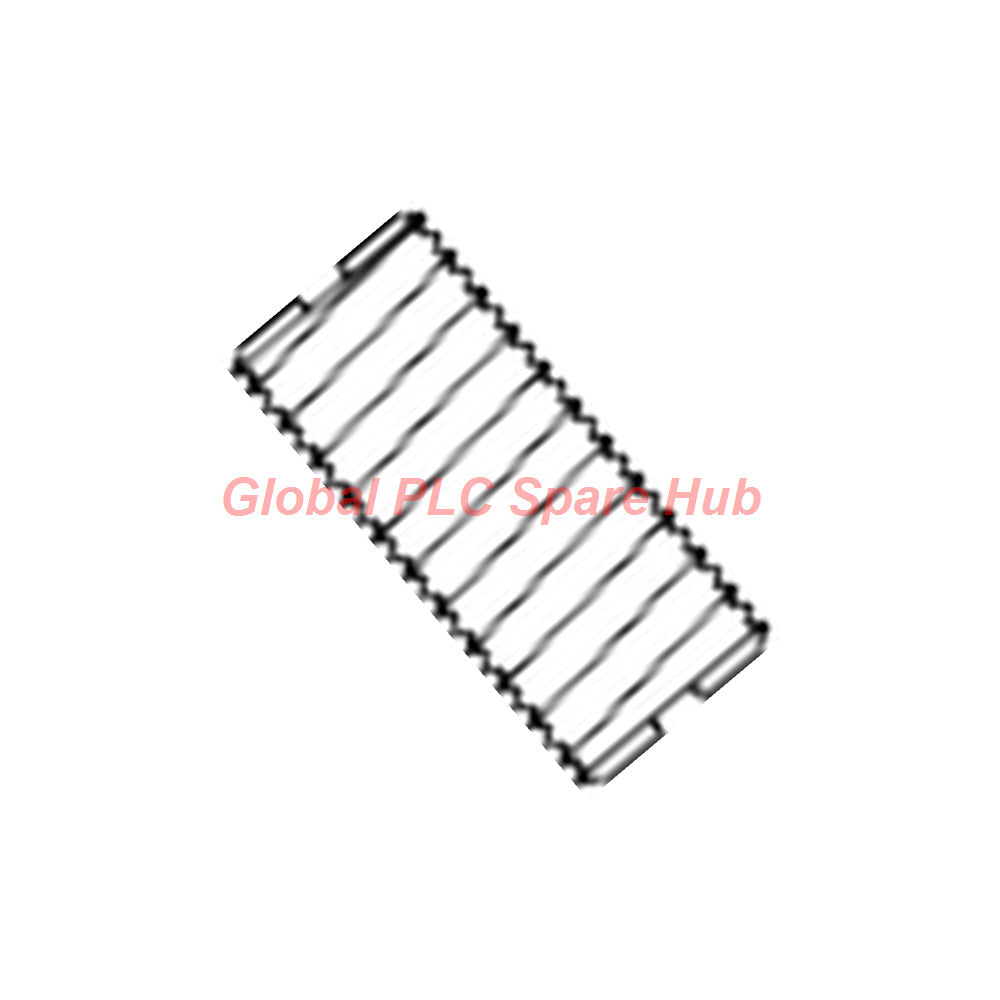

87931-01 Metric Stud Bently Nevada Vibration Sensor Hardware

Engineering Overview & Mechanical Purpose

The 87931-01 Bently Nevada metric stud provides a robust mechanical mounting interface for industrial vibration transducers. Engineered specifically for precision machinery monitoring setups, this threaded adapter ensures secure physical coupling between sensor hardware and machine casing test points.

Technical Specifications & Dimension Matrix

Installation Guide & Mechanical Best Practices

• Inspect the mounting pad on the machine casing to ensure it is flat, clean, and free of paint or debris.
• Apply a thin layer of coupling compound or machine oil to the threads to optimize high-frequency vibration transmission.
• Thread the 87931-01 stud manually into the prepared mounting hole before applying final torque.
• Use a calibrated torque wrench to tighten the stud securely without stripping the internal machine threads.
• Attach the vibration accelerometer or velocity transducer to the exposed end of the stud.

Global Logistics & Assurance

Target Equipment & Industrial Applications

• Steam and gas turbine casing vibration monitoring points.
• Centrifugal compressor and large pump bearing housing inspection.
• Industrial fan and heavy gearbox condition monitoring setups.
• Critical balance testing stands requiring repeatable transducer mounting.

Diagnostic & Signal Integrity Capabilities

• Ensures rigid mechanical coupling to prevent signal attenuation at high vibration frequencies.
• Eliminates resonance distortion caused by loose or improper threaded connections.
• Maintains low electrical noise ground continuity between sensor bodies and machine frames.

Global PLC Spare HUB's Insight

Vibration analysts frequently encounter high-frequency signal attenuation caused by improper stud selection or loose mounting interfaces. Our field experience shows that utilizing the genuine 87931-01 Bently Nevada metric stud ensures direct, unattenuated shockwave transmission from the bearing housing to the accelerometer tip. For example, a power generation plant experiencing erratic casing vibration spikes resolved their data noise issues entirely by replacing makeshift hardware with this exact M6x1 metric stud configuration, instantly restoring clean spectrum analysis.

Frequently Asked Questions

Question: Why is proper torque critical when installing the 87931-01 metric stud into a machine casing?

Answer: Under-torquing creates microscopic air gaps that dampen high-frequency vibration signals, while over-torquing can damage the internal threads of the machine housing.

Question: What specific thread adapters or mating hardware are required for this stud?

Answer: This component requires a compatible M6x1 metric adapter interface to bridge standard sensor bases with specific machinery stud patterns.

Question: How should I choose between adhesive mounts and threaded metric studs like the 87931-01?

Answer: Use threaded studs for permanent, high-reliability diagnostic installations on critical rotating machinery where maximum frequency response is required.

Question: Can this metric stud withstand high operating temperatures on heavy industrial turbines?

Answer: Yes, the high-tensile alloy construction maintains mechanical rigidity and clamping force under continuous high thermal stress.

Question: What are your shipping timeframes and courier options for urgent plant outages?

Answer: We dispatch all in-stock mounting hardware within 24 to 48 hours using reliable global express partners including FedEx, UPS, and DHL.
