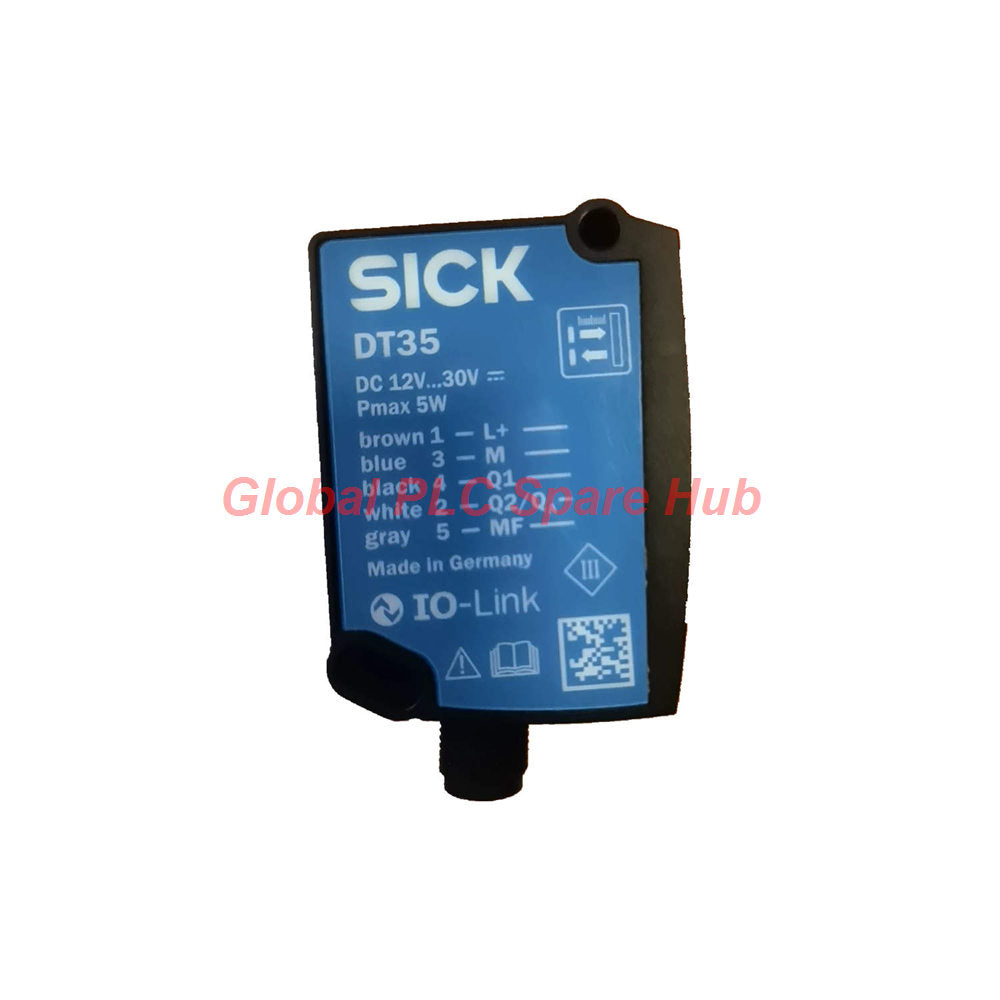

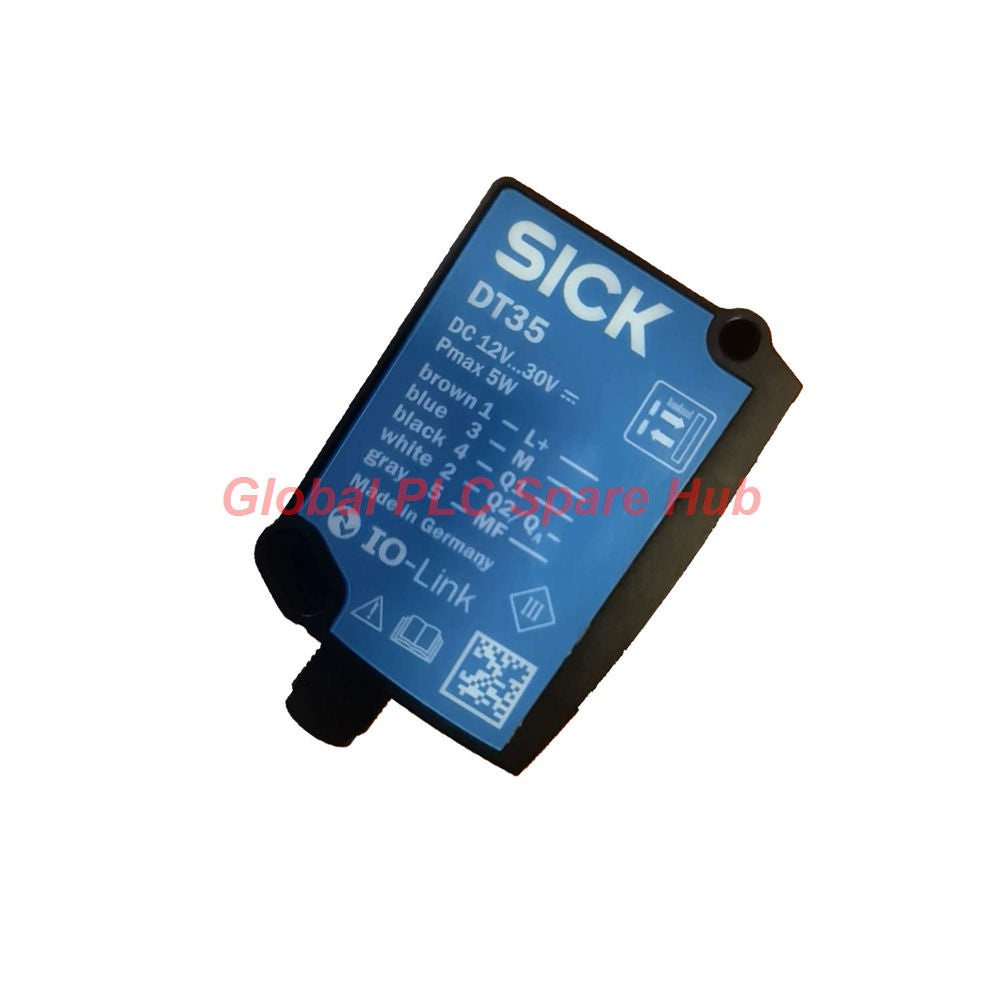

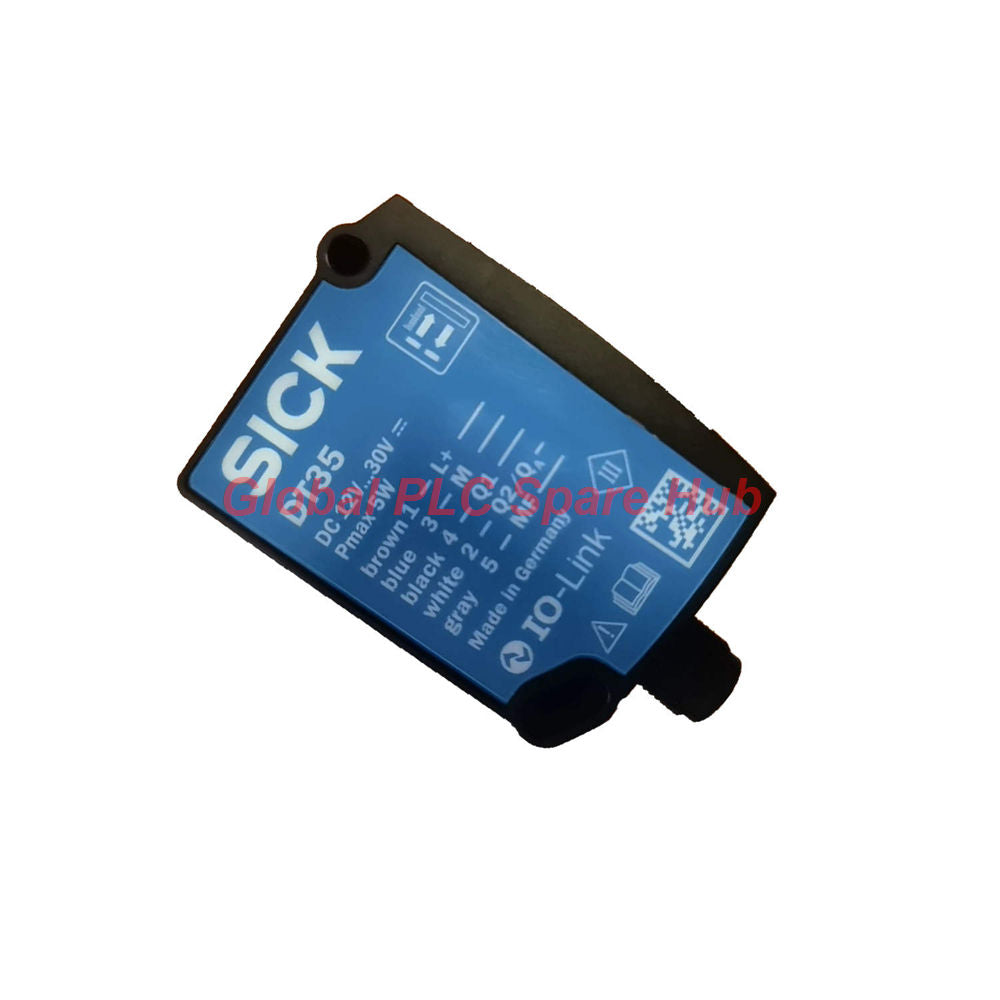

DT35-B15251 SICK DT35 Series Analog Laser Distance Sensor 12m IO-Link
Manufacturer: SICK
Product No.: DT35-B15251
Condition： En stock
Product Type: Laser Distance Sensor
Product Origin: DE
Payment: T/T, Western Union
Weight: 65g
Shipping port: Xiamen
Warranty: 12 months
Tiempo estimado de entrega: 12-26 días (Internacional), 3-6 días (Estados Unidos).
Devolución dentro de los 30 días siguientes a la compra. Los aranceles e impuestos no son reembolsables.
Pago Seguro Garantizado
Executive Summary & Optical Detection Core
The DT35-B15251 analog laser sensor from the DT35 series delivers high-precision distance measurement for tight industrial spaces. Built with a rugged ABS and polycarbonate housing, this compact optical instrument measures natural targets up to 12 meters away. Plant engineers utilize its adaptable analog and digital output architecture to maintain exact positional tolerances across fast-moving production cells.
Comprehensive Technical Parameters Matrix
| Engineering Metric | Operational Specification |
|---|---|
| Brand | SICK |
| Model & Series | DT35-B15251 (DT35 Series) |
| Device Type | Analog Laser Distance Sensor |
| Measuring Range | 50 mm to 12,000 mm (90% remission); 5,300 mm (18% remission); 3,100 mm (6% remission) |
| Resolution & Repeatability | Resolution 0.1 mm; Repeatability ≥ 0.5 mm |
| Measurement Accuracy & Speed | Typ. accuracy ± 10 mm; Response time 2.5 ms to 96.5 ms |
| Optics & Laser Class | Visible red laser, Class 2 (IEC 60825-1:2014) |
| Interface Protocols | IO-Link V1.1, Push-pull digital output (PNP/NPN), Analog current/voltage output |
| Electrical & Environmental | DC 12 V to 30 V supply, IP65/IP67 enclosure rating, ABS/PC plastic housing |
Advanced Operational Features & Functional Highlights
- Configurable Speed Profiles: Adjust internal response speeds from Super Fast down to Super Slow to balance reaction time against measurement noise.
- Versatile Output Q2 Adaptation: Switch dynamically between 4 mA to 20 mA current loops, 0 V to 10 V voltage signals, or discrete digital switching states.
- IO-Link V1.1 Integration: Facilitates remote parameterization, live process data tracking, and fast device replacement diagnostics.
- Flexible Switching Modes: Operates natively in Distance-to-Object (DtO), switching window, or object-between-sensor-and-background (ObSB) configurations.
- Compact Lightweight Footprint: Weighs only 65 grams inside a space-saving 32 mm wide enclosure profile.
- Extended Thermal Performance: Operates reliably down to -30 °C when supply voltage is maintained at or below 24 V.
Target Industrial Equipment & Application Scenarios
- Automated Conveyor Sorting Lines: Detects box dimensions and verifies package spacing on high-speed distribution belts.
- Robotic Palletizing Cells: Monitors gripper clearance and stack height limits during automated warehouse loading routines.
- Material Handling Lifters: Tracks vertical carriage positions to ensure accurate landing alignment on automated storage racks.
Built-In Diagnostic & Fault Monitoring Capacities
- Initialization & Warm-Up Flags: Internal timers track the 500 ms initialization and 20-minute thermal stabilization windows to prevent premature error reporting.
- Multifunctional Input Control: Accepts external trigger signals to deactivate the laser emitter or execute remote factory default resets during system errors.
- Signal Remission Tracking: Detects low-reflectivity surface anomalies on dark targets to alert controllers before measurement loss occurs.
Global Logistics & Warranty Assurance
- Fulfillment Window: Guaranteed rapid dispatch within 24 to 48 hours of order confirmation.
- Courier Partners: Secure international air freight routing via FedEx, UPS, and DHL.
- Warranty Protection: Fully covered by a 12-month operational replacement warranty.
Global PLC Spare HUB's Insight & Field Experience
Deploying optical distance sensors near high-reflectivity metal surfaces can occasionally cause multi-reflection reading errors. During a recent sortation line upgrade, integrating the DT35-B15251 allowed technicians to filter out background scatter by adjusting the built-in switching window parameters via IO-Link. Field engineers must ensure that the PMMA optic window is wiped clean during scheduled maintenance intervals to maintain the sensor's sub-millimeter resolution over long target cycles.
Frequently Asked Questions
How does changing the target remission rate impact the maximum sensing distance of the unit?
Dark targets with low reflectivity reduce the maximum usable range down to 3,100 mm for 6% remission surfaces compared to the full 12,000 mm capability on 90% reflective material.
What is the primary benefit of configuring the output via IO-Link versus manual teach-in buttons?
IO-Link enables precise numerical threshold scaling and remote diagnostic logging directly from the PLC control workstation, eliminating manual calibration errors.
What considerations should guide my purchasing selection when mounting the sensor in cold environments?
Ensure your power supply output stays at or below 24 V DC if ambient temperatures drop below freezing, which preserves the sensor's rated operating threshold down to -30 °C.
How can maintenance teams verify if the analog output signal is drifting due to cable resistance?
Check the current loop load resistance to ensure it remains below 450 ohms, or switch to the 0 V to 10 V voltage output mode if long cable runs introduce ground potential shifts.
What triggers the multifunctional input line during an active machine cycle?
The multifunctional input can be programmed to switch the laser off remotely during safety gating events or force an external teach-in sequence without human intervention.
