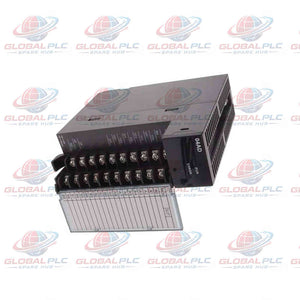

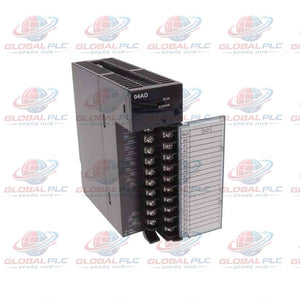

Delta AH04AD-5A Analog Input Module AH Series Controller
Manufacturer: Delta
Product No.: AH04AD-5A
Condition： En stock
Product Type: Analog Input Module
Product Origin: CN
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Tiempo estimado de entrega: 12-26 días (Internacional), 3-6 días (Estados Unidos).
Devolución dentro de los 30 días siguientes a la compra. Los aranceles e impuestos no son reembolsables.
Pago Seguro Garantizado
Executive Overview & Signal Architecture
The Delta AH04AD-5A functions as a high-precision analog input module engineered specifically for the modular AH series PLC architecture. Equipped with 4 versatile input channels, it handles diverse industrial signals including 0/1V to 5V, plus/minus 5V, 0V to 10V, plus/minus 10V, 0/4mA to 20mA, and plus/minus 20mA loops. Engineers deploy the AH04AD-5A to acquire high-accuracy process measurements in demanding factory automation setups. Global PLC Spare HUB delivers this reliable module to ensure seamless data conversion across complex control loops.
Technical Blueprint & Performance Metrics
| Engineering Parameter | Operational Specification |
|---|---|
| Brand & Series | Delta Electronics / AH Series |
| Model Number | AH04AD-5A |
| Module Type & Channels | Analog Input Module with 4 independent input channels |
| Hardware Resolution & Speed | 16-bit resolution with a conversion time of 150 microseconds per channel |
| Input Signal Ranges | Voltage: 0-5V, 1-5V, plus/minus 5V, 0-10V, plus/minus 10V; Current: 0-20mA, 4-20mA, plus/minus 20mA |
| Accuracy & Linearity | Base error ±0.1% (ambient); Voltage linearity ±0.07%, Current linearity ±0.05% |
| Supply Voltage & Power | 20.4 to 28.8 VDC; Internal/External power consumption: 0.35W / 1W |
| Physical & Environmental | JIS removable terminal block, backplane mounting, operating temp: -20°C to 60°C |
Deployment Protocol & Rack Integration
- Mount the module securely onto the standard AH series backplane using the integrated backplane connection pin structure.
- Ensure your cabinet power supply provides a stable DC voltage ranging from 20.4 to 28.8 VDC.
- Wire field sensors into the JIS removable screw terminal block, maintaining proper shielded twisted-pair cable routing.
- Leverage the isolated signal design to prevent ground loop interference between field instruments and internal CPU logic.
- Take advantage of hot-swapping capabilities to replace the module during routine maintenance without powering down the entire rack.
Diagnostic Architecture & Status Monitoring
- Module Status LEDs: Real-time indicator lights provide instant visual feedback on operational health and error states.
- Built-In Diagnose Functions: Actively monitors channel hardware status, wire breaks in current loops, and over-range conditions.
- Interrupt Handling: Supports interrupt functions to trigger immediate CPU routines upon reaching specific threshold events.
- Anomalies in analog conversion are flagged instantly through backplane communication registers for fast troubleshooting.
Target Equipment & Industrial Application Sectors
- Water Treatment Facilities: Monitoring continuous flow rates, tank levels, and chemical dosing feedback loops.
- HVAC Control Systems: Tracking multi-zone temperature transmitters, pressure sensors, and damper position signals.
- Energy Management Skids: Logging high-speed analog parameters from turbine monitoring sensors.
- Automotive Test Benches: Capturing precise voltage and current sensor fluctuations during performance testing.
Fulfillment, Logistics & Warranty Framework
- Processing Speed: In-stock analog modules are thoroughly inspected, packed, and dispatched within 24 to 48 hours.
- Global Carriers: Expedited international shipping serviced by trusted carriers FedEx, UPS, and DHL.
- Warranty Terms: Covered by a comprehensive 12-month replacement warranty backed by Global PLC Spare HUB.
Global PLC Spare HUB's Insight & Buying Guide
- Field Engineering Insight: When wiring current loops (4-20mA) into the AH04AD-5A, ensure that loop shields are grounded strictly at one end to prevent induced electrical noise. High-frequency variable frequency drives in nearby enclosures can inject ripple currents that skew 16-bit conversion accuracy if grounding is floating.
- Selection Guidance: Verify whether your application requires hot-swapping under power. While this module supports hot-insertion within AH racks, always confirm that your CPU firmware version supports dynamic module reconfiguration before swapping units in active production lines.
Frequently Asked Questions
Q: What voltage and current signal ranges does the Delta AH04AD-5A support?
A: It accepts multiple ranges including 0-5V, 1-5V, plus/minus 5V, 0-10V, plus/minus 10V for voltage, and 0-20mA, 4-20mA, plus/minus 20mA for current loops.
Q: Does this analog module support hot-swapping on the rack?
A: Yes, it fully supports hot-swapping functions, allowing technicians to replace the unit without cutting main power to the control rack.
Q: What is the conversion speed of each input channel?
A: The module achieves a fast conversion time of 150 microseconds per channel utilizing its 16-bit hardware resolution.
Q: How do I troubleshoot an erratic signal reading on one of the input channels?
A: Check the module status LEDs, inspect the JIS removable terminal block wiring, verify that input signal scaling matches your PLC software configuration, and ensure cable shielding is properly grounded.
Q: Are the input channels electrically isolated?
A: Yes, the module features an isolated signal design that protects internal CPU logic from ground loops and external field surges.
