SCP451-53 Yokogawa Processor Module | Reliable Control System Spare

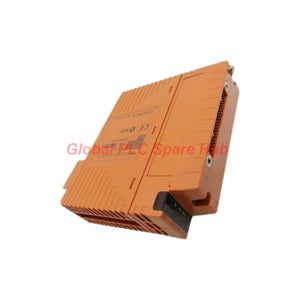

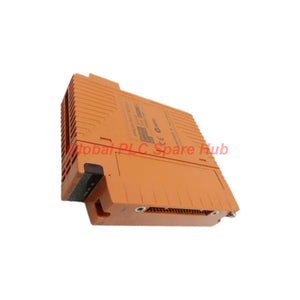

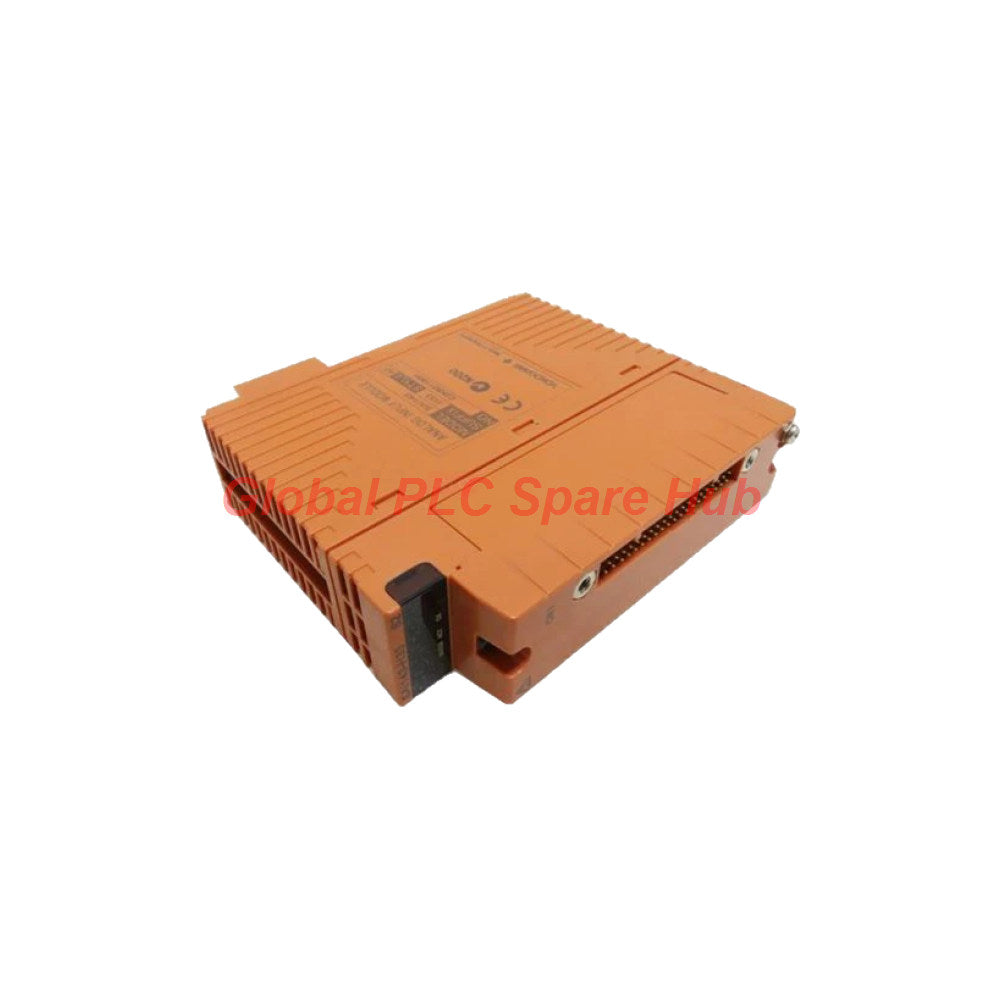

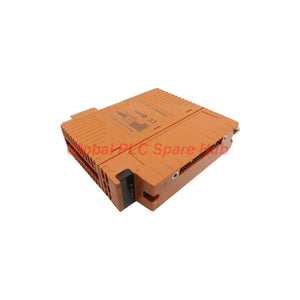

Product Overview | Yokogawa SCP451-53 Processor Module

The Yokogawa SCP451-53 is a processor module designed for compatible industrial control system architectures. Its processor hardware combines a dual-core ARM Cortex-A9 CPU with DDR3 memory and NAND flash storage. Ethernet, USB, and RS-232 interfaces support maintenance and system connectivity.

The module includes maintenance switches for CPU control, battery backup, and front-panel status indication. Its documented hardware specifications also list four output channels, configurable signal ranges, and 12-bit output resolution. Confirm the exact output configuration and system compatibility before ordering.

Key identification: Yokogawa | SCP451-53 | Processor Module

01 | Technical Specifications at a Glance

Manufacturer	Yokogawa
Model	SCP451-53
Product Type	Processor Module
Processor	Dual-core ARM Cortex-A9
DDR3 SDRAM	2 GB
NAND Flash	8 GB
Ethernet Interfaces	2 ports
USB Interfaces	2 ports
Serial Interface	1 × RS-232
Output Channels	4, according to the supplied specifications
Output Resolution	12-bit
Output Accuracy	0.1% of span
Maximum Power Consumption	10 W
Dimensions (H × W × D)	123 × 122 × 100 mm
Weight	1.5 kg

02 | Configuration Breakdown

Use the following identification structure when checking a replacement or preparing a purchase request.

• Brand: Yokogawa
  • Model: SCP451-53
  • Module category: Processor Module
  • Hardware identification: Verify the complete model against the installed unit and system documentation.
  • Suffix interpretation: The supplied information does not define the individual meanings of suffixes 5 and 3. Confirm the official product ordering information before assigning suffix-specific functions.
• Processing and storage:
  • Dual-core ARM Cortex-A9 processor
  • 2 GB DDR3 SDRAM
  • 8 GB NAND flash memory
• Connectivity:
  • Two Ethernet ports
  • Two USB ports
  • One RS-232 maintenance interface
• Output configuration:
  • Four specified output channels
  • Current and voltage output ranges
  • 12-bit output resolution

Ordering note: Do not infer the exact control-system generation, firmware compatibility, or suffix meaning from the model number alone. Verify these details with the applicable Yokogawa documentation.

03 | Output Performance and Electrical Limits

Output Signal	Specified Range
Current output	0–20 mA
Current output	4–20 mA
Voltage output	0–10 VDC
Voltage output	1–5 VDC

• Accuracy: 0.1% of span, according to the supplied data.
• Resolution: 12-bit digital output resolution.
• Isolation: 500 Vrms from output to ground.
• Current output load: The supplied source lists 0–1000 Ω for 0–20 mA and 0–1000 Ω for 4–20 mA.
• Voltage output load: The supplied source lists 0–1 MΩ for both voltage ranges.

Check the original hardware manual before wiring field loads. Confirm the permitted load, output mode, grounding method, and terminal assignments. The four-channel output details should also be verified against the exact SCP451-53 hardware documentation.

04 | Environmental and Mechanical Ratings

Operating Temperature	-10°C to +55°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95%, non-condensing
Vibration Resistance	2.5 g RMS, 10–500 Hz random vibration
Shock Resistance	10 g, 11 ms half-sine wave
Front Protection Rating	IP20
Maximum Power Consumption	10 W

Keep the module within its specified operating limits. Prevent condensation, conductive dust, and unauthorized access to exposed electrical connections. IP20 does not provide protection against water ingress.

05 | Maintenance Switches and Operating Logic

The maintenance controls affect processor operation, backup behavior, and status indication. Check each switch before commissioning or troubleshooting.

• START/STOP switch
  • Pressing the switch while the CPU operates stops the CPU.
  • Pressing it while the CPU is stopped restarts the CPU.
  • The switch sits inside a small access hole beside the START/STOP marking.
  • Use a non-conductive tool approximately 1–2 mm in diameter.
  • Confirm the process impact before operating this switch.
• Battery ON/OFF switch
  • ON: Enables battery backup for processor management information stored in memory.
  • OFF: Disables this backup function.
  • Keep the switch ON during normal operation, as specified in the supplied instructions.
  • Check the battery condition and replacement procedure in the official manual.
• PORT switch
  • Controls the specified maintenance-port setting.
  • Keep it OFF during normal operation, according to the supplied instructions.
• DOMN switch
  • When ON, displays the configured domain number on the STATUS LED.
  • Keep it OFF during normal operation.
• STA switch
  • When ON, displays the configured station number on the STATUS LED.
  • Keep it OFF during normal operation.
• FIX switch
  • The supplied description identifies this function for SCP461/SCP451 models.
  • ON: Forces the specified negotiation setting.
  • OFF: Enables automatic negotiation.
  • The default position is OFF.
  • Confirm applicability to the exact SCP451-53 hardware before changing this setting.

Field caution: Changing the CPU state can interrupt control functions. Follow site change-control procedures and obtain the required process authorization before operating maintenance switches.

06 | Equipment Compatibility and Application Areas

The SCP451-53 is intended for a compatible Yokogawa control-system configuration. Its exact system series and supported hardware combinations require confirmation from the applicable product documentation.

• Distributed control systems: Processor replacement and maintenance in supported Yokogawa installations.
• Oil and gas facilities: Control-system maintenance in process monitoring and production environments.
• Chemical processing: Processor maintenance where system compatibility and approved procedures are confirmed.
• Power generation: Support for compatible control architectures and associated maintenance activities.
• Industrial manufacturing: Replacement planning for processor hardware in established automation systems.

Do not assume that every Yokogawa CENTUM VP or safety-system configuration supports this module. Confirm the system generation, cabinet arrangement, firmware, communication interfaces, and applicable hardware revision before purchase.

07 | Diagnostic Approach and Field Troubleshooting

The available switch descriptions and hardware specifications support a structured troubleshooting process. They do not establish the complete diagnostic code list or all built-in monitoring functions.

• CPU stops unexpectedly: Check the START/STOP switch position and review system event records. Verify the power supply and processor status before restarting.
• Management information is not retained: Check the battery switch position and battery condition. Follow the approved backup and replacement procedure.
• Maintenance communication fails: Verify the selected interface, cable, port configuration, and applicable maintenance procedure.
• Network communication becomes unstable: Inspect Ethernet connections and review network settings. Check negotiation settings only when the installed model supports the FIX function.
• Unexpected STATUS LED information: Check the DOMN and STA switch positions. Restore normal settings after completing the required checks.
• Analog output deviates from the command: Verify the selected signal range, wiring, load resistance, grounding, and receiving-device configuration.

Practical example: An operator reports a loss of output after a maintenance intervention. The engineer first checks processor status and recent event records. Next, the engineer verifies output mode and field wiring before considering hardware replacement.

This diagnostic sequence is a general engineering procedure. It does not confirm a model-specific fault code or guarantee that the processor caused the symptom.

08 | Installation and Commissioning Checklist

1. Record the installed model, system version, and hardware revision.
2. Compare the replacement part number with the approved bill of materials.
3. Back up relevant configuration data using the approved maintenance procedure.
4. Obtain authorization before stopping the CPU or interrupting process control.
5. Isolate power and follow site electrical safety procedures before removal.
6. Inspect the mounting position and connectors for damage or contamination.
7. Install the module according to the applicable Yokogawa manual.
8. Check switch positions, backup settings, and communication connections.
9. Restore power using the approved startup sequence.
10. Verify processor status, network communication, and required control functions.
11. Document alarms, test results, and any configuration changes.

Do not assume hot-swapping is supported. Use the documented replacement procedure for the installed system.

09 | Certification and Compliance Notes

The supplied product information lists the following certifications or compliance references:

• ATEX
• IECEx
• SIL 3 under IEC 61508
• UL
• CSA
• CE

These claims require verification against the exact model, hardware revision, certificate scope, and intended installation. Do not assume that every listed approval applies to every SCP451-53 configuration. Request the relevant manufacturer's documentation when project compliance requires formal evidence.

10 | Packaging, Warranty, and Shipping

• Product identification: Yokogawa SCP451-53 Processor Module.
• Packaging: Protective packaging suitable for transport.
• Accessories: Cables, batteries, connectors, and mounting accessories are not confirmed as included.
• Documentation: Manuals and certificates depend on the confirmed order arrangement.
• Warranty: 12-month warranty, subject to the supplier's applicable terms and conditions.
• Courier options: FedEx, UPS, and DHL.
• Dispatch estimate: Typically 24–48 hours after order confirmation, subject to stock and payment verification.

Contact our sales team to confirm stock, product condition, included items, warranty coverage, and the estimated delivery time before placing an order.

11 | Global PLC Spare HUB's Insight

Processor replacement requires more than matching the model number. Engineers should verify the system generation, firmware requirements, interface configuration, and approved startup procedure.

One detail deserves particular attention: the battery switch protects stored processor management information during power failure. A replacement plan should therefore include configuration backup and battery-related checks. Do not assume the switch preserves every application file or all system data.

The output specifications also need careful review. The supplied data lists four output channels and several current and voltage ranges. Confirm the exact function of these outputs in the official manual before treating them as standard analog output channels for a specific system.

For urgent maintenance, provide the installed part number, system model, hardware revision, fault symptoms, and required delivery date. These details help the supplier review the replacement requirement more accurately.

12 | Frequently Asked Questions

1. What information should accompany a technical quotation request?

Provide the complete SCP451-53 model, installed system series, hardware revision, required quantity, and destination country. Include a photo of the nameplate when suffix verification is necessary.

2. What should a maintenance team prepare before replacing the processor?

Prepare the approved configuration backup, replacement procedure, access authorization, and commissioning checklist. Confirm the recovery plan before interrupting a running process.

3. How should engineers assess a replacement when the original module has different switch positions?

Compare the switch functions with the exact hardware manual. Do not copy every switch position blindly. Some settings may depend on the system configuration or maintenance task.

4. How can buyers verify whether the listed certifications meet a project requirement?

Request the applicable certificates and verify their model scope, revision, installation conditions, and validity. The general product description alone does not establish compliance for a specific project.

5. What is the safest approach when processor communication remains unstable after replacement?

Check power conditions, connectors, network settings, and system event records first. Confirm the approved configuration before changing negotiation settings or restarting the CPU. Escalate persistent faults through the site's authorized maintenance process.
