SBA4D-06 Yokogawa Terminal Board | 16-Channel DIN Rail Interface

Product Overview | Yokogawa SBA4D-06

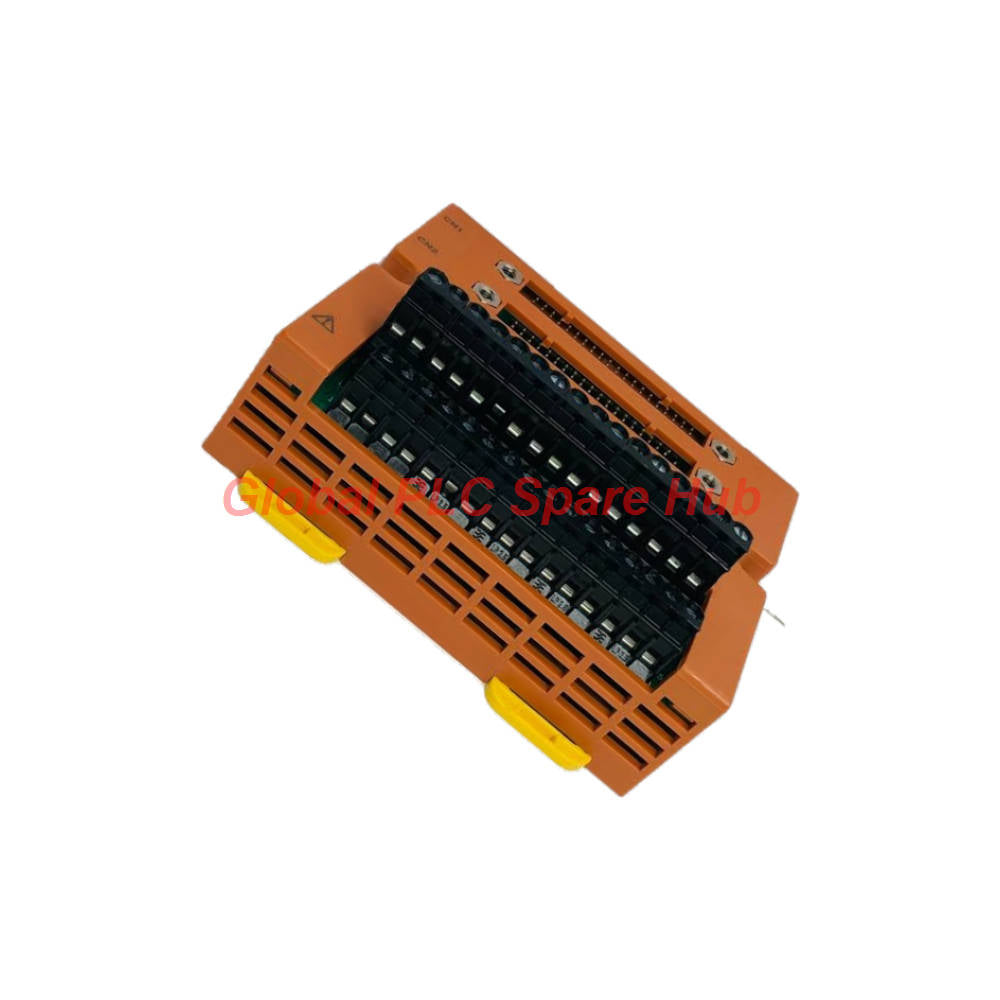

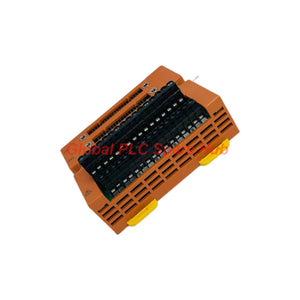

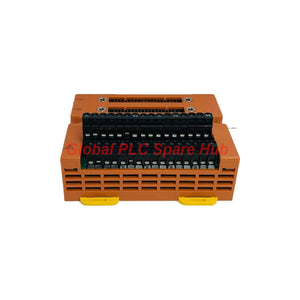

The Yokogawa SBA4D-06 is a DIN rail-mounted terminal board designed for analog signal interface applications. It provides 16 connection channels in a single-board configuration and uses pressure-clamp terminals for field wiring. The SBA4D supports compatible Yokogawa SAI143, SAV144, and SAI533 modules through the specified KS1 connection cables. Its compact design helps organize analog signal connections inside industrial control cabinets. The -06 suffix identifies the specified environmental configuration, including ISA Standard G3 and no explosion protection. The supplied product information also specifies SIL3. Confirm the applicable system safety documentation before using this terminal board in a safety-related installation.

Technical Specifications at a Glance

Configuration Breakdown | SBA4D-06

• Base model: SBA4D
  • Analog terminal board.
  • DIN rail mounting.
  • 16 connection channels × 1.
  • Pressure-clamp field terminals.
• Suffix -0
  • Fixed code position specified as 0.
• Suffix -6
  • ISA Standard G3 environmental specification.
  • No explosion protection.

The complete model number is SBA4D-06. Verify every suffix character against the equipment documentation before ordering. Do not assume that other SBA4D variants share identical environmental or protection specifications.

Connection Architecture and Compatible Equipment

The SBA4D-06 serves as a terminal interface for supported analog connection modules. Confirm the complete signal path before integrating it into a control cabinet.

The listed modules and cables come from the supplied product information. Confirm the required cable length, connector arrangement, and system-specific wiring details before installation.

Where the SBA4D-06 Fits in Industrial Systems

• Distributed control systems: Organizes analog field wiring for compatible Yokogawa control hardware.
• Process instrumentation cabinets: Provides structured termination for supported analog signal connections.
• Chemical and petrochemical plants: Helps maintain orderly signal wiring in cabinets designed for the specified environment.
• Power generation: Supports analog interface wiring for compatible instrumentation and control assemblies.
• Plant maintenance and system replacement: Provides a defined terminal-board option when the existing hardware configuration requires the same model.

Use the board only within its documented electrical and mechanical configuration. The supplied data does not specify signal ranges, channel-level isolation, accuracy, or conversion performance. Confirm those characteristics from the connected module documentation.

Installation and Commissioning Checklist

1. Confirm the model and mounting arrangement Check the complete SBA4D-06 designation and the cabinet's DIN rail arrangement. Ensure the board fits the intended assembly. 2. Verify module and cable compatibility Identify whether the connected module is SAI143, SAV144, or SAI533. Use the specified KS1 cable and confirm its connector arrangement before installation. 3. Inspect field wiring Use the approved wiring diagram to identify each terminal. Check conductor preparation, terminal seating, and wire identification. Follow the applicable terminal tightening instructions. 4. Validate the signal path Trace each field signal from its source to the connected module. Check channel assignments and confirm that the wiring matches the control system drawings. 5. Perform commissioning checks Compare the field wiring with the approved drawings. Verify module recognition and signal status through the applicable control system diagnostics. Test representative channels before returning the process to normal operation.

Diagnostic Guidance for Maintenance Teams

The SBA4D-06 is a terminal interface, so troubleshooting should separate wiring faults from problems in the connected module or control system.

• Missing analog signal: Check the field conductor, terminal seating, KS1 cable connection, and connected module status.
• Incorrect channel indication: Compare the physical terminal position with the wiring schedule and software channel assignment.
• Intermittent signal: Inspect loose conductors, connector seating, cable damage, and signs of contamination.
• Multiple affected channels: Check shared connections and the common interface path before investigating individual field devices.
• Replacement-related faults: Confirm the board suffix, connected module type, cable compatibility, and terminal mapping.

Field maintenance insight: If several analog channels fail after a cabinet intervention, inspect the shared interface cable and its connectors first. If only one channel fails, trace its field wiring and terminal assignment before replacing the terminal board. This approach helps reduce unnecessary component replacement. The board's documented specifications do not establish built-in signal diagnostics or measurement accuracy. Use the connected module and control system's diagnostic functions to investigate signal quality.

Safety, Environmental, and Compatibility Notes

• SIL3: The supplied specification lists SIL3. Verify the exact safety manual, approved hardware configuration, and system-level certification before using the board in a safety instrumented function.
• ISA Standard G3: Confirm that cabinet conditions and site environmental controls meet the applicable installation requirements.
• Hazardous locations: This -06 configuration does not include explosion protection. Do not treat it as independently approved for hazardous-area installation.
• Electrical ratings: Withstand voltage and insulation resistance values are not available in the supplied data. Obtain manufacturer documentation when the project requires these values.
• System compatibility: Match the terminal board with the supported module, cable, mounting arrangement, and system documentation.

Global PLC Spare HUB Review

The Yokogawa SBA4D-06 is best evaluated as part of a complete analog interface assembly, rather than as an isolated terminal board. Its 16-channel arrangement and pressure-clamp connections support organized cabinet wiring. For replacement projects, our recommendation is to compare the installed board's full model code, connected module, cable type, and terminal mapping before purchase. A matching base model alone does not confirm compatibility. For example, a maintenance team may replace a terminal board and then find that several channel readings appear on the wrong control system points. The first checks should cover cable seating, terminal assignments, and the approved wiring schedule. Replacing additional modules before completing these checks may introduce more faults. The listed SIL3 specification also requires careful interpretation. Verify the approved system architecture and safety documentation instead of treating the terminal board designation alone as proof of complete safety-loop compliance.

Packaging, Shipping, and Warranty

Expected product:

• Yokogawa SBA4D-06 analog terminal board.
• Connection cables and additional accessories only when explicitly included in the quotation.

Confirm the final package contents with the sales team before placing an order. Warranty: 12 months, subject to the seller's written terms. Shipping methods: FedEx, UPS, and DHL. Dispatch target: 24–48 hours after order processing, subject to stock confirmation and shipping arrangements. Contact Global PLC Spare HUB to confirm availability, price, delivery options, and the exact configuration supplied.

Frequently Asked Questions

Q1: How can I determine whether the existing board uses the correct terminal mapping? Compare the cabinet wiring schedule with the terminal labels and connected module documentation. Confirm channel assignments before disconnecting the existing wiring. Record each conductor position to support accurate reinstallation.

Q2: What should I check when several analog signals become unstable at the same time? Inspect shared connectors, the KS1 cable, and common interface connections first. Then review the connected module's diagnostic status. Multiple simultaneous faults may indicate a shared connection issue rather than separate field-device failures.

Q3: Does the SBA4D-06 convert analog signals or determine their measurement accuracy? The supplied specifications describe a terminal board, not a signal conversion module. Confirm measurement range, accuracy, resolution, and signal conditioning through the documentation for the connected analog module.

Q4: What evidence should I request before using this board in a SIL3 project? Request the applicable manufacturer safety documentation and approved hardware configuration. Verify the role of the terminal board within the complete safety architecture. Do not infer system-level SIL compliance from the listed rating alone. Q5: Which details help prevent an incorrect replacement purchase? Provide the full SBA4D-06 model number, connected module model, KS1 cable requirement, mounting arrangement, and existing terminal configuration. Include site environmental requirements and any safety-related application constraints in your quotation request.
