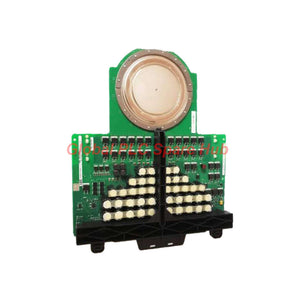

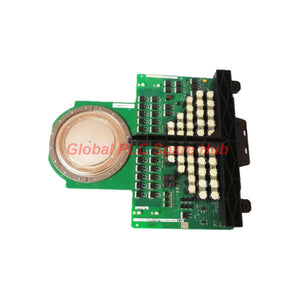

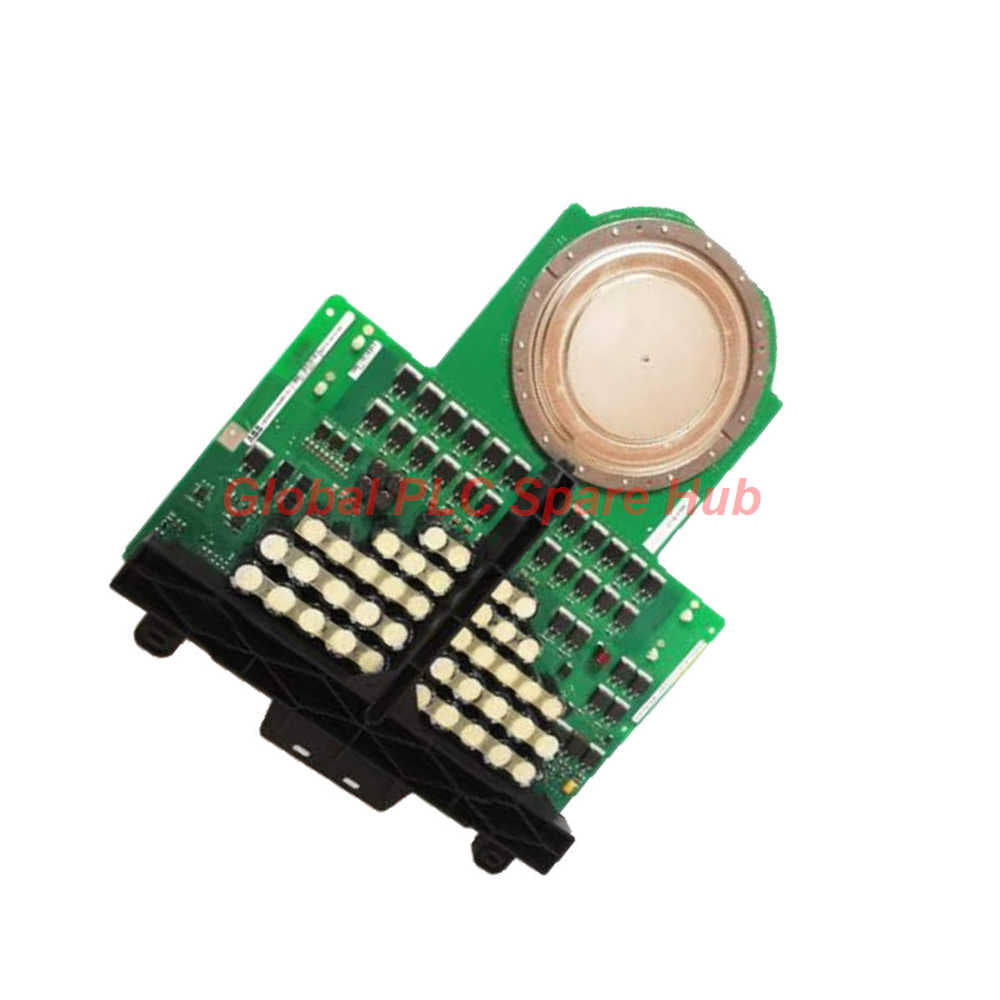

3BHB030310R0001 IGCT MODULE ABB 5SHY 4045L0006

Global PLC Spare HUB Review

When retrofitting high-power medium-voltage frequency converters, gate-commutated turn-off semiconductor degradation directly threatens inverter bridge reliability. Drawing from extensive field deployment experience with ABB high-power semiconductor stacks, installing the 3BHB030310R0001 (featuring the 5SHY 4045L0006 4500V 91mm silicon structure) demands rigorous thermal paste application uniformity and precise gate unit optical fiber alignment to prevent localized thermal runaways during high di/dt commutation cycles.

Executive Product Summary

The 3BHB030310R0001 is an industrial-grade Integrated Gate Commutated Thyristor (IGCT) module engineered by ABB. Built to handle extreme blocking voltages and high surge currents, this semiconductor power device serves as the core switching element in multi-megawatt industrial drives, static frequency converters, and high-voltage direct current transmission systems. It provides ultra-fast turn-off capabilities combined with minimal conduction losses, ensuring maximum operational efficiency in demanding energy conversion architectures.

Comprehensive Technical Matrix

Engineering Parameter	Specification Data
Manufacturer	ABB
Product Identifier	3BHB030310R0001
ABB Type Designation	5SHY 4045L0006 (4500V, 91mm IGCT Module)
Device Classification	Integrated Gate Commutated Thyristor (IGCT) Power Module
Repetitive Peak Off-State Voltage	4500 V
Silicon Wafer / Package Size	91 mm diameter format
Associated Control Interface	Compatible with gate driver units such as 3BHE039203R0101 (GVC736CE101)
Customs Tariff / CN8 Code	85413000 (Thyristors, diacs, and triacs)
Origin of Manufacture	United States / Czech Republic
Gross Logistics Weight	Approximately 3.0 kg

Mechanical Installation & Mounting Guidelines

• Surface Preparation: Clean the heatsink mounting surface meticulously with isopropyl alcohol to remove oxidation or particulate residue before placement.
• Clamping Force Verification: Apply calibrated torque incrementally across the clamp assembly to ensure uniform pressure distribution over the 91 mm ceramic package periphery.
• Optical Fiber Alignment: Securely snap the fiber optic trigger cables into the corresponding gate driver receptacles, verifying zero attenuation and clean ferrule tips.
• Thermal Interface Compound: Apply a high-performance, non-silicone thermal interface material layer maintaining consistent thickness to optimize thermal conductivity.

Diagnostics, Maintenance, & Operational Monitoring

• Gate Unit Status Polling: Monitor optical feedback channels continuously for low-amplitude warning pulses indicating gate driver capacitor degradation or fiber linkage jitter.
• Blocking Voltage Testing: Utilize specialized high-voltage curve tracers during scheduled overhauls to verify leakage current thresholds under maximum reverse bias conditions.
• Thermal Imaging Inspection: Employ infrared thermography during partial-load runs to detect asymmetric current sharing across parallel semiconductor stacks.

Compatibility & System Integration

• Drive Integration: Designed natively for ABB megawatt-class medium-voltage frequency converters and wind turbine full-power converters.
• Gate Driver Interoperability: Pairs seamlessly with dedicated local gate control boards and optical interface backplanes.
• Snubber Circuit Alignment: Integrates smoothly into low-inductance snubber networks designed to clamp transient recovery voltage spikes.

Warranty, Logistics, & Fulfillment Terms

• Quality Assurance: Backed by a comprehensive 12-month replacement warranty covering material and manufacturing defects.
• Dispatch Window: Guaranteed rapid 24-48 hour order processing and carrier handover for in-stock inventory.
• Global Logistics Partners: Fast, secure international shipping handled exclusively via FedEx, UPS, and DHL.

Industrial Application Scenarios

• Medium-Voltage AC Drives: Powering multi-megawatt rolling mill and mining conveyor inverter bridges requiring rapid dynamic response.
• Pumped Storage Hydro Plants: Regulating grid synchronization and excitation control circuits in heavy rotating electrical machinery.
• Railway Traction Substations: Managing high-capacity static frequency converters for electrified railway power grids.

Expert Professional FAQ

Question: What preliminary diagnostic checks should be performed if a 3BHB030310R0001 IGCT module experiences repetitive gate-trigger communication faults?

Answer: Inspect the optical fiber patch cords for micro-bends, contamination, or connector misalignment. Verify that the associated gate driver power supply card (such as the 3BHE039203R0101) is outputting stable DC bias voltages without excessive ripple.

Question: Why is precise torque calibration critical when mounting the 91 mm 5SHY 4045L0006 package onto liquid-cooled heatsinks?

Answer: Uneven mechanical clamping pressure causes localized silicon die stress, leading to microscopic thermal fatigue fractures, compromised thermal transfer, and premature electrical breakdown during high surge current transients.

Question: Can individual IGCT semiconductor modules be replaced independently within a multi-device parallel inverter bridge?

Answer: Yes, but matching dynamic parameters (such as on-state voltage drop and turn-off storage time) across parallel devices is essential to prevent severe current hogging and thermal overload.

Question: What environmental storage conditions must be maintained for spare 3BHB030310R0001 units in warehouse inventory?

Answer: Store units in original anti-static moisture-barrier packaging within a climate-controlled environment maintaining temperatures between 10°C and 30°C and relative humidity below 60% to prevent contact oxidation.

Question: How does the IGCT switching topology differ from standard GTO thyristors in high-voltage industrial drives?

Answer: IGCTs integrate the gate driver directly onto the semiconductor housing, enabling extremely low-inductance gate loops that turn off anode current in microseconds without requiring bulky snubbers.
