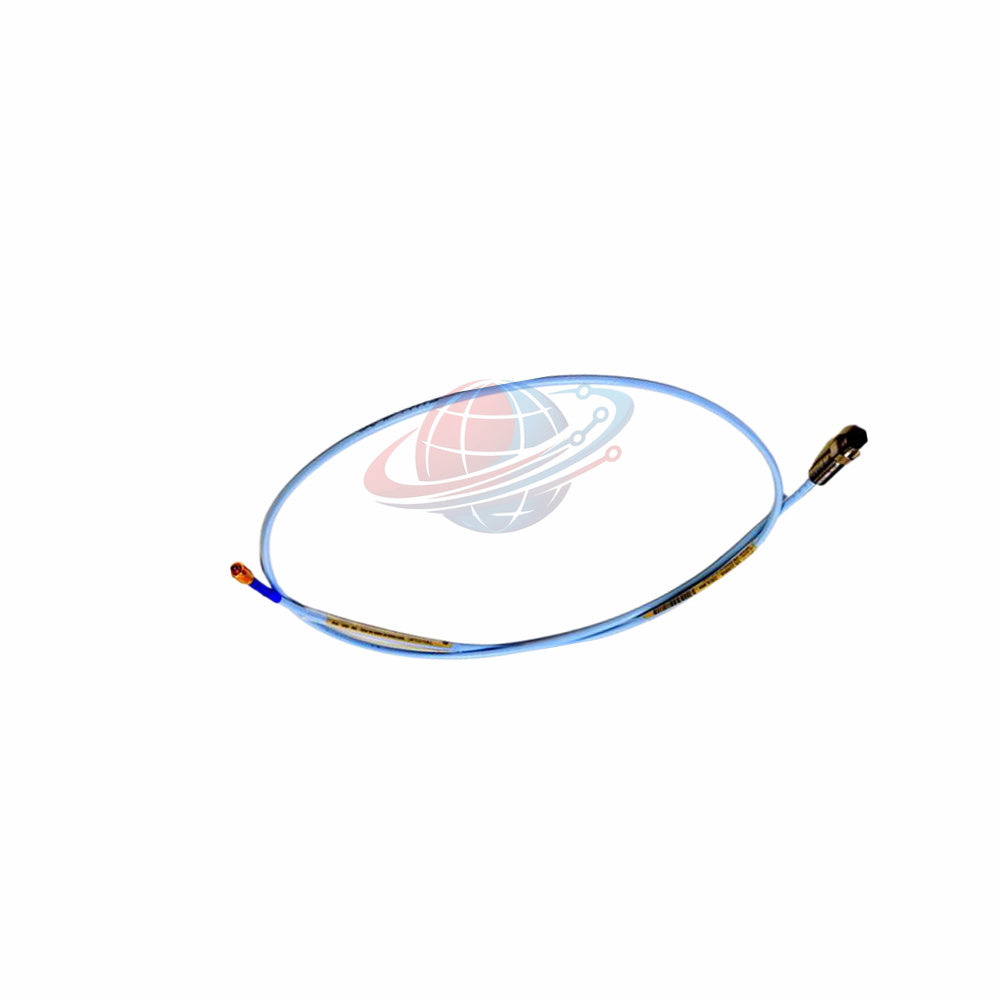

129716-xxx-040-15 3300 Series MOD166797-0133 Vibration Probe

Global PLC Spare HUB Review

Engineering teams managing high-stress rotating machinery depend on reliable eddy current transducers. Global PLC Spare HUB Review emphasizes that the MOD166797-0133 modification combined with the 3/8-24 flexible armor housing provides superior mechanical protection in restricted conduit pathways. During a recent high-speed gas turbine overhaul, deploying this specific flexible lead configuration prevented cable shear damage caused by thermal expansion cycles.

Suffix Code and Model Architecture Breakdown

• Base Model: 129716
  • Description: 3300 XL 8mm Probe with 3/8-24 flexible armor conduit.
  • -xxx Option: Custom unthreaded length specification tailored to precise casing penetration depths.
  • -040 Option: Overall case length configured to 4.0 inches.
  • -15 Option: Total electrical system length specified at 1.5 meters (4.9 feet).
  • MOD166797-0133: Factory modification code ensuring specialized mechanical or electrical configuration compliance.

Core Technical Characteristics & Material Build

Target Rotating Equipment & Fault Diagnostics

• Supported Machinery: High-performance steam turbines, multi-stage centrifugal compressors, heavy-duty boiler feed pumps, and large industrial gearboxes.
• Diagnostic Capabilities: Accurate tracking of shaft radial vibration, journal bearing wear, dynamic eccentricity, rotor whip, and transient startup instability.

Logistics Dispatch & Commercial Protection

• Warranty Coverage: Backed by a full 12-month manufacturer-grade factory warranty ensuring operational reliability.
• Global Shipping Partners: Rapid dispatch executed via tier-one carriers including FedEx, UPS, and DHL to minimize plant downtime.

Expert Frequently Asked Questions and Procurement Advisory

Question: How does the 3/8-24 flexible armor option benefit installations in cramped terminal boxes?

Answer: The flexible metallic armor protects the triaxial cable from sharp bending radii and mechanical chaffing in tight machinery enclosures.

Question: What specific factor determines the correct selection of the -xxx unthreaded length suffix?

Answer: The unthreaded length must match your exact mounting bracket thickness and clearance requirements to ensure proper thread engagement limits.

Question: Why is monitoring the nominal RPROBE resistance of 7.73 ohms critical during commissioning?

Answer: Measuring the exact DC resistance from center to outer conductor verifies that the coaxial cable has no internal breaks or shorts prior to system startup.

Question: Can standard FEP insulated cables be substituted with PFA extended temperature options arbitrarily?

Answer: PFA cables are specifically engineered for extreme high-temperature environments exceeding standard FEP ratings, and substitution depends on ambient thermal thresholds.

Question: What primary procurement guideline should engineers follow when ordering modified part numbers like MOD166797-0133?

Answer: Always cross-reference the complete modification suffix string with original plant engineering drawings to guarantee electrical and mechanical interchangeability.
