129716-xxx-037-15 MOD 166797-0180 Buy Bently Nevada Vibration Transducer

Engineering Summary & Architecture

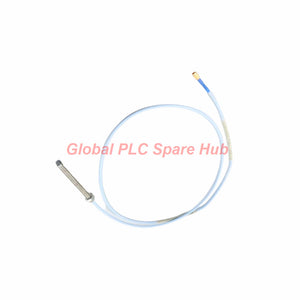

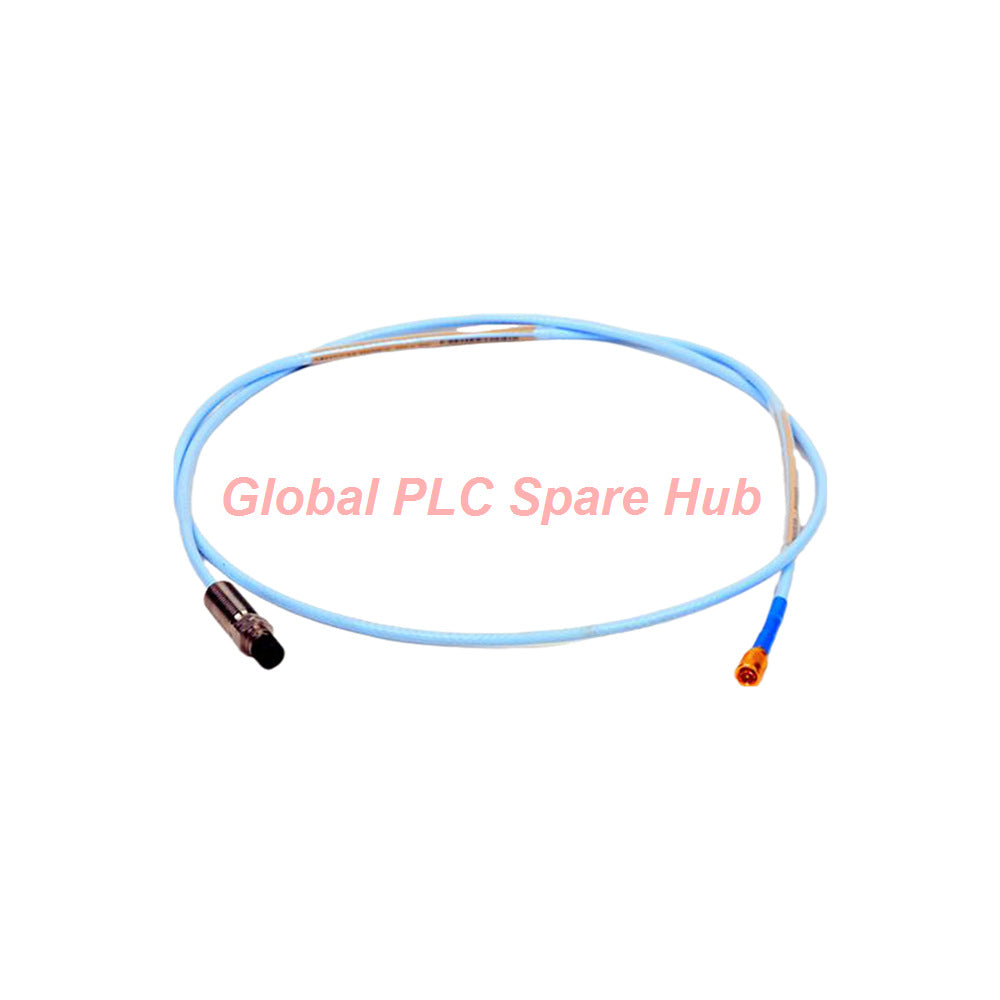

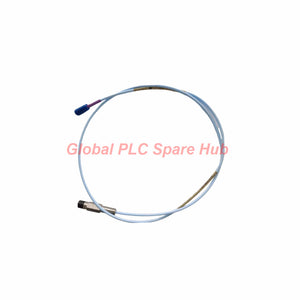

The Bently Nevada 129716-xxx-037-15 MOD 166797-0180 3300 XL Series 8mm proximity probe delivers non-contacting vibration and displacement measurement. Built with a 3/8-24 unflex thread and PPS probe tip material, this precision transducer ensures exceptional signal accuracy in severe industrial rotating machinery environments.

Configuration Breakdown & Model Suffix Tree

Advanced Transducer Specifications

• Brand & Part Number: Bently Nevada 129716-xxx-037-15 MOD 166797-0180
• Probe Tip Material: Polyphenylene sulfide (PPS) for thermal and chemical resilience
• Probe Case Material: AISI 303 or 304 corrosion-resistant stainless steel (SST)
• Center-to-Outer DC Resistance: 7.73 ± 0.50 Ohms ($R_{PROBE}$ for 1.5m length)
• Probe Cable Insulation: 75 Ohm triaxial FEP or optional PFA insulation
• Mounting Thread Specification: 3/8-24 UNF flexible armor compatible

Global PLC Spare HUB Insight & Field Experience

Instrumentation engineers frequently encounter gap voltage instability when mounting probes into housings with incorrect thread tolerances or unthreaded length mismatches. The 129716-xxx-037-15 MOD 166797-0180 features a customized modification suffix that resolves unique mechanical clearance constraints in retrofitted centrifugal compressors. During a recent multi-train compressor overhaul, our field diagnostics team utilized this exact probe configuration to achieve a stable -9 Vdc initial gap setting, completely eliminating false radial vibration triggers caused by thermal casing growth.

Target Equipment & Application Diagnostics

• Primary Equipment: High-speed centrifugal compressors, multi-stage industrial steam turbines, boiler feed pumps, and large electric motors.
• Diagnostic Capabilities: High-frequency shaft radial vibration analysis, rotor dynamic eccentricity tracking, and fluid-film bearing wear monitoring.
• System Compatibility: Fully interchangeable with 3300 XL 5mm and 8mm proximitor sensors and extension cables.

Global Logistics & 12-Month Warranty Terms

• Fulfillment Speed: Fast global dispatch within 24 to 48 hours from order confirmation.
• Logistics Partners: Secure international air transport via FedEx, UPS, and DHL.
• Packaging Standards: Factory-original sealed packaging to prevent electrostatic and mechanical damage.
• Warranty Assurance: Protected by a comprehensive 12-month manufacturer replacement warranty.

Technical FAQs & Expert Buying Guide

Q: What is the significance of the MOD 166797-0180 suffix designation?

A: It indicates a factory-engineered modification tailored to specific mechanical dimensions or electrical filtering requirements for custom installations.

Q: Why is Polyphenylene Sulfide (PPS) chosen for the probe tip material?

A: PPS provides superior resistance to harsh hydrocarbon lubricants and maintains dimensional stability under high continuous operating temperatures.

Q: How does probe cable length impact total DC resistance values?

A: Core-to-outer conductor resistance scales proportionally with cable length, registering 7.73 Ohms for the standard 1.5-meter variant.

Q: Can standard FEP cables be substituted in high-heat chemical zones?

A: No, applications exceeding standard temperature thresholds require Extended Temperature Range (ETR) PFA insulated cables to prevent insulation degradation.

Q: What key parameters should be verified before purchasing custom-length probes?

A: Always cross-reference your machinery technical drawings to confirm exact unthreaded case length (-xxx) and overall case length requirements.
