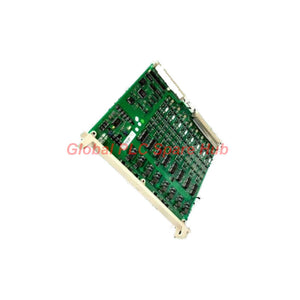

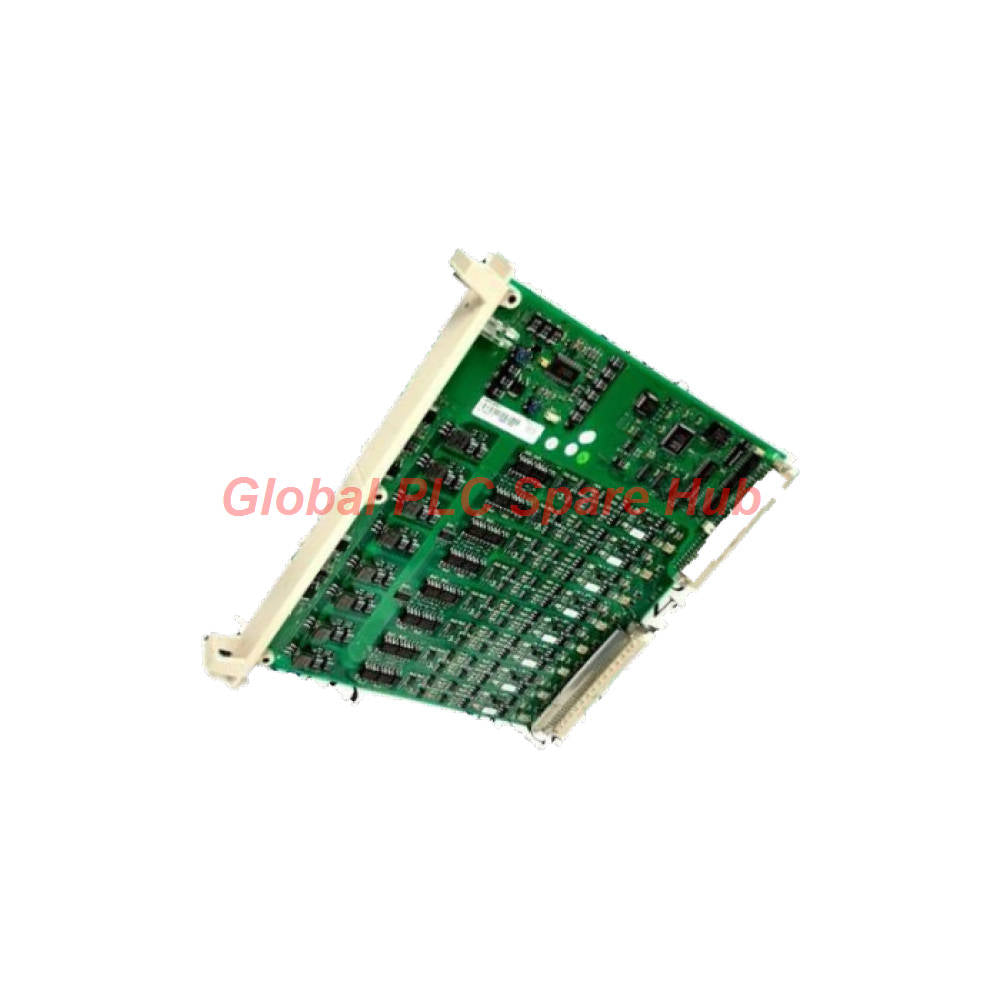

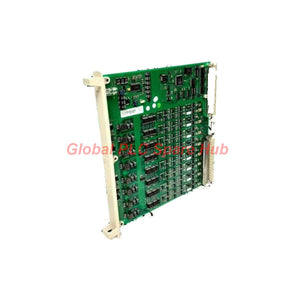

3BSE018293R1 DSAO 120A ABB Analog Output Board | 8-Channel Controller

ABB DSAO 120A | 3BSE018293R1 Analog Output Board

The ABB DSAO 120A (3BSE018293R1) is an 8-channel analog output board designed to provide analog control signals to compatible industrial automation equipment. It supports 4–20 mA current output and 0–10 V DC or ±10 V DC voltage output, making it suitable for control loops that require variable analog references rather than simple ON/OFF commands.

With 16-bit resolution and a specified accuracy of ±0.05% of full scale at 25°C, this board is intended for applications where output signal quality affects process regulation, actuator positioning, and drive references. Before replacement or installation, verify the control-system compatibility, output mode, channel assignment, field wiring, and required load characteristics against the applicable ABB documentation.

01 | Product Identity and Engineering Data

Parameter	Specification
Manufacturer	ABB
Type designation	DSAO 120A
Product ID	3BSE018293R1
Product category	Analog output board
Number of channels	8
Current output range	4–20 mA
Voltage output ranges	0–10 V DC and ±10 V DC
Resolution	16-bit
Specified accuracy	±0.05% of full scale at 25°C
Temperature drift	±0.005%/°C
Supply voltage	24 V DC ±10%
Power consumption	≤ 2 W
Net dimensions (D × H × W)	324 × 27 × 234 mm
Net weight	0.372 kg
HS code supplied	853890

02 | Output Signal Capabilities

Signal type	Typical control purpose	Selection check
4–20 mA	Process transmitters' control loops, valve positioners, and other compatible current-input devices	Confirm the receiving device's current-input requirements, circuit wiring, and allowable load impedance.
0–10 V DC	Analog references for compatible drives, actuators, and control equipment	Verify input impedance, signal common, and voltage-range configuration.
±10 V DC	Bipolar references where positive and negative command values are required	Confirm that the receiving device supports a bipolar input and the correct reference polarity.

Engineering note: The listed signal ranges describe the board's stated output capabilities. Confirm how output modes are selected, whether ranges are configurable per channel, and the applicable load limits in the ABB hardware manual. Do not assume that all three ranges are available simultaneously on every channel.

03 | Resolution, Accuracy and Temperature Effects

• 16-bit resolution: Provides fine digital command granularity for analog control applications. Actual usable resolution also depends on system configuration, output circuitry, noise, and field-device characteristics.
• ±0.05% full-scale accuracy at 25°C: Describes the specified accuracy under the stated reference temperature; it should not be treated as a guarantee of total loop accuracy across the entire installation.
• ±0.005%/°C temperature drift: Indicates a temperature-related change in output performance. Consider cabinet temperature and the manufacturer's reference conditions when evaluating signal accuracy.
• 24 V DC supply, ±10%: Verify supply stability and polarity during commissioning.
• Power consumption ≤ 2 W: Include the board's power requirement in the control-system power budget.

For precision loops, assess the entire signal chain: board output, field cable, grounding and shielding, receiving-device input, and calibration. A high-resolution output board alone does not guarantee the same accuracy at the final actuator or process variable.

04 | Integration and Typical Applications

• Distributed control systems: Analog command generation for compatible process-control hardware.
• Valve and actuator control: Current or voltage references for compatible positioners and actuators.
• Variable-speed drives: Analog speed or reference signals where the drive accepts the selected output range.
• Process regulation: Modulating commands for compatible flow, pressure, temperature, and level-control loops.
• Industrial machinery: Analog setpoints for equipment that requires a variable command signal rather than a discrete output.
• Control-system maintenance: Replacement of an installed board when the system documentation confirms compatibility with DSAO 120A, product ID 3BSE018293R1.

These are application examples, not a claim of universal compatibility. Confirm the exact ABB controller or I/O platform, board mounting arrangement, system firmware or configuration requirements, and field interface before selecting the replacement.

05 | Installation and Commissioning Sequence

1. Confirm the part number: Match both DSAO 120A and 3BSE018293R1 against the installed board and system bill of materials.
2. Check system compatibility: Verify the supported controller, rack or mounting arrangement, and applicable ABB hardware documentation.
3. Inspect the supply: Measure the 24 V DC supply and confirm it remains within the specified ±10% range under operating conditions.
4. Review channel configuration: Confirm the required current or voltage range, channel assignment, scaling, and control-system configuration.
5. Inspect field wiring: Verify terminal assignments, polarity, grounding, shielding, and receiving-device input requirements.
6. Test outputs individually: Command known values and measure the corresponding field signal using suitable calibrated test equipment.
7. Validate loop response: Confirm that the receiving device responds correctly and that the controller's engineering-unit scaling matches the physical output.
8. Record commissioning values: Document measured output values and any calibration adjustments for future maintenance.

06 | Diagnostic Guide for Analog Control Loops

Observed symptom	Recommended checks
No analog output	Check board seating, system configuration, 24 V DC supply, channel enable status, and field wiring.
Output is fixed at one value	Review the control program, channel scaling, output command, and any configured fallback behavior.
Measured current or voltage is incorrect	Verify the selected output range, command scaling, measuring instrument setup, polarity, and receiving-device connection.
Output fluctuates or appears noisy	Inspect cable shielding, grounding, routing near power conductors, supply stability, and the receiving device's signal common.
Control valve or drive does not reach the expected setpoint	Compare the commanded engineering value with the measured analog signal, then check actuator or drive scaling and its input configuration.
Output accuracy changes with temperature	Review cabinet temperature, compare the output against a calibrated reference, and account for the specified temperature drift.
Several channels fail simultaneously	Investigate shared supply, system configuration, common wiring, and board seating before assuming multiple channel circuits have failed independently.

Diagnostic scope: The supplied product information does not specify onboard channel-level diagnostic indicators, fault codes, or loop-monitoring functions. Use the controller's available status information, configuration tools, calibrated signal measurements, and field-device checks. Consult the applicable ABB manual for board-specific diagnostic procedures.

07 | Global PLC Spare HUB's Insight

When troubleshooting an analog output loop, separate the controller command from the electrical signal and the receiving device's response. For example, if a valve does not reach its requested position, first compare the programmed output value with the measured 4–20 mA or voltage signal. If the electrical signal is correct, investigate the positioner's configuration, actuator mechanics, and loop calibration before replacing the board.

For replacement planning, the most important checks are the complete product ID, supported ABB platform, required output range, and channel configuration. A board with similar channel capacity may still be unsuitable if its signal modes, mounting arrangement, or system support differs. Record the existing channel scaling and wiring before removal to reduce commissioning time and avoid incorrect process commands after installation.

08 | Replacement Selection Checklist

• Verify the full designation: DSAO 120A / 3BSE018293R1.
• Confirm the installed ABB control-system platform supports the board.
• Identify whether each application requires 4–20 mA, 0–10 V DC, or ±10 V DC.
• Check the receiving device's input type, impedance or load requirements, and signal reference.
• Confirm 24 V DC supply availability and the power budget.
• Document channel assignments, output scaling, and control-system configuration.
• Confirm the physical dimensions and installation arrangement against the existing assembly.

09 | Warranty, Packing and Shipping

• Warranty: 12-month warranty, subject to the seller's warranty terms and conditions.
• Product condition and packing: New and original factory packing, subject to stock confirmation.
• Shipping carriers: FedEx, UPS, and DHL.
• Dispatch estimate: 24–48-hour dispatch may be available after stock and order confirmation.
• Order verification: Provide the product ID and installed system details to help confirm the required configuration before purchase.

10 | Frequently Asked Questions

Q1. How do I choose between 4–20 mA and 0–10 V output for a replacement?

Answer: Match the receiving device's supported input type and the existing control-system design. Current signals are commonly used for process loops, while voltage signals are used where the receiving equipment specifies a voltage reference. Check cable length, electrical noise, input loading, and grounding before changing the signal type.

Q2. Does 16-bit resolution mean the field device will achieve 16-bit accuracy?

Answer: No. Resolution describes the granularity of the digital command, whereas accuracy describes how closely the actual output matches the intended value. Overall loop performance also depends on board accuracy, temperature, electrical noise, calibration, wiring, and the receiving device.

Q3. What is the most useful first test when a control valve does not follow its command?

Answer: Compare the controller's requested output with a calibrated measurement of the electrical signal at the appropriate test point. If the measured signal is wrong, investigate scaling, channel configuration, supply, and wiring. If the signal is correct, continue with the positioner, actuator, and mechanical process checks.

Q4. Can a similar ABB analog output board be used as a direct substitute?

Answer: Not without verification. Check the complete product ID, supported platform, signal ranges, channel arrangement, mounting, connector or terminal interface, and configuration requirements. Confirm substitution against ABB documentation or an approved parts list before installation.

Q5. What information should I send when requesting a quote for DSAO 120A?

Answer: Provide the full product ID 3BSE018293R1, the DSAO 120A designation, a photo of the installed label, the host system or controller model, and the required output signal type. If it is a replacement, include the existing channel configuration or application details so the part can be checked against the installation requirements.

Request a Quote for ABB DSAO 120A

Contact Global PLC Spare HUB for pricing, availability, and replacement verification for the ABB DSAO 120A (3BSE018293R1) analog output board. Share your system model and required signal range to help confirm the correct configuration. FedEx, UPS, and DHL shipping options are available subject to order arrangements.
