VE4005S2B2 Emerson DeltaV 8-Channel HART Analog Input In Stock

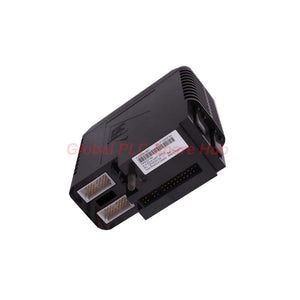

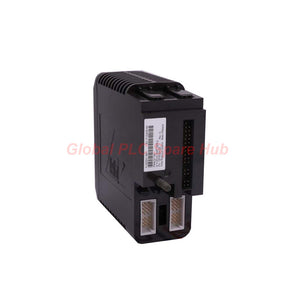

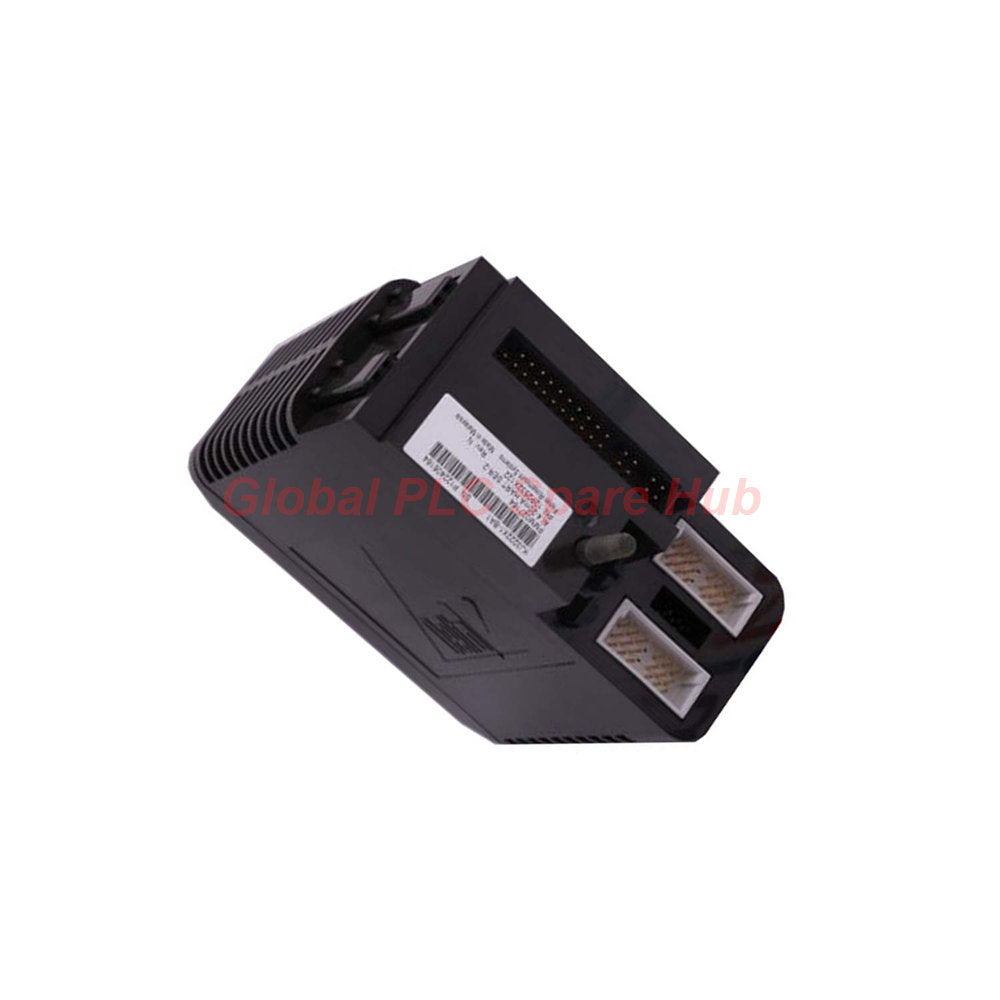

Emerson VE4005S2B2 Technical Architecture

The VE4005S2B2 is a high-density 8-channel analog input module engineered for the DeltaV control environment. This module facilitates precise 4-20mA signal acquisition while maintaining full HART pass-through for intelligent field device diagnostics. Each input path features an integrated 0.5A fuse to safeguard the backplane against field-side overcurrent conditions. We advise maintenance teams to verify the loop impedance requirements before deploying this hardware in long-distance cable runs to ensure signal integrity.

Technical Parameter Matrix

• Brand: Emerson
• Model Number: VE4005S2B2
• Series: DeltaV S-Series
• Signal Interface: 8-Channel Analog Input (AI)
• Communication Protocol: HART Version 5/6/7 Compatible
• Measurement Range: 4 to 20 mA DC
• Accuracy Rating: ±0.1% of Full Scale (FS)
• Response Velocity: ≤50 ms update rate
• Input Impedance: 250 Ω nominal
• Galvanic Isolation: 1500 V AC channel-to-system
• Channel Protection: Individual 0.5 A per-channel fusing
• Operating Voltage: 24 V DC (±10% tolerance)
• Thermal Limits: -20°C to +60°C operational environment
• Environmental Rating: IP20 ingress protection

Integrated Diagnostic Capabilities

• Open Loop Detection: Immediate flagging of signal loss or broken wire conditions.
• HART Data Retrieval: Accesses secondary variables and device health directly from field transmitters.
• Fuse Monitoring: Real-time status reporting for individual channel protection status.
• Drift Analysis: Maintains long-term stability with a ≤0.05% yearly signal drift rating.

Strategic Application & Compatibility

• Compatible Hardware: Interfaces with Rosemount transmitters and Fisher positioners.
• Process Industry: Critical monitoring in petrochemical, pharmaceutical, and water treatment sectors.
• Redundancy Support: Suitable for high-availability DeltaV carrier configurations.

Global PLC Spare HUB's Insight

The VE4005S2B2 is a cornerstone of the DeltaV platform, specifically praised by engineers for its hardware-level fused protection. Unlike non-fused alternatives, the VE4005S2B2 prevents a single field fault from cascading through the entire I/O bank. Our technical assessment highlights the 1500V AC isolation as a critical feature for sites prone to ground loop interference. This module is essential for plants transitioning to more robust asset management through HART data integration.

Logistics & Quality Commitment

• Warranty Terms: 12-month industrial-grade protection included.
• Shipping Expediency: 24-48 hour fulfillment window from stock.
• Global Couriers: Fast transit via FedEx, UPS, or DHL.
• Quality Control: Rigorous pre-shipping verification for functional consistency.

Selection Guide and Engineering FAQ

Does the VE4005S2B2 support power-limited field circuits?
Yes, the 0.5A fuse per channel acts as a critical current limiter, though you should verify specific safety barrier requirements for hazardous area installations.

How do I handle a blown fuse on an individual channel?
The module provides diagnostic alerts. You must check the field wiring for shorts before replacing the VE4005S2B2 component or the specific fuse block associated with it.

Is this module compatible with both 2-wire and 4-wire transmitters?
The VE4005S2B2 is optimized for loop-powered 2-wire devices, but it can accommodate 4-wire devices with proper external power configuration.

What is the primary advantage of the HART protocol on this specific block?
It allows the DeltaV system to perform remote calibration and parameterization of field devices without requiring manual handheld communicators at the site.

How does temperature affect the ±0.1% accuracy?
The module is calibrated for stable performance across the -20°C to +60°C range, but we recommend localized cabinet cooling for environments consistently exceeding 50°C.
