DO840 ABB S800 Series Digital Output Module 3BSE020838R1

Product Overview

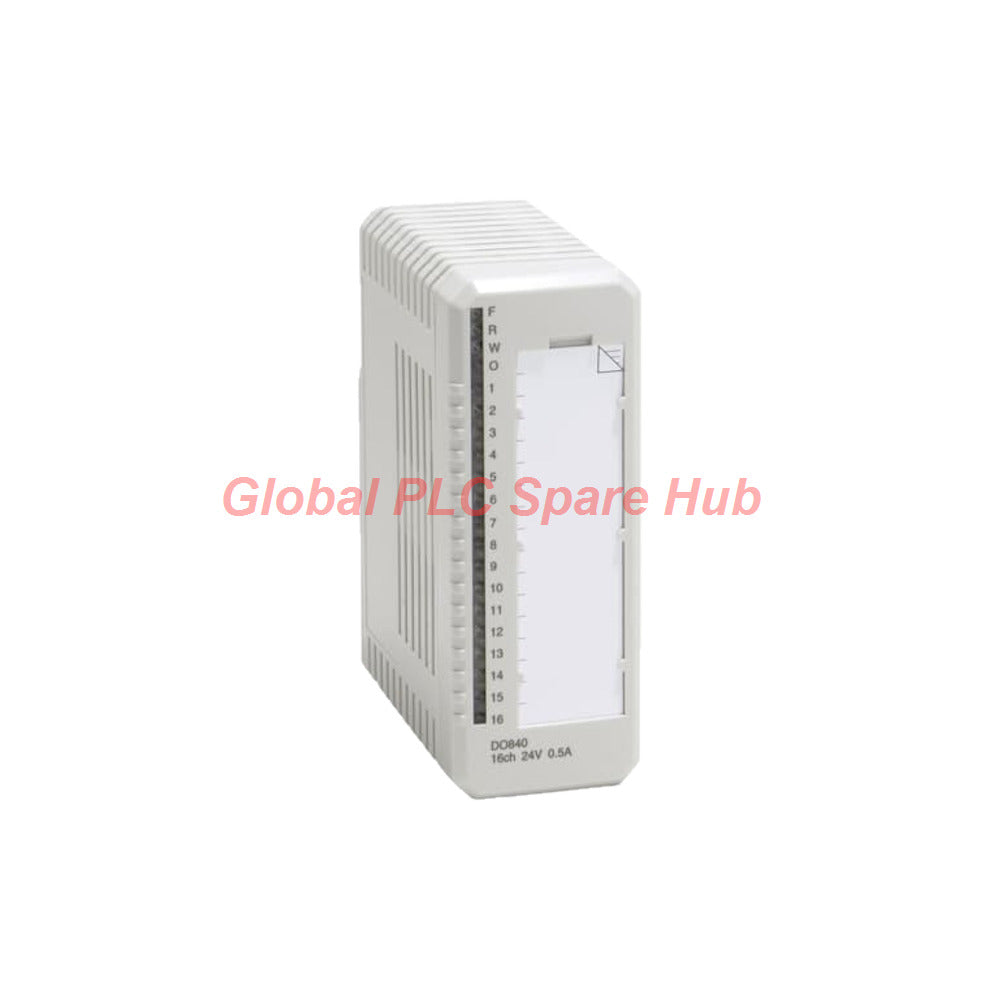

The DO840 (Catalog No. 3BSE020838R1) is an industrial-grade Digital Output Module designed by ABB for the S800 I/O Architecture. Delivering 16 current-sourcing outputs rated at 0.5A, this unit provides robust switching for high-density automation nodes requiring strict thermal and short-circuit protection.

Technical Specifications Matrix

Configuration and Architecture Breakdown

• High-Side Drivers: Each channel features a dedicated high-side driver with internal short-circuit limiting and thermal shutdown protection.
• Voltage Supervision: Independent process power monitoring on each of the two isolated channel groups.
• Terminal Unit Mapping: Designed to plug directly into compatible S800 MTUs including TU810, TU812, TU814, TU830, TU833, TU842, TU843, and TU852 (Keying Code: CE).
• Redundancy Support: Built to support both single-station and hot-swappable redundant configurations.

Installation Guide

Verify that the mechanical keying code (CE) matches your chosen Modular Terminal Unit. Seat the DO840 firmly onto the MTU base, ensuring the external 24V DC field supply is wired correctly. For vertical installations within compact cabinets, ensure maximum ambient temperature does not exceed 40°C (104°F).

Commissioning and Maintenance Convenience

The Output Set Point (OSP) safety function automatically forces output channels to pre-programmed safe states if a communication timeout or controller fault occurs. Front-panel LEDs offer instant feedback on run status, hardware errors, warnings, OSP activation, and individual channel states.

Compatibility Notes

Fully compliant with EN 61010-1 safety requirements and DNV marine certifications. Operates reliably inside Class I Division 2 and ATEX Zone 2 hazardous process zones.

Certifications and Warranty Terms

Manufactured to rigorous international quality benchmarks. Backed by a dependable 12-month factory warranty covering all material and workmanship defects.

Shipping and Logistics

Urgent global orders ship immediately via premier air couriers including FedEx, UPS, and DHL. In-stock components dispatch within 24 to 48 hours to prevent plant turnaround bottlenecks.

Application Scenarios and Diagnostics

Deployed widely in continuous chemical processing plants, oil and gas skids, and automated manufacturing lines operating heavy inductive solenoid valves. On-board diagnostics instantly capture thermal overloads, short-circuit currents, and missing field supply voltages.

Global PLC Spare HUB's Insight

Our automation engineering team integrated the DO840 into an offshore production platform controlling high-frequency hydraulic dump valves. The embedded inductive load suppression effectively absorbed back-EMF spikes during rapid cycling, while the group voltage supervision feature flagged an upstream auxiliary power sag before it could shut down the entire skid.

Frequently Asked Questions

Q: What specific action does the OSP function take during a network communication failure?

A: OSP (Output Set Point) overrides active logic and safely forces all 16 channels into their pre-configured default safe states.

Q: Can this module operate without an external 24V DC field supply connected to the MTU?

A: No, the output channels require an external 24V source drawing up to 200 mA to power field loads, as the ModuleBus only feeds internal logic.

Q: What determines whether an S800 digital output requires a redundant terminal unit pairing?

A: Choose redundant MTU frames (like TU842 or TU843) when your process demands zero downtime and live module replacement capabilities.

Q: How do the high-side drivers behave when a field short circuit occurs on a channel?

A: Internal current-limiting and over-thermal circuits clamp the output current instantly and shut down the affected driver until the fault clears.

Q: What installation precautions prevent premature module aging in sulfur-rich environments?

A: The module already includes ISA-S71.04 G3 corrosion protection, but cabinet air filtration and maintaining humidity below 95% non-condensing are essential.
