TM258LF42DT Schneider Electric M258 PLC | Advanced CANopen Controller

Engineering Overview

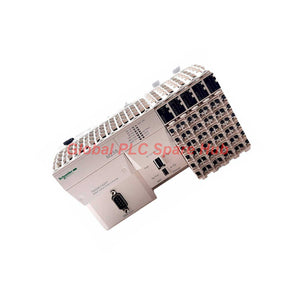

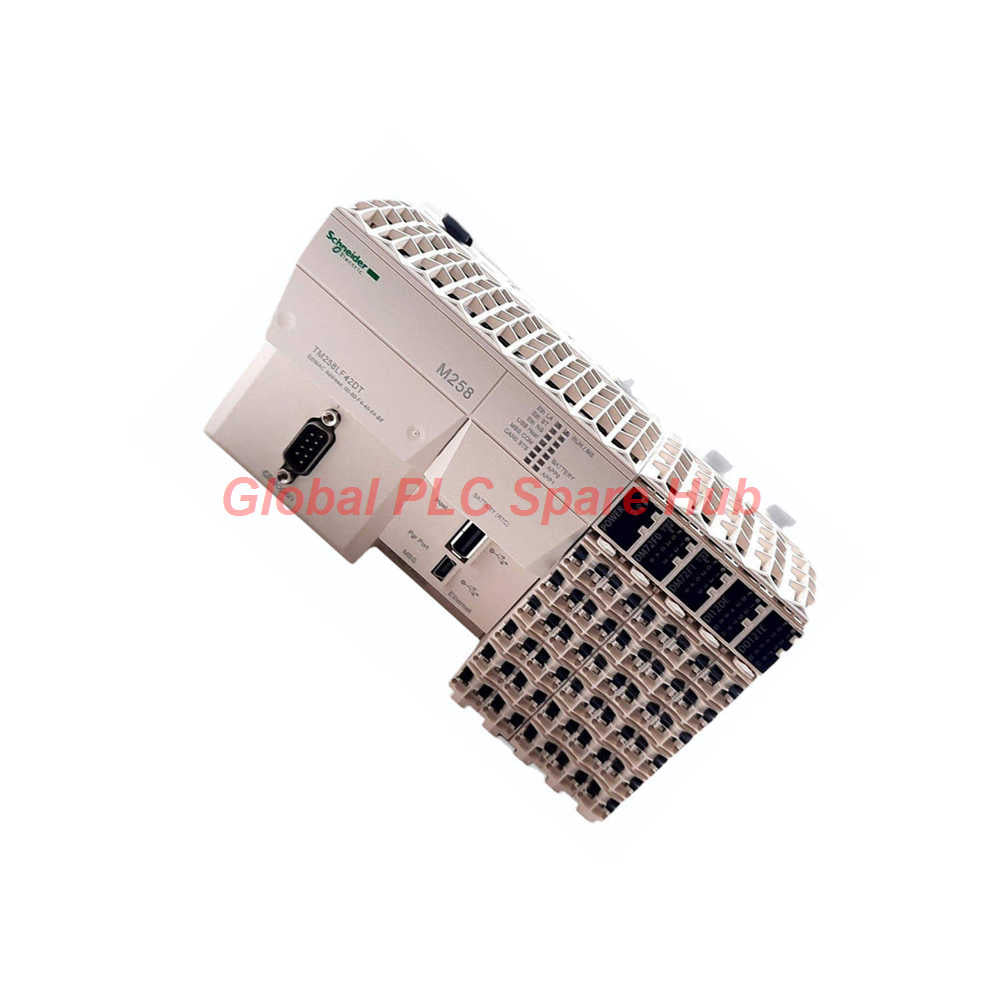

The TM258LF42DT by Schneider Electric is a high-performance logic controller within the Modicon M258 range, specifically engineered for demanding machine control applications. Featuring 42 integrated I/O points, including specialized fast inputs and outputs, it delivers a boolean execution time of just 22 ns. This controller is a powerhouse for motion-intensive tasks, supported by a 128 MB Flash and 64 MB RAM memory structure, ensuring robust performance in complex synchronization environments.

Technical Performance Specs

• Model/Series: TM258LF42DT / Modicon M258
• Total I/O: 42 Discrete points (12 standard/fast outputs, 22 inputs)
• High-Speed Processing: 8x 200 kHz counting inputs for precise motion feedback
• Communication Suite: CANopen Master, Ethernet Modbus TCP/IP, RS232/RS485, and Dual USB ports
• Processor Speed: 22 ns per boolean instruction
• Memory: 128 MB Flash / 64 MB RAM with 1.5-year battery-backed retention
• Operating Temperature: 0°C to 55°C (horizontal installation)
• Physical Dimensions: 175mm (W) x 99mm (H) x 85mm (D)

Advanced Connectivity & Diagnostics

• CANopen Integration: Supports bus lengths up to 5,000 meters at 10 kbit/s, ideal for distributed I/O architectures.
• Diagnostic Interface: Comprehensive LED array provides per-channel I/O status, Ethernet link health, and battery condition at a glance.
• System Resilience: IP20 protection with immunity to 8kV ESD and surge protection on power lines.
• Expert Powering: Segmented 24VDC power inputs for main supply and embedded expert modules, ensuring electrical isolation between logic and field power.

Logistics and Quality Assurance

• Warranty: Industry-standard 12-month performance coverage.
• Global Shipping: Expedited dispatch via FedEx, UPS, and DHL.
• Lead Time: Rapid order fulfillment within 24–48 hours.
• Packaging: Professional industrial-grade protective packaging.

Expert FAQ

How do I resolve communication errors on the CANopen bus when using the TM258LF42DT?
Verify the termination resistors at both ends of the bus (typically 120 ohms). Check the cable length vs. transmission rate—ensure you are not exceeding 100 meters at 500 kbit/s.

Can the onboard USB ports be used for active data logging?
The USB Host port is suitable for file transfers and program loading. For continuous high-speed data logging, we recommend utilizing the Ethernet Modbus TCP/IP interface for better stability.

What causes the "BATT" LED to illuminate red?
This indicates the CR2477M battery voltage is low. Replace it promptly to prevent the loss of retain/persistent variables during power cycles.

Is it possible to adjust input filter times to prevent signal jitter?
Yes, the input filtering is software-configurable from 0ms to 12ms. For high-speed sensor inputs, keep this at 0ms or 2µs, but for noisy environments, increasing the filter time will improve signal stability.

What is the best way to mount this for optimal cooling?
Install horizontally on a symmetrical DIN rail. Ensure a minimum clearance of 50mm around the unit to prevent thermal derating, especially when operating near the 55°C limit.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we categorize the TM258LF42DT as the "Swiss Army Knife" of the M258 series. Its combination of high-speed counting inputs and flexible communication options makes it perfect for multi-axis synchronization and complex bottling or packaging lines. It is an ideal choice for OEMs who need a reliable, compact controller that scales well across different machine versions without requiring a complete hardware redesign.

Selection Guide

• Check Application Needs: Determine if your machine requires high-speed pulse inputs; the 200kHz counting inputs make this a top choice for encoder-heavy tasks.
• Review Environment: If your cabinet temperature exceeds 55°C, consider derating your installation or adding active cooling.
• Verify Bus Layout: Ensure your CANopen network topology matches the transmission rate/distance requirements outlined in the specifications.
