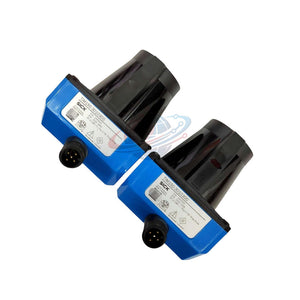

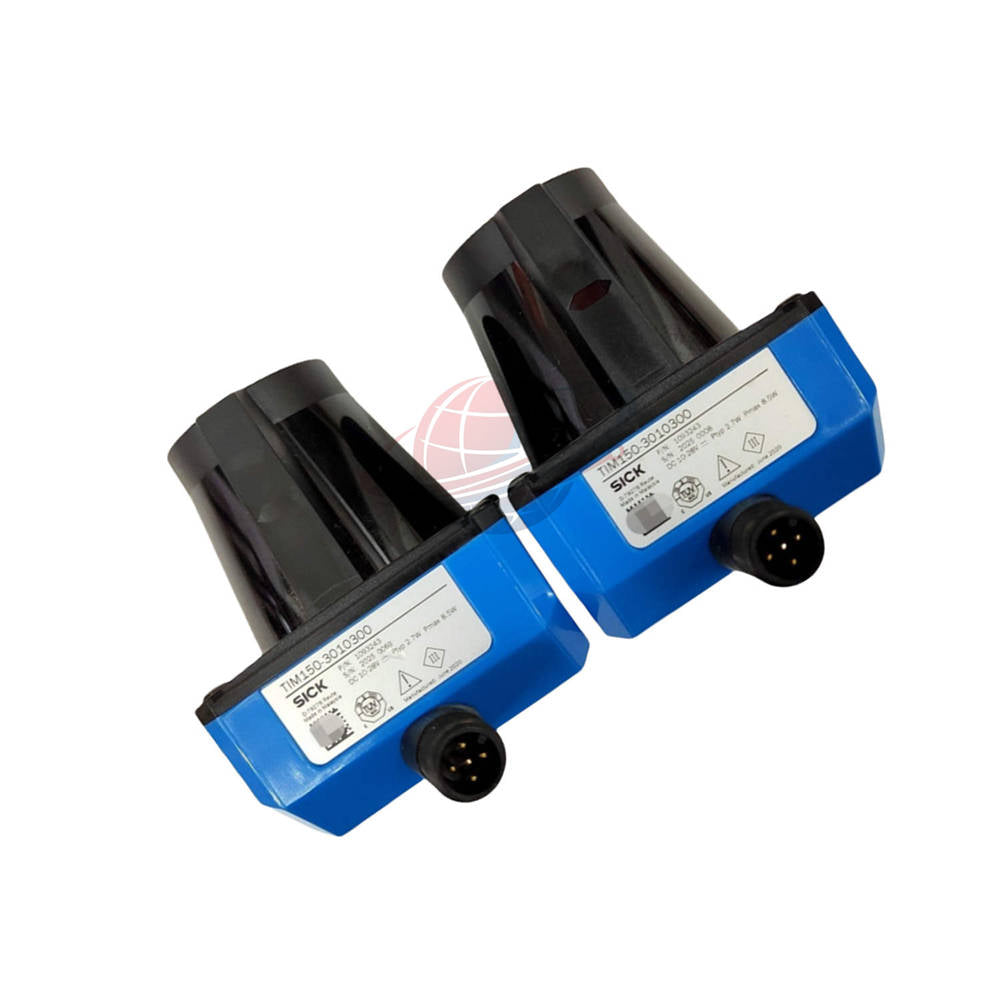

TIM150-3010300 SICK TiM 2D LiDAR 10m Range Precision Scanner

Product Overview

The TIM150-3010300 is a compact, high-performance 2D LiDAR sensor from the SICK TiM Series. Engineered for indoor applications, it utilizes advanced HDDM+ (High Definition Distance Measurement) technology to provide reliable distance detection even in challenging ambient light conditions up to 30,000 lx. With a wide 200° horizontal aperture and a 10m working range, the TIM150-3010300 offers a cost-effective solution for area monitoring and object detection where precision and small form factor are critical.

Technical Specifications

• Brand: SICK
• Model: TIM150-3010300
• Series: TiM 2D LiDAR Sensors
• Measurement Principle: HDDM+ (Infrared 850 nm)
• Working Range: 0.05 m to 10 m
• Scanning Angle: 200° Horizontal
• Angular Resolution: 1°
• Scanning Frequency: 14.5 Hz
• Supply Voltage: 10 V DC to 28 V DC
• Power Consumption: Typ. 2.7 W
• Interface: IO-Link (Service & Parameterization)
• Digital Outputs: 2 x Push-pull outputs
• Enclosure Rating: IP65 (Dust-tight and water jet resistant)
• Weight: 122 g (Ultra-lightweight for mobile platforms)

Global PLC Spare HUB's Insight

Our technical analysis of the TIM150-3010300 highlights its exceptional MTBF of 82 years, making it one of the most reliable scanners in its class. The rotatable M12 connector is a standout feature, allowing for flexible mounting in tight spaces without stressing the cable harness. While the TiM Series is incredibly robust, engineers should note the 1° resolution; it is optimized for field evaluation and presence detection rather than high-density point cloud mapping.

Compatible Equipment & Application Scenarios

• Automated Guided Vehicles (AGV): Used for collision avoidance and path clearing in warehouses.
• Service Robotics: Provides spatial awareness for mobile platforms and delivery robots.
• Palletizing Systems: Detects overhangs or presence of objects on conveyor lines.
• Access Control: Monitors door zones or restricted indoor areas using configurable field sets.

Diagnostic & Field Evaluation Capabilities

• Field Sets: Supports 1 field set with 2 simultaneous evaluation fields.
• Configurable Delays: Dwell and delay times are adjustable from 69 ms up to 30 seconds.
• Visual Diagnostics: Dual LEDs provide immediate feedback on Power On and Switching Status.
• Software Integration: Full parameterization through IO-Link for remote diagnostics and health monitoring.

Logistics & Warranty Assurance

• Fast Dispatch: Ships within 24-48 hours from order confirmation.
• Global Shipping: Express delivery via FedEx, UPS, and DHL.
• Warranty: Includes a comprehensive 12-month quality guarantee.
• Package Contents: One TIM150-3010300 LiDAR unit.

Purchasing & Selection Guide

• Range Check: Ensure the 10m range meets your safety buffer requirements.
• Remission Factor: Note that at 10% remission, the effective range is approx 2.8m to 3m.
• Safety Note: This is a field evaluation sensor, not a safety component according to machine legislation.

FAQ

• What is the significance of the HDDM+ technology in the TIM150-3010300?
• It filters out environmental noise and multiple echoes, providing higher stability in dusty indoor environments.
• Can the M12 connector be adjusted after installation?
• Yes, the 5-pin M12 male connector is rotatable, allowing you to orient the cable exit freely.
• Is the TIM150-3010300 suitable for outdoor use?
• No, this model is rated for indoor applications. For outdoor environments, use IP67-rated TiM series.
• How do I configure the detection fields?
• Field evaluation parameters are set via the IO-Link interface using SICK’s SOPAS ET software.
• Does this sensor provide raw measurement data (Ethernet)?
• This specific model is designed for field evaluation; for raw data streaming, an Ethernet-based model is required.
