Eaton MTL5016 Dual-Channel Proximity Detector Interface

Product Overview

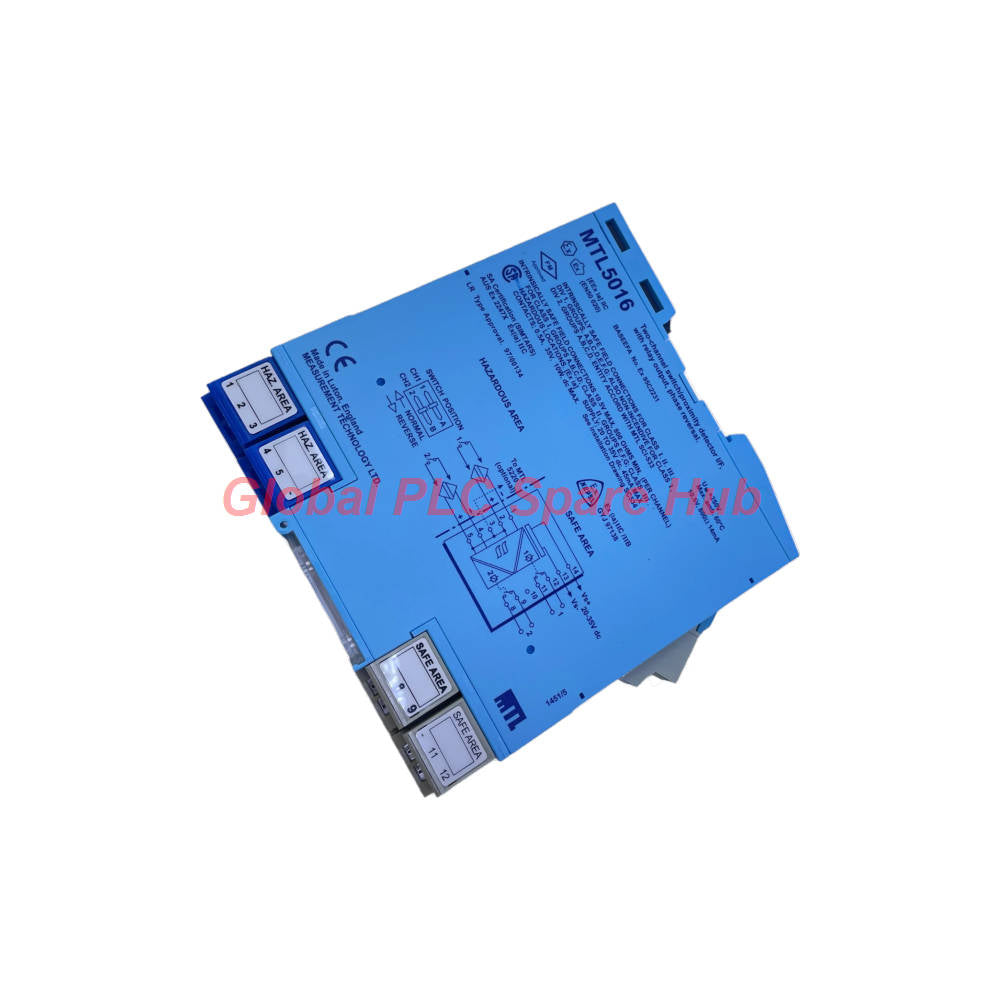

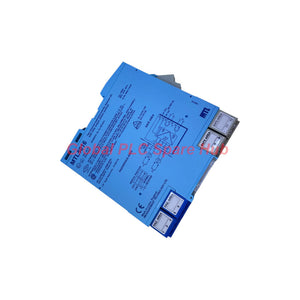

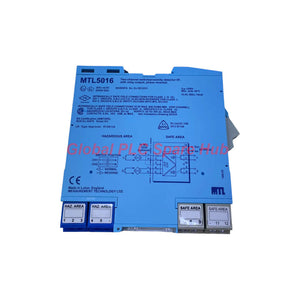

The Eaton MTL5016 is a dual-channel switch and proximity detector interface with relay outputs. It connects hazardous-area switching devices to safe-area control circuits. The module supports two independent input channels and two relay-controlled output circuits. Its phase reversal function provides additional output configuration flexibility. The MTL5016 supports DIN rail mounting and operates from a 20–35 V DC supply. Its interface design supports industrial signal isolation applications involving hazardous-area field devices. **Key Functions**

• Dual-channel operation: Connects two switches or proximity detectors.
• Relay outputs: Controls two separate safe-area loads.
• Phase reversal: Supports output phase reversal functionality.
• Hazardous-area interface: Connects field switching devices with safe-area control circuits.
• DIN rail installation: Simplifies cabinet mounting and module replacement.

Technical Specifications

Engineering note: The supplied 10.5 V DC, 800 Ω, and 14 mA values describe interface safety parameters. Verify their precise relationship against the manufacturer's datasheet before system design. Do not interpret the 250 V reference as a universal field-terminal rating.

Terminal Configuration

The terminal assignments below follow the supplied MTL5016 connection information. Check the module markings before wiring.

Installation Guide

• Step 1 — Verify the model: Confirm the module label identifies the MTL5016.
• Step 2 — Isolate power: De-energize the relevant circuits before installation or wiring.
• Step 3 — Mount the module: Secure the interface to a compatible DIN rail.
• Step 4 — Connect the supply: Wire terminals 13 and 14 to the specified DC supply.
• Step 5 — Wire channel inputs: Connect channel 1 to terminals 1 and 2. Connect channel 2 to terminals 4 and 5.
• Step 6 — Connect relay outputs: Use terminals 11 and 12 for channel 1. Use terminals 8 and 9 for channel 2.
• Step 7 — Check earth leakage detection: Verify the wiring and function associated with terminal 3.
• Step 8 — Commission the system: Test each input and its corresponding safe-area load independently.

Follow the manufacturer's wiring diagram and site safety procedures. Confirm the correct hazardous-area protection method before connecting field devices.

Commissioning and Maintenance

Recommended commissioning checks

• Measure the DC supply and verify its compliance with the 20–35 V DC operating range.
• Operate channel 1 and confirm the corresponding relay output responds correctly.
• Repeat the test for channel 2 and its connected safe-area load.
• Verify output phase reversal settings against the control-system design.
• Inspect terminal tightness, wiring identification, and cabinet grounding arrangements.
• Record input states and output responses for future troubleshooting.

Practical maintenance guidance Inspect terminal connections during scheduled cabinet maintenance. Check for loose wiring, contamination, corrosion, or signs of overheating. If a load fails to respond, test the field input, interface supply, and relay circuit separately. This sequence helps isolate faults without replacing unrelated control components.

Typical Applications and Diagnostic Capabilities

Diagnostic scope: The MTL5016 performs discrete signal interfacing rather than vibration measurement or continuous analog monitoring. Its diagnostic value comes from checking input states and corresponding relay responses. It does not independently provide vibration spectra, frequency analysis, or continuous sensor trending. Use a dedicated measurement system when an application requires those functions.

Global PLC Spare HUB's Insight

Field troubleshooting should distinguish input faults from output-load faults before technicians replace an interface module. Example 1: Channel 1 does not activate its load A proximity detector changes state, but the safe-area load remains inactive. First, verify the DC supply and detector wiring at terminals 1 and 2. Next, test the relay circuit at terminals 11 and 12. If the input changes correctly but the output does not respond, investigate the interface and its configuration. Example 2: Channel 2 operates intermittently An unstable output may result from loose terminals, an inconsistent field signal, or an unsuitable load circuit. Inspect terminals 4 and 5 before checking terminals 8 and 9. Compare the observed switching sequence with the approved wiring diagram. Engineering recommendation: Record the input state, supply voltage, output state, and load response during commissioning. These four observations create a useful baseline for future maintenance.

Compatibility and Selection Guidance

Before ordering the MTL5016, verify the following conditions:

• Field device: Confirm that the switch or proximity detector matches the interface's electrical requirements.
• Supply: Ensure the available DC supply remains within 20–35 V DC.
• Output load: Check the relay contact ratings against the connected load's voltage, current, and inrush requirements.
• Hazardous-area requirements: Confirm the complete circuit meets the applicable installation and intrinsic safety requirements.
• Control architecture: Verify the relay outputs meet the receiving PLC, DCS, or auxiliary circuit requirements.
• Mechanical fit: Check DIN rail mounting, cabinet space, and wiring clearance.
• Documentation: Verify the model, terminal arrangement, approvals, and applicable revision before replacement.

Do not assume that another two-channel interface offers identical safety parameters or terminal assignments. Confirm the complete loop design before substituting any module.

Certifications and Safety Compliance

The supplied information does not identify specific certifications or approval numbers for this unit. Verify the exact model's nameplate and manufacturer's documentation before installation in a hazardous area. Check the applicable hazardous-area classification, entity parameters, system documentation, and local regulatory requirements. The module's presence in a safety-related circuit does not automatically establish a particular SIL rating.

Packaging, Shipping, and Warranty

• Product: Eaton MTL5016 interface module.
• Packaging: Protective packaging suitable for industrial electronic equipment.
• Included items: One interface module. Accessories and documentation depend on the confirmed order configuration.
• Warranty: 12-month warranty, subject to the seller's applicable terms and conditions.
• Shipping methods: FedEx, UPS, or DHL, subject to destination and service availability.
• Dispatch time: 24–48 hours for eligible in-stock orders after order confirmation.

Contact our sales team to confirm availability, product configuration, warranty coverage, and shipping arrangements before placing an order.

Frequently Asked Questions

Q1: What does the Eaton MTL5016 do? It interfaces two hazardous-area switches or proximity detectors with two relay-controlled safe-area loads.

Q2: Can the MTL5016 connect directly to a PLC? Its relay outputs may connect to compatible PLC digital inputs. Verify contact ratings, input thresholds, and circuit requirements before wiring.

Q3: What supply voltage does the MTL5016 require? The specified DC supply range is 20–35 V DC. Confirm the supply polarity at terminals 13 and 14.

Q4: What should technicians check when a relay output fails? Check the supply first, then verify the field input and output wiring. Confirm the connected load does not exceed the applicable relay ratings.

Q5: Can this module replace another two-channel switch interface? Not automatically. Compare safety parameters, input compatibility, relay contact ratings, terminal assignments, and hazardous-area approvals before substitution.

Q6: Does the MTL5016 measure vibration levels? No. Despite some product listings using vibration-related keywords, the supplied functional description identifies the MTL5016 as a switch/proximity detector interface. Select a dedicated vibration monitor for vibration measurement.

Q7: What information should buyers provide when requesting a quotation? Provide the complete model number, required quantity, field device type, supply voltage, output load details, and destination country. These details help confirm suitability and shipping options.

Q8: How can buyers reduce commissioning risks when replacing an existing unit? Photograph the existing wiring, record terminal assignments, and compare the replacement documentation before disconnection. Test both channels independently after installation and retain the results.

Q9: What should buyers confirm before installing the MTL5016 in a hazardous area? Verify the exact approval markings, hazardous-area classification, applicable safety parameters, and complete loop documentation. Consult the responsible hazardous-area engineer when any specification remains unclear.
