MTL5099 MTL Dummy Wiring Module | MTL5000 Series Earthing Solution

MTL5099 Dummy Isolator | Cable Termination and Earthing Module

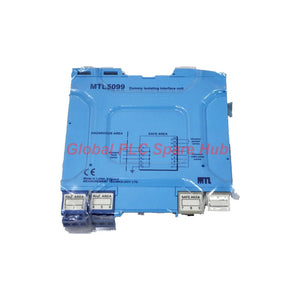

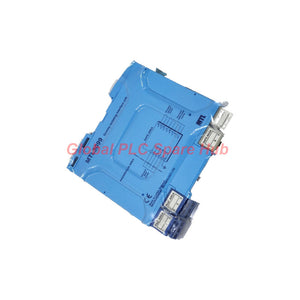

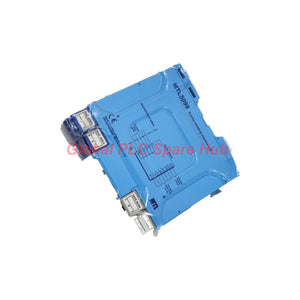

The MTL5099 is a passive wiring module in the MTL5000 series. It provides termination and earthing facilities for unused cable cores from hazardous areas. Unlike an active isolator, the MTL5099 contains no electronic components. It organizes unused conductors at designated terminals and supports orderly field wiring in industrial control cabinets. Engineers can use this module alongside compatible MTL5000 interface units. Its defined terminal layout separates hazardous-area cores, earth, and safe-area cores for easier wiring management.

01 | Engineering Data at a Glance

Technical clarification: The isolation values above refer to the MTL5000 common specification. Confirm their precise applicability to the MTL5099 and the intended installation using the manufacturer's documentation.

02 | Terminal Architecture and Wiring Logic

The MTL5099 uses a clearly allocated 12-terminal arrangement. Each terminal group serves a defined wiring purpose.

• Terminals 1–5: Assigned to hazardous-area cable cores.
• Terminal 6: Reserved for the designated earth connection.
• Terminals 7–12: Assigned to safe-area cable cores.

Do not assume that every terminal pair forms an electrically isolated channel. Follow the official wiring diagram to establish the intended connections.

03 | How the MTL5099 Fits into an MTL5000 Installation

The MTL5099 supports cable management around compatible MTL5000 interface equipment. It provides designated termination points for conductors that no longer serve an active signal function. Typical engineering benefits include:

• Structured wiring: Keeps unused cores organized at defined terminals.
• Clear earthing arrangement: Provides a designated earth terminal for the specified wiring scheme.
• Panel consistency: Supports a more orderly layout around MTL5000 interface modules.
• Maintenance access: Helps technicians identify and inspect terminated conductors.
• Reduced wiring ambiguity: Separates hazardous-area and safe-area terminal groups by assignment.

Important distinction: The MTL5099 is not an active signal isolator, signal converter, relay amplifier, or surge protection device. It contains no electronics and does not independently diagnose field faults.

04 | Suitable Equipment and Application Scenarios

The MTL5099 is most relevant to installations that use compatible MTL5000-series interface equipment and require organized cable termination.

• Distributed control systems (DCS): Control cabinets with MTL5000 signal interface modules.
• Programmable logic controller (PLC) panels: Cabinets containing hazardous-area field wiring interfaces.
• Process instrumentation: Wiring systems for field switches, transmitters, and other instrument circuits, where the documented wiring scheme permits its use.
• Oil and gas facilities: Instrument marshalling cabinets that handle field cables from classified areas.
• Chemical plants: Control panels that require defined conductor termination and earthing arrangements.
• Plant modifications: Cabinets with unused cores after instrument removal, circuit changes, or equipment relocation.
• Maintenance and commissioning: Projects that require traceable conductor identification and controlled wiring changes.

Application suitability depends on the approved wiring design. The module does not replace required hazardous-area protection or certification.

05 | Installation and Inspection Workflow

1. Verify the part: Confirm the full MTL5099 model number and the required terminal arrangement.
2. Check the panel: Confirm the 35 mm DIN rail and available mounting space.
3. Identify conductors: Trace each unused core to its source and destination before termination.
4. Confirm terminal assignments: Use the manufacturer's wiring diagram to verify each connection.
5. Check conductor size: Keep conductors within the documented terminal capacity of 2.5 mm².
6. Verify earthing: Connect terminal 6 according to the approved installation design.
7. Inspect terminations: Check conductor retention, insulation condition, and terminal identification.
8. Update records: Revise the wiring schedule and cabinet drawings after completing the work.

Isolate circuits and follow the site's permit-to-work procedures before changing field wiring. Never terminate a conductor based only on its apparent position or wire color.

06 | Maintenance and Diagnostic Limitations

The MTL5099 has no electronic diagnostics or status indicators. Technicians must verify its condition through physical inspection and circuit checks.

Field example: During a cabinet modification, a removed proximity switch leaves several spare cable cores. A technician identifies each core, checks its circuit assignment, and terminates it using the approved MTL5099 wiring arrangement. The technician then checks earth continuity and updates the cabinet drawings. This process improves traceability and reduces uncertainty during future maintenance.

07 | Compatibility and Procurement Checks

Before selecting the MTL5099, confirm the following engineering details:

• The existing interface equipment belongs to a compatible MTL5000 installation.
• The required function is passive termination and earthing, not active signal conditioning.
• The terminal arrangement matches the intended cable and panel wiring design.
• The installation meets the specified temperature and mounting requirements.
• The conductor size complies with the documented terminal capacity.
• The proposed earthing arrangement matches the manufacturer's instructions and site standards.
• The completed installation meets applicable hazardous-area segregation and wiring requirements.

Do not select this module as a direct replacement for an active isolator. Confirm the required function and terminal diagram before ordering.

08 | Global PLC Spare HUB Review

From a panel engineering perspective, the MTL5099 addresses a specific but important task: managing unused conductors without introducing an active electronic function. In a plant upgrade, an instrument may be removed while its multicore cable remains in place. Leaving spare cores unidentified can complicate fault tracing and later modifications. A documented termination arrangement gives maintenance personnel a consistent reference point. The key engineering consideration is conductor identification. A passive module cannot determine whether a core remains connected to a field device or carries an unexpected voltage. Technicians must verify the circuit before termination. For replacement projects, we recommend matching the model number, terminal layout, mounting arrangement, and applicable MTL5000 documentation. This approach reduces ordering errors and supports more reliable cabinet maintenance.

09 | Packaging, Warranty, and Shipping

• Product: MTL5099 passive dummy isolator.
• Packaging: Protective packaging for transport and handling.
• Package contents: One MTL5099 module. Additional accessories or documents require order confirmation.
• Warranty: 12-month warranty, subject to the seller's applicable terms and conditions.
• Shipping options: FedEx, UPS, and DHL.
• Dispatch target: 24–48 hours after order confirmation, subject to stock availability and processing.
• Before ordering: Contact Global PLC Spare HUB to confirm availability, product details, and shipping arrangements.

10 | Frequently Asked Questions

Q1: Does the MTL5099 need an external power supply?

No. The MTL5099 is a passive wiring module. It contains no electronics and requires no operating power for its termination function.

Q2: Can the MTL5099 replace a spare active isolator in a control cabinet?

Not when the circuit requires signal conditioning, electrical isolation, or active monitoring. Use this module only when the approved design calls for its passive termination and earthing function.

Q3: What should a technician verify before connecting an unused core to the module?

Identify the conductor at both ends and confirm its circuit assignment. Follow site isolation procedures and verify the absence of hazardous voltage where required. Check the wiring diagram before connecting it to a designated terminal.

Q4: Does the MTL5099 provide continuity monitoring or an alarm for loose wiring?

No. The module has no electronic monitoring or alarm output. Technicians must use approved inspection and test procedures to verify wiring continuity and termination quality.

Q5: Which details help confirm the correct module for a cabinet modification?

Provide the complete model number, existing MTL5000 equipment references, terminal diagram, conductor size, mounting arrangement, and intended application. These details help the supplier verify functional suitability before shipment.

Request a Quote from Global PLC Spare HUB

Looking for the MTL5099 for a control cabinet upgrade or spare-parts inventory? Contact Global PLC Spare HUB for a quotation, availability confirmation, 12-month warranty terms, and shipping options through FedEx, UPS, or DHL.
