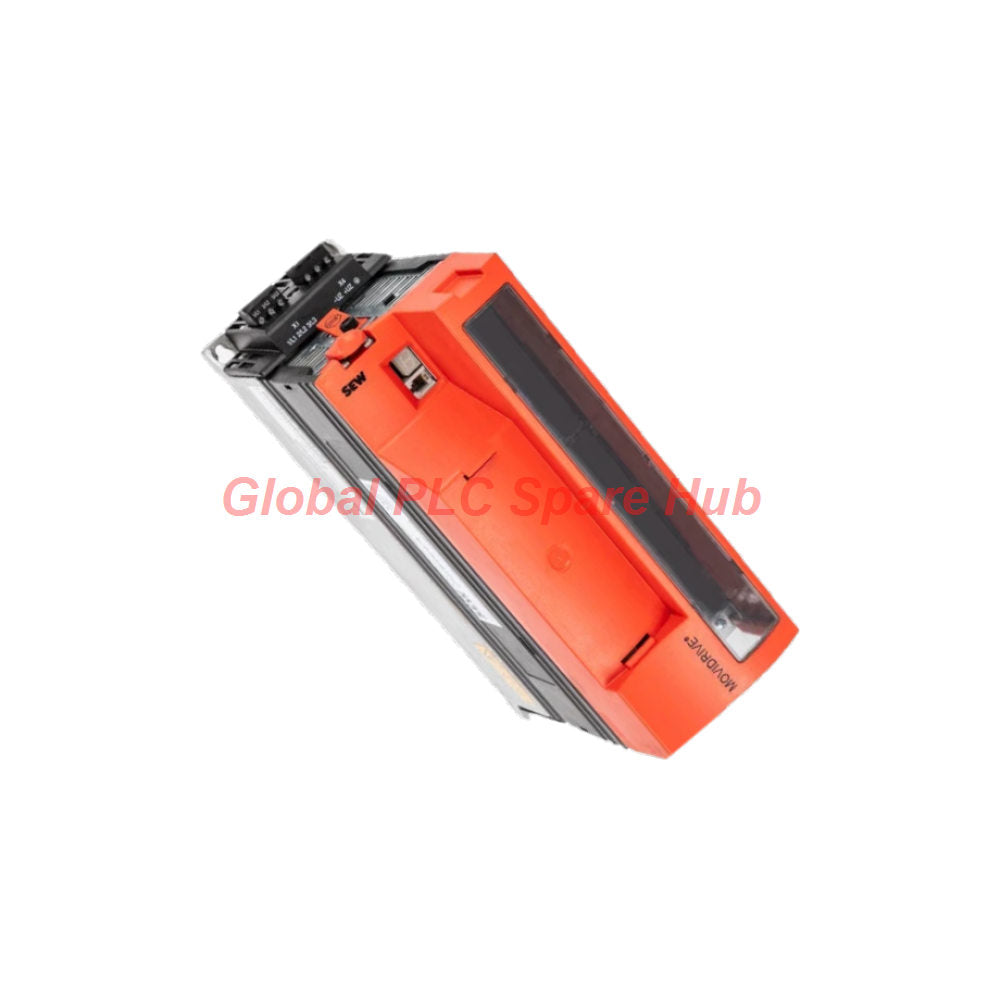

SEW MDX61B0030-5A3-4-00 Inverter Drive MOVIDRIVE Series

Product Overview

Engineers deploy the MDX61B0030-5A3-4-00 MOVIDRIVE series for precise motor control. Global PLC Spare HUB's Insight highlights this unit for robust industrial automation setups. The modular design accepts various option cards. Technicians rely on its 4-quadrant operation with an integrated brake chopper.

Technical Specifications

Brand	SEW
Model / Part Number	MDX61B0030-5A3-4-00
Series	MOVIDRIVE 61 Series
Recommended Motor Power	3 kW
Supply Voltage	AC 380 to 500 V
Connection Type	3-Phase
Quadrants	4Q with brake chopper
Radio Interference Suppression	Class C2 line side
Dimensions (WxHxD)	105 x 314 x 234 mm
Weight	3.5 kg
Size	Size 1

Installation Guide

• Mount the unit vertically on a flat panel inside a clean control cabinet.
• Maintain 100 mm clearance above and below for optimal airflow.
• Connect the 3-phase supply wires directly to terminals X1.
• Ground the chassis securely using the designated grounding bolt.
• Plug the operator panel into the front slot for parameter access.

Commissioning and Maintenance

• Power up the drive and check the seven-segment status display.
• Use MOVITOOLS software to configure motor data quickly.
• Perform an identification run to optimize control parameters.
• Inspect cooling fans annually for dust accumulation.
• Verify terminal torque tightness every six months.

Compatibility and Diagnostics

• Compatible with asynchronous and synchronous AC motors.
• Supports fieldbus option cards for PROFIBUS or PROFINET.
• Features real-time fault code display on the front panel.
• Logs error history internally for fast troubleshooting.
• Detects phase loss and overcurrent events instantly.

Certifications and Package Contents

Certifications	CE, UL, cUL compliance standards
Package Contents	1x MDX61B0030-5A3-4-00 drive, mating connectors, manual
Warranty	Comprehensive 12-month replacement or repair warranty
Shipping Methods	FedEx, UPS, DHL
Handling Time	24-48 hours rapid dispatch

Typical Application Scenarios

• Automotive assembly lines utilizing high-speed conveyors.
• Material handling systems requiring dynamic braking control.
• Packaging machines demanding precise positioning profiles.
• Test benches needing reliable torque regulation.

Global PLC Spare HUB Review

Field technicians note exceptional reliability during heavy start-stop cycles. For example, a packaging plant replaced an older drive with this unit and reduced downtime by 15 percent.

Buying Guide

• Verify your motor power matches the 3 kW rating.
• Confirm your supply voltage falls within 380 to 500 VAC.
• Check if your application requires extra option cards.
• Ensure proper cabinet cooling capacity before ordering.

Frequently Asked Questions

Question: Can this drive handle regenerative braking energy safely?

Answer: Yes, the integrated brake chopper manages regenerative energy efficiently through an external braking resistor.

Question: How do I resolve an F08 error code on the display?

Answer: Check your motor cable connections and verify the speed controller settings in MOVITOOLS software.

Question: What backup battery type does the control card use?

Answer: This specific MOVIDRIVE model stores parameters in non-volatile flash memory, requiring no backup battery.
