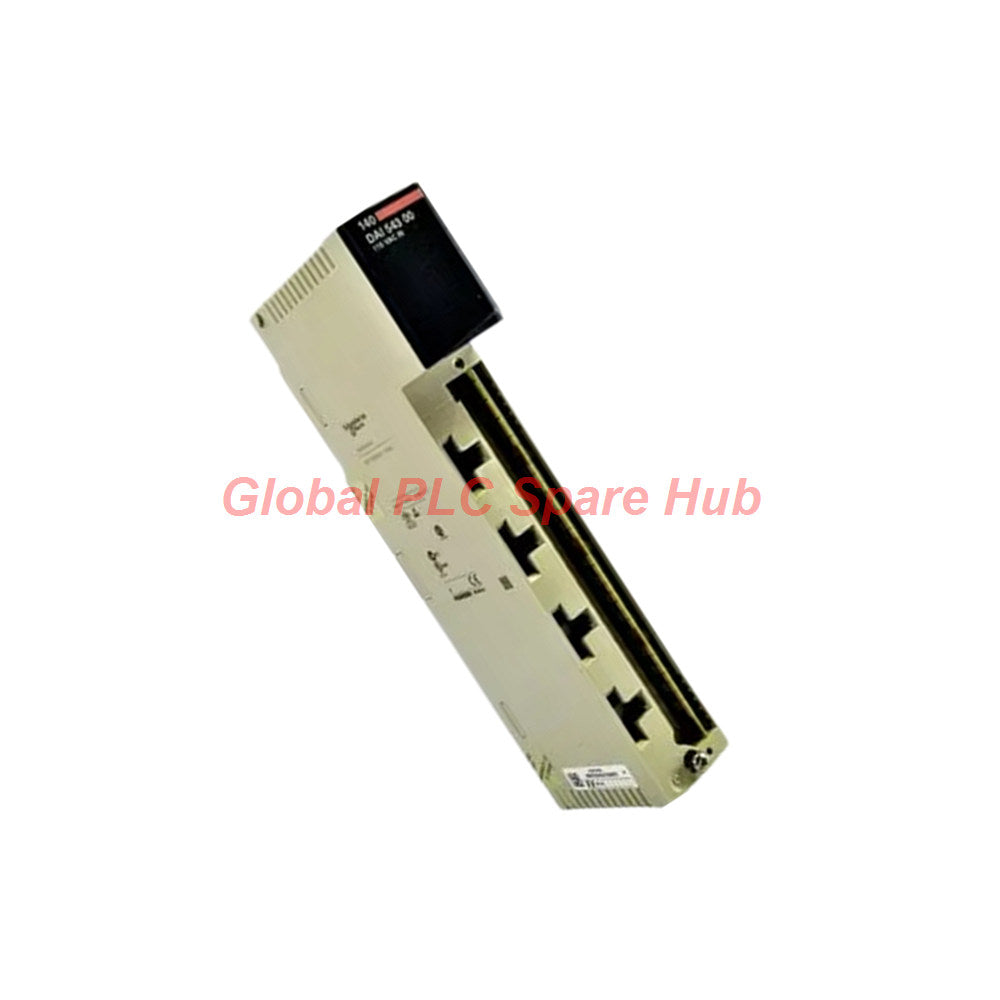

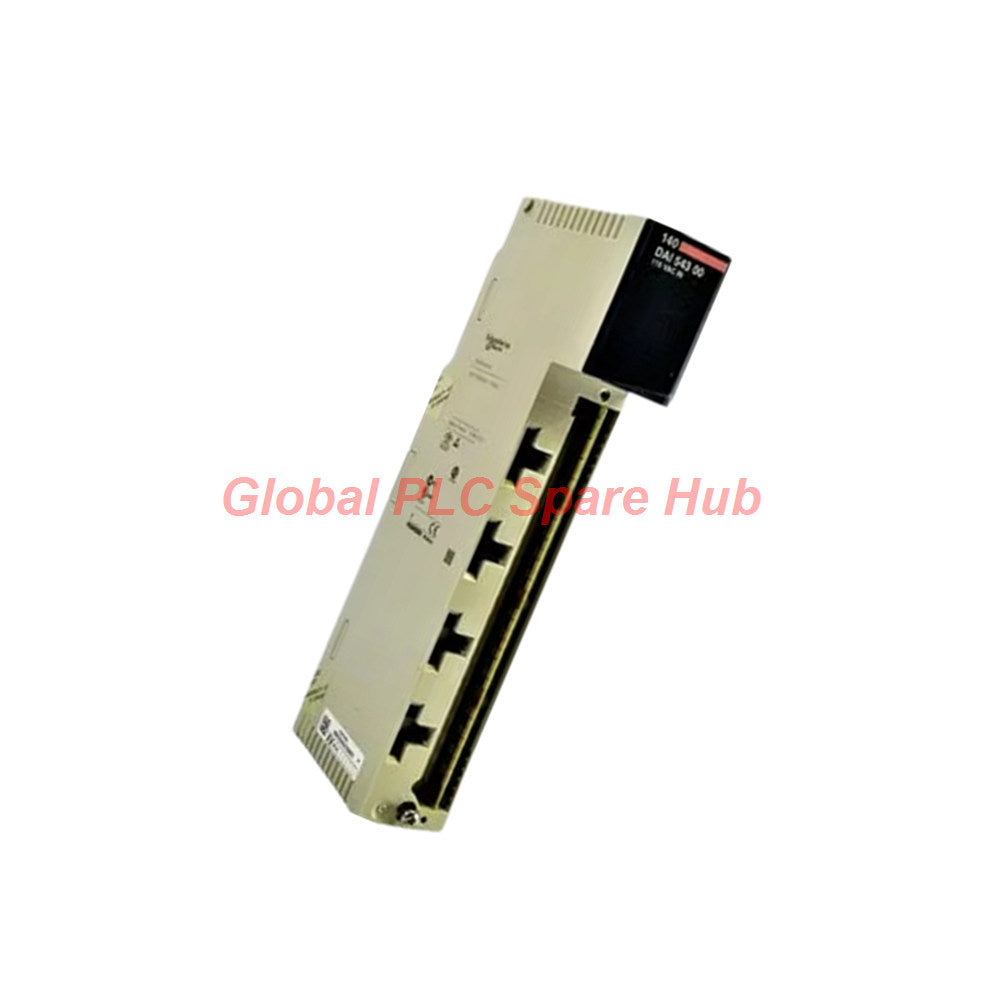

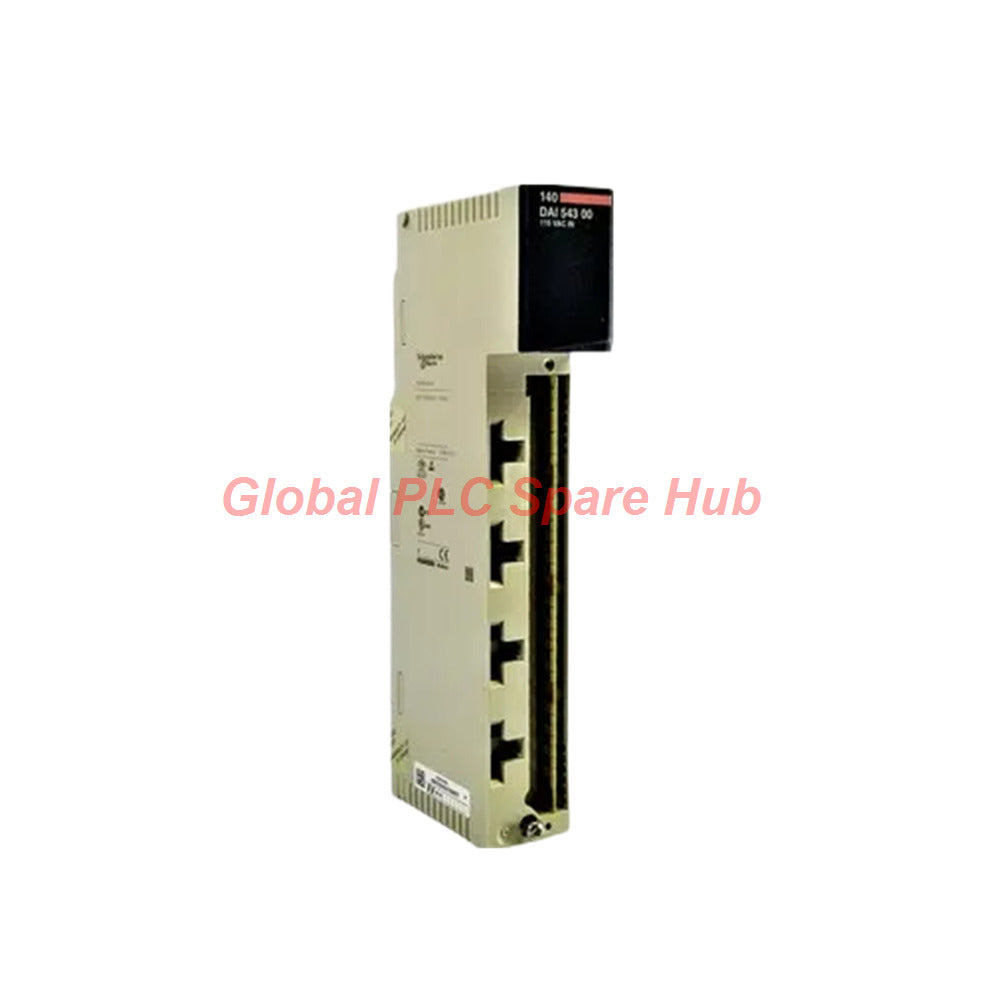

Schneider Electric 140DAI54300 Discrete Input Module for Quantum

Technical Architecture

The 140DAI54300 is a high-density, 16-channel discrete input module engineered for the Schneider Electric Modicon Quantum automation platform. Designed for robust AC signal acquisition, it operates efficiently within 115V AC environments, offering versatile compatibility with Unity Pro, Concept, and ProWORX 32 software suites. This module provides essential electrical isolation (1780 Vrms) and handles varying line frequencies (47–63 Hz) to ensure stable logic processing in demanding industrial control loops.

Key Operational Specifications

• Module Type: 16-Channel 115V AC Discrete Input
• Addressing: Requires 1 input word
• Voltage Range: 79–132V AC (at 57-63 Hz)
• Input Impedance: 12kΩ to 14.4kΩ (Capacitive)
• Response Time: 4.9–0.75ms (Off-to-On); 7.3–12.3ms (On-to-Off)
• Power Dissipation: 5.5W
• Bus Requirement: 180mA
• Operating Temp: 0°C to 60°C (32°F to 140°F)

Global PLC Spare HUB's Insight

Our engineering team validates the 140DAI54300 as a preferred choice for legacy infrastructure retrofits where AC-coupled field devices are standard. Unlike newer digital modules, this unit's capacitive impedance structure provides excellent noise immunity for long-run field cabling. Its diagnostic LED matrix (16 Input LEDs, 1 Bus Active, 1 Fault) is highly intuitive, significantly reducing the "mean time to repair" (MTTR) during field troubleshooting.

Diagnostic & Maintenance Capabilities

The 140DAI54300 features an active "Fault" LED (red) that monitors internal circuit health and external power supply anomalies. For advanced diagnostics, technicians can correlate input status changes directly within the Unity Pro environment. The modular design supports standard backplane mounting, ensuring that the unit can be swapped in minutes without disrupting the local I/O rack's overall bus communication.

Logistics and Quality Assurance

• Global Fulfillment: Orders processed within 24-48 hours via FedEx, UPS, or DHL.
• Reliability: Every unit includes a comprehensive 12-month quality assurance warranty.
• Compliance: Certified for FM Class 1 Division 2, CSA, and UL 508 environments.

Frequently Asked Questions

• How do I resolve a red "F" (Fault) LED status on the module?
  The red fault LED typically indicates an external power supply issue or a catastrophic circuit failure. Verify that your field voltage is within the 79-132V AC range and check for localized short circuits on your input terminal blocks.
• Can this module handle frequency variations in aging power grids?
  Yes, the 140DAI54300 is specifically rated for 47-63 Hz network limits. It automatically adjusts its impedance (14.4kΩ at 50Hz vs 12kΩ at 60Hz) to maintain stable signal detection.
• Why is the response time range so wide for the On-Off state?
  The response time is dependent on the specific AC line cycle phase at the moment the switch opens. The 7.3–12.3ms window ensures the module captures the complete half-cycle to prevent nuisance flickering in the PLC logic.
• What is the best practice for wiring this module to avoid crosstalk?
  Maintain a physical separation between your 115V AC input wiring and any low-voltage DC analog signal cables. Use shielded twisted-pair cabling where possible to leverage the module's high-impedance input structure.
• How does this module support the shift from Concept to Unity Pro?
  The 140DAI54300 is fully transparent across these platforms. You can migrate your project file without replacing the physical hardware, provided the addressing maps match your existing rack configuration.

Selection & Buying Guide

When purchasing the 140DAI54300, ensure your backplane slot has a 180mA budget available. If you are operating in a Class 1 Division 2 environment, verify that your housing/enclosure meets the necessary NEMA standards for the FM certification to remain valid. Always confirm that your field devices are capable of driving 11mA of input current to avoid false "Off" states.
