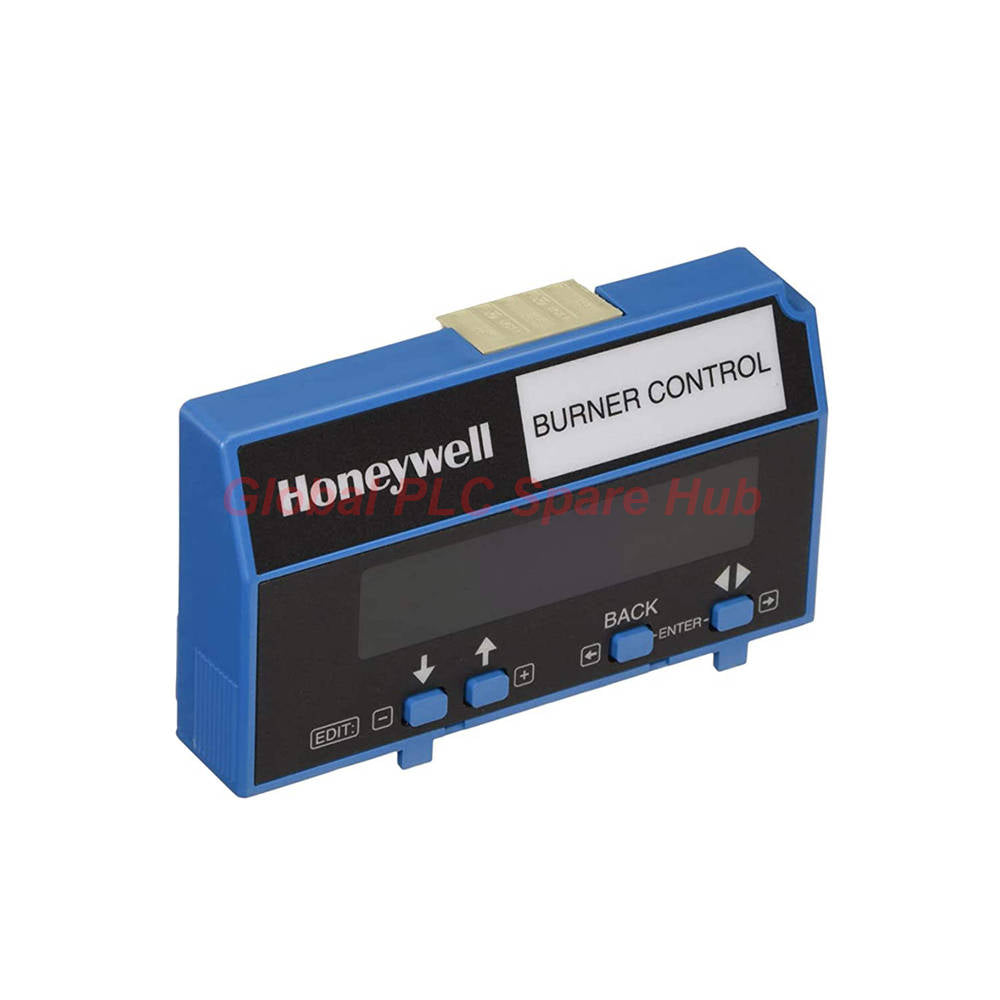

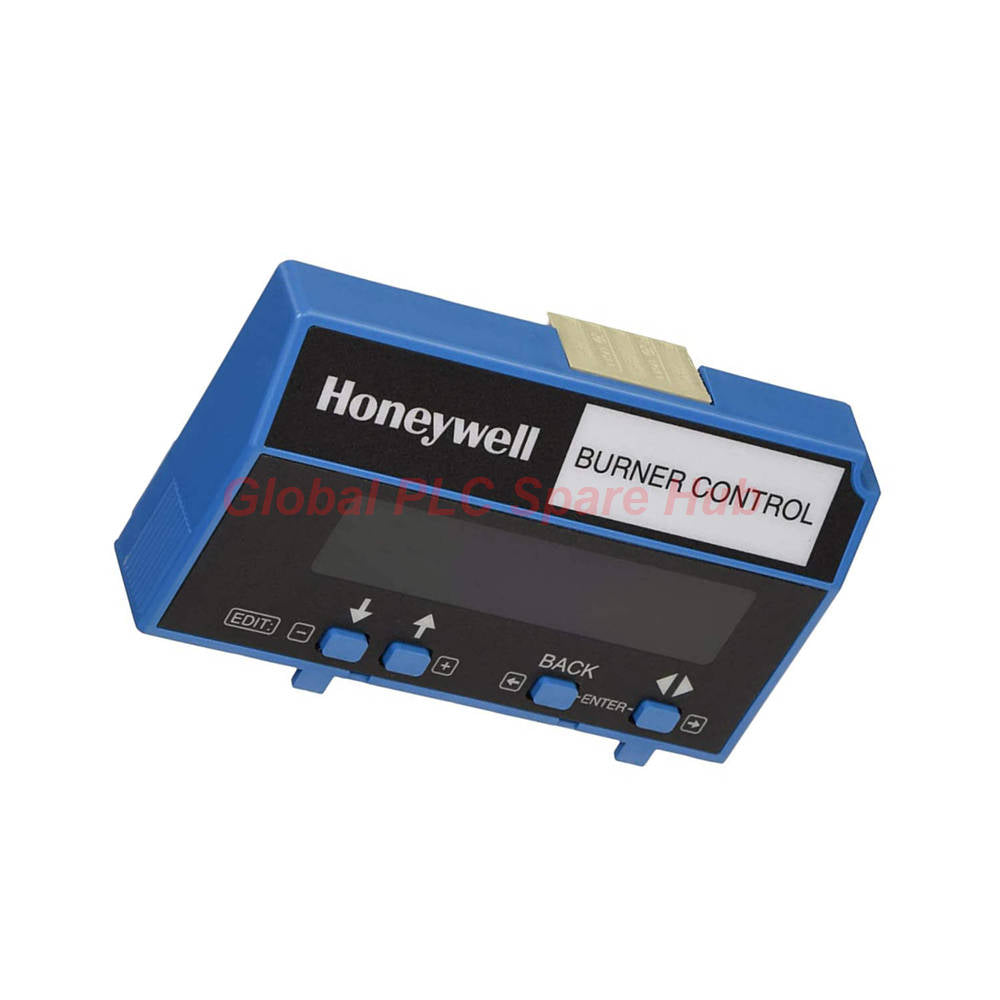

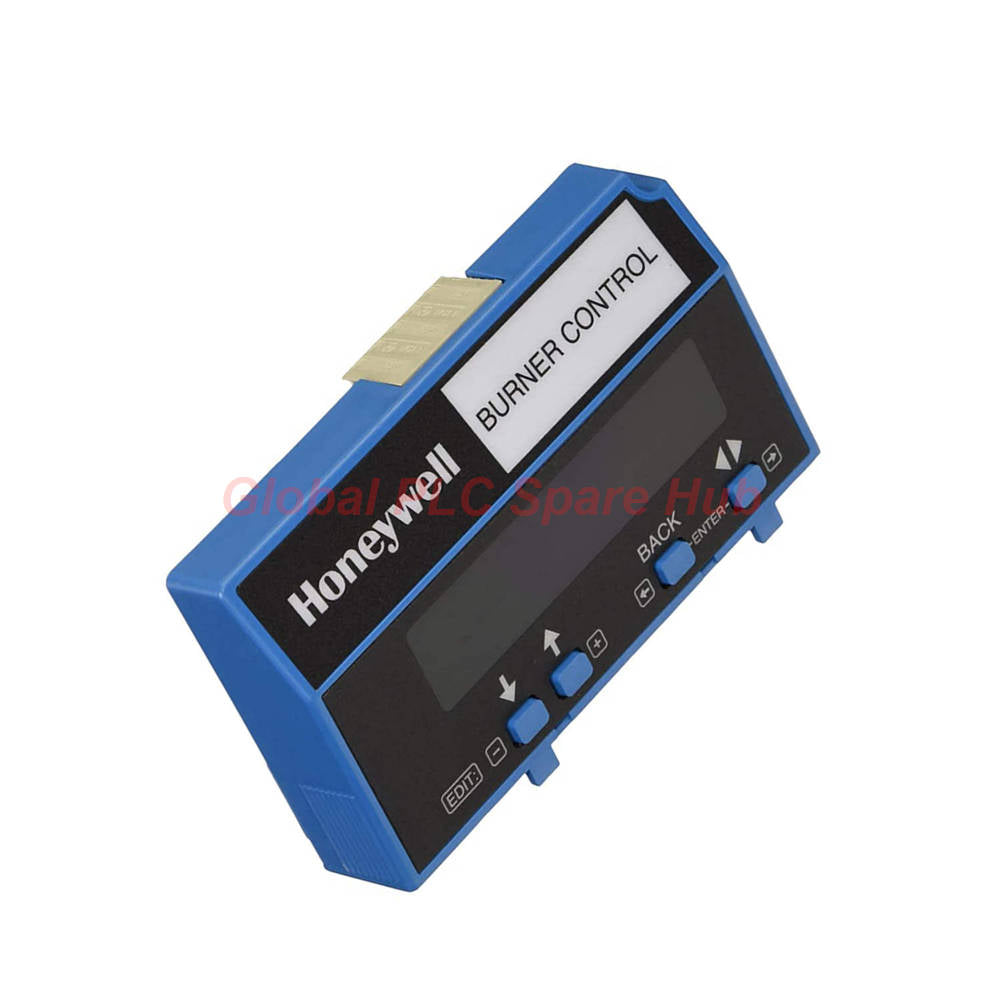

S7800A1001 Honeywell 7800 Series Keyboard Display Module

Functional Engineering Overview

• The S7800A1001 acts as the primary human-machine interface for the Honeywell 7800 SERIES burner management systems.
• This Keyboard Display Module (KDM) provides critical real-time data visualization through a 40-character liquid crystal display.
• It facilitates local and remote system monitoring, ensuring precise control over combustion sequences.


Core Technical Specifications

• Brand: Honeywell
• Model: S7800A1001
• Series: 7800 SERIES Burner Controls
• Display Matrix: 2-Row by 20-Column (40 Characters total)
• Input Voltage: 13 Vdc peak full wave rectified (+20/-15%)
• Power Dissipation: 7W Maximum
• VA Consumption: 2 VA Maximum
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Humidity Tolerance: 85% RH continuous, non-condensing
• Vibration Resistance: 0.5G continuous maximum
• Language Support: English (Standard for S7800A1001)
• Interface Protection: NEMA 4 rated when used with 204718A/C cover

Advanced Diagnostics & Monitoring Capacity

• Sequence Tracking: Real-time reporting of purge, ignition, and run timings.
• Fault Archiving: Stores the six most recent lockout events with detailed time stamps.
• Operational Metrics: Tracks total burner cycles and accumulated running hours.
• Signal Analysis: Digital readout of flame strength for precise scanner alignment.
• Expanded Annunciation: Integrates with 24 limit LEDs for rapid troubleshooting.

Global PLC Spare HUB's Insight

• The S7800A1001 is a mandatory tool for modernizing legacy burner management systems.
• The "First-Out" annunciation capability significantly reduces MTTR by identifying exactly which interlock opened first.
• We have observed that the S7800A1001 is particularly robust in low-temperature environments.
• For outdoor installations, always pair this unit with a NEMA 4 rated cover to maintain safety integrity.

Equipment Compatibility & Applications

• Standard interface for Honeywell 7800 SERIES Relay Modules (RM7800, RM7840).
• Suitable for single burner commercial and industrial boilers.
• Compatible with remote mounting kits for control cabinet door installation.
• Applied in process heaters, grain dryers, and kilns requiring precise feedback.

Logistics & Warranty Terms

• Quality Guarantee: Full 12-Month industrial warranty provided.
• Dispatch Timeline: Ships within 24-48 hours from our central stock.
• Shipping Methods: Worldwide express via FedEx, UPS, and DHL.
• Packaging: Precision-fitted anti-static materials for safe global transit.

Expert Selection Guide & FAQ

• What is the primary cause of display fading on the S7800A1001?
• Display degradation usually stems from prolonged exposure to temperatures exceeding 60°C.
• Can I use the S7800A1001 to reset a lockout from a remote location?
• Yes, when correctly wired to the 7800 SERIES relay module, it supports remote reset functionality.
• How does the unit handle power fluctuations in industrial grids?
• The S7800A1001 accepts a 13 Vdc peak input with a wide tolerance to maintain operation.
• Is it possible to change the display language to French or German?
• The S7800A1001 is hard-coded for English; other languages require specific part numbers.
• How do I retrieve fault data if the burner is currently running?
• You can scroll through the fault history using the keyboard without interrupting current sequences.
