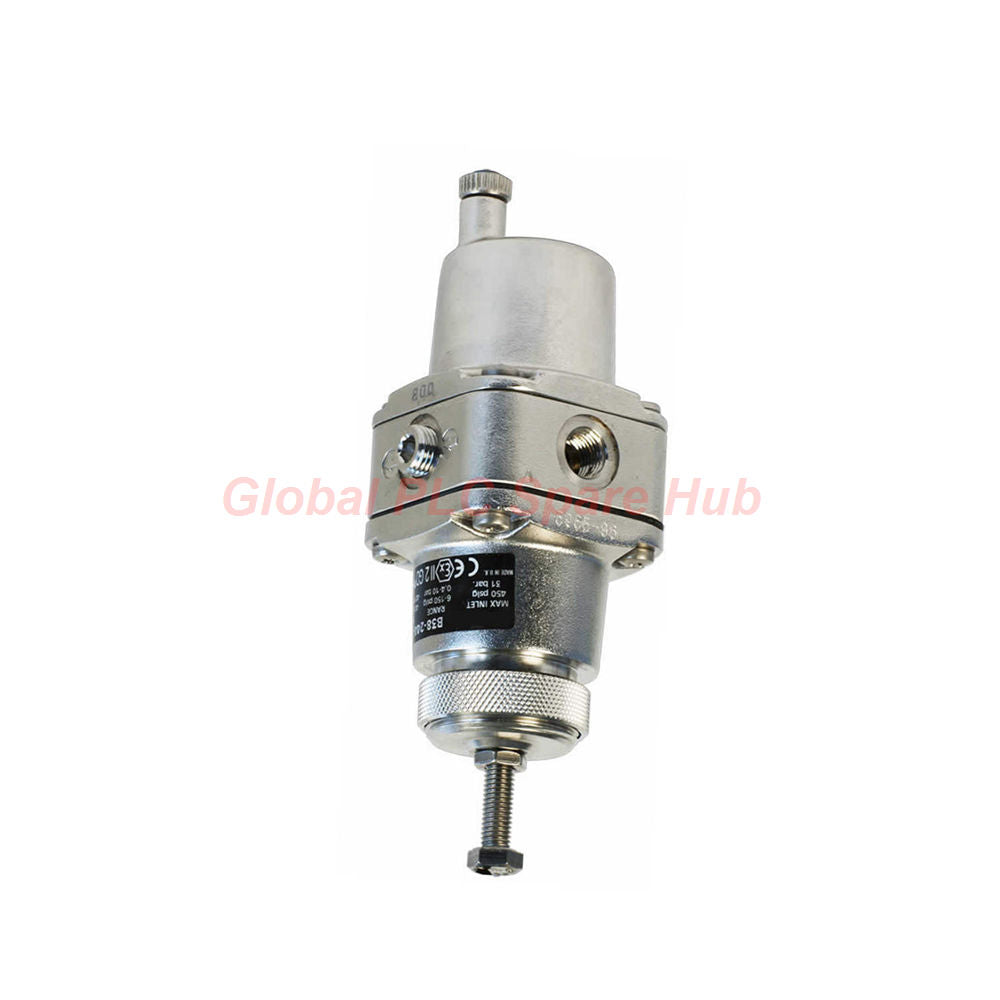

Norgren B38-254-B1MA High Flow Filter Regulator - Stainless Steel

Norgren B38-254-B1MA High Flow Filter Regulator Overview

The Norgren B38-254-B1MA is a high-performance filter/regulator engineered for demanding industrial environments. This B38 Series unit provides precise pressure control and filtration in harsh, corrosive settings. It effectively removes contaminants from compressed air while maintaining stable downstream pressure. The robust stainless steel construction ensures long-term reliability in critical infrastructure.

Technical Specifications

• Brand: IMI Norgren
• Model: B38-254-B1MA
• Series: B38 High Flow Filter/Regulator
• Port Size: 1/4 NPT
• Pressure Adjustment Range: 0.4 to 10 bar (6 to 145 psi)
• Maximum Inlet Pressure: 31 bar (450 psi)
• Flow Rate: 8 dm³/s (17 scfm)
• Filter Element: 5 μm (Stainless Steel)
• Temperature Range: -40°C to 80°C (-40°F to 176°F)
• Environmental Tolerance: NACE MR-01-75 compliant for corrosive gases
• Relieving Feature: Integrated relieving design allows for pressure reduction even in dead-ended systems
• Body Material: Stainless steel construction for extreme durability

Installation, Maintenance, and Compatibility

• Installation: Mount the unit in a vertical position to ensure proper drainage functionality. Use appropriate NPT fittings to secure the 1/4 inch ports.
• Maintenance: Inspect the 5 μm filter element periodically for blockage. Replace the element when the pressure drop exceeds operational thresholds.
• Compatibility: Designed for use with standard compressed air systems. The FKM seals ensure compatibility with various industrial chemical environments.

Certifications and Standards

• Material Standard: Conforms to NACE MR-01-75 (2002 revision) for sulfide stress cracking resistance.
• Type Approval: Certified by Lloyd’s Register for marine and offshore applications.

Global PLC Spare HUB Insight

The Norgren B38-254-B1MA stands out for its metallurgy and flow characteristics. Global PLC Spare HUB technical experts recommend this model for pneumatic control loops in oil refineries and chemical processing plants. It excels in applications where standard aluminum regulators fail due to external corrosion or aggressive media. This unit is an ideal match for high-end control valves, pneumatic actuators, and analytical instrumentation requiring clean, regulated air.

Shipping and Warranty

• Shipping: We utilize FedEx, UPS, and DHL for global delivery.
• Lead Time: Orders are processed and dispatched within 24-48 hours.
• Warranty: This product includes a comprehensive 12-month warranty from the date of purchase.
• Package Contents: Each package includes one B38-254-B1MA unit and an instruction manual.

Frequently Asked Questions

• What is the primary benefit of the NACE compliance?
  NACE MR-01-75 ensures the stainless steel materials resist sulfide stress cracking in corrosive, sour gas environments.
• Can this regulator be used in low-temperature climates?
  Yes, the B38-254-B1MA supports operation down to -40°C due to its specialized FKM seals.
• How often should I drain the manual bowl?
  Drain the bowl manually whenever you notice liquid accumulation to prevent contaminants from reaching downstream equipment.
• What is the advantage of the relieving design?
  The relieving feature allows you to reduce the secondary pressure without requiring a flow demand to bleed the line.
• Which applications are best suited for this series?
  This regulator is perfect for marine environments, offshore oil platforms, and food processing facilities requiring high hygiene and corrosion resistance.
• How do I choose the correct regulator for my system?
  Verify your maximum inlet pressure, required flow rate, and environmental temperature range before selecting the B38 series. Ensure the port size matches your existing plumbing to avoid adapters.
