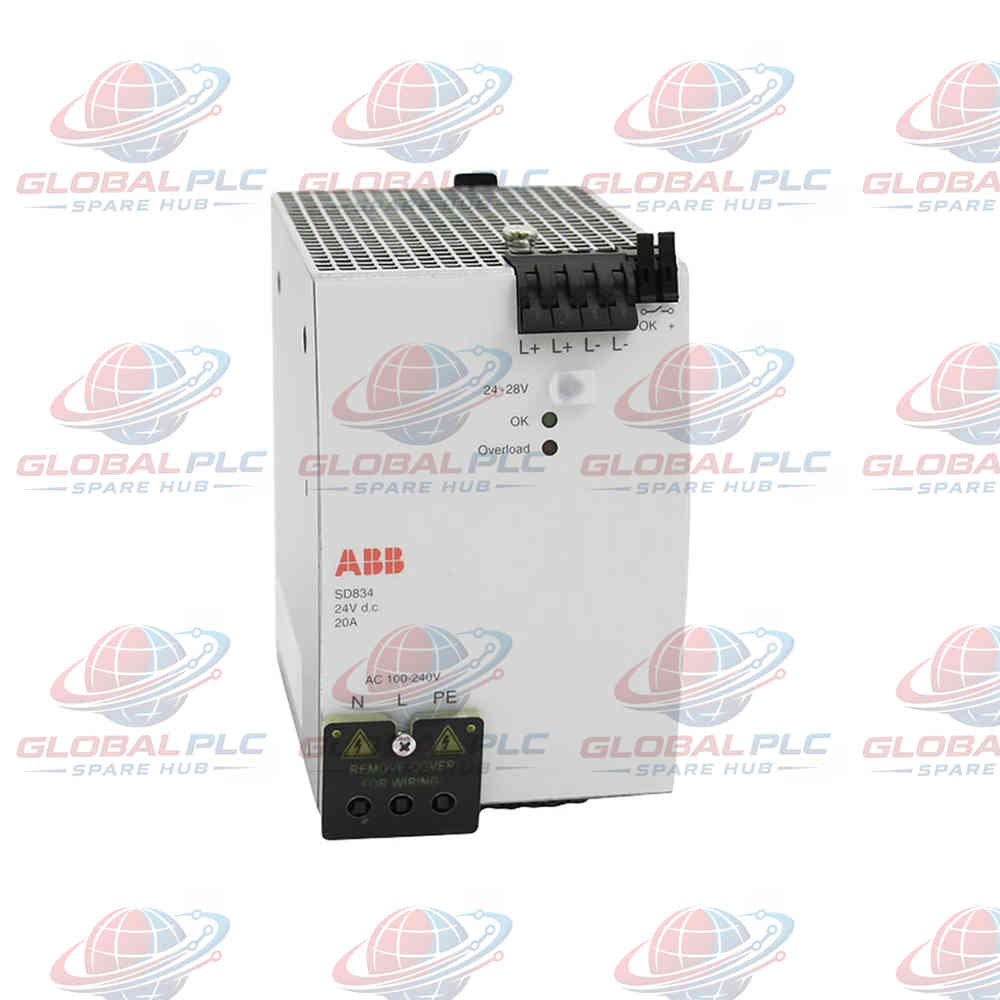

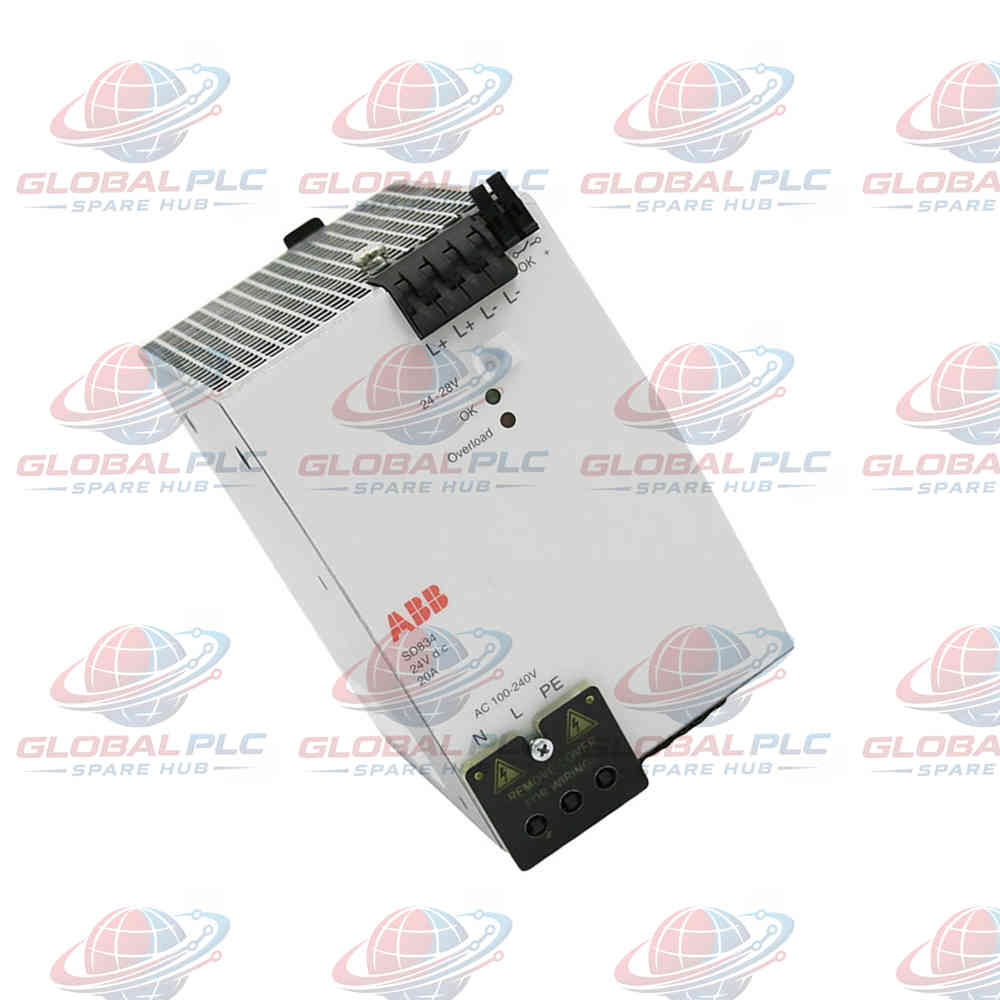

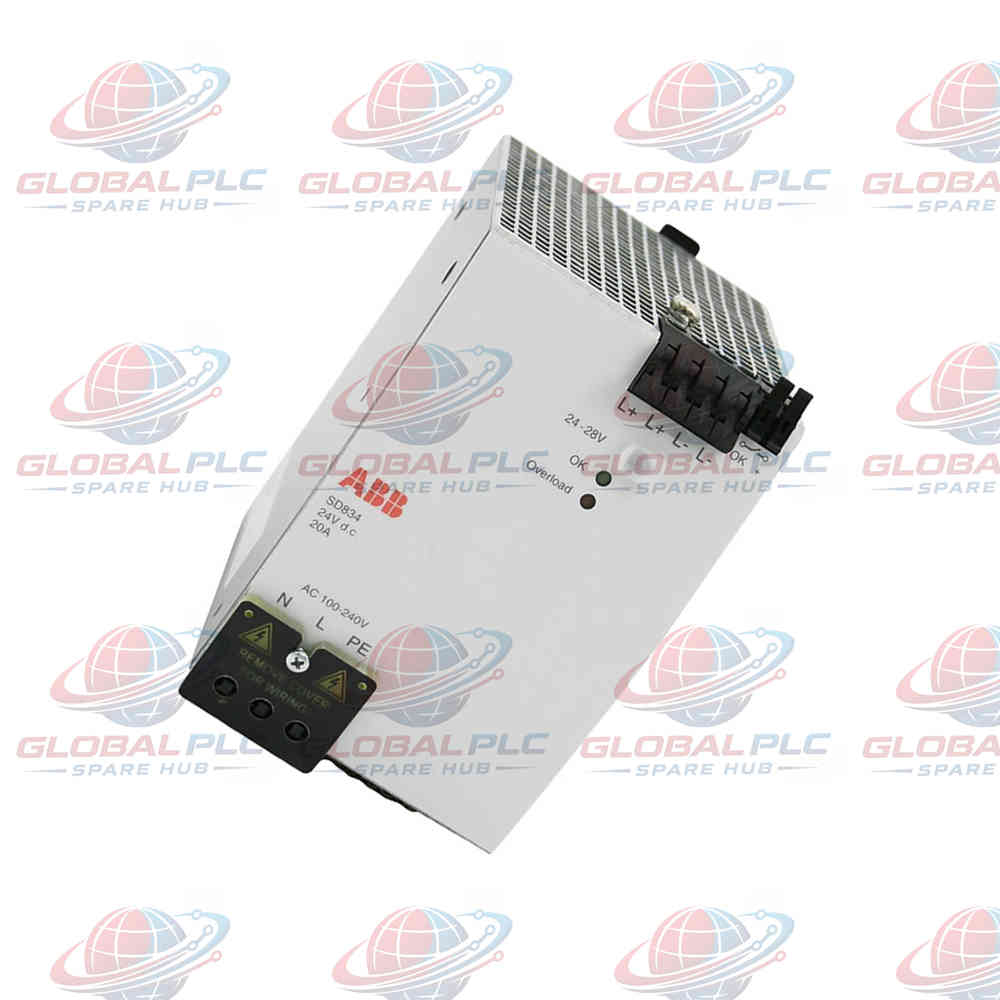

SD834 24VDC 20A Switching Power Supply ABB Industrial Module

Engineering Blueprint: ABB SD834 Power Supply

The SD834 (Article Number: 3BSC610067R1) engineered by ABB is a heavy-duty switch-mode power supply unit built to convert primary mains AC or DC inputs into a stable 24V d.c. output. Designed to satisfy rigorous compliance standards including EN 50178, EN 61131-2, and UL 508, the SD834 unit delivers 480W of continuous power at 20A. Its secondary output circuitry complies fully with SELV and PELV applications, ensuring galvanic safety across distributed automation architectures.

Core Technical Specification Parameters

System Integration and Functional Benefits

• Features a built-in soft-start mechanism, preventing primary peak inrush currents from tripping upstream fuses or earth-fault breakers.
• Supports parallel connection configurations for load sharing and expanded output power capacity without auxiliary modules.
• Accommodates redundant node setups when integrated with dedicated diode voting units such as SS823 or SS832.
• Requires no external mains filter, simplifying enclosure layout and panel wiring complexity.
• Maintains high holdup times during brief grid blackouts, protecting active controller memory and field states.

Global PLC Spare HUB's Insight

In high-availability process control environments, power supply micro-interruptions often trigger cascade alarms across remote I/O nodes. Field deployments using the SD834 benefit heavily from its extended holdup profile (e.g., up to 51ms at full 20A load under 230V input). During an emergency refit at a continuous chemical processing facility, replacing aging unregulated transformers with the SD834 eliminated nuisance tripping caused by grid voltage sag, thanks to its robust 85-276V a.c. input tolerance range.

Diagnostic Capabilities and Operational Monitoring

• DC-OK Status Monitoring: Equipped with a floating relay contact that opens or closes to signal local output rail health directly to the host PLC or DCS input card.
• Thermal Overload Tracking: Operates efficiently up to a 55 °C maximum ambient temperature with controlled internal heat dissipation (31-40 W).
• Hiccup Protection Mode: Automatically pulses secondary short-circuit recovery cycles to safeguard internal power stages from thermal runaway.

Target Equipment and Application Scenarios

• Distributed Control System (DCS) main processor and node cabinet power distribution rails.
• High-density S800 I/O marshalling racks requiring continuous 24V loop power.
• Oil and gas compressor station safety instrumented systems (SIS) operating in Class 1 Div 2 zones.
• Large-scale wastewater treatment automated valve actuator control panels.

Global Logistics, Warranty, and Fulfillment

• Fulfillment & Dispatch: Fast 24-48 hour global order processing through trusted logistics partners including FedEx, UPS, and DHL.
• Warranty Terms: Fully backed by a comprehensive 12-month operational warranty covering factory defects.
• Packaging Standards: Professionally sealed in antistatic industrial packaging to prevent transit damage.

Frequently Asked Questions

Why does the SD834 not require an external mains filter during panel design?

The unit incorporates internal transient suppression and filtering stages designed to comply directly with EN 61000-6-4 and EN 61000-6-2 electromagnetic compatibility standards.

How can I wire multiple SD834 units together for redundancy?

Parallel operation for redundancy requires pairing the power supplies with approved external diode voting units like the SS823 or SS832 to isolate output rails.

What happens to the output during a prolonged secondary short circuit?

The unit enters a hiccup protection mode, pulsing output power (2 seconds active, 17 seconds resting) until the short-circuit condition is physically cleared.

What buying criteria should engineers consider regarding input voltage?

Verify that your local grid falls within the 85-276 V a.c. or 88-187 V d.c. operating window to ensure the unit maintains full 480W output without entering derating bands.

How does the floating DC-OK relay contact interface with a control system?

The dry contact wires directly into a digital input channel on your PLC, turning state to indicate immediate loss of normal 24V output regulation.
