LMC058LF42 Schneider Electric Modicon LMC058 8-Axis Motion Controller

Schneider Electric Modicon LMC058 Motion Controller: High-Performance Multi-Axis Automation for Synchronized Motion Systems

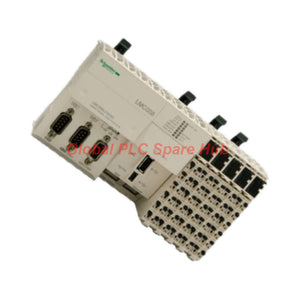

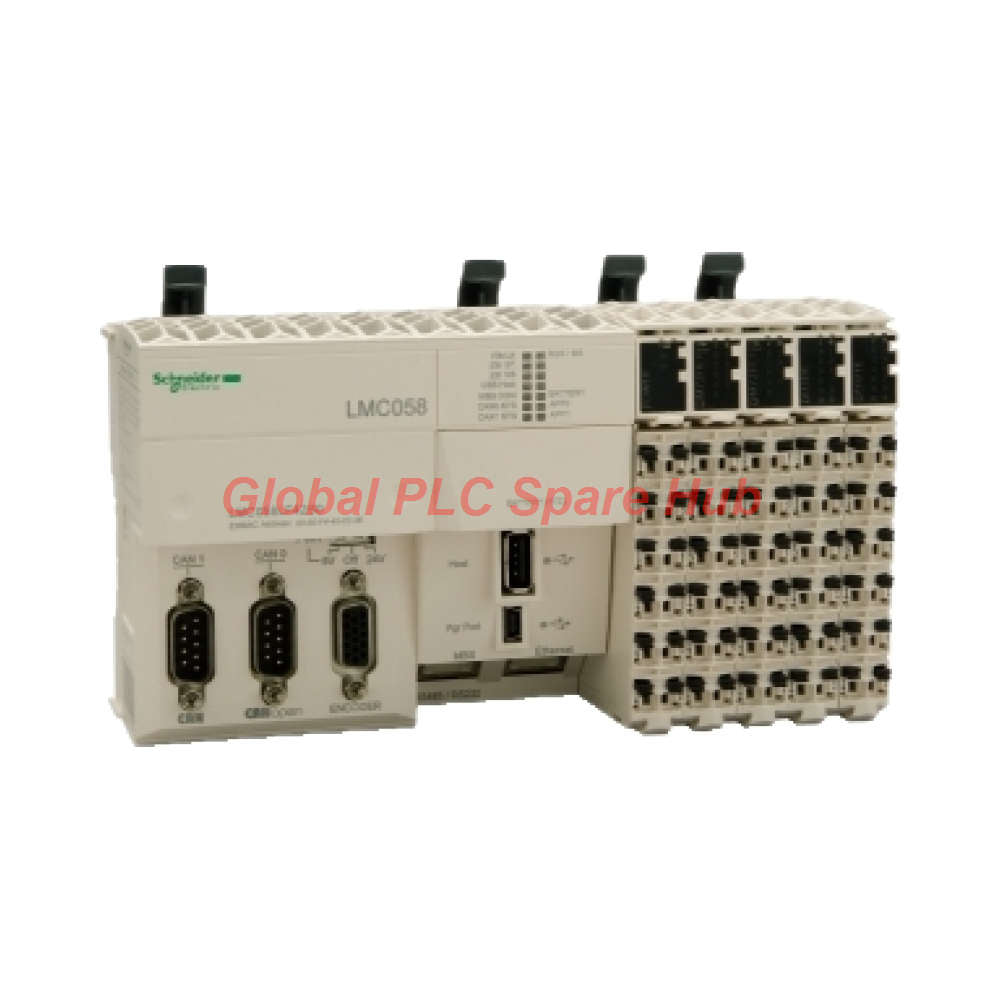

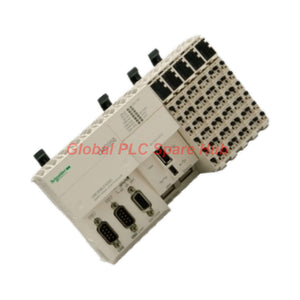

Engineered for complex motion architectures, the LMC058LF42 is an advanced programmable motion controller from the esteemed Modicon LMC058 series by Schneider Electric. Driven by a dual-core ARM Cortex-A8 processor, this controller manages up to 8 synchronized axes via CANmotion while offering 42 onboard I/O points (26 digital inputs and 16 digital outputs), making it the optimal choice for high-speed packaging lines, multi-axis CNC machinery, and precision robotic systems requiring sub-millisecond coordination.

Technical Architecture & Specifications Matrix

Installation, Configuration & Maintenance Protocols

• DIN Rail Mounting: Securely snap the unit onto a standard symmetrical DIN rail inside a ventilated control cabinet, ensuring proper vertical clearance for heat dissipation.
• Power & Grounding: Connect a stable 24 VDC power supply while verifying voltage stability within the 20.4 to 28.8 V limits to avoid unexpected CPU resets.
• Firmware & Software Management: Program and debug the controller using EcoStruxure Machine Expert via the dedicated mini USB-B port or local Ethernet connection.
• Data Backup: Regularly monitor the 3V CR2477M lithium battery status to guarantee zero data loss for retain variables and real-time clock logs.

Target Devices & Industrial Application Scenarios

• Compatible Hardware: Integrates with Schneider TM5 expansion slices, Lexium servo drives, Altivar VFDs, and remote CANopen actuator nodes.
• Automation Applications: Designed for multi-axis cartesian gantries, rotary indexing tables, continuous form-fill-seal packaging machines, and high-speed material handling conveyors.

Controller Diagnostics & Error Resolution

The LMC058LF42 features front-panel diagnostic LEDs providing real-time feedback on CPU status, bus communication errors, and I/O states. When communication dropouts occur on the CANmotion network, technicians should inspect terminating resistor values (120 ohms) at both ends of the CAN bus and check encoder feedback wiring for noise coupling.

Global PLC Spare HUB's Insight & Field Engineering Experience

During a high-speed commissioning project on a 6-axis electronic camming packaging line, our engineering team diagnosed intermittent axis synchronization jitter. The root cause was traced not to controller processing limits, but to a minor baud rate mismatch and missing shield grounding on the CANopen extension cable run. Correcting the shielding termination and re-aligning the 2 ms task cycle interval in EcoStruxure completely eliminated the lag, restoring flawless multi-axis coordination.

Package Contents, Warranty & Logistics Support

• Package Contents: 1 x Schneider Electric LMC058LF42 Motion Controller with pre-installed backup battery.
• Warranty Terms: Covered by a comprehensive 12-month replacement and repair warranty.
• Shipping & Delivery: Fast 24-48 hour global dispatch via premium carriers including FedEx, UPS, and DHL.

Expert FAQs & Selection Guide

Q: How does the CANmotion protocol differ from standard CANopen on this controller?

A: CANmotion is specifically optimized for deterministic, high-speed closed-loop motion control, ensuring tight interpolation cycles across multiple synchronized drives, whereas standard CANopen handles general device communication.

Q: What happens to stored retentive variables if the CR2477M battery fails?

A: When the lithium battery voltage drops below operational thresholds, retain variables stored in RAM may be lost during a power cycle unless backed up to flash memory via application configuration.

Q: Can the onboard Ethernet port be used simultaneously for programming and SCADA communication?

A: Yes, the built-in Ethernet port supports multi-protocol handling, allowing simultaneous connection to EcoStruxure programming software and Modbus TCP/IP SCADA networks.

Q: What key criteria should guide my choice when expanding I/O capacity past the onboard 42 points?

A: Verify that your total configuration does not exceed the maximum limit of 7 TM5 expansion modules, and calculate the internal bus power budget supplied by the controller base.

Q: Why is dual-core ARM processing advantageous for multi-axis motion tasks?

A: The dual-core architecture separates communication handling and system overhead tasks from core motion trajectory calculations, ensuring highly deterministic execution without jitter.
