Keyence LV-N12N LV-N Series Laser Sensor Amplifier

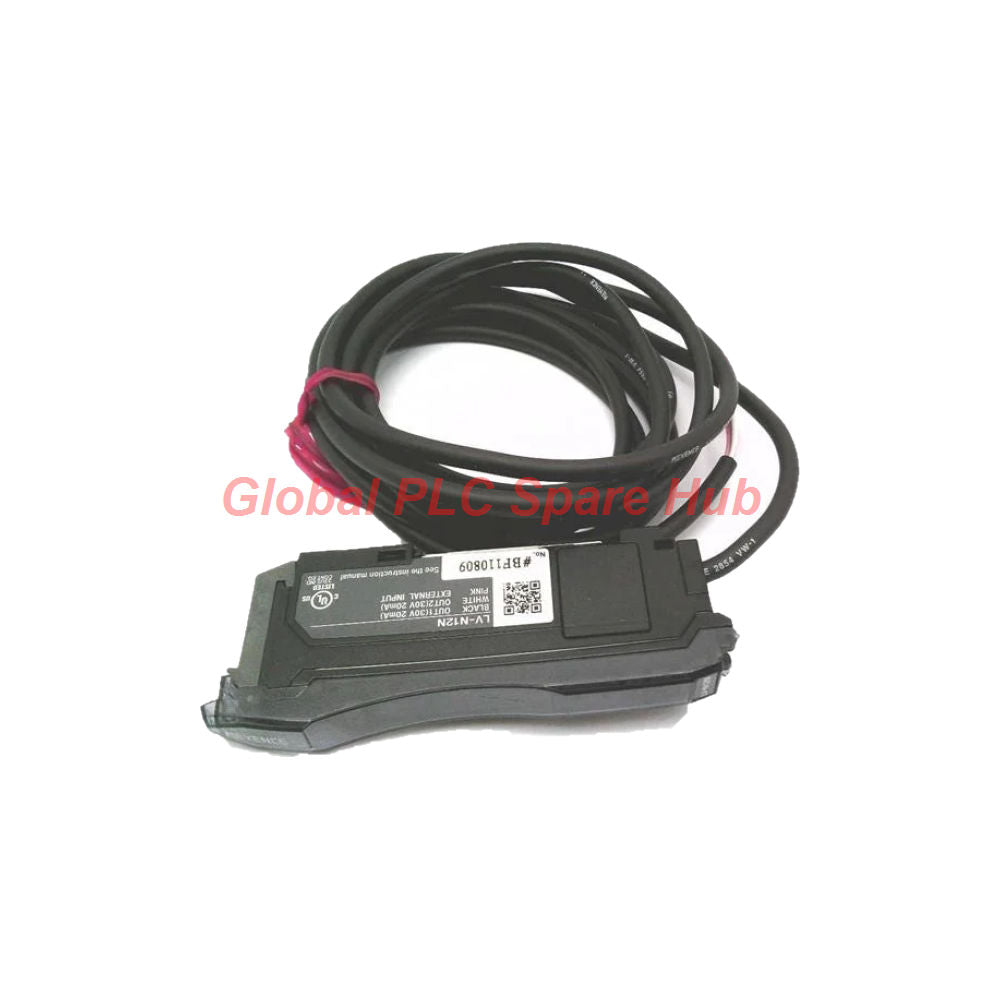

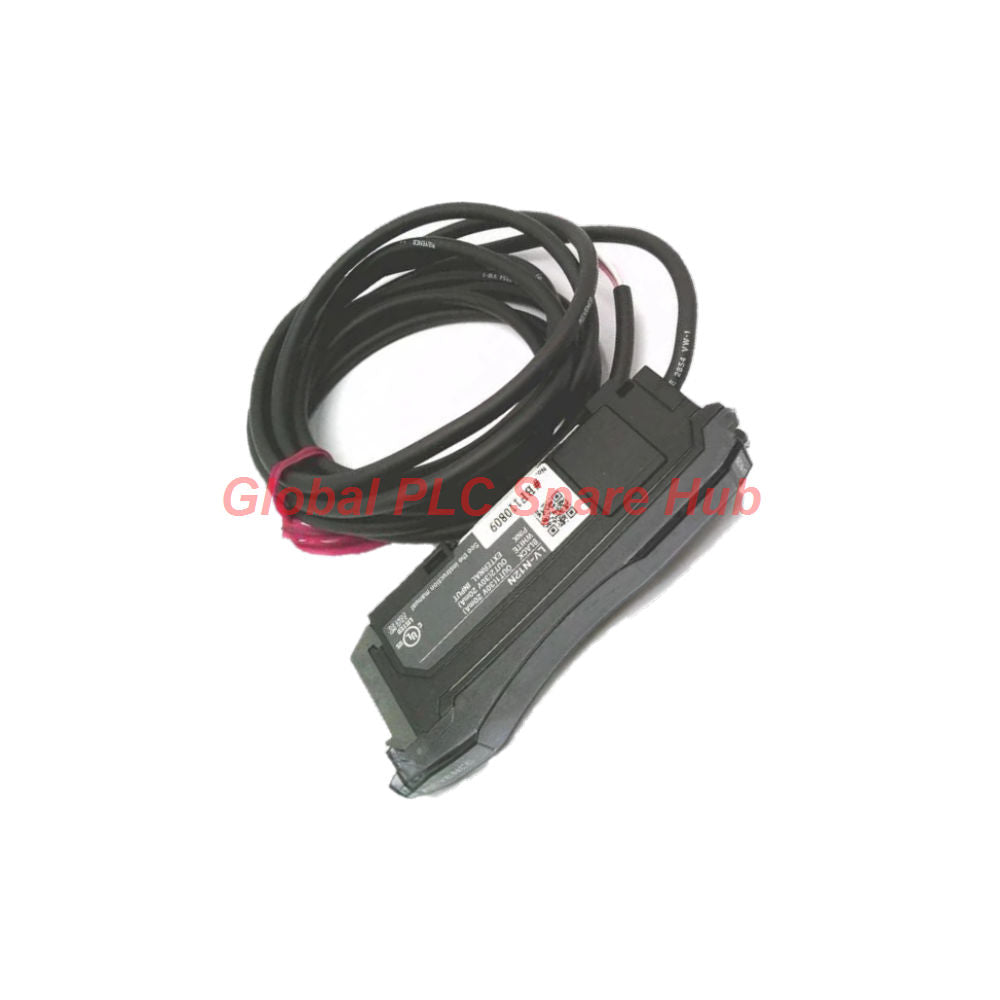

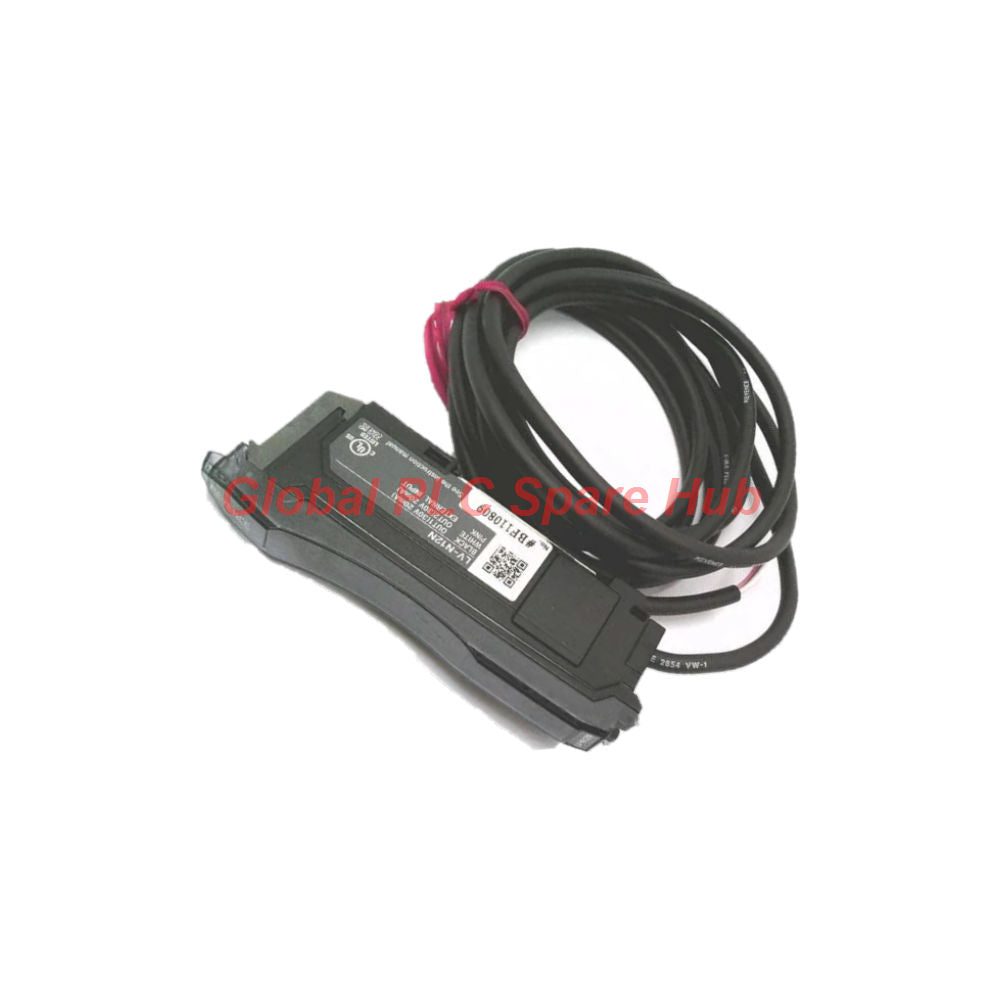

LV-N12N Keyence LV-N series Digital Laser Sensor Amplifier LV-N12N

Global PLC Spare HUB's Insight: When configuring multi-unit expansion arrays in high-speed sensing lines, verifying the DC ripple voltage prevents erratic switching thresholds. This Keyence LV-N12N Digital Laser Sensor Amplifier delivers ultra-fast response tracking for precision automation. Belonging to the robust LV-N series, this Expansion unit variant supports seamless multi-amplifier clustering up to 17 total units.

Engineering Performance Parameters

Global PLC Spare HUB Review: Proper matching of response time modes to target velocity prevents false edge detection in high-speed sorting applications.

• Brand: Keyence
• Model Designation: LV-N12N
• Product Series & Type: LV-N series / Digital Laser Sensor Amplifier (Expansion Unit)
• Response Time Modes: 80 µs (HIGH SPEED) to 16 ms (MEGA) selectable
• Control Outputs: 1 NPN open collector output (30 V max, 100 mA max, residual voltage ≤ 1 V)
• External Input & Timing: 1 external input; selectable timer functions (OFF, OFF-delay, ON-delay, One-shot from 1 ms to 9,999 ms with ±10% max error)
• Supply & Power Metrics: Nominal 24 VDC (operating 10 to 30 VDC, ripple P-P 10% max), max power consumption 830 mW, 30 mA at 24 V
• Protection & Interference: Reverse polarity, over-current, and surge absorber protection circuits; cross-talk interference prevention for up to 4 units
• Environmental Limits: Operating temperature -20°C to +55°C, relative humidity 35 to 85% RH (no condensation)
• Mechanical Resilience: Vibration resistance (10 to 55 Hz, 1.5 mm double amplitude), shock resistance (500 m/s²)
• Physical Profile: Dimensions (H×W×D) 32.6 × 9.8 × 78.7 mm, weight approx. 65 g, polycarbonate case with PVC cabling

Hardware Integration & Expansion Guide

Mount the LV-N12N amplifier unit directly onto standard DIN rails alongside master units within the LV-N series ecosystem. Slide expansion modules together securely to establish internal high-speed data buses without separate patch wiring. Connect the 24 VDC power supply to dedicated terminals, ensuring ripple voltages remain below the 10% threshold to safeguard internal timing microprocessors.

Operational Diagnostics & Troubleshooting

The unit features digital display indicators that show real-time received light intensity versus preset threshold values. If unstable switching occurs during high-speed transit, check the response time setting and switch from standard modes to the 80 µs high-speed profile. Built-in over-current and reverse polarity protection circuits safeguard the NPN open collector output against accidental short circuits.

System Compatibility & Target Applications

• Semiconductor Wafer Handling: Micro-position verification in cleanroom tracks
• High-Speed Packaging Lines: Fast-moving blister pack and pill counting verification
• Automated Assembly Cells: Precise component seating and leading-edge detection
• Electronics Manufacturing: Small-part pin inspection and PCB alignment gantries

Logistics, Warranty & Fulfillment

• Fulfillment Speed: Express dispatch within 24 to 48 hours of order confirmation
• Global Carrier Network: Secure, trackable shipping via FedEx, UPS, and DHL
• Quality Assurance: Backed by a dependable 12-month industrial replacement warranty

Frequently Asked Questions

Q: Why does the Keyence LV-N12N display an error or unstable reading when multiple expansion units are mounted side by side?
A: Mounting multiple units close together can cause optical or electrical cross-talk if mutual interference prevention channels are not configured correctly in the menu parameters.

Q: Can the NPN output of this expansion unit drive a standard 24V PLC DC relay directly?
A: Yes, provided the relay coil current draws less than 100 mA and an external flyback diode is installed to suppress inductive voltage spikes.

Q: How does switching between FINE and TURBO response time modes affect detection accuracy?
A: FINE mode prioritizes an ultra-fast 250 µs response for fast targets, whereas TURBO mode extends integration time to 500 µs to stabilize readings on low-reflectivity or distant targets.

Q: Is it necessary to derate the operating temperature range when grouping multiple LV-N12N units on a single DIN rail?
A: Yes, thermal derating applies when tightly clustering multiple expansion units together in enclosed panels, so ensure adequate cabinet ventilation or spacing.

Q: What factors should guide my purchasing decision between a master amplifier and this LV-N12N expansion unit?
A: Choose this expansion unit when you need to add synchronized detection channels to an existing master controller cluster without duplicating power and network overhead.
