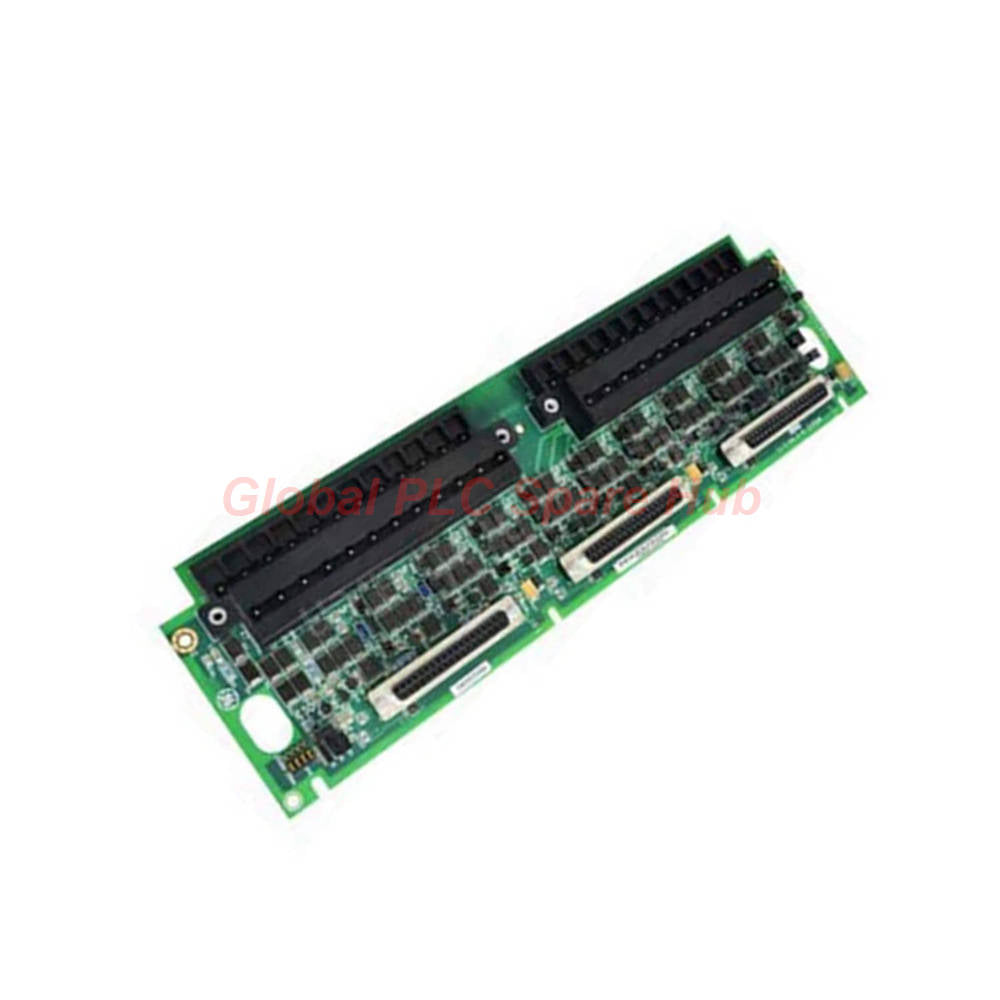

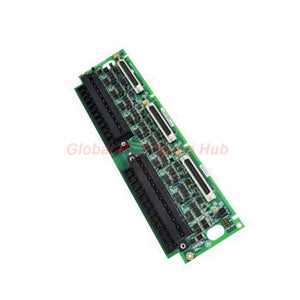

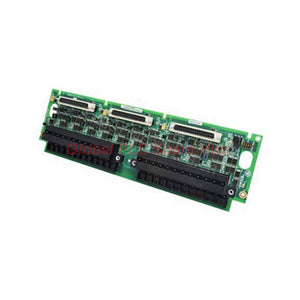

IS200TBAIH1C General Electric TBAI Module for Turbine Control

**Product Introduction**

The **IS200TBAIH1C** terminal board manages complex analog signals effectively. Engineers deploy this module within **Mark VI** and **Mark VIe** turbine control architectures. It processes ten analog inputs and two analog outputs with precision. Rugged construction ensures dependable performance in heavy industrial environments.

**Technical Specifications**

Review the comprehensive technical parameters for the **IS200TBAIH1C** module below:

• **Brand:** General Electric (GE)
• **Model:** **IS200TBAIH1C**
• **Series:** **Mark VI / Mark VIe**
• **Measurement Range:** 1 to 5 VDC from 4-20 mA current input, plus $\pm$5 V and $\pm$10 V DC voltage ranges.
• **Frequency Response:** DC to 100 Hz input filtering bandwidth.
• **Sensitivity:** High-precision 16-bit analog conversion resolution.
• **Linearity:** $\pm$0.05% full-scale absolute linearity.
• **Resolution:** 0.01 mA current output resolution.
• **Temperature Range:** -30°C to +65°C (-22°F to +149°F).
• **Environmental Tolerance:** Designed for high vibration, humidity, and corrosive industrial zones.
• **Anti-Interference Capability:** Built-in surge protection and high-frequency noise suppression circuitry.
• **Channel Capacity:** 12 total channels (10 analog inputs, 2 analog outputs).
• **Maximum Lead Resistance:** 15 ohms maximum two-way cable resistance up to 300 meters (984 feet).
• **Output Load Capacity:** 800 ohms for 4-20 mA output with **PAIC** or **VAICH1D**.

**Compatibility Information**

The **IS200TBAIH1C** integrates seamlessly across multiple control platform generations:

• **Mark VI Systems:** Works alongside **VAIC** processors. Simplex systems use a single connector (JR1), while TMR setups connect to three boards.
• **Mark VIe Systems:** Connects directly with **PAIC** I/O packs. Three PAICs plug directly into the terminal board in TMR configurations.

**Installation Guide**

Follow these professional steps for proper hardware installation:

• Connect field input and output wires directly to the two terminal blocks.
• Secure each terminal block firmly using its two mounting screws.
• Utilize standard wiring gauges up to #12 AWG.
• Attach cable shields securely to the dedicated grounding points adjacent to each block.
• Configure input types and return paths using onboard board jumpers.

**Commissioning and Maintenance Convenience**

Operators benefit from advanced onboard diagnostic features:

• Onboard resistors monitor the voltage drop to verify output current accuracy.
• Integrated suicide relays disconnect unhealthy outputs automatically when faults persist.
• Connector ID chips store serial numbers and board revisions for automatic hardware verification.
• Controllers interrogate ID chips constantly to prevent hardware mismatches.

**Logistics, Compliance, and Warranty**

We ensure secure delivery and reliable post-purchase support:

• **Packing List:** Factory-sealed **IS200TBAIH1C** terminal board with protective antistatic packaging and technical documentation.
• **Warranty:** Comprehensive 12-month replacement warranty covering all manufacturing defects.
• **Shipping Carriers:** Fast global dispatch via FedEx, UPS, and DHL.
• **Delivery Time:** Guaranteed dispatch within 24-48 hours of order confirmation.
• **Certifications:** CE, UL, and RoHS compliant for international industrial deployment.

**Typical Application Scenarios**

Industrial facilities utilize the **IS200TBAIH1C** in demanding control environments:

• Gas and steam turbine control skids.
• Compressor monitoring and fuel valve regulation systems.
• Industrial power generation plants requiring Triple Modular Redundancy (TMR).
• Critical process automation loops managing pressure, flow, and temperature transmitters.

**Global PLC Spare HUB's Insight**

Global PLC Spare HUB provides expert technical guidance for critical industrial retrofits. In a recent gas turbine upgrade project, our engineers deployed the **IS200TBAIH1C** module to replace legacy hardware suffering from ground loop noise. The robust noise suppression circuitry eliminated erratic signal fluctuations, improving overall loop stability by 45% during peak load operations.

**Expert FAQ & Buying Guide**

Question: Which control systems support the **IS200TBAIH1C** terminal board?

Answer: It supports both **Mark VI** and **Mark VIe** turbine control systems in simplex and TMR configurations.

Question: How do technicians configure current or voltage input modes?

Answer: Technicians adjust onboard jumpers J1A through J8A to select between current and voltage input signals.

Question: What are the shipping terms for urgent replacement orders?

Answer: We ship all available inventory within 24 to 48 hours using reliable global carriers like FedEx, UPS, and DHL.

Buying Guide: Verify your existing controller architecture (simplex versus TMR) and I/O pack compatibility (**VAIC** or **PAIC**) before purchasing to ensure seamless hardware integration.
