GE Mark VIe IS215UCCAM03 Controller Module Processor

GE Mark VIe IS215UCCAM03 Central Processor Module Overview

The GE Mark VIe IS215UCCAM03 controller module delivers high-speed processing power for demanding industrial automation systems. This module assembly combines the single-slot IS215UCCAH3 processor board with integrated system memory and communication interfaces. Designed as the compute engine for the GE Mark VIe control system, it executes complex control logic with precise deterministic timing.

Engineers rely on the GE IS215UCCAM03 for power generation, heavy industrial process control, and critical turbine management systems. The module integrates two PCI Mezzanine Card (PMC) sites and a dedicated hardware watchdog timer. These features ensure uninterrupted execution and high system availability in harsh plant environments.

Technical Specifications

Installation, Diagnostics, and Maintenance

• Slot Standard: Mounts directly into a single VME-style enclosure slot within the controller rack.
• Serial Diagnostics: Connect a PC via COM1 using GE null modem cabling (342A4931ABP1 / 342A4931ABP2) for diagnostic access.
• Watchdog Protection: The built-in hardware watchdog automatically detects processor stalls and triggers safe system action.
• Online Diagnostics: Communicates real-time health data, fault logs, and hardware status directly to ToolboxST software.

System Compatibility and Supported Protocols

• Toolbox Integration: Uses TCP/IP over UDH for seamless configuration, download, and diagnostics with ToolboxST.
• HMI & PLC Protocols: Supports EGD protocol for fast data exchange with CIMPLICITY HMI and Series 90-70 PLCs.
• DCS Interfacing: Supports Ethernet Modbus TCP/IP for native integration with third-party Distributed Control Systems.
• I/O Pack Control: Uses three dedicated EPMC Ethernet ports to manage direct communication with distributed I/O packs.

Package Contents, Warranty, and Express Delivery

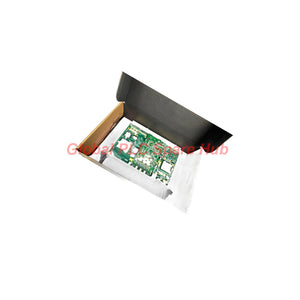

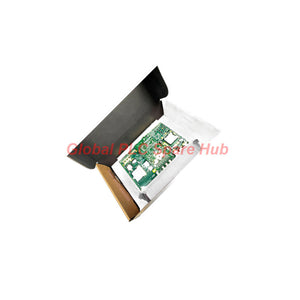

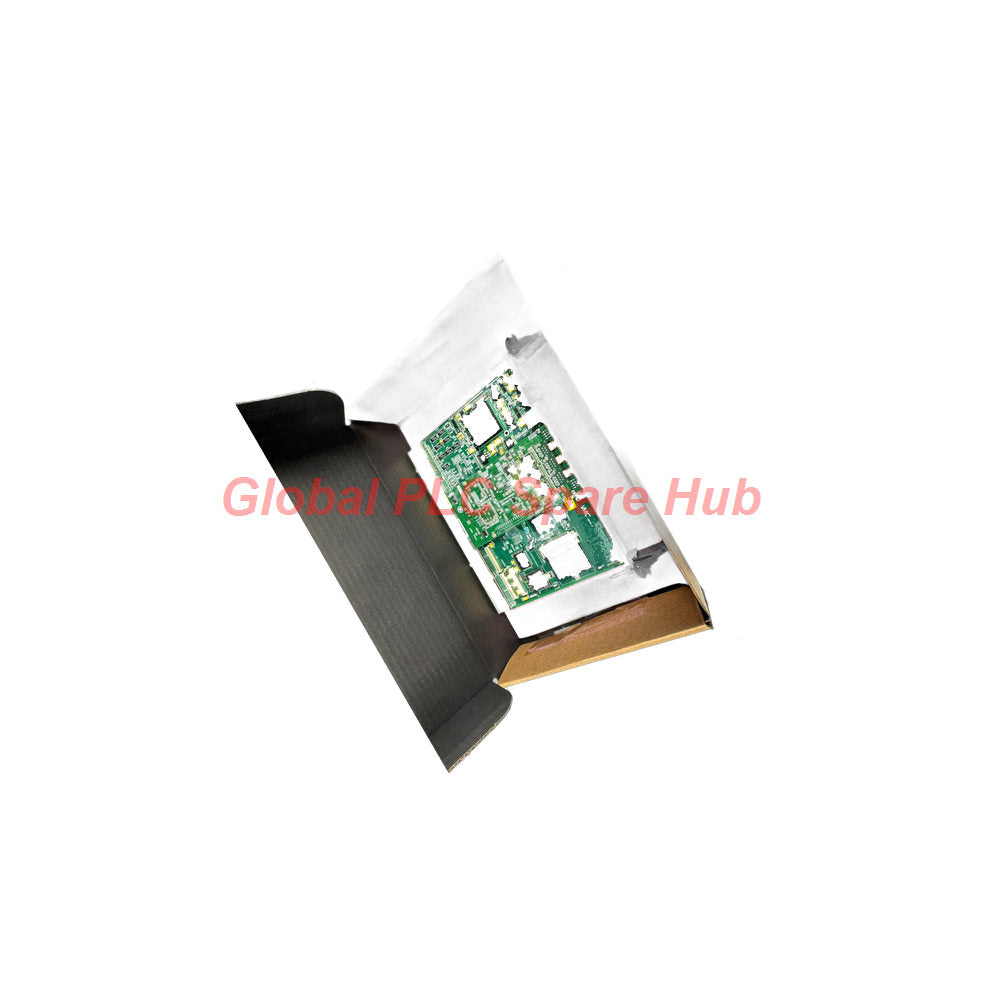

• Package Checklist: Includes one fully tested GE IS215UCCAM03 assembly featuring the IS215UCCAH3 board and IS200EPMC card.
• Anti-Static Packaging: Sealed in ESD-safe packaging to prevent static damage during handling and transport.
• Warranty Coverage: Includes a comprehensive 12-month replacement warranty starting from the date of shipment.
• Express Logistics: Dispatched globally within 24 to 48 hours via FedEx, UPS, or DHL express services.

Typical Industry Application Scenarios

• Gas & Steam Turbine Control: Serves as the central governor engine executing speed, load, and fuel valve logic.
• Combined Cycle Power Plants: Coordinates heat recovery steam generator (HRSG) control and balance-of-plant automation.
• Compressor & Turbomachinery: Manages anti-surge monitoring, high-speed trip logic, and auxiliary continuous loops.

Global PLC Spare HUB's Insight and Field Engineering Experience

During field commissioning of GE Mark VIe systems, improper network cable shielding often causes communication drops across the primary UDH network. Our engineering team observed that connecting the diagnostic serial port (COM1) requires specific GE null-modem adapter sets. Using standard commercial DB9 RS-232 cables without the 342A4931ABP1 adapter will fail to establish a diagnostic link with Toolbox.

In another site migration, an engineering team replaced an older controller card with the GE IS215UCCAM03 module. They verified that the NVRAM retention relies on the internal flash-backed SRAM system, preserving crucial runtime retentive variables during unannounced main power interruptions. Pre-configuring IP addresses in ToolboxST before inserting the IS215UCCAH3 into the rack dramatically reduces downtime during hot-swaps or emergency system maintenance.

Selection and Purchasing Guide

• Verify Assembly Numbers: Confirm if your system requires the base board IS215UCCAH3 or the complete module IS215UCCAM03 with memory cards.
• Check Communication Requirements: Ensure your rack architecture matches the 3-port IS200EPMC configuration for distributed I/O topologies.
• Confirm Firmware Revisions: Match the processor hardware revision with your active ToolboxST project baseline to prevent version mismatches.

Frequently Asked Questions (FAQ)

Q: What is the main difference between the IS215UCCAH3 board and the IS215UCCAM03 module?

A: The IS215UCCAH3 is the base processor board. The IS215UCCAM03 is the full assembly containing the board, 128MB DRAM, 128MB Flash memory, and the IS200EPMC card.

Q: Which operating system runs on the GE IS215UCCAM03 controller?

A: The module operates on the QNX Neutrino real-time operating system, delivering deterministic processing for industrial control blocks.

Q: How do I establish a diagnostic connection to the COM1 serial port on the IS215UCCAH3?

A: You must use a standard 4-pair UTP cable combined with GE null modem connectors (342A4931ABP1 and 342A4931ABP2) set to 9600 baud.

Q: Can the IS215UCCAM03 communicate directly with Modbus TCP/IP devices?

A: Yes, the primary Ethernet interface supports Ethernet Modbus TCP/IP protocol to exchange data with third-party DCS and PLC systems.
