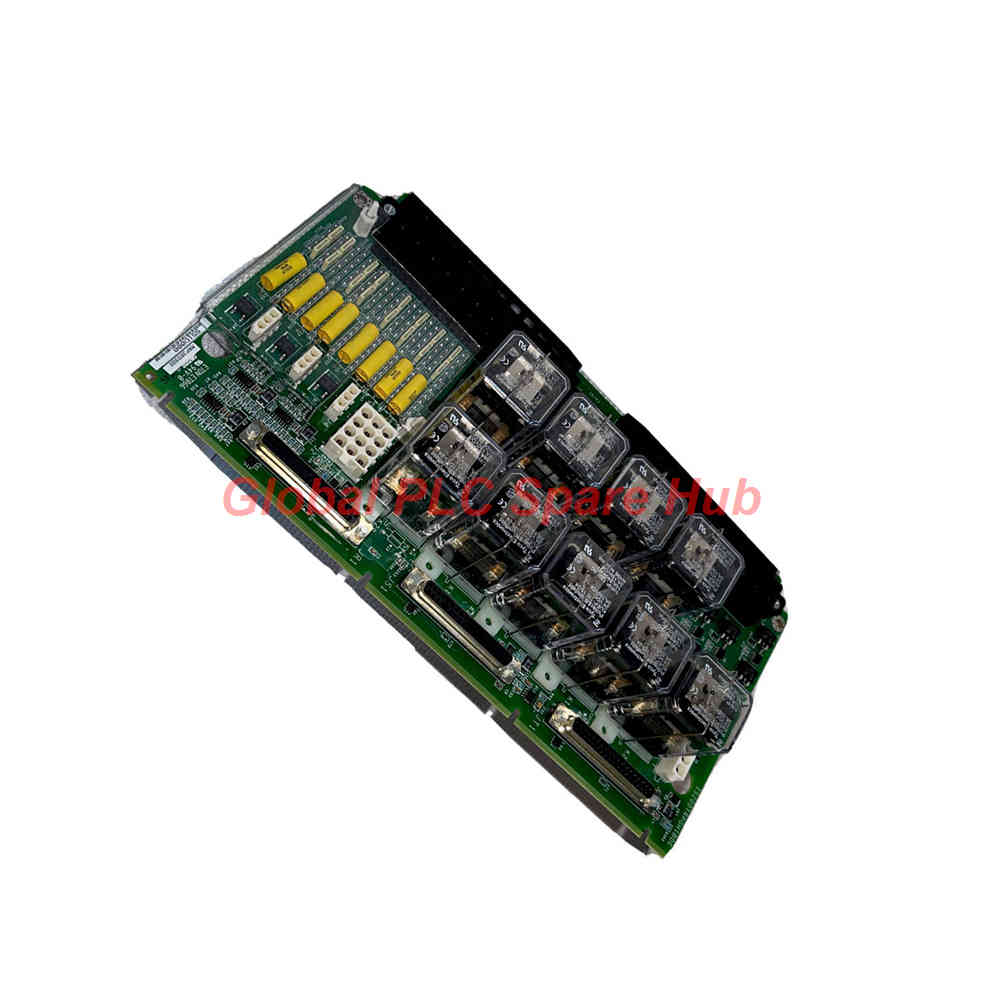

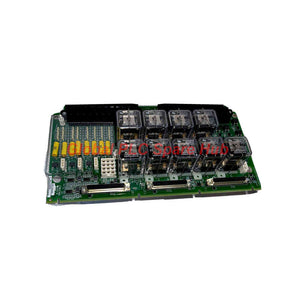

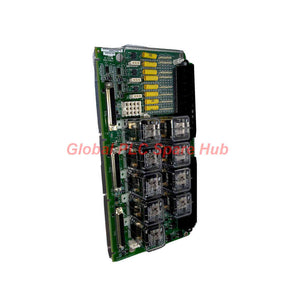

IS210TRPGH1B GE Mark VIe Gas Turbine Trip Terminal Board
Manufacturer: GE
Product No.: IS210TRPGH1B
Condition： In stock
Product Type: Terminal Board
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The IS210TRPGH1B is a high-performance Primary Trip Terminal Board designed by General Electric. This critical component functions within the Mark VIe distributed control system architecture. It serves as the primary interface for gas turbine trip solenoids and flame detection inputs. The board facilitates robust, reliable operation by integrating advanced voting logic. It ensures seamless communication between the I/O controller and field-level trip devices.
Technical Specifications
- Manufacturer: General Electric
- Series: Mark VIe
- Model Number: IS210TRPGH1B
- Primary Function: Gas Turbine Primary Trip Terminal Board
- Trip Solenoids: 3 x Electrical Trip Devices (ETD)
- Solenoid Rated Voltage: 125 V dc
- Control Relay Coil Supply: 28 V
- Flame Detector Inputs: 8 x Geiger-Mueller detectors
- Flame Detector Voltage: 335 V dc
- Current Suppression: Integrated Metal Oxide Varistor (MOV)
- Operating Temperature: Industrial standard compliant
- Environmental Tolerance: Engineered for harsh gas turbine environments
- Interference Immunity: High electromagnetic compatibility standards
Installation and Compatibility
- I/O Integration: Directly interfaces with the TTURH1C I/O pack via D-type connectors.
- Solenoid Wiring: Connects via the first I/O terminal block.
- Flame Detectors: Connects directly to the second terminal block.
- Power Distribution: Terminals J3, J4, J5 support flame detectors; J1 manages 125 V dc power.
- System Support: Fully compatible with both Simplex and TMR system architectures.
- System Coordination: Works in tandem with the TREG board for emergency overspeed protection.
Diagnostics and Maintenance
- Hardware Voting: Utilizes 2-out-of-3 (TMR) relay logic for maximum trip reliability.
- Continuous Monitoring: Tracks relay driver current flow for real-time contact status.
- Diagnostic Checks: Automatically validates normally closed contact integrity.
- Voltage Tracking: Monitors supply voltages to ensure system stability.
- Maintenance: Designed for straightforward physical installation and modular replacement.
Typical Applications
- Gas Turbine Primary Protection Systems
- Emergency Overspeed Protection Logic
- Flame Detection Interface Management
- Critical Industrial Distributed Control Systems
Ordering and Logistics
- Warranty: 12-month quality assurance guarantee.
- Packaging: Secure industrial-grade protective packaging.
- Shipping Carriers: FedEx, UPS, and DHL.
- Lead Time: Rapid dispatch within 24–48 hours of order confirmation.
- Package Contents: IS210TRPGH1B Board and standard documentation.
Global PLC Spare HUB's Insight
The IS210TRPGH1B acts as the backbone for turbine safety. Our engineering team identifies this board as a critical failure point prevention tool. It effectively isolates control signals from high-voltage trip devices. Engineers prioritize this module for its proven track record in TMR systems.
Frequently Asked Questions
How does the board handle TMR voting failures?
The IS210TRPGH1B uses hardware-based relay logic to maintain a 2-out-of-3 voting state. If one circuit reports a discrepancy, the system diagnostics alert operators while maintaining protection.
Can I install this in an existing Simplex system?
Yes, the board supports both Simplex and TMR configurations, providing flexibility for various turbine control needs.
What is the best way to troubleshoot a solenoid trip?
Start by checking the diagnostic feedback from your I/O pack. Verify the current flow in the relay driver line to confirm if the issue resides in the solenoid or the board contact.
Selection Guide
- Confirm your current hardware revision matches the IS210TRPGH1B specifications.
- Ensure your system utilizes the TTURH1C controller for full feature compatibility.
- Evaluate your specific turbine's requirements for flame detector input quantities before procurement.
