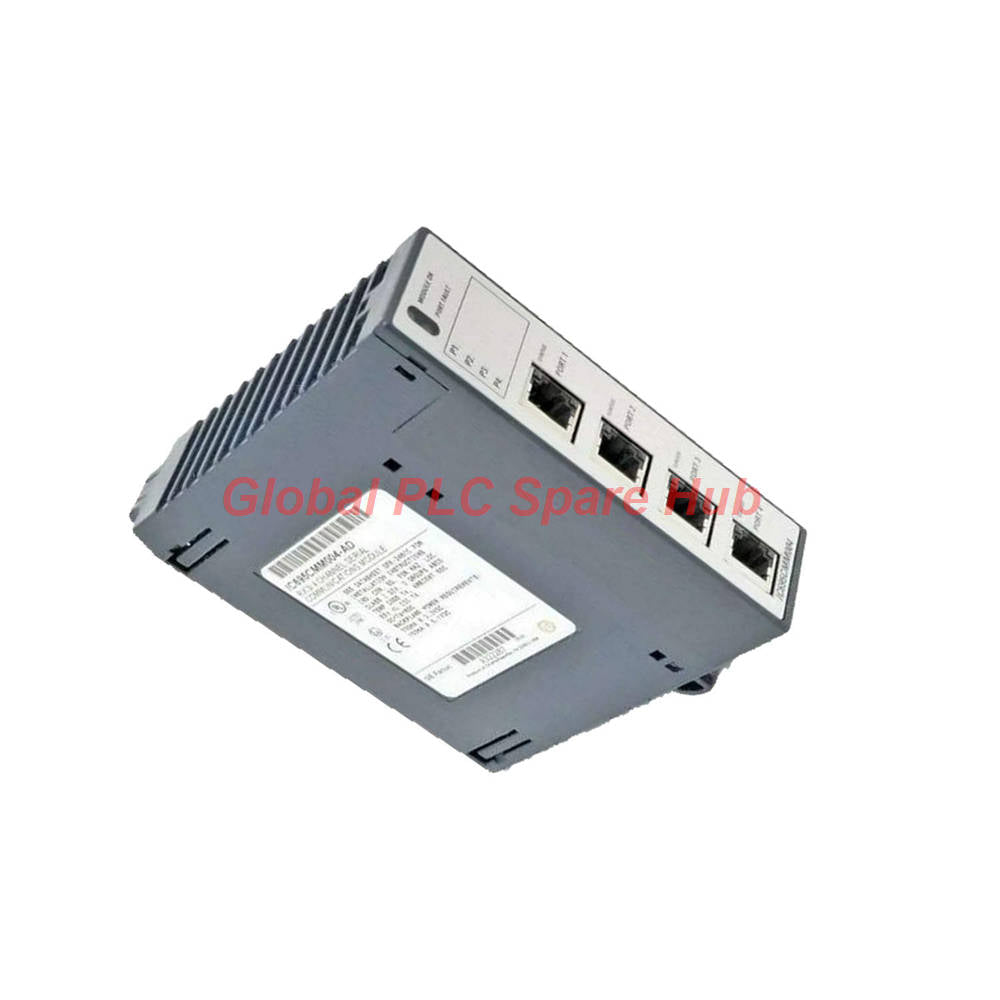

IC695CMM004 GE Fanuc PACSystems RX3i Serial Module
Manufacturer: GE Fanuc
Product No.: IC695CMM004
Condition： In stock
Product Type: Communications Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 2500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
Global PLC Spare HUB Review: Global PLC Spare HUB delivers high-performance industrial networking hardware designed for legacy and modern control integration. The IC695CMM004 belongs to the PACSystems RX3i series, originally engineered by GE Fanuc and currently supported under Emerson Automation. Systems integration engineers deploy this 4-port serial communication module to bridge disparate field instruments, power meters, and variable frequency drives into centralized rack controllers.
Technical Parameters & Architecture
| Brand | GE Fanuc / Emerson |
| Manufacturer Part Number | IC695CMM004 |
| Product Series & Type | PACSystems RX3i 4-Port Serial Communications Module |
| Serial Interfaces | Four independent RJ-45 ports supporting RS-232, RS-422, and RS-485 |
| Communication Protocols | MODBUS Master/Slave, CCM Slave, DNP3 Master/Slave, and Serial I/O |
| Baud Rate Spectrum | Selectable transmission speeds from 1200 baud up to 115.2 kilobaud |
| Backplane Power Load | 0.7 Amps at 3.3VDC and 0.15 Amps at 5VDC maximum current draw |
| Isolation Rating | 250Vac continuous / 1500Vac (1 min) port-to-backplane; 500Vdc continuous port-to-port |
| Operating Temperature | 0 to 60 degrees Celsius industrial thermal operating threshold |
| Agency Certifications | CE, UL/CUL 508, and ATEX hazardous location compliance markings |
Installation Blueprint
- De-energize the CPU rack completely before inserting or extracting the module in hazardous locations.
- Slot the unit into any available PCI backplane slot, keeping within the limit of six modules per CPU rack.
- Connect standard RJ-45 cables for RS-232 point-to-point links or construct custom pinout wiring for Modbus multi-drop networks.
- Ensure shield drains are terminated properly to ground studs to maintain isolation integrity across long cable runs.
- Apply firmware upgrade kit version 1.34 via software configuration tools if legacy protocol enhancements are required.
Commissioning and Maintenance Convenience
Onboard diagnostic LEDs provide immediate local troubleshooting visibility, where blink patterns on the Module OK indicator denote specific system errors such as watchdog timeouts or RAM faults. Handshaking support (RTS/CTS, RFR/CTS) simplifies asynchronous modem integration, while removable terminal configurations minimize downtime during scheduled cabinet maintenance.
Compatibility Framework
The unit integrates smoothly into RX3i PACSystems racks alongside standard CPU models. It permits up to six identical serial modules per backplane, enabling a total capacity of 24 active serial communication channels managed by a single controller.
Certification Information
Certified for demanding industrial environments, the assembly complies with CE requirements, UL/CUL 508 safety standards, and ATEX directives, ensuring safe operation when installed with proper enclosure ratings.
Package Contents and Warranty
Each box contains one factory-inspected IC695CMM004 serial module. Global PLC Spare HUB guarantees your operational uptime with a comprehensive 12-month replacement warranty.
Logistics and Delivery
Global PLC Spare HUB processes and dispatches orders within 24 to 48 hours. Expedited global shipping is managed securely via trusted carriers including FedEx, UPS, and DHL.
Typical Application Scenarios and Diagnostic Capability
Automation professionals deploy the IC695CMM004 across electrical power sub-stations, water treatment telemetry networks, and manufacturing lines utilizing legacy serial devices. Built-in diagnostics report communication dropouts and watchdog status flags directly to the CPU, minimizing troubleshooting hours during network anomalies.
Frequently Asked Questions
Why do my Modbus RTU devices fail to respond when using standard RJ-45 patch cables?
Standard patch cables do not match the custom pin assignment requirements needed for RS-485 Modbus implementation on these specific ports; custom wiring assemblies must be fabricated.
What do specific flash counts on the Module OK LED indicate during startup?
A single blink indicates a watchdog timer expiration, two blinks point to a RAM memory error, six blinks signify invalid CPU configuration, and seven blinks denote a CPU heartbeat failure.
Can I mix RS-232 and RS-485 communication protocols across different ports simultaneously?
Yes. Each of the four independent RJ-45 ports can be configured individually for distinct protocols like DNP3 or Modbus operating at varying baud rates.
How many serial communication modules can a single RX3i CPU backplane support?
A maximum of six modules can be installed on a single CPU rack, yielding up to 24 concurrently active serial communication lines.
What precautions are necessary when hot-swapping this communication module?
You must turn off backplane power or verify the location is non-hazardous before connecting or disconnecting field wiring to prevent electrical arcing.
