IC695CBL002 Energy Pack Connection Cable RX3i Series GE Fanuc

Product Overview

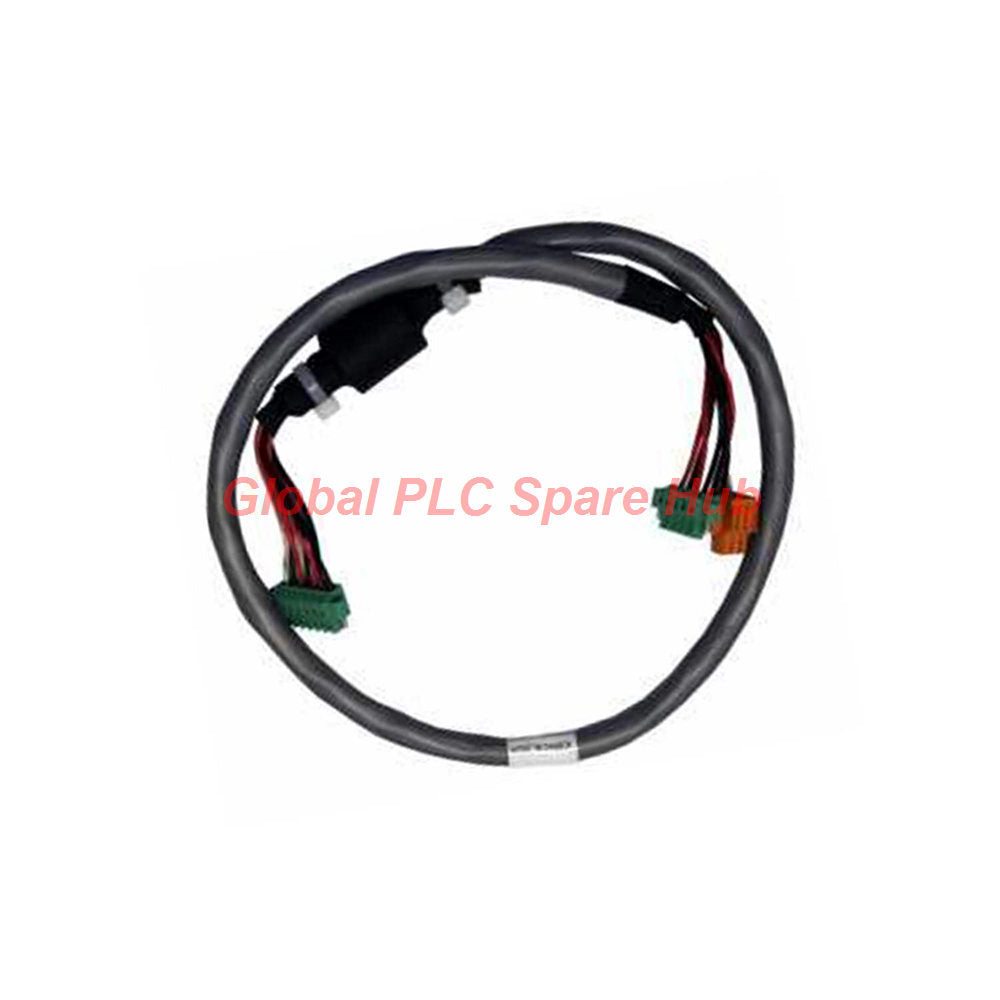

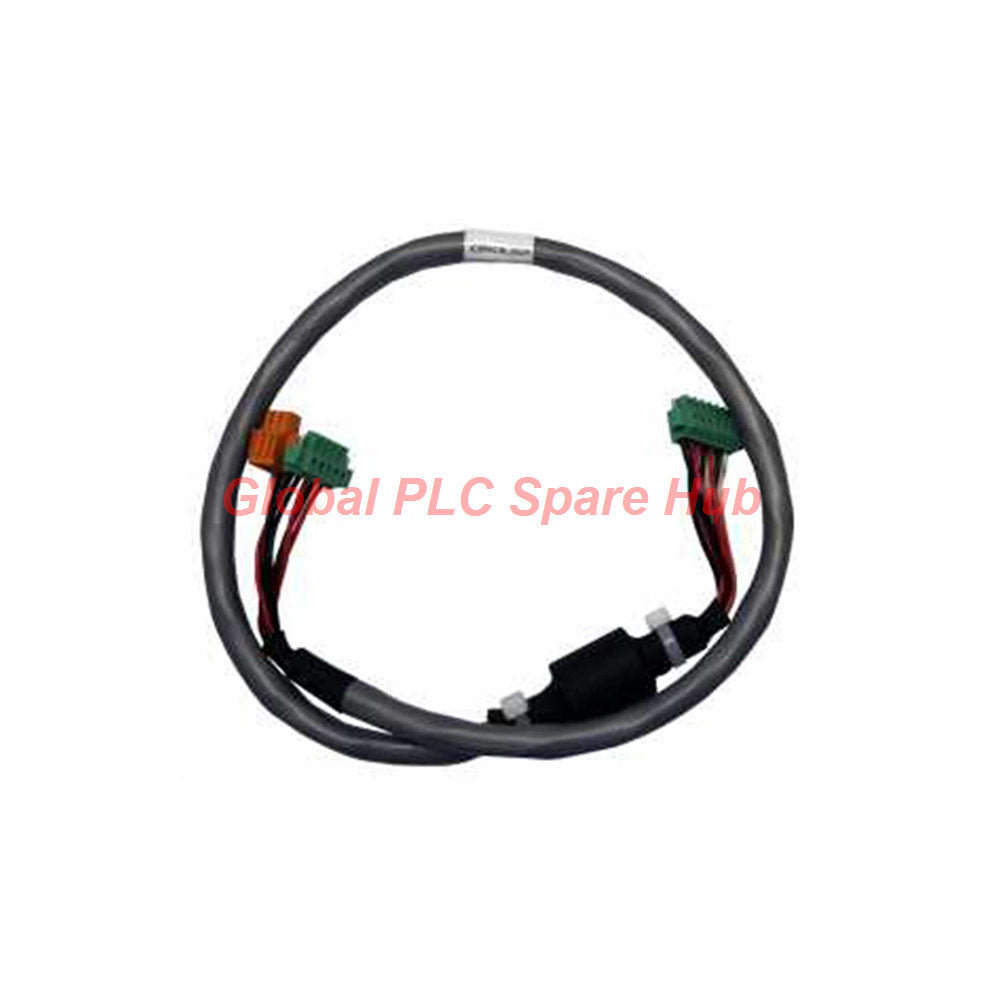

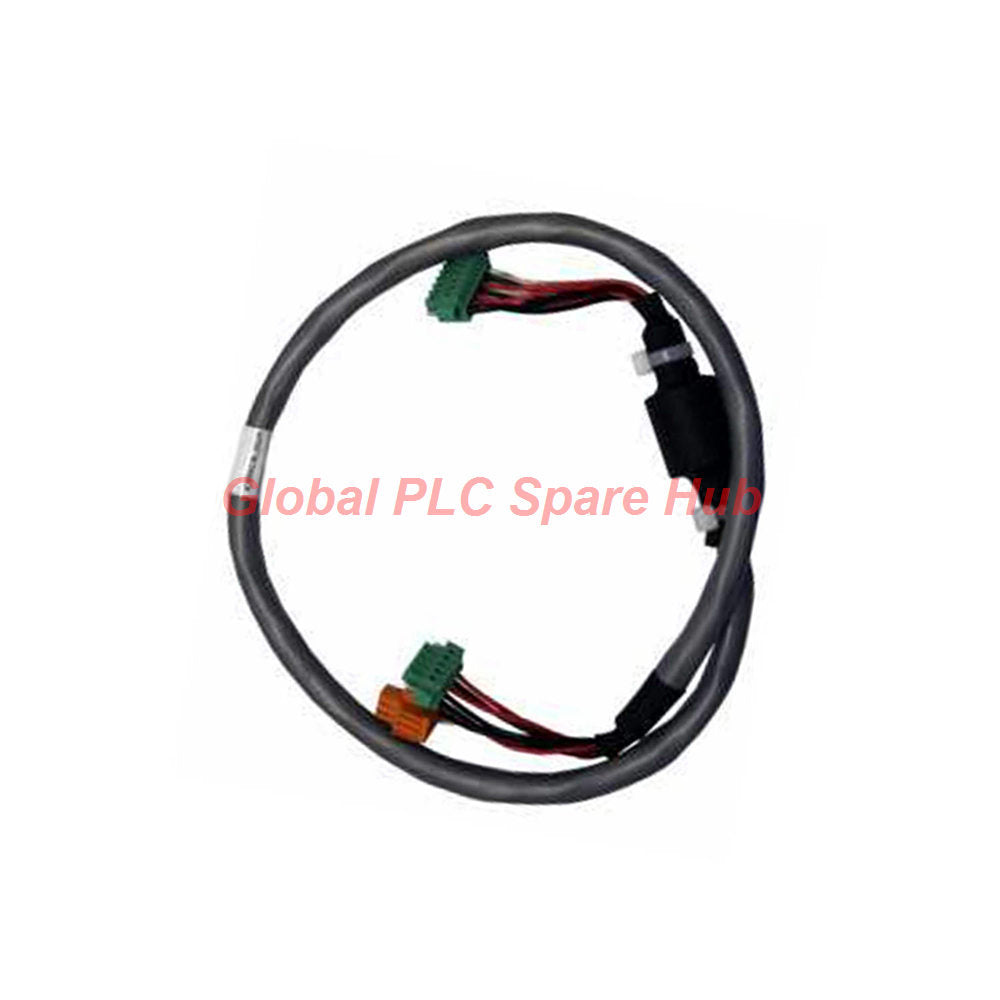

The IC695CBL002 replacement cable by GE Fanuc is an engineered interconnect accessory designed specifically for the RX3i PacSystem automation architecture. It forms a secure communication and power link between the central processing unit and the DIN-rail-mounted IC695ACC402 energy pack. Utilizing a ruggedized outer jacket and precise 7-pin keyed connectivity, this 1-meter cable ensures fault-tolerant power bridging during unexpected grid failures, allowing the CPU to successfully dump volatile operational data into non-volatile flash memory.

Technical Specification Matrix

Functional Engineering Breakdown

• Interconnect Architecture
  • Connects directly to bottom-mounted interface ports on both the IC695CPE330 CPU and the IC695ACC402 energy pack.
  • Employs a physical 7-pin, keyed design to eliminate mis-insertion risks in high-density cabinet layouts.
• Backup Power Coordination
  • Relays critical voltage status signals during input power drops to trigger immediate, seamless energy pack deployment.
  • Sustains auxiliary logic bus levels long enough for complete state-variable preservation into flash storage.

Deployment Guidelines and System Compatibility

• Compatible Hardware Assemblies
  • Designed for use with the GE Fanuc RX3i PacSystem platform, specifically bridging the IC695CPE330 CPU and IC695ACC402 energy pack.
• Physical Routing Precautions
  • Maintain physical separation from high-voltage motor power lines to prevent induced electromagnetic noise on signal pins.
  • Secure the 1-meter span with strain-relief fasteners to prevent terminal pulling under high-vibration conditions.

Global PLC Spare HUB Insight

Global PLC Spare HUB's Insight: Technicians frequently overlook micro-corrosion on the 7-pin connection ports of the IC695CBL002 during routine panel audits. Applying an approved dielectric contact cleaner during scheduled outages prevents intermittent communication faults between the CPU and energy pack.

Diagnostics and Troubleshooting Capabilities

• Link Monitoring
  • The host CPU registers an explicit hardware diagnostic fault code if continuity is broken or if the IC695CBL002 termination resistor fails.
• Voltage Verification
  • Use a digital multimeter during idle states to verify that control bus continuity matches standard straight-through mapping parameters.

Logistics, Warranty, and Fulfillment

• Shipping Services
  • Swift global dispatch via FedEx, UPS, and DHL within 24-48 hours from order validation.
• Warranty Terms
  • Fully covered by a standard 12-month warranty from the date of purchase.
• Packaging Content
  • One individual unit of the IC695CBL002 interconnect cable packaged with anti-static protection.

Target Applications and Equipment

• Process automation control rooms requiring uninterruptible data retention.
• Critical energy infrastructure and high-speed packaging lines.
• Remote telemetry cabinets utilizing the RX3i PacSystem architecture.

Frequently Asked Questions

• What specific error code appears on the programming software if the IC695CBL002 cable is disconnected?

  The system typically triggers a rack configuration or energy pack communication fault code, pointing directly to loss of module supervision on the backplane bus.

• Can technicians splice or extend the length of the IC695CBL002 beyond 1 meter?

  No, field splicing or custom lengthening alters impedance characteristics and termination values, which disrupts safe voltage handshakes between the CPU and energy pack.

• What maintenance check helps detect aging symptoms on this cable?

  Inspect the outer polymer jacket for thermal embrittlement and check the gold-plated pins inside the 7-pin connector for oxidation or bending.

• How does the selection of the IC695CBL002 impact system expansion choices?

  It guarantees that high-availability backup storage components integrate flawlessly without requiring changes to the existing control rack power supply architecture.

• What factors should guide the procurement strategy for replacement cables?

  Always source factory-original IC695CBL002 units to ensure compliance with strict signal shielding and RoHS material standards in harsh industrial plants.
