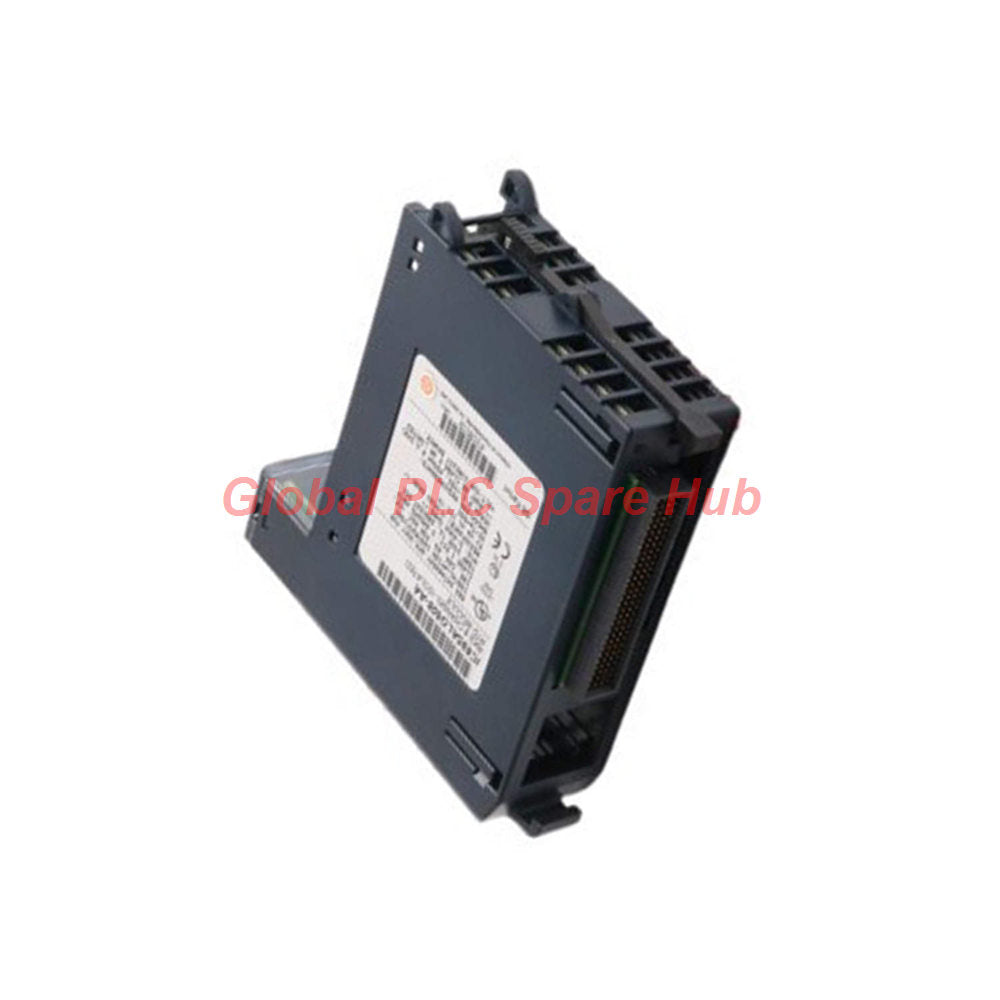

IC695ALG508 PACSystems RX3i 8-Channel RTD Input Module Overview

Engineered for precision thermal monitoring in demanding industrial infrastructure, the IC695ALG508 is a high-accuracy Resistance Temperature Detector (RTD) input module built for the PACSystems RX3i programmable automation controller platform. Originally developed under GE Intelligent Platforms and currently supported by Emerson Automation, this module manages thermal feedback across eight isolated, differential input channels. It translates raw resistance fluctuations into stable process variables using ITS-90 linearization, giving automation engineers reliable temperature tracking across complex production lines, energy grids, and process skids.

Comprehensive Technical Specifications & Measurement Performance

• Brand / Series / Manufacturer: GE Fanuc / PACSystems RX3i / Emerson Automation
• Part Number & Type: IC695ALG508 (Resistance Temperature Detector Input Module)
• Channel Architecture: Eight (8) isolated, differential input channels supporting 2-wire, 3-wire, and 4-wire configurations
• Supported RTD Standards: Platinum 385/391.6, Nickel 618/672, Copper 426, and Nickel-Iron 518 across multiple resistance tiers (50Ω to 1000Ω)
• Direct Resistance Ranges: 0-260Ω, 0-525Ω, 0-1050Ω, 0-2100Ω, 0-3150Ω, and 0-4200Ω
• Frequency Response & Filtering: Configurable digital notch filters selectable from 2.3 Hz to 28 Hz per channel to suppress line noise
• Resolution & Data Format: 16-bit integer (within a 32-bit field) or 32-bit IEEE floating-point real data format
• Measurement Units: User-selectable scaling in Degrees Celsius (°C), Degrees Fahrenheit (°F), or Ohms (Ω)
• Backplane Power Demand: 3.3 VDC at 400 mA and 5.1 VDC at 200 mA (Max power dissipation: 2.5W)
• Environmental Tolerances: Operating temperature 0°C to 60°C; Storage temperature -40°C to 85°C; 5% to 95% non-condensing humidity

Global PLC Spare HUB's Insight & Field Experience

Deploying multi-channel temperature instrumentation like the IC695ALG508 in high-electrical-noise environments requires meticulous attention to shield grounding. Global PLC Spare HUB field engineers recommend pairing this module with extended box-style or extended spring-style terminal blocks (such as the IC694TBB132 or IC694TBS132) because their extra shroud depth properly accommodates heavy shielded cable drains. Furthermore, when configuring 3-wire RTDs over long cable runs, ensure line resistances are matched during software calibration to eliminate lead-wire thermal offset errors before commissioning the loop.

Installation, Compatibility & Hardware Integration

• Backplane Slot Placement: Installs directly into any universal backplane slot within the RX3i rack structure.
• Hot-Swap Support: Fully supports Removal and Insertion Under Power (RIUP), allowing technicians to replace faulty modules without cycling backplane power.
• Terminal Block Options: Compatible with box-style (IC694TBB032), extended box-style (IC694TBB132), spring-style (IC694TBS032), and extended spring-style (IC694TBS132) blocks.
• Reaction to System Failure: User-configurable to hold last state or revert to default preset values upon CPU mode changes or bus communication loss.

Advanced Diagnostics & Fault Reporting Capabilities

• Module OK LED: Continuous green illumination confirms healthy internal operations and backplane communication.
• Field Status LED: Alerts operators to external 24 VDC loop excitation issues, voltage sag, or wiring faults.
• Onboard Error Detection: Automatically logs Watchdog timeouts, RAM integrity failures, and Flash memory checksum errors directly into the RX3i CPU diagnostic table.

Target Equipment & Typical Application Scenarios

• Process Control Skids: Monitoring exothermic reactor core temperatures in chemical manufacturing plants.
• Power Generation Facilities: Tracking turbine bearing temperatures and auxiliary lube oil cooling loops.
• Water & Wastewater Treatment: Measuring multi-point fluid temperatures across large aeration basins and sludge digesters using precision RTD probes.

Global Logistics, Warranty & Procurement Guidelines

• Fulfillment Carriers: Expedited global shipping handled via trusted couriers including FedEx, UPS, and DHL.
• Dispatch Timeline: Standard orders are processed and dispatched within 24 to 48 hours.
• Quality Assurance: Backed by a comprehensive 12-month warranty covering all structural and functional hardware defects.

Frequently Asked Questions

Q: Can individual channels on the IC695ALG508 be configured for different sensor types simultaneously?

A: Yes, each of the eight channels is completely independent, allowing engineers to mix platinum RTDs, nickel sensors, and raw resistance measurements across the same physical module.

Q: What is the primary advantage of selecting 4-wire RTD configurations over 2-wire setups?

A: 4-wire configurations completely eliminate lead-wire resistance errors by utilizing separate current excitation and voltage sense leads, making it ideal for long-distance sensor runs.

Q: How do I select between the standard and extended terminal blocks for the IC695ALG508?

A: Extended terminal blocks (IC694TBB132 or IC694TBS132) provide deeper shrouds, which are strongly recommended when dealing with thick, multi-core shielded cables to prevent mechanical stress on wire terminations.

Q: What causes the Field Status LED to flash or change state during operation?

A: The Field Status LED typically flags external loop power irregularities, sensor open-circuit conditions, or input voltages exceeding the calibrated measurement threshold.

Q: Purchasing Guidance: How should engineers verify spare compatibility before ordering an IC695ALG508 replacement?

A: Verify that your RX3i CPU backplane firmware supports the required 32-bit floating-point data arrays and ensure your system power supply can handle the 400 mA draw at 3.3V demanded by the module.
