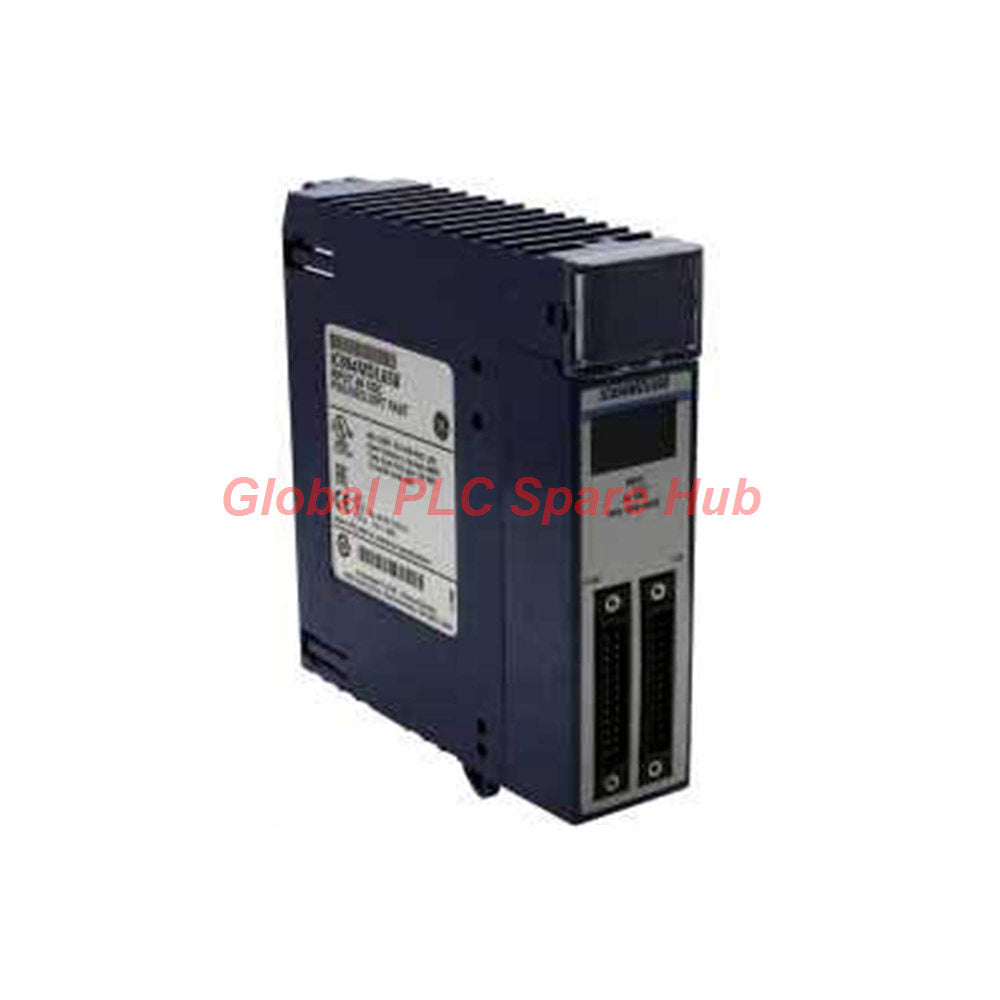

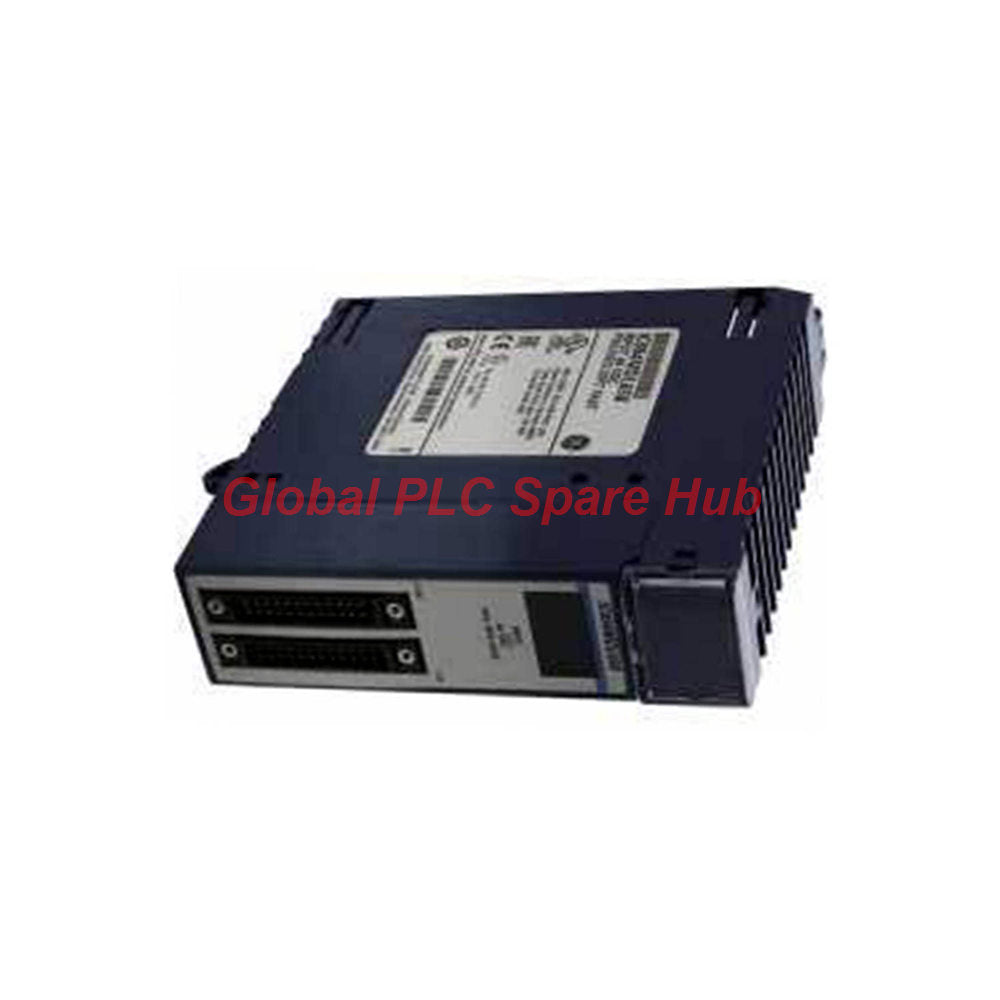

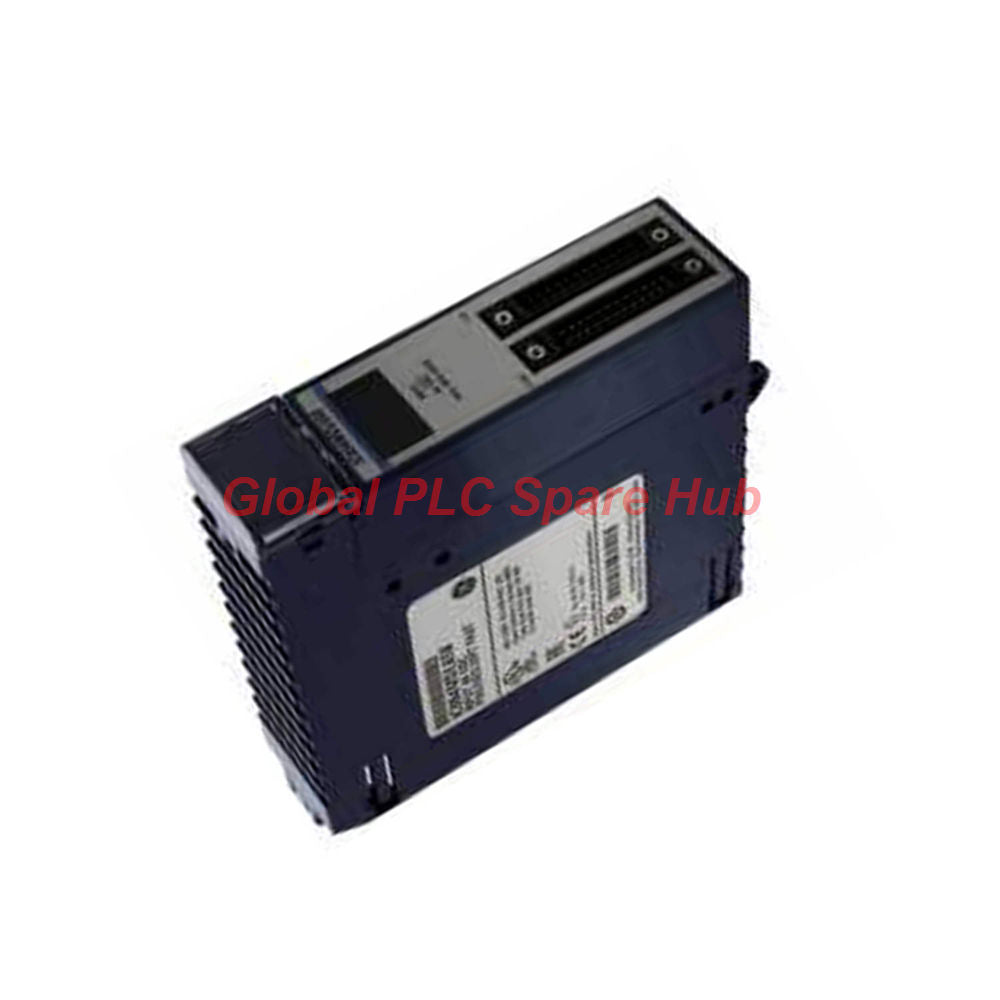

IC694MDL658 PACSystems RX3i Digital Input Module by GE Fanuc

Product Overview

The IC694MDL658 is a high-density 32-channel discrete input module engineered for the PACSystems RX3i and Series 90-30 control architectures. Manufactured by GE Fanuc Automation, this versatile unit supports both positive and negative (sink/source) logic configurations, giving systems integrators maximum flexibility when interfacing field sensors. Designed to optimize rack footprint, the IC694MDL658 consolidates numerous signal points into a single slot while maintaining reliable optical and group-to-group isolation across demanding automated environments.

Technical Specifications

• Brand: GE Fanuc Automation
• Series: PACSystems RX3i
• Part Number: IC694MDL658
• Product Type: 32-Channel Discrete Input Module
• Logic Type: Selectable Positive / Negative (Sink / Source)
• Nominal Rated Voltage: 24 VDC (Compatible up to 48/60 VDC peak thresholds)
• Input Voltage Range: 0 to 30 VDC standard (Extends up to 60 VDC max)
• Input Current: 7.0 mA nominal at 24 VDC per point
• Channel Grouping: Arranged in four (4) independent groups of 8 inputs with dedicated commons
• Response Time: 2 ms maximum for both On and Off transitions
• Field-to-Backplane Isolation: 250 VAC continuous
• Group-to-Group Isolation: 50 VAC continuous
• Operating Temperature: 0 to 60 degrees Celsius

Installation & Integration Guide

• Slot Placement: Can be mounted in any available slot across standard RX3i local racks or expansion backplanes.
• Connector Specification: Interfaces via male 24-pin connectors (Fujitsu FCN-365P024-AU connector type or prewired custom cables recommended).
• Cabling Distance: Maximum allowable field cable length must not exceed 30 meters to prevent signal attenuation and capacitive coupling.
• External Power: Requires a stable external 24 VDC power supply to energize field-side input devices safely.

Commissioning & Maintenance Ease

• Visual Status Mapping: Features individual front-panel LED status indicators for each of the 32 input points, allowing instant verification of signal presence.
• Diagnostic Considerations: Note that this specific module model does not feature internal software-reported diagnostic fault alarms; status verification relies on physical LED inspection and logic-state monitoring.
• Wiring Maintenance: Pre-pinning 24-pin Fujitsu blocks correctly during initial setup drastically reduces troubleshooting time during panel modifications.

Compatibility & Certifications

• Controller Compatibility: Fully compatible with GE Fanuc RX3i CPU configurations and high-speed backplane serial buses.
• Field Device Integration: Interoperable with standard industrial switches, proximity detectors, and dry-contact sensors utilizing dual-polarity logic.
• Industrial Compliance: Built to meet rigorous thermal, mechanical, and electrical endurance standards for industrial control gear.

Packing List & Warranty Terms

• Packing List: One (1) IC694MDL658 32-Channel Input Module, protective anti-static enclosure housing, and technical sheet.
• Warranty Terms: Covered by a comprehensive 12-month warranty ensuring complete operational reliability from the date of invoice.

Shipping & Logistics

• Courier Network: Secure, expedited international delivery managed through premium global carriers including FedEx, UPS, and DHL.
• Fulfillment Window: Orders are processed, inspected, and dispatched within 24-48 hours to keep your maintenance schedules on track.

Typical Application Scenes

• Packaging Machinery: Monitoring high-speed photoelectric sensors and pneumatic cylinder limit switches on automated bottling lines.
• Material Handling Systems: Capturing discrete status inputs from conveyor sorting gates, proximity detectors, and safety interlocks.
• OEM Skid Units: Consolidating high-count digital inputs within compact control enclosures where panel space is at a premium.

Global PLC Spare HUB Insight & Field Experience

When deploying high-density 32-point modules like the IC694MDL658, cable routing is critical. Because the module relies on 24-pin Fujitsu connectors and allows cable runs up to 30 meters, unshielded bundles routed parallel to high-power motor cables can induce noise, causing intermittent bit-flipping. Based on field installation insights, always bundle signal cables separately in metallic wireways, maintain proper drain-wire earthing at one end, and verify sink/source common wiring configurations carefully before powering up the rack.

Frequently Asked Questions

What wiring harness or connector type is required for the IC694MDL658?

The module interfaces via male 24-pin connectors, with the Fujitsu FCN-365P024-AU type being the ideal industry-standard choice for prewired or custom cable assemblies.

Does this module provide internal diagnostic fault reporting to the CPU?

No, the IC694MDL658 does not include internal hardware diagnostics or fault alarm registers; input status must be verified using the front-panel LEDs or ladder logic monitoring.

How are the 32 input channels organized internally?

The 32 input points are arranged into four (4) distinct groups of 8 inputs, each equipped with its own independent common connection point.

What is the maximum recommended cable length for field wiring?

Field cabling connected to the module must not exceed 30 meters to ensure signal integrity and adhere to timing specifications.

What purchasing criteria should I keep in mind when buying replacement 32-point input cards?

Verify your control panel's available backplane slot count, confirm whether your sensor network uses sink (positive) or source (negative) logic, and ensure you have compatible 24-pin connector cables ready for installation.
