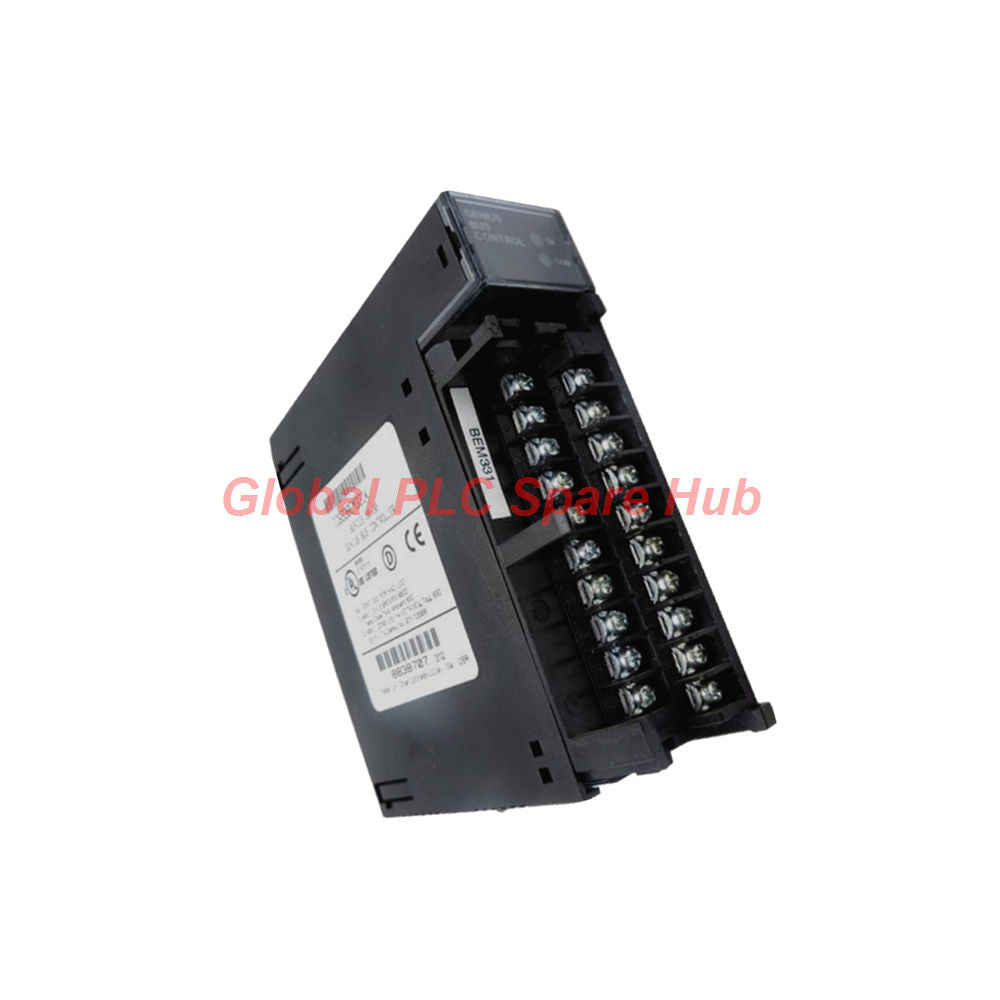

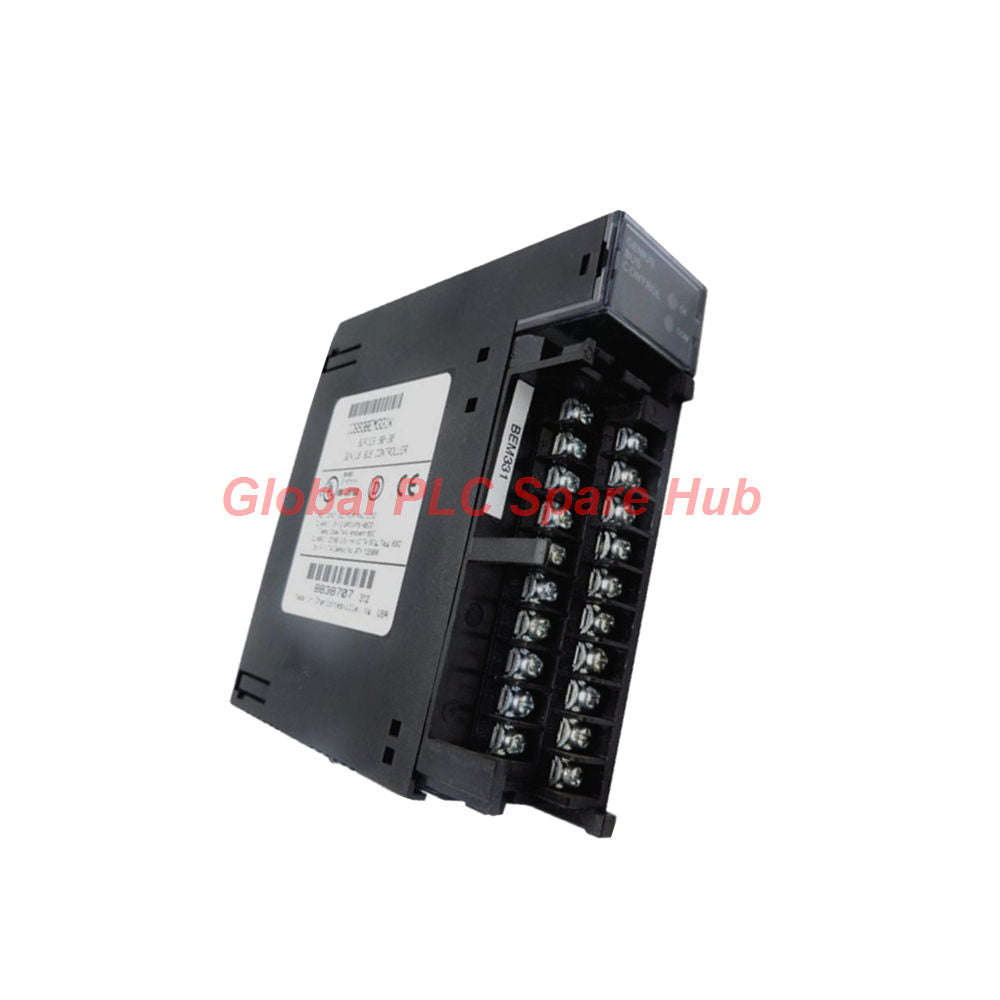

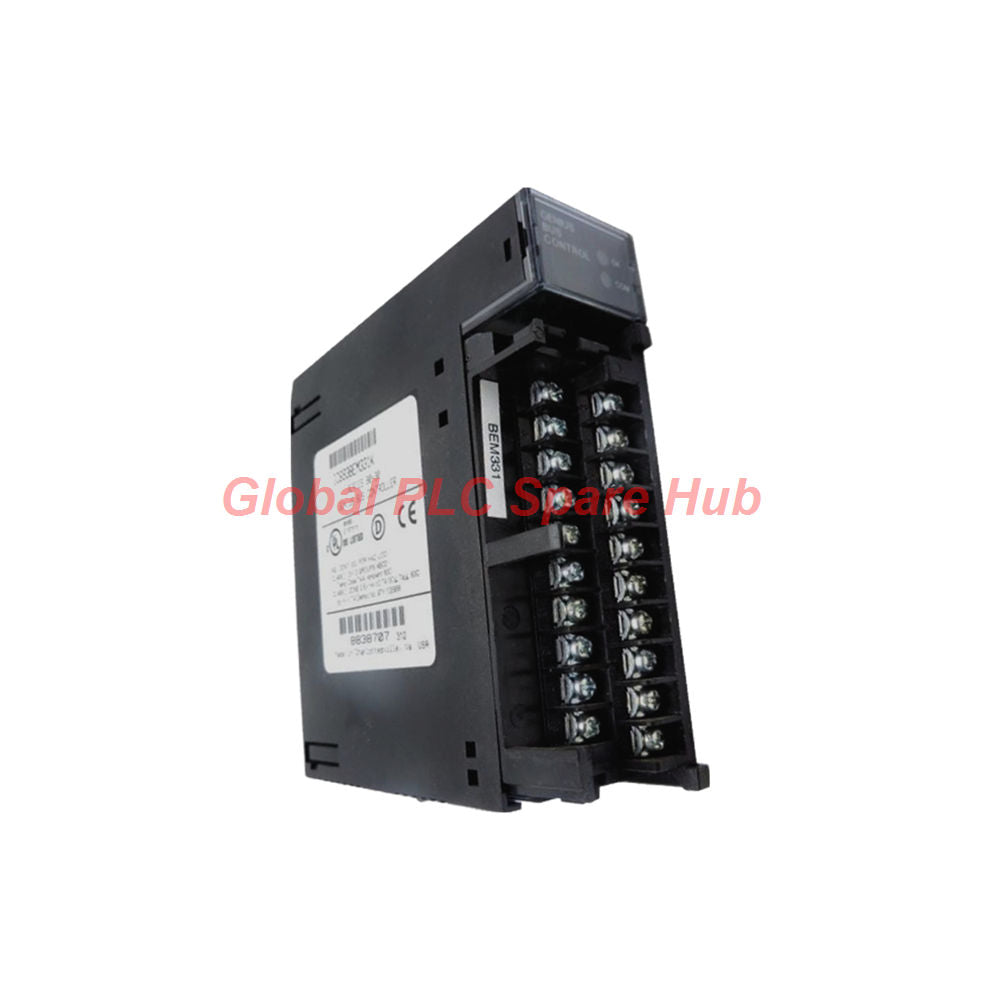

IC693BEM331 GE Fanuc Series 90-30 Genius Bus Controller Module In Stock

GE Fanuc Series 90-30 IC693BEM331 Technical Overview

The IC693BEM331 is a dedicated Genius Bus Controller for the GE Fanuc Series 90-30 PLC platform. Engineers utilize this module to integrate Series 90-30 CPUs with existing Genius I/O serial networks. It establishes bidirectional communication across up to 31 field devices on a single bus drop. The unit supports transmission and reception of up to 128 bytes of process data. A single Series 90-30 rack supports up to eight IC693BEM331 modules when running CPU firmware 5.0 or later.

Technical Specifications

Supported Network Architecture & Target Equipment

The GE Fanuc IC693BEM331 acts as a central communication gateway across multiple industrial automation hardware tiers:

• Genius I/O Blocks: Interfacing discrete blocks (solenoid valves, motor starters, limit switches) and analog blocks (pressure transmitters, RTDs, flowmeters).
• Remote I/O Drops: Connecting Series 90-70 I/O expansion racks equipped with Remote I/O Scanner modules.
• Field Control Stations: Linking Field Control Bus Interface Units (BIU) supporting up to 8 additional field modules.
• Diagnostic Tools: Interoperable with the Genius Hand-Held Monitor (HHM) for real-time channel diagnostics and bus parameter configuration.
• Host Controllers: Communicating with Series 6 processors, host computers, and legacy Genius network nodes.

Diagnostic Indicators & Fault Detection

The front panel of the IC693BEM331 incorporates two status LEDs that give operators clear hardware and network feedback:

• OK LED (Solid Green): Confirms successful completion of power-up self-diagnostics and active backplane communication with the CPU.
• COMM OK LED (Solid Green): Indicates active, error-free token passing and serial data exchange on the Genius bus.
• COMM OK LED (Blinking): Signals intermittent serial bus noise, bad frame check sequences, packet loss, or dropouts.
• COMM OK LED (Off): Indicates complete loss of bus activity, physical cable break, or incorrect bus termination resistance.

Field Installation & Environmental Guidelines

• Install the IC693BEM331 into any standard Series 90-30 baseplate rack slot.
• Ensure the enclosure meets IP20 or higher standards to prevent moisture ingress, extreme temperature exposure, and conductive dust accumulation.
• Always power down the baseplate backplane before inserting or removing the bus module.
• Use approved shielded twisted-pair serial cable for the Genius bus daisy-chain topology.
• Verify proper 75-Ohm or 150-Ohm bus termination resistors at both physical ends of the serial line.
• Allow only qualified engineering personnel to service wiring connections to avoid process disruption or equipment damage.

Packaging Details & Express Delivery

• Packaging Contents: 1x GE Fanuc IC693BEM331 Genius Bus Controller, sealed in an ESD protective anti-static bag.
• Warranty: Covered by a full 12-Month Replacement Warranty.
• Dispatch Lead Time: Ships out within 24 to 48 hours following order confirmation.
• Global Express Shipping: Reliable door-to-door delivery via FedEx, UPS, and DHL Express.

Global PLC Spare HUB's Review

In our technical evaluation of the Series 90-30 IC693BEM331, this controller remains one of the most reliable fieldbus interfaces for legacy plant modernization. During a recent field support project at a water treatment plant, the customer reported erratic COMM OK LED behavior on a Genius loop. Our engineers identified an unshielded serial cable segment routed too close to a 480V pump motor drive. Installing proper shielded twisted-pair cabling and placing 151-Ohm terminating resistors across the final block restored stable communications instantly. When integrating multiple bus controllers into one rack, always confirm that your CPU baseboard firmware is upgraded to v5.0 or higher to prevent backplane bus allocation errors.

Selection & Compatibility Guide

• Check System Firmware: Ensure your CPU firmware version is 5.0 or higher if deploying more than one IC693BEM331 controller in the same baseplate.
• Calculate Data Overhead: Verify that total data exchange across all 31 connected Genius devices does not exceed the 128-byte limit.
• Power Budgeting: Account for the module's 300 mA current draw at +5 VDC when calculating baseplate power supply loading.

Frequently Asked Questions (FAQ)

Q: What CPU models in the Series 90-30 family support the IC693BEM331?

A: It is compatible with CPU311K, CPU321K, CPU331L or later, and all firmware versions of CPU313, 323, 340, 341, 350, 351, 352, 360, 363, and 364.

Q: How do you configure device addresses and bus baud rates for this module?

A: Configuration requires a dedicated GE Fanuc Hand-Held Monitor (HHM) plugged directly into the Genius bus network segment.

Q: Can the IC693BEM331 operate on the same bus with legacy GE Series 6 PLCs?

A: Yes. It natively supports communications with Series 6 controllers equipped with IC660CBB902F or IC660CBB903F bus interface units.

Q: What causes the COMM OK LED to blink intermittently during operational cycles?

A: A blinking COMM OK LED typically indicates electrical noise on the bus cable, loose shield connections, or incorrect termination resistors at network endpoints.

Q: How many Genius Bus Controller modules can I install in a single Series 90-30 rack?

A: You can install up to eight modules per rack, provided your CPU firmware is version 5.0 or higher and backplane power capacity is sufficient.
