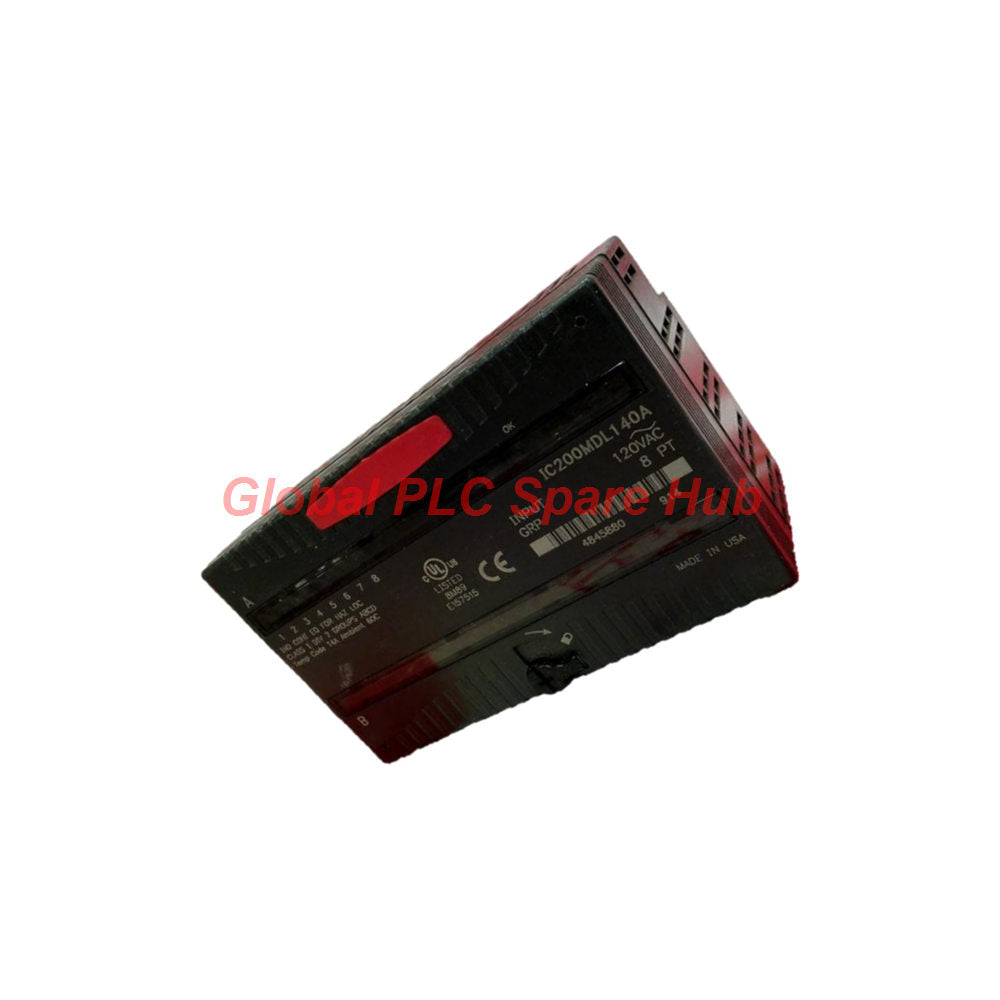

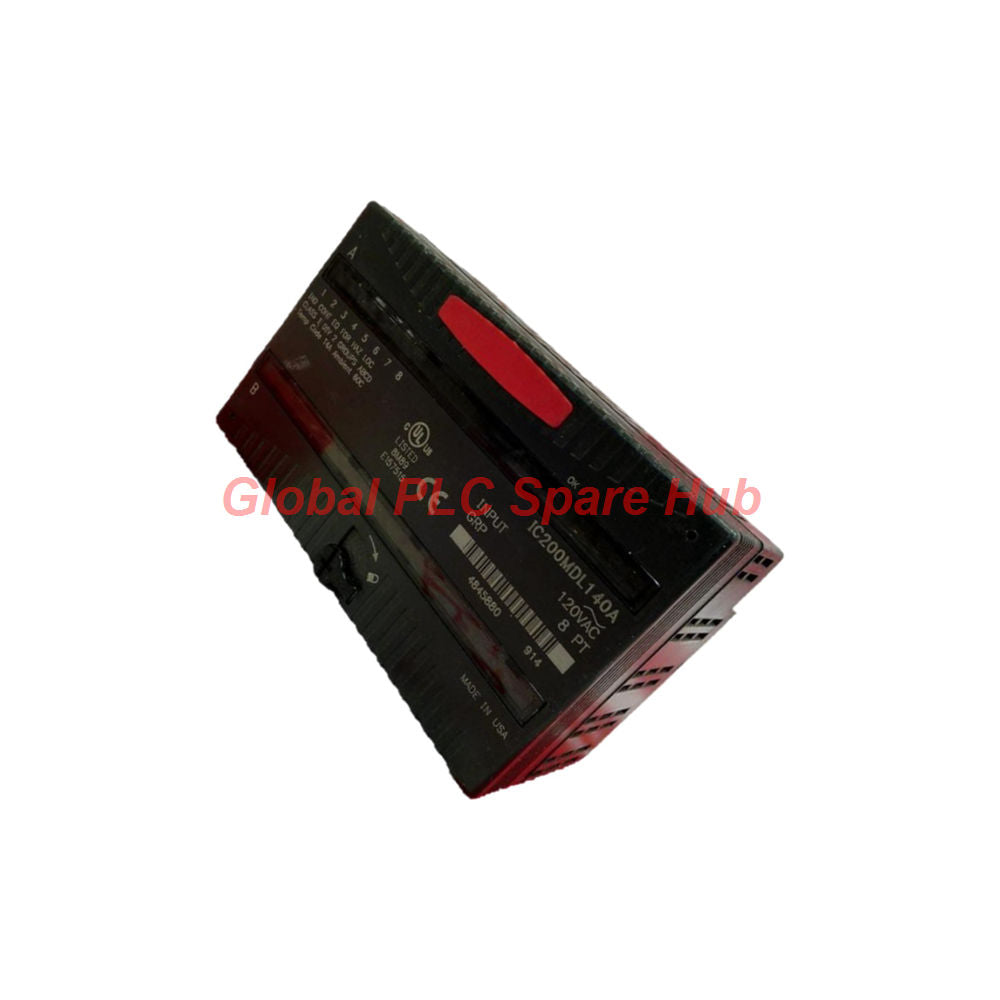

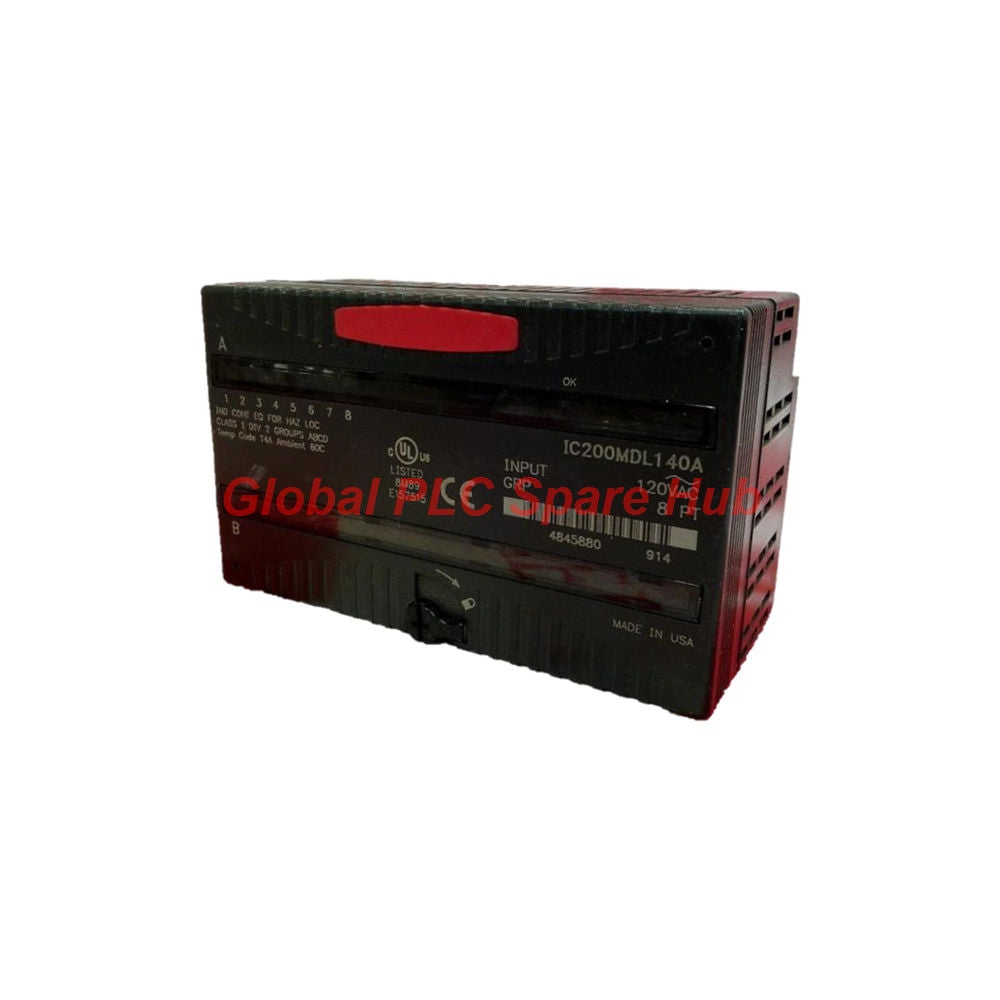

IC200MDL140 VersaMax Series GE Fanuc 8-Point Discrete AC Input Module

Core Product Introduction

The IC200MDL140 operates as an 8-point discrete AC input module designed for the modular VersaMax control architecture by GE Fanuc. This module seamlessly bridges 120 VAC binary field signals from industrial switches and pilot devices back to the central controller through high-integrity backplane communication.

Comprehensive Technical Parameters Specification

Mechanical Installation Guidelines

• Snap the IC200MDL140 directly onto the designated VersaMax I/O base carrier with interposing terminals.
• Ensure snap-in carrier locks are fully engaged to support hot module insertion and removal safely.
• Verify AC line wiring polarity and secure terminal block screws firmly to prevent contact chatter.

Commissioning and Maintenance Usability

Maintenance engineers benefit from the streamlined physical layout of the IC200MDL140. Hot-insertion capabilities allow technicians to replace faulty modules without powering down the entire rack control system, significantly minimizing mean time to repair (MTTR).

Diagnostic Capabilities and Status Indication

• Backplane Power LED: Illuminates to verify healthy internal power distribution.
• Numbered Point LEDs: 16 individual channel state indicators displaying real-time ON/OFF status for every active loop.

Target Applications and Equipment Compatibility

• Monitoring 120 VAC industrial limit switches and control panel pushbuttons.
• Interfacing auxiliary relay contacts in motor control centers (MCC).
• Tracking status signals from heavy-duty automated manufacturing machinery.

Commercial Terms, Logistics, and Warranty

• Package Scope: 1 x IC200MDL140 input module with protective structural casing.
• Warranty Terms: Fully backed by a 12-month replacement warranty.
• Global Delivery Services: Expedited express transit handled via FedEx, UPS, and DHL.
• Dispatch Lead Time: Fast fulfillment within 24 to 48 hours of order confirmation.

Global PLC Spare HUB's Insight

Field engineering evaluations on the IC200MDL140 highlight exceptional stability in heavy industrial plants running noisy 120 VAC supply lines. During a recent packaging plant overhaul, technicians resolved intermittent input flickering by securing the base carrier ground strap and verifying that line voltage remained within the 70 to 132 VAC on-state threshold. Utilizing the built-in point LEDs allowed rapid verification of incoming sensor signals without requiring a handheld multimeter.

Engineering Buying Guide

When selecting the IC200MDL140, ensure your control architecture utilizes compatible VersaMax base carriers. Confirm that field control voltage matches the 120 VAC nominal requirement and that total backplane current capacity accommodates the 55 mA load requirement.

Advanced Technical FAQs

Q: Does the IC200MDL140 require an external power supply for its input channels?

A: No, the input channels are powered directly by the 120 VAC field signals coming from connected switches, while internal logic draws power from the backplane.

Q: What causes an input channel to register as an invalid state?

A: Voltages hovering between the 20 VAC off-state limit and the 70 VAC on-state threshold can cause undefined states, usually resulting from line sag or induced AC noise.

Q: Can the IC200MDL140 module be hot-swapped during active machine operation?

A: Yes, when installed on approved VersaMax I/O base carriers featuring snap-in backplane design, hot insertion and removal are fully supported.

Q: Why are there 16 numbered LEDs on an 8-point module?

A: The module utilizes expanded status indicators to provide precise channel monitoring and diagnostic mapping across the modular terminal layout.

Q: How do I handle input signal filtering if environmental noise causes false triggers?

A: While the hardware responds within 1 AC cycle, you can implement software filtering logic inside your PLC project configuration to debounce erratic AC signals.
