FU-77G Keyence Thrubeam Fiber Optic Sensor Threaded M4 Optical Unit

Global PLC Spare HUB's Insight

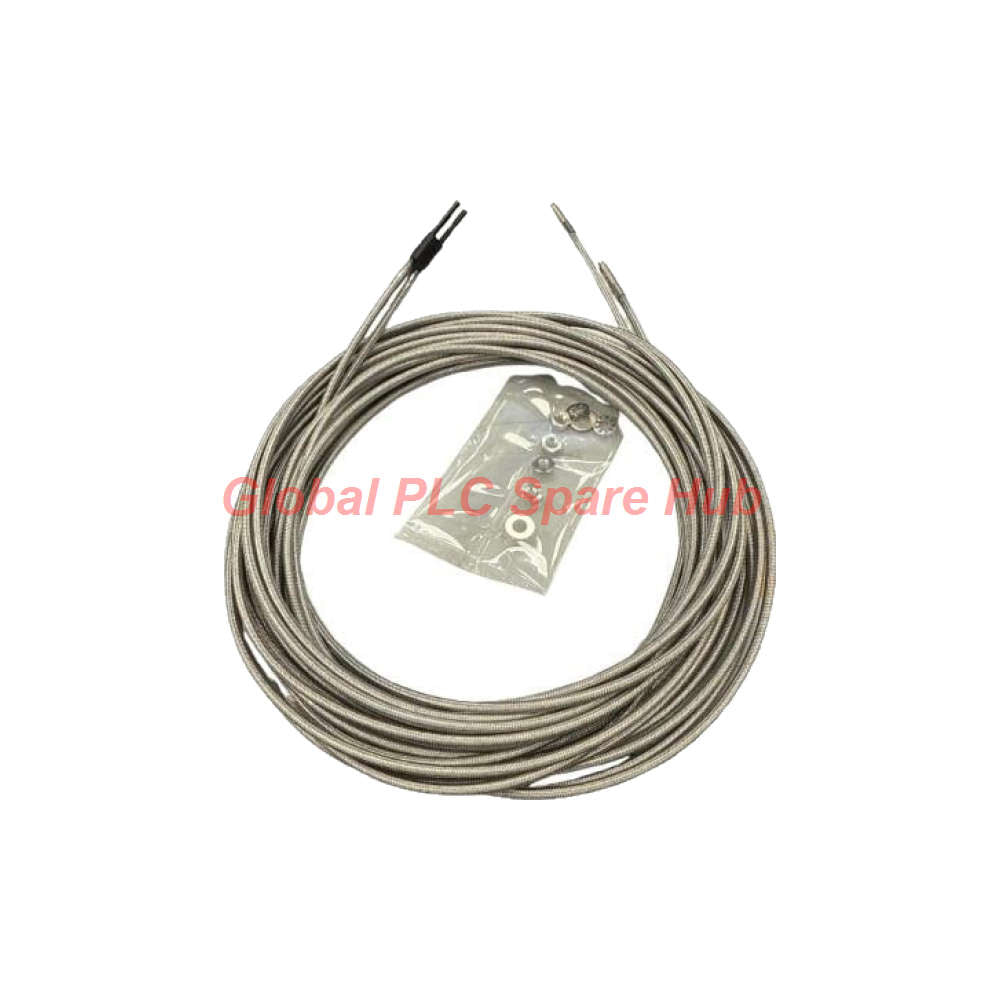

Automation technicians often struggle with optical misalignment or fiber breakage when routing sensing lines through tight machine frames. Drawing from our hands-on integration experience within high-speed assembly lines, the Keyence FU-77G thrubeam fiber unit offers exceptional durability with its stainless steel protective armor and compact M4 threaded housing. Its precision 1.13 mm optical axis diameter enables reliable detection of micro-components where standard photoelectric sensors fail due to spatial constraints.

Engineering Architecture & Build

• Thrubeam optical configuration ensuring high excess gain across narrow detection zones.
• Compact M4 threaded metal head designed for secure panel or bracket fastening.
• Rigid 1-meter fixed-length optical fiber with a strict non-cut architecture.
• Flexible stainless steel protective sheathing supporting tight routing down to an R10 mm minimum bend radius.

Technical Performance Matrix

Installation and Mechanical Alignment

• Mount the M4 threaded sensor heads securely into pre-tapped brackets, ensuring optical faces directly oppose each other.
• Route the 1-meter fiber line carefully, respecting the R10 mm bend radius limit to prevent internal core fracture.
• Avoid applying excessive axial tension to the non-cut fiber cable during zip-tie fastening along moving cable tracks.
• Pair with a compatible Keyence digital fiber amplifier and perform a full auto-calibration routine post-installation.

Operational Diagnostics & Troubleshooting

• Monitor the digital light intensity display on the host amplifier to detect progressive lens contamination or dust buildup.
• If light levels drop unexpectedly, inspect the M4 optical tips for oil residue or particulate obstruction in harsh environments.
• Check for sharp kinks along the stainless steel armor if erratic switching signals occur during machine vibration cycles.

Compatibility & Industrial Application Scenarios

• High-speed semiconductor chip packaging and miniature electronic component sorting trays.
• Precision pharmaceutical blister pack inspection and tiny capsule presence verification.
• Automated CNC machining centers requiring small-footprint part detection in restricted spaces.

Logistics and Quality Assurance

• Dispatched globally via rapid courier partners including FedEx, UPS, and DHL within 24 to 48 hours.
• Safely packaged in anti-static, shock-absorbing materials to prevent transit damage.
• Backed by a comprehensive 12-month operational warranty covering manufacturing defects.

Frequently Asked Questions

Question: Why is the fiber length specified as cut-not-allowed for the FU-77G?

Answer: This specific model utilizes a specialized core and protective armor structure that cannot be shortened with standard fiber cutters without permanently destroying internal light transmission.

Question: Can this unit withstand sub-zero operating environments inside freezing chambers?

Answer: Yes, it is rated for extreme environments down to -40°C, though care must be taken not to flex the armored cable below freezing temperatures.

Question: How do I secure proper alignment between emitter and receiver heads in a thrubeam setup?

Answer: Use the digital percentage display on your paired Keyence amplifier, adjusting the M4 nuts until you achieve the maximum peak light intensity value.

Question: What causes sudden signal loss even when the optical path appears clear?

Answer: Micro-fractures often occur if the cable has been bent tighter than the R10 mm threshold or pinched by heavy machine covers.

Question: Is the M4 metal housing isolated from electrical noise interference?

Answer: Fiber optic units inherently transmit only light, meaning the mechanical head is immune to electromagnetic noise, though the connected amplifier should still be properly grounded.

Expert Buying Guide

• Verify your sensing distance requirements do not exceed the specific excess gain limits of the 1-meter thrubeam configuration.
• Ensure your machine layout accommodates the fixed 1-meter length since splicing or cutting is strictly prohibited.
• Confirm your amplifier model accepts standard Keyence threaded fiber-optic plug-in connections before deployment.
