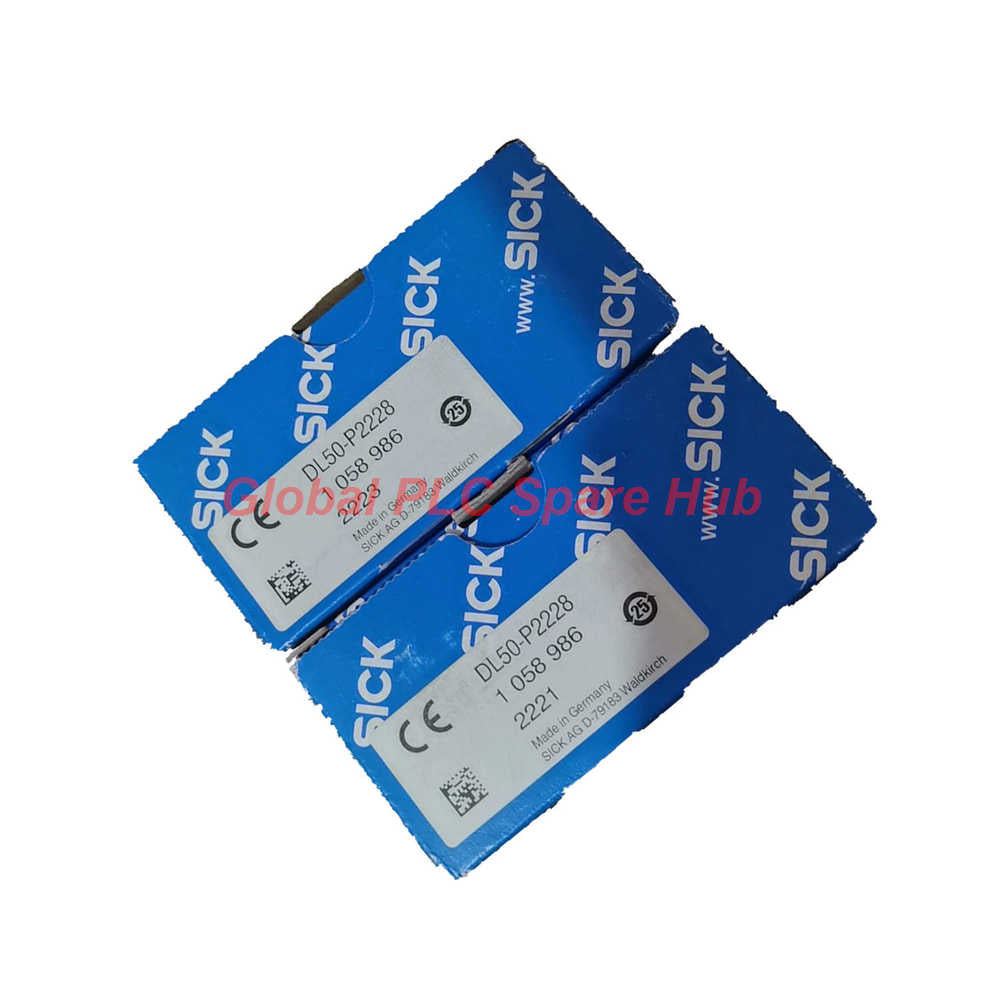

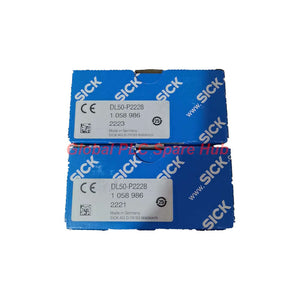

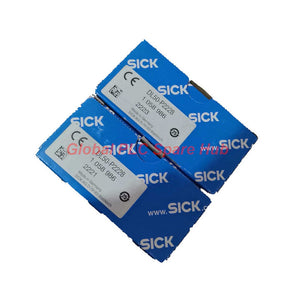

DL50-P2228 SICK Dx50 Distance Sensor DL50-P2228 Laser Meter
Manufacturer: SICK
Product No.: DL50-P2228
Condition： In stock
Product Type: Distance Sensor
Product Origin: DE
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Global PLC Spare HUB's Insight
Long-range industrial distance measurement requires exceptional optical stability and thermal resilience under extreme environmental conditions. Automation engineers frequently deploy the DL50-P2228 optical distance sensor from the Dx50 series in cold-storage logistics and automated high-bay warehouses. Field commissioning data demonstrates that the factory-integrated internal heater reliably prevents window condensation down to -40 degrees Celsius, ensuring continuous tracking accuracy. For example, automated stacker cranes rely on this HDDM time-of-flight sensor to maintain precise positioning metrics across 50-meter spans without calibration drift.
Core Engineering Specifications
| System Parameter | Technical Data |
|---|---|
| Brand & Model | Manufacturer: SICK | Series: Dx50 | Part Number: 1058986 | Model: DL50-P2228 |
| Measurement Range | 200 mm to 50,000 mm (On Diamond Grade reflective tape) via HDDM optical time-of-flight |
| Accuracy & Repeatability | Measurement accuracy: ±3 mm | Repeatability: ≥1 mm | Response time: 15 ms to 80 ms |
| Optical & Electrical | Laser: Class 1 visible red (658 nm) | Supply voltage: DC 24V (18-30V) | Interface: PNP + RS-422 |
| Environmental & Physical | Operating temp: -40 °C to +65 °C (Built-in heater) | Protection: IP65 | Weight: ~200 g |
Operational Diagnostics & Setup Highlights
- Integrated LC display and pushbuttons allow direct on-device parameter configuration without external tools.
- Multifunctional input (MF) and RS-422 serial communication provide real-time distance telemetry to upper-level controllers.
- Robust zinc die-cast housing dampens heavy mechanical shock and industrial vibration effectively.
Target Industrial Equipment & Applications
- Automated storage and retrieval systems (AS/RS) requiring long-range vertical positioning.
- Cold-storage warehouse stacker cranes operating in sub-zero freezer environments.
- Heavy material handling gantry bridges tracking horizontal travel distance.
Logistics, Warranty & Global Fulfillment
- Express international logistics handled securely via FedEx, UPS, and DHL couriers.
- Fast 24-48 hour dispatch window designed to eliminate unexpected facility downtime.
- Complete 12-month replacement warranty protecting against manufacturing defects.
Engineering Buying Guide
When selecting long-range distance measurement tools, verify that your target layout includes Diamond Grade reflective tape to achieve the maximum 50-meter range. Ensure your control cabinet power supply delivers stable 24V DC with sufficient amperage to support the internal heating element in freezing installations.
Frequently Asked Questions (FAQ)
Q: What is the primary operational advantage of the HDDM optical time-of-flight technology?
A: It provides superior ambient light immunity and high repeatability over long measuring distances compared to standard phase-shift sensors.
Q: How does the built-in heating element function in cold environments?
A: It automatically activates when supply voltage exceeds 15V DC, keeping internal optical surfaces clear in temperatures down to -40 degrees Celsius.
Q: Can the sensor communicate directly with PLC serial ports?
A: Yes, it features an integrated RS-422 serial interface alongside standard digital PNP outputs for flexible connectivity.
Q: What material comprises the rugged exterior enclosure?
A: The housing is constructed from heavy-duty zinc die-cast (ZNAL4CU1) paired with an acrylic glass optical window.
Q: Which courier partners manage urgent international replacement orders?
A: All global shipments dispatch promptly through trusted carriers including FedEx, UPS, and DHL.
