CC-TDIL11 Honeywell Series-C Digital Input 24V Redundant IOTA | Quote

Engineering Overview & Architecture

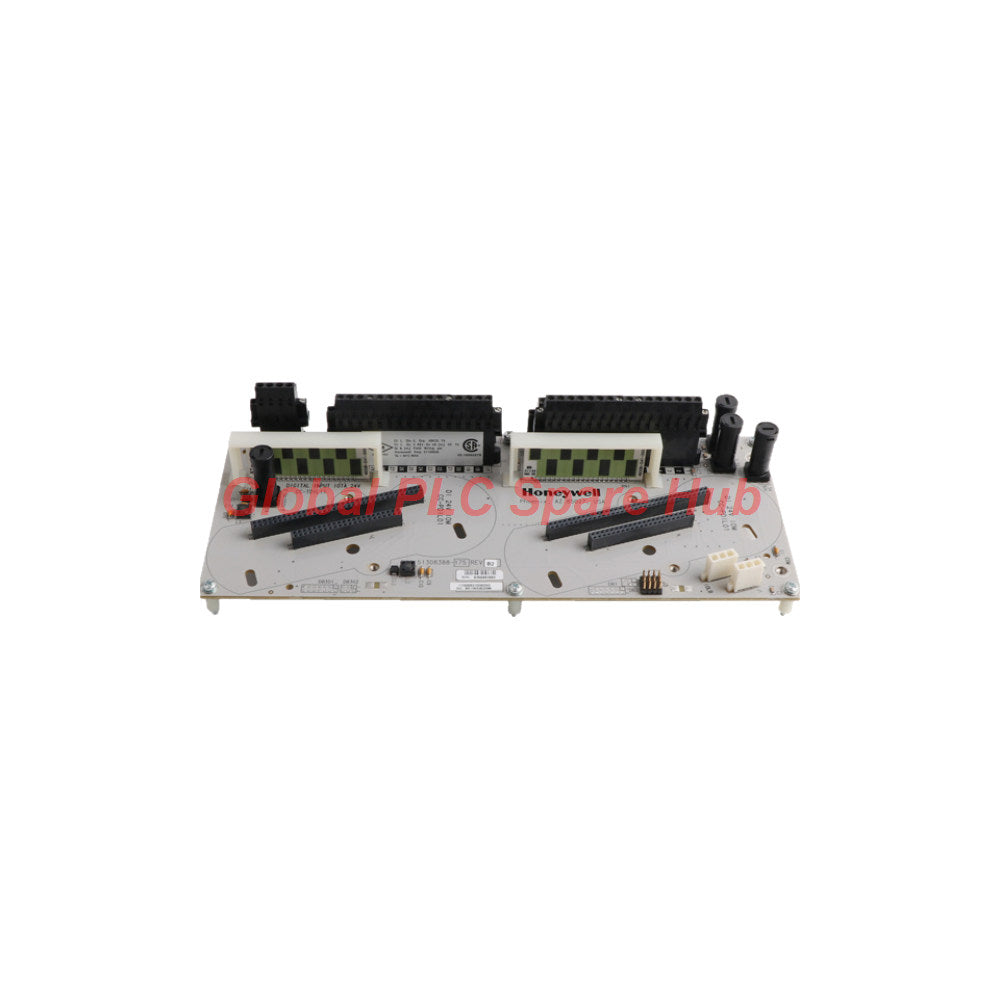

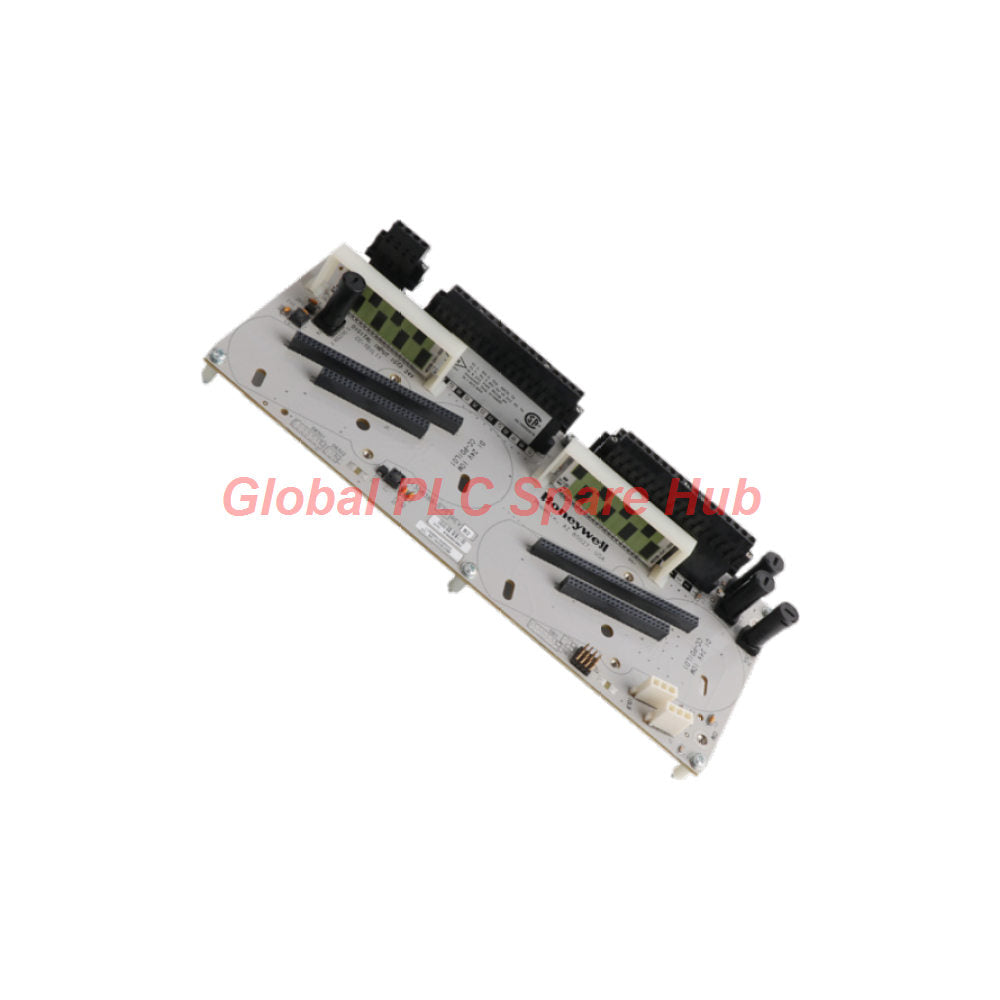

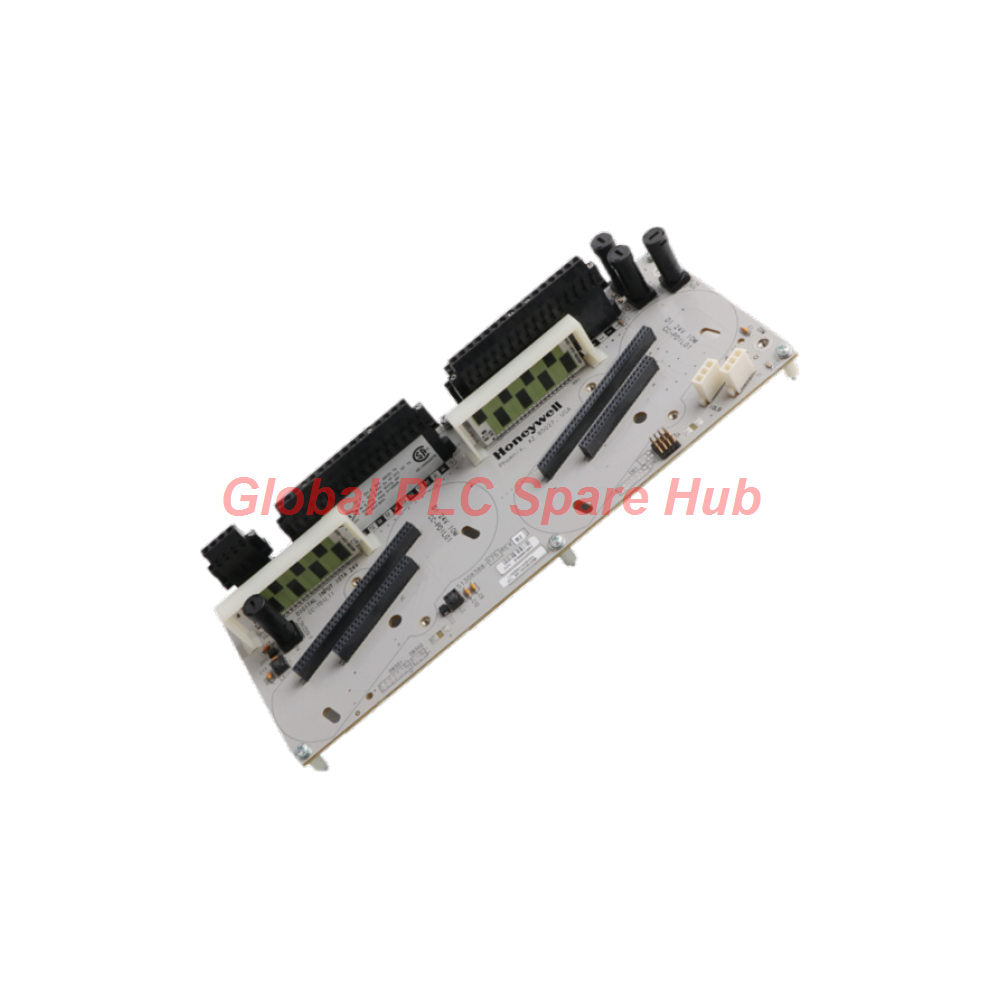

The CC-TDIL11 functions as a specialized 24V redundant digital input terminal assembly within industrial control frameworks.

Built on a 12-inch physical footprint, this terminal block integrates seamlessly with standard Series-C hardware configurations.

It manages critical discrete signals while maintaining galvanic isolation up to 1500V to protect downstream logic components from field transients.

Electrical & Thermal Performance Metrics

Core Operational Features

• Redundant Architecture: Supports dual input module slot placement to guarantee zero-downtime switching during controller maintenance.
• Transient Voltage Defense: Provides robust 1500V isolation shielding against high-voltage ground loops and electrical noise.
• Thermal Efficiency: Optimizes cabinet cooling limits by maintaining a low 4.220-watt dissipation profile.
• PWA Traceability: Built to strict hardware revision standards (PWA51308388-175 REV B2) for verified lifecycle reliability.

Global PLC Spare HUB's Insight

Plant electrical leads often overlook the thermal impact of high-density 24V digital I/O clusters inside sealed cabinets.

Example: When upgrading legacy safety shutdown systems, utilizing the 12-inch CC-TDIL11 redundant IOTA ensures proper heat distribution while accommodating dual CC-TDIL11 compatible input modules.

This setup prevents localized hot spots and eliminates single points of failure in emergency trip loops.

Recommended Equipment & Application Contexts

• Emergency Shutdown Systems (ESD): Secures critical safety instrumented trip circuits requiring fault-tolerant redundancy.
• Turbine Control Skids: Processes rapid binary feedback from high-vibration auxiliary monitoring switches.
• Continuous Process Plants: Manages valve position indicators and limit switch arrays across extensive refinery units.
• Power Distribution Nodes: Handles high-reliability breaker status signals within substation automation architectures.

Logistics & Commercial Terms

• Packaging Details: One factory-inspected CC-TDIL11 unit secured in industrial anti-static protection.
• Shipping Partners: Reliable, expedited global courier delivery via FedEx, UPS, and DHL.
• Dispatch Timeline: Priority order processing completed within 24 to 48 hours.
• Quality Assurance: Protected comprehensively by our standard 12-month replacement warranty.

Expert FAQ & Purchasing Guidance

Q: What specific hardware revision is associated with this terminal block?
A: This unit is built to the PWA51308388-175 REV B2 manufacturing standard to ensure full hardware consistency.

Q: Why is a 12-inch physical footprint required for the CC-TDIL11?
A: The 12-inch sizing provides the necessary circuit board real estate to safely accommodate dual redundant input modules and isolated bus paths.

Q: How does the 1500V isolation rating protect my control processor?
A: It blocks high-voltage surges and ground differential currents originating from field sensors from reaching sensitive internal logic circuits.

Q: What factors should I consider when planning a redundant digital I/O upgrade?
A: Always verify your cabinet mounting rail depth, total power supply current capacity (accounting for the 0.190A draw), and thermal dissipation limits.

Q: Can I use this IOTA block for single non-redundant channel applications?
A: While possible, this 12-inch model is purpose-built for redundant layouts; non-redundant setups typically utilize shorter, space-saving terminal options.
