CB2W100-112 Bently Nevada Interconnect Cable | 112ft Shielded

Engineering Specifications: CB2W100-112 Connectivity

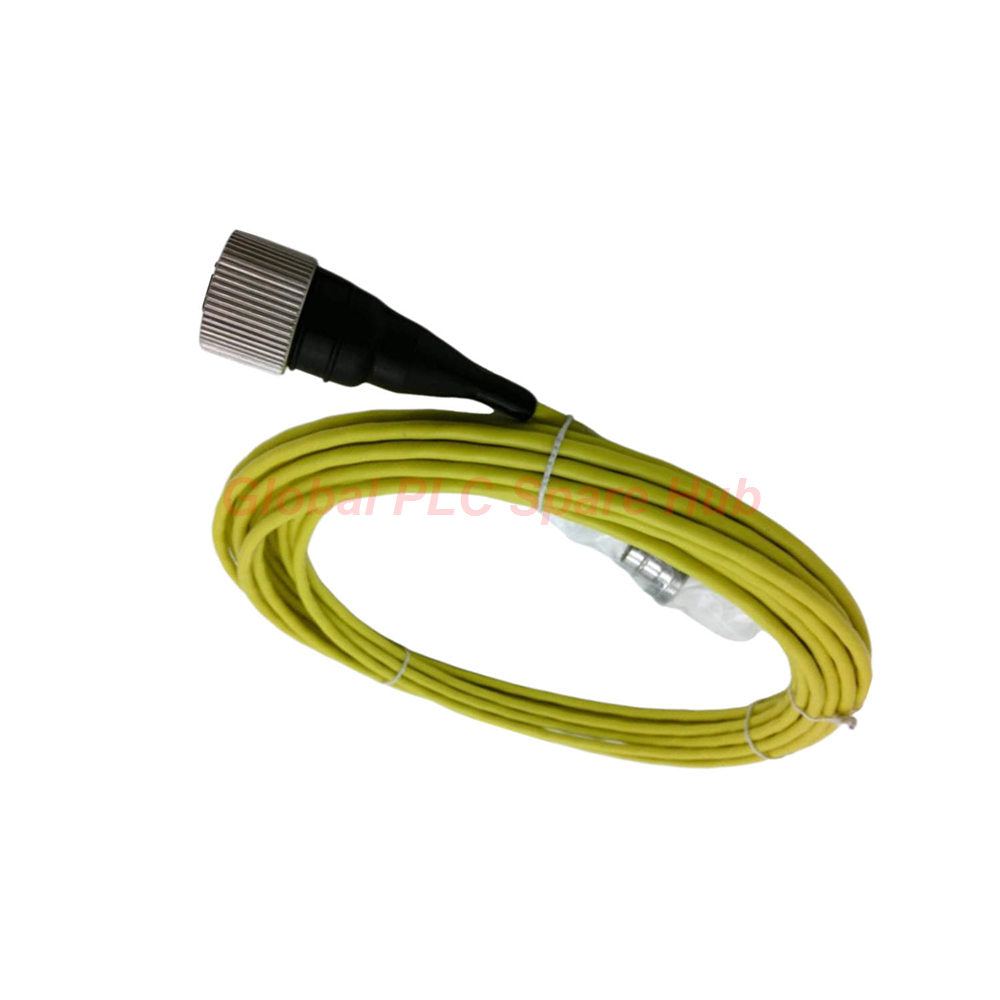

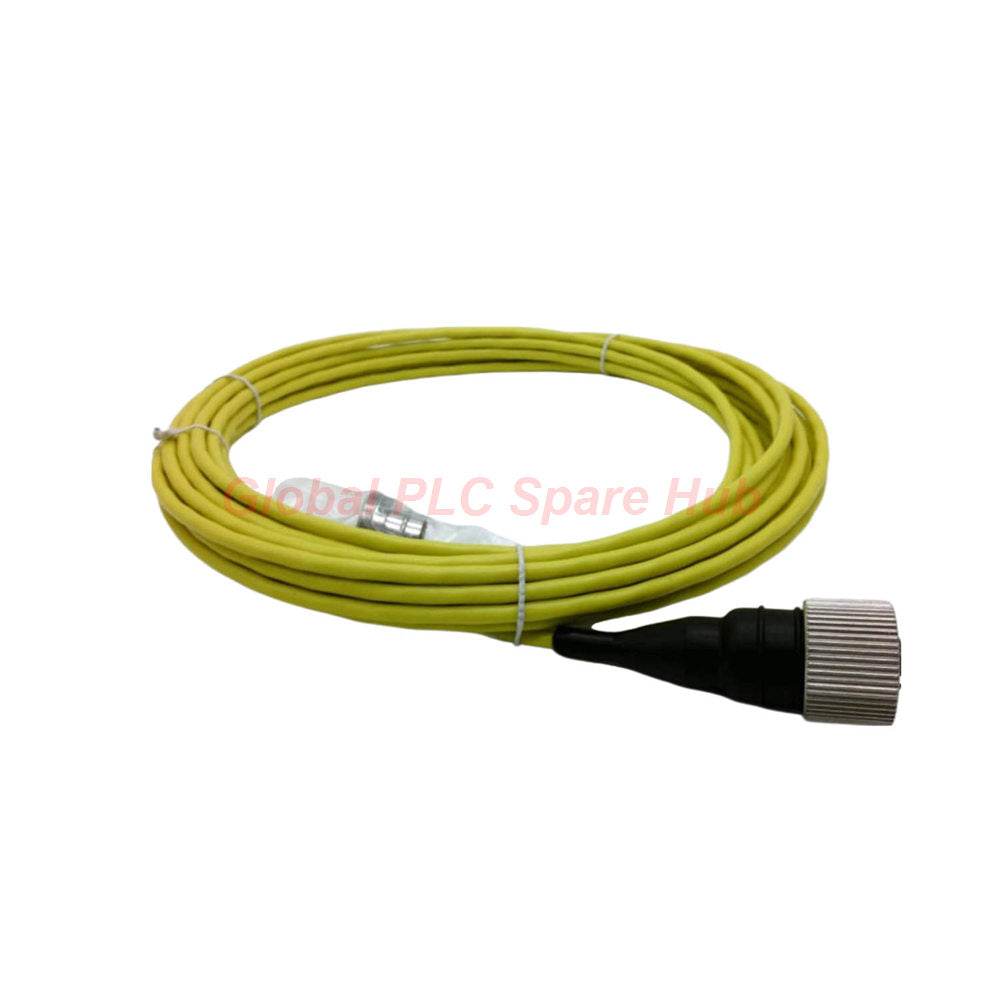

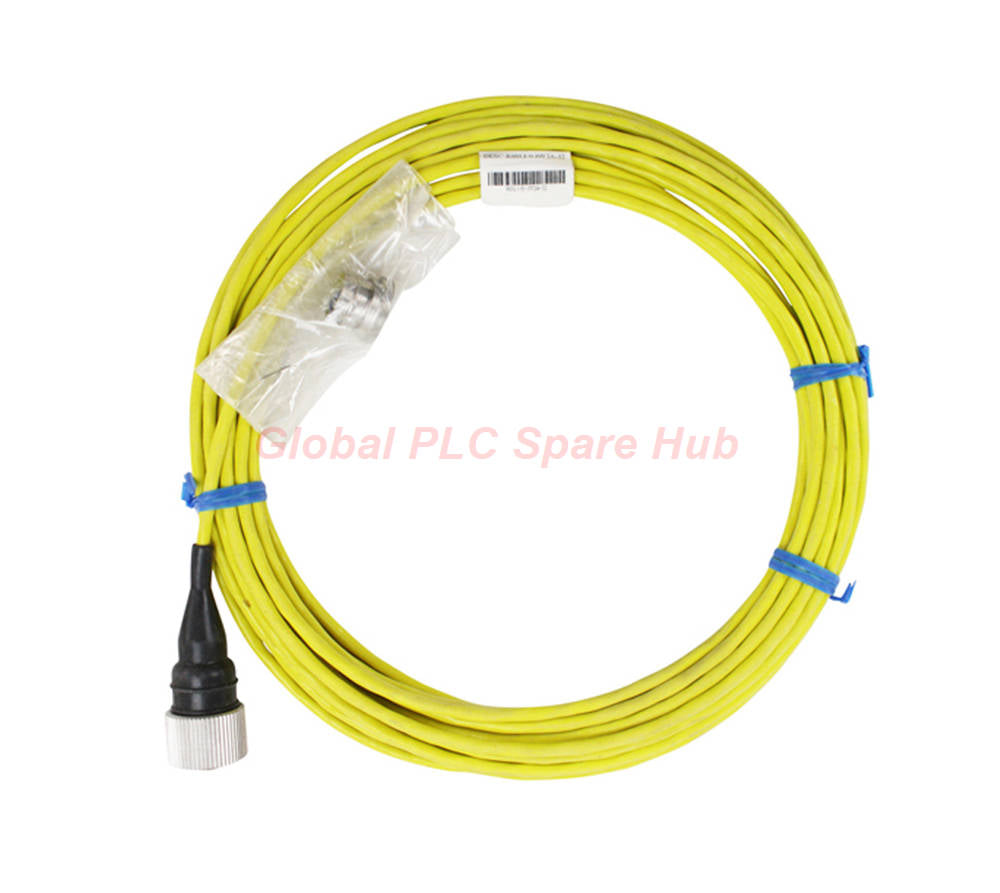

The Bently Nevada CB2W100-112 is a high-performance, splash-proof interconnect cable designed for extreme industrial environments. Featuring a yellow Teflon® jacket and double-shielded construction, it ensures low-noise signal path integrity for vibration monitoring systems. This assembly includes the locking ring, adapter seal, and O-ring, ensuring a complete, environmentally secure connection for your sensor deployment.

Configuration Breakdown

• Series: CB2W100 Premium Interconnect Series
• Connector Type: MIL-C 5015, 2-Socket, Splash Proof
• Cable Specification: 20 AWG, twisted pair, shielded
• Jacket Material: Yellow Teflon®
• Total Length: 112 ft (34.1 m)
• Included Accessories: Locking Ring, Adapter Seal, O-Ring

Global PLC Spare HUB's Insight

When deploying the CB2W100-112, cable management is just as critical as the cable itself. For runs exceeding 30 meters, we monitor frequency attenuation carefully. If your system utilizes the AM3100T2-Z2 accelerometer, be aware that high-frequency amplitude rolloff is a physical reality at this length; we recommend a local junction box to minimize the total cable distance if your application requires high-frequency signal fidelity.

Recommended Equipment & Applications

• System Compatibility: Ideal for industrial accelerometers and velocity sensors.
• Operational Environments: Harsh chemical plants, outdoor turbine installations, and high-vibration power generation facilities.
• Note: Not compatible with 200350 accelerometer due to seal geometry mismatch.

Performance & Selection Advice

Comparing your length requirements for precision instrumentation:

• CB2W100-112: Optimized for 112ft medium-distance runs.
• CB2W100-250: Engineered for extended 250ft cable runs.

Technical Suggestion: Always evaluate the signal attenuation risk. If your application relies on high-frequency transient capture, shorter cables like the CB2W100-112 are significantly superior to longer 250ft variants.

Service Commitment

• Warranty: 12-month professional quality assurance.
• Shipping: Expedited global transit via FedEx, UPS, or DHL.
• Dispatch: Rapid 24–48 hour fulfillment to keep your assets operational.

Expert FAQ & Selection Guide

Why is this cable not suitable for the 200350 accelerometer?
The seal geometry of the CB2W100 O-ring does not match the 200350 housing, preventing a splash-proof seal.

How do I mitigate signal attenuation over 112 feet?
Ensure the cable is routed away from high-voltage AC power lines to prevent EMI; use proper grounding of the shield at the monitor end.

Can the Teflon® jacket withstand chemical exposure?
Yes, the yellow Teflon® jacket is highly resistant to most industrial solvents, oils, and harsh weather conditions.

Selection Tip: Do I need the O-ring and Seal?
Yes, always utilize the provided hardware to maintain the splash-proof rating, especially in outdoor or washdown applications.

What is the diagnostic sign of a damaged cable shield?
Increased 50/60Hz noise floor on the vibration waveform usually indicates a degraded shield or improper termination.
