CA21000-28-10-20-035-01-02 Buy Bently Nevada Explosion-Proof Housing Unit

Engineering Overview & Hazardous Area Architecture

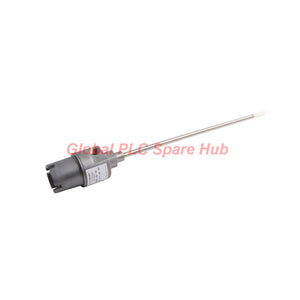

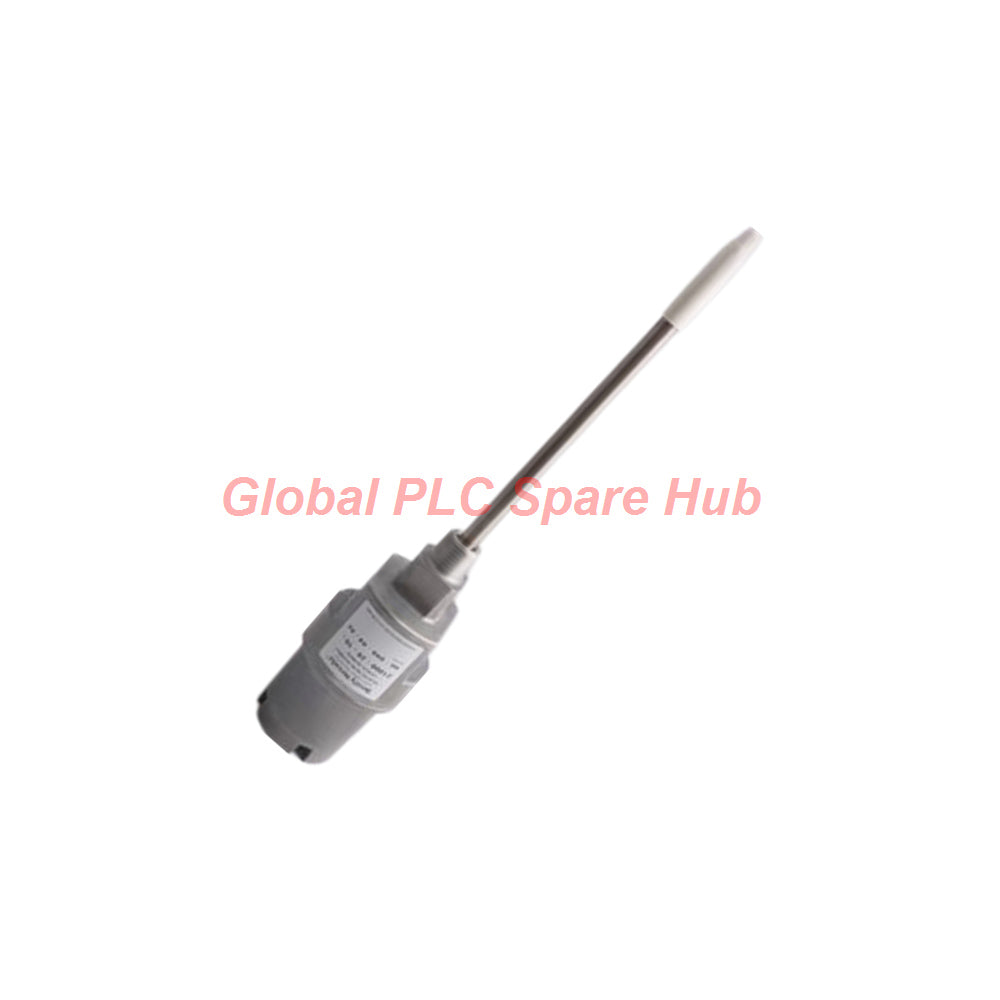

The Bently Nevada CA21000-28-10-20-035-01-02 21000 Series proximity probe housing assembly provides robust mechanical protection and explosion-proof containment for vibration sensors. Fully compliant with API 670 standards, this CSA-certified aluminum body housing with a 304 stainless steel sleeve safely encloses reverse-mount proximity probes in volatile industrial environments.

Configuration Tree & Suffix Breakdown

Advanced Mechanical & Environmental Specifications

• Brand & Part Number: Bently Nevada CA21000-28-10-20-035-01-02
• Body Construction Material: Rugged aluminum body paired with a 304 stainless steel sleeve
• Assembly Weight: Approximately 1.1 kg (2.4 lb) excluding conduit fittings
• Enclosure Protection Rating: CSA Type 4 explosion-proof rating for hazardous divisions
• Operating Temperature Range: T5 rating at -50°C to +40°C; T4 rating up to +80°C
• Regulatory Compliance: RoHS 2011/65/EU and API 670 industry standards

Global PLC Spare HUB Insight & Field Experience

Instrumentation engineers often face severe moisture condensation and explosive gas accumulation risks when mounting vibration probes on high-temperature gas turbines. The CA21000-28-10-20-035-01-02 resolves these safety challenges by housing the delicate probe connector inside a sealed, CSA Type 4 explosion-proof dome enclosure. During a recent offshore compressor skid retrofit, our field engineering team deployed this assembly with a 2.0-inch standoff adapter, which successfully isolated the electronics from radiant casing heat while maintaining rigid API 670 mechanical alignment.

Target Equipment & Application Diagnostics

• Primary Equipment: Heavy industrial gas turbines, API 617 centrifugal compressors, high-speed multi-stage pumps, and large electric generators located in hazardous zones.
• Diagnostic Capabilities: Continuous external casing vibration measurement, axial rotor thrust tracking, and thermal expansion monitoring without compromising flameproof barriers.
• System Integration: Native compatibility with 3300 XL 8mm proximity probes and standard monitoring instrument racks.

Global Logistics & 12-Month Warranty Terms

• Fulfillment Speed: Rapid global dispatch within 24 to 48 hours from order confirmation.
• Logistics Partners: Secure international air transport handled via FedEx, UPS, and DHL.
• Packaging Standards: Industrial-grade shock-absorbent boxing prevents transit damage.
• Warranty Assurance: Fully protected by a comprehensive 12-month manufacturer replacement warranty.

Technical FAQs & Expert Buying Guide

Q: What is the specific geographic restriction for ordering 'CA' prefixed housing assemblies?

A: The CA prefix housings are certified by CSA exclusively for North American end-users; international projects must order standard 21000 series housings.

Q: Why is a standoff adapter required when configuring housing penetration depths?

A: It provides physical clearance between the machine casing and the housing base, protecting internal probe cables from extreme surface heat radiation.

Q: What hazardous area classifications does this CSA Type 4 assembly support?

A: It is rated for Class I Divisions 1 and 2 Groups C & D, Class II Divisions 1 and 2 Groups E, F, & G, and Class III environments.

Q: How does the 3/4-14 NPT fitting option secure field wiring?

A: It provides threaded conduit entry ports that maintain explosion-proof integrity while allowing rigid or flexible metallic conduit installation.

Q: What key parameters must technicians verify before installing a reverse-mount probe inside the housing?

A: Always confirm that the combined probe cable and penetration dimensions do not exceed the maximum 13.5-inch internal housing clearance limit.
