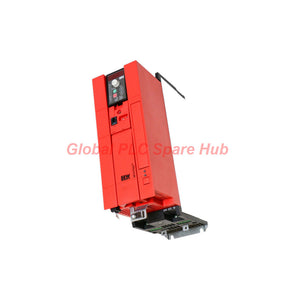

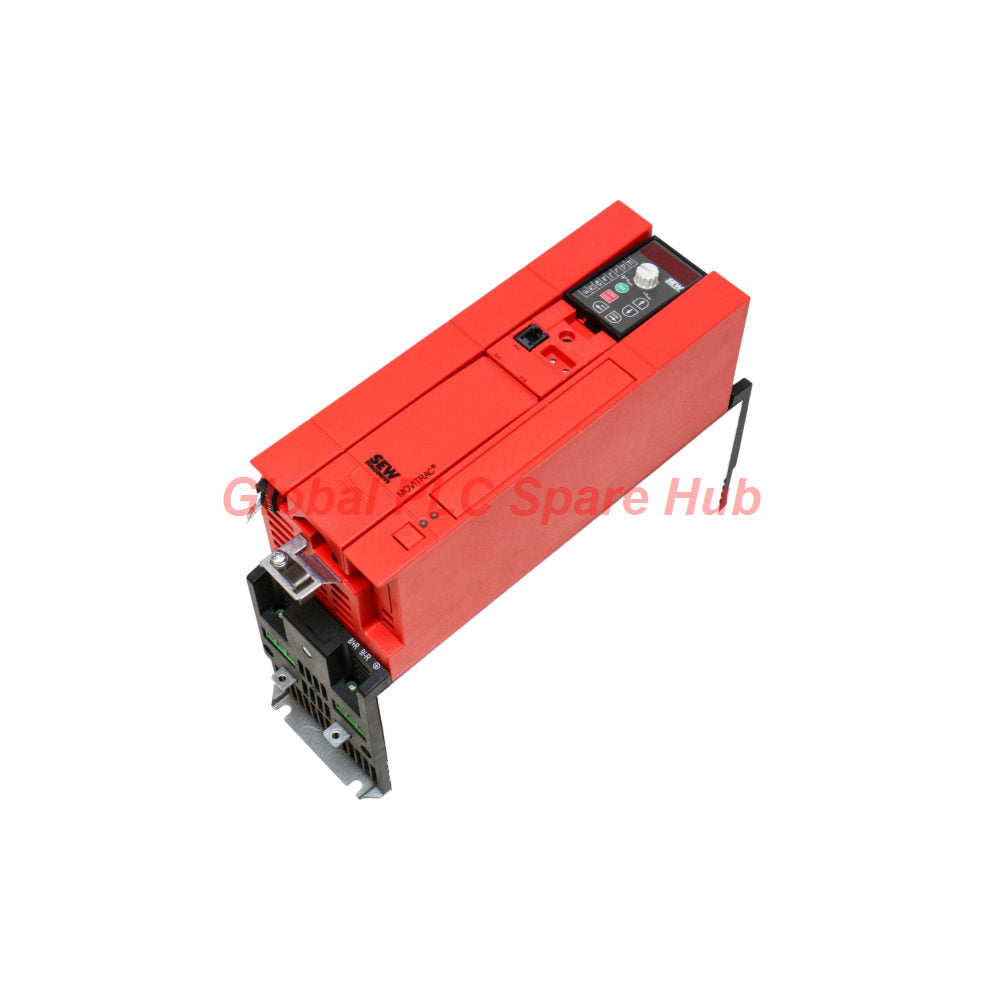

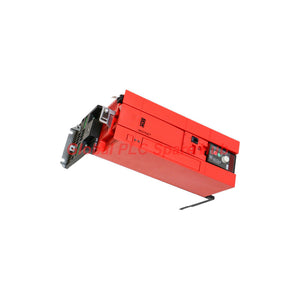

MC07B0055-5A3-4-0T SEW-EURODRIVE AC Frequency Inverter Module

The MC07B0055-5A3-4-0T frequency inverter represents a highly efficient motor control solution engineered within the SEW-EURODRIVE MOVITRAC® B platform. Size 2S hardware configuration delivers precise frequency regulation for industrial machinery requiring robust torque response and stable closed-loop operation. System integrators leverage this compact drive to optimize energy consumption and streamline multi-axis manufacturing automation cells.

Comprehensive Technical Index

Global PLC Spare HUB's Insight

Field commissioning records from high-speed packaging plants emphasize that stable performance of the MC07B0055-5A3-4-0T depends heavily on matching carrier frequency settings to cable lengths. When running extended motor leads exceeding 50 meters, automation technicians should install output dv/dt filters or magnetic reactors to eliminate voltage reflection spikes. Ensuring adequate vertical clearance around the IP20 chassis prevents localized thermal pocketing during continuous multi-shift operations.

Target Equipment and Application Scenarios

• Automated Conveyor Lines: Regulates speed transitions on heavy belt handlers and transfer sorting tables.
• Industrial Packaging Rigs: Powers multi-head filling machines requiring rapid dynamic braking and consistent indexing.
• Material Mixing Tanks: Drives agitator screws and blending drums under constant high-viscosity torque loads.
• HVAC Air Handlers: Controls centrifugal blower fans to maintain precise atmospheric pressure differentials.

Built-In Diagnostic and Error Monitoring Capabilities

• Fault History Logging: Captures and stores historical error codes in non-volatile registers for troubleshooting.
• Thermal Overload Tracking: Evaluates internal heatsink temperature and motor I²t curves in real time.
• Communication Status LEDs: Provides immediate visual verification of RS485 packet traffic and FIO11B link health.

Fulfillment, Logistics, and Warranty Terms

• Rapid Dispatch Window: Guaranteed order preparation and shipping within 24 to 48 hours.
• Global Freight Services: Shipped securely via premier express couriers including FedEx, UPS, and DHL.
• Operational Assurance: Fully backed by a 12-month performance warranty from the invoice date.

Frequently Asked Questions (FAQ)

Q1: What steps should technicians take when an MC07B0055-5A3-4-0T drive triggers an overvoltage fault during rapid deceleration?

A1: Verify that the internal brake chopper is enabled in the parameter set and ensure that an appropriately sized external braking resistor is connected to absorb regenerated kinetic energy.

Q2: What is the exact function of the FIO11B communication unit included with this model?

A2: The FIO11B module enhances networking capabilities by providing expanded fieldbus connectivity and streamlined parameter transfer options.

Q3: How should engineers configure digital inputs when synchronizing this drive with external PLC safety relays?

A3: Wire the safety interlock signals directly to the designated digital input terminals, and configure the software parameters for safe stop response according to machinery directives.

Q4: Why is strict adherence to vertical mounting clearance critical for this Size 2S unit?

A4: Natural convection cooling relies on unimpeded vertical airflow across the heatsink fins; obstructing top or bottom vents can induce premature thermal derating.

Q5: What guidelines should govern selection when replacing an older inverter model with this MOVITRAC unit?

A5: Confirm that the incoming line voltage falls within the 380 V to 500 V window, check panel mounting hole alignments, and back up legacy parameter files prior to hardware replacement.
