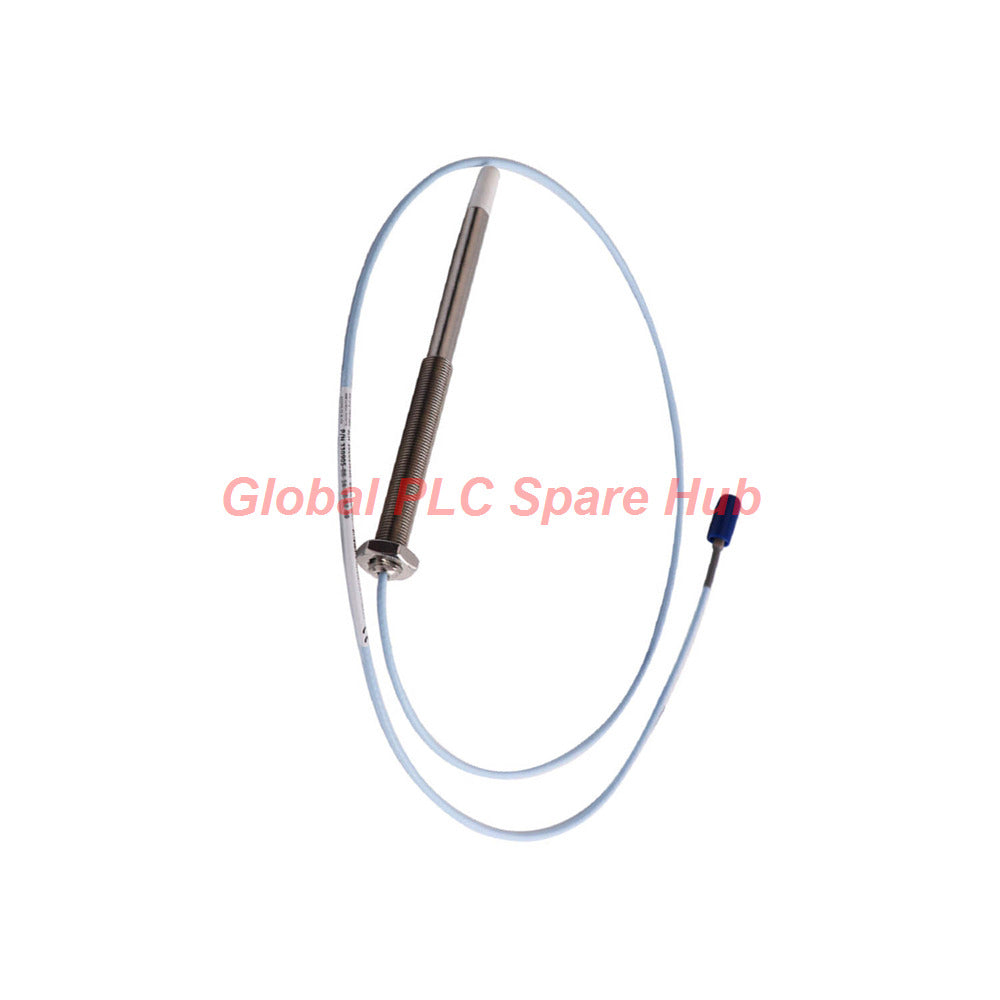

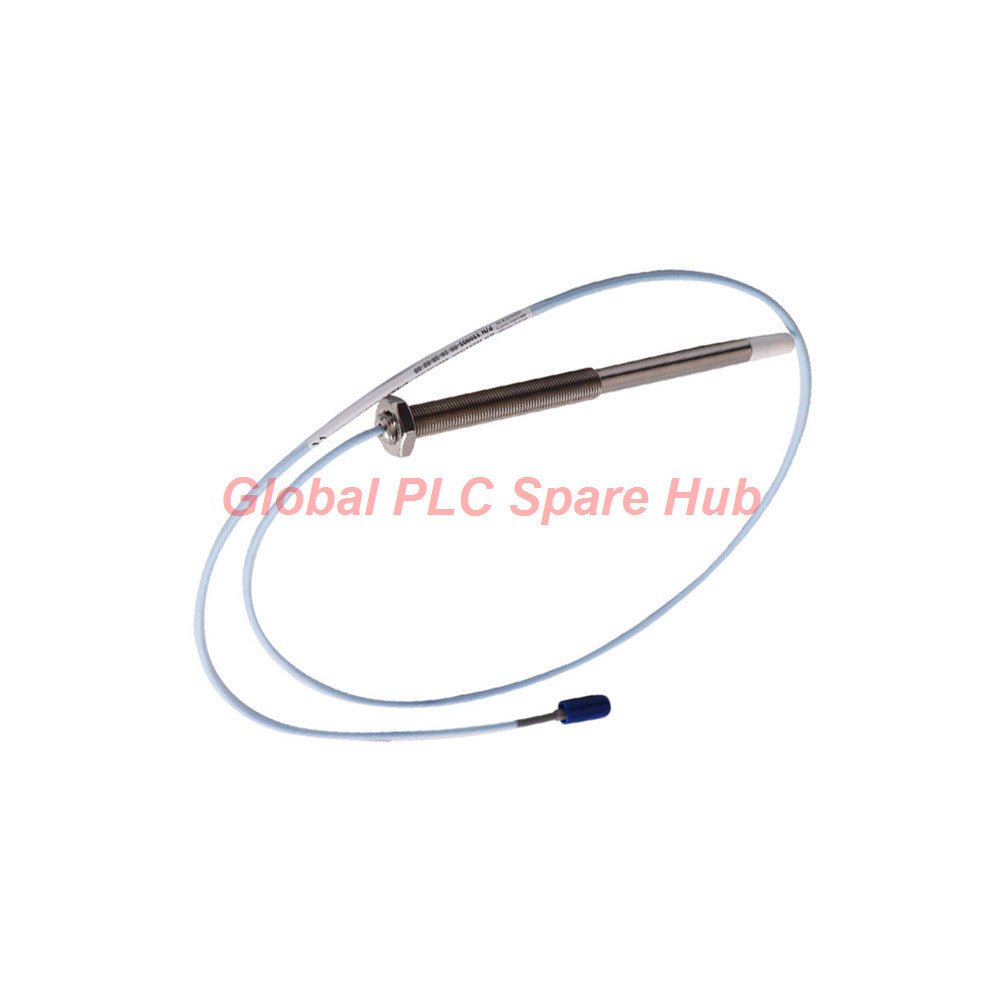

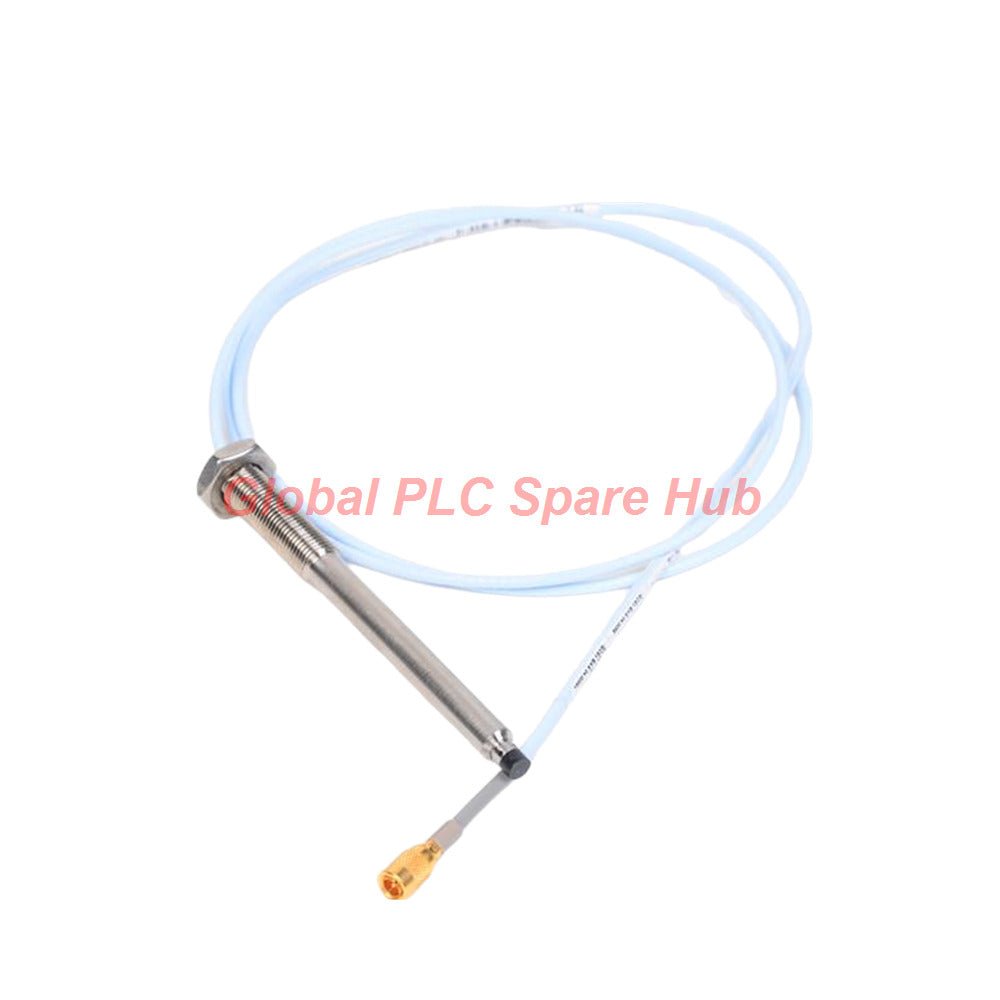

Buy Bently Nevada 330905-00-23-10-02-05 3300 NSv Series Proximity Sensor

Product Introduction

Welcome to Global PLC Spare HUB's Insight. Industrial engineers demand absolute precision when monitoring high-speed turbomachinery vibrations. The Bently Nevada 330905-00-23-10-02-05 belongs to the advanced 3300 NSv series proximity sensor family. This specific model delivers reliable shaft vibration and position measurements in restricted mounting spaces. It utilizes advanced eddy current technology to track dynamic and static shaft displacement accurately. Process compressors and specialized turbines benefit greatly from its superior side-view characteristics. Our engineering team supplies this hardware brand new and original in factory packing. Global PLC Spare HUB guarantees strict quality control standards for every industrial automation spare part we ship globally.

Technical Specifications

The technical specifications for the Bently Nevada 330905-00-23-10-02-05 3300 NSv series are categorized below using MECE principles:

• Brand: Bently Nevada
• Manufacturer Part Number: 330905-00-23-10-02-05
• Product Family: 330905 3300 NSv Proximity Probe System
• Measurement Range & Linear Range: Linear range spans from 0.25 mm to 1.75 mm (10 to 70 mils), providing a total linear range of 1.5 mm (60 mils). Recommended gap setting is 1.0 mm (40 mils).
• Frequency Response: 0 to 10 kHz with +0, -3 dB typical response using up to 305 meters (1000 feet) of field wiring.
• Sensitivity & Scale Factor: Incremental Scale Factor (ISF) is 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Linearity & Resolution: Deviation from best fit straight line (DSL) remains less than ±0.06 mm (±2.3 mils).
• Environmental & Temperature Range: Operating and storage temperatures span from -52°C to +177°C (-62°F to +351°F).
• Anti-Interference & Electrical Characteristics: Probe tip constructed from polyphenylene sulfide (PPS). Probe case utilizes AISI 304 stainless steel. Probe cable features a 75-ohm coaxial fluoroethylene propylene (FEP) design.
• Certification & Compliance: Multiple agency approvals designated under option -05.

Installation Guide

• Mount the 330905-00-23-10-02-05 3300 NSv probe into M10x1 threaded machine holes with a maximum thread engagement length of 15 mm.
• Tighten probe cases securely using finger tight installation initially, applying a maximum torque limit of 0.56 N•m (5 in•lb).
• Ensure the first three threads of the M10x1 probe case adhere to the recommended torque of 7.5 N•m (66 in•lb) and maximum rated torque of 22.6 N•m (200 in•lb).
• Maintain a minimum bend radius of 25.4 mm (1.0 in) for the probe cable during routing to prevent internal conductor damage.
• Run three-conductor shielded triad cable for field wiring, keeping total distance under 305 meters (1,000 feet) to the Proximitor sensor.

Debugging and Maintenance Convenience

• Technicians verify probe dc resistance easily, measuring 4.2 ± 0.5 ohms from center conductor to outer conductor on the 1.0-meter probe.
• Built-in Viton O-ring seals differential pressure effectively between the probe tip and case without requiring complex external sealing hardware.
• Regular calibration checks utilize standard target sizes of at least 13 mm (0.5 in) diameter flat targets to preserve scale factor accuracy.
• Quick diagnostic inspections detect connection faults by checking extension cable capacitance values of approximately 69.9 pF/m.

Compatibility Description

• The 330905-00-23-10-02-05 3300 NSv probe and extension cable maintain complete mechanical and electrical compatibility with previous 3300 RAM proximity systems.
• Enhanced chemical resistance allows direct replacement in harsh process compressor environments where older RAM probes degrade faster.
• Superior side-view characteristics outperform older 3000-series 190 probes when gapping at identical target distances.

Certification Information

• Features multiple agency approvals (-05 option) suitable for hazardous industrial operating locations.
• Conforms to rigorous international industrial standards for vibration monitoring sensor deployment.

Package List and Warranty

• Package Contents: One Bently Nevada 330905-00-23-10-02-05 3300 NSv Proximity Probe in original factory packing.
• Factory Warranty: Comprehensive 12-month warranty included.
• Shipping Logistics: Fast 24-48 hour dispatch via trusted global carriers including Fedex, UPS, and DHL.

Typical Application Scenarios and Diagnostic Capabilities

• Industrial Process Compressors: Monitors radial vibration and axial thrust position on high-speed centrifugal compressors.
• Steam and Gas Turbines: Detects rotor unbalance, misalignment, and shaft preloads during startup and continuous operation.
• Advanced Diagnostics: Identifies early-stage bearing wear and shaft rub conditions by tracking sub-synchronous vibration frequencies.

Model Comparison and Selection Guide

Global PLC Spare HUB Review: When selecting proximity probe assemblies for complex turbomachinery, engineers must evaluate probe length, threading, and connector options carefully. Below is a technical comparison with a related part number:

• Bently Nevada 330905-00-23-10-02-05 3300 NSv Proximity Probe features a 1.0-meter cable length, miniature coaxial ClickLoc connector, and multiple agency approvals, making it ideal for standard compressor retrofits where space allows a 1.0-meter lead.
• 330905-05-08-05-12-05 features alternative length and armor configurations tailored for specialized heavy industrial enclosures requiring extended cable routing.

Engineering Selection Advice: Choose the 330905-00-23-10-02-05 when your junction box sits close to the probe mount point, minimizing excess cable loops. Select alternative configurations like 330905-05-08-05-12-05 if physical distance to the Proximitor sensor exceeds standard 1.0-meter reach or demands armored mechanical protection against harsh chemical washdowns.

Frequently Asked Questions

Question: What is the primary advantage of the 330905-00-23-10-02-05 3300 NSv probe over older RAM models?

Answer: The NSv probe offers significantly higher chemical resistance, making it much more durable inside aggressive process compressor environments without sacrificing electrical interchangeability.

Question: How does Global PLC Spare HUB handle shipping for this item?

Answer: We dispatch all orders within 24 to 48 hours using reliable international couriers including Fedex, UPS, and DHL.

Question: Can this probe measure targets smaller than 13 mm in diameter?

Answer: While it can detect targets down to 8.9 mm, smaller targets alter the scale factor, so engineers should consult calibration curves or maintain the recommended 13 mm target size.

Question: What should I check if my vibration readings drift unexpectedly?

Answer: Verify that the probe gap is set precisely to the recommended 1.0 mm (40 mils) and inspect the coaxial cable for sharp bends violating the 25.4 mm minimum bend radius.
