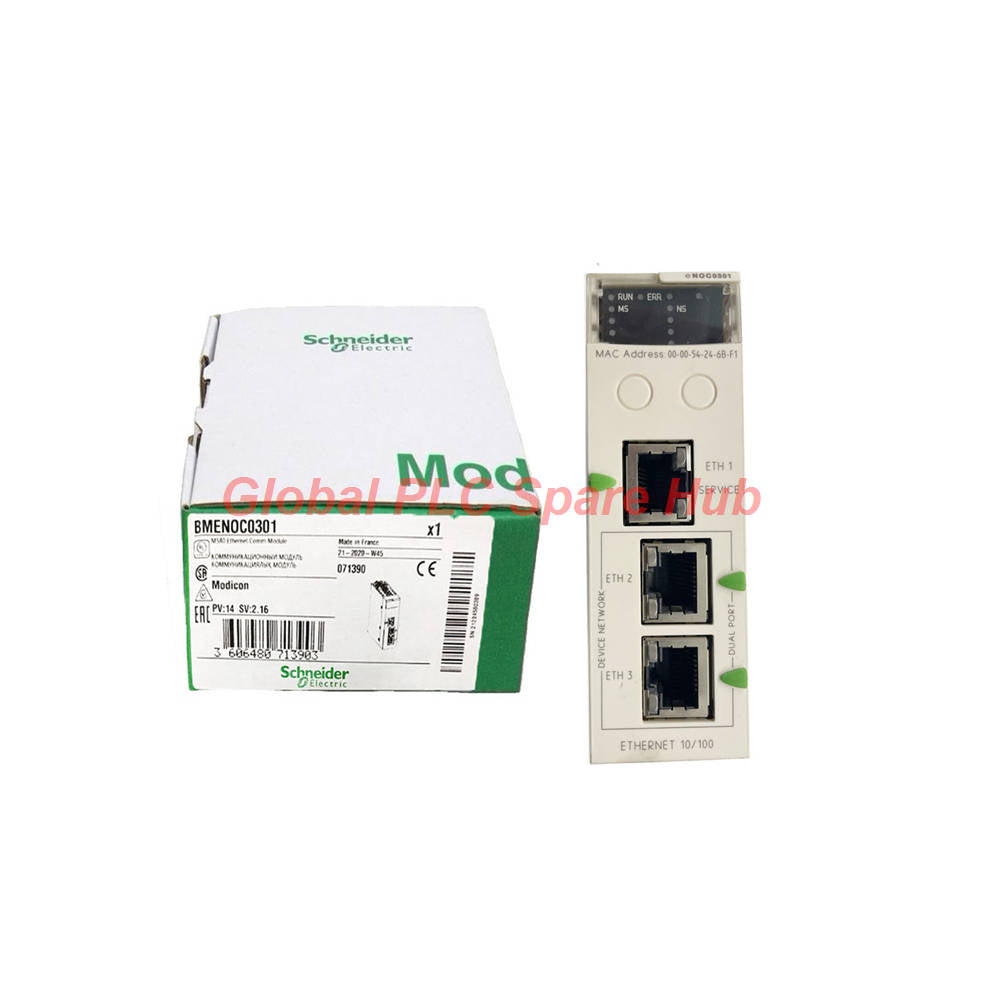

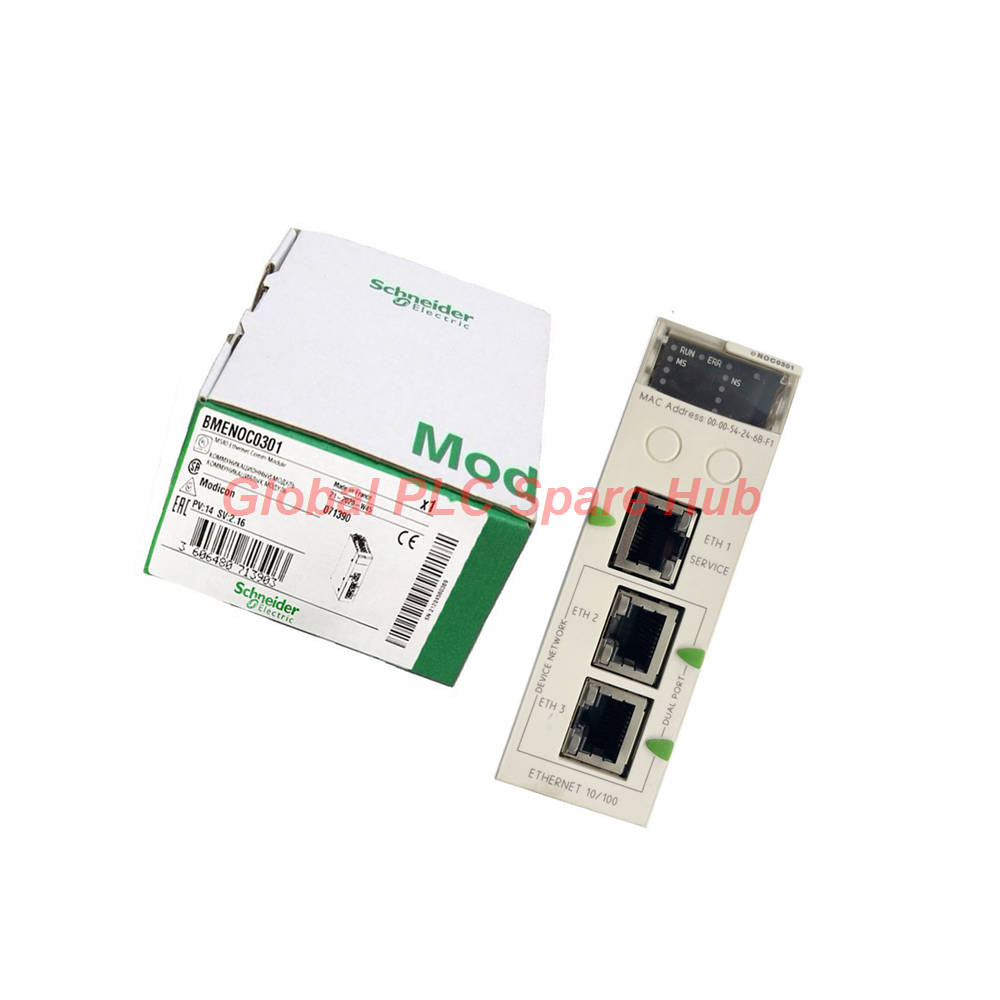

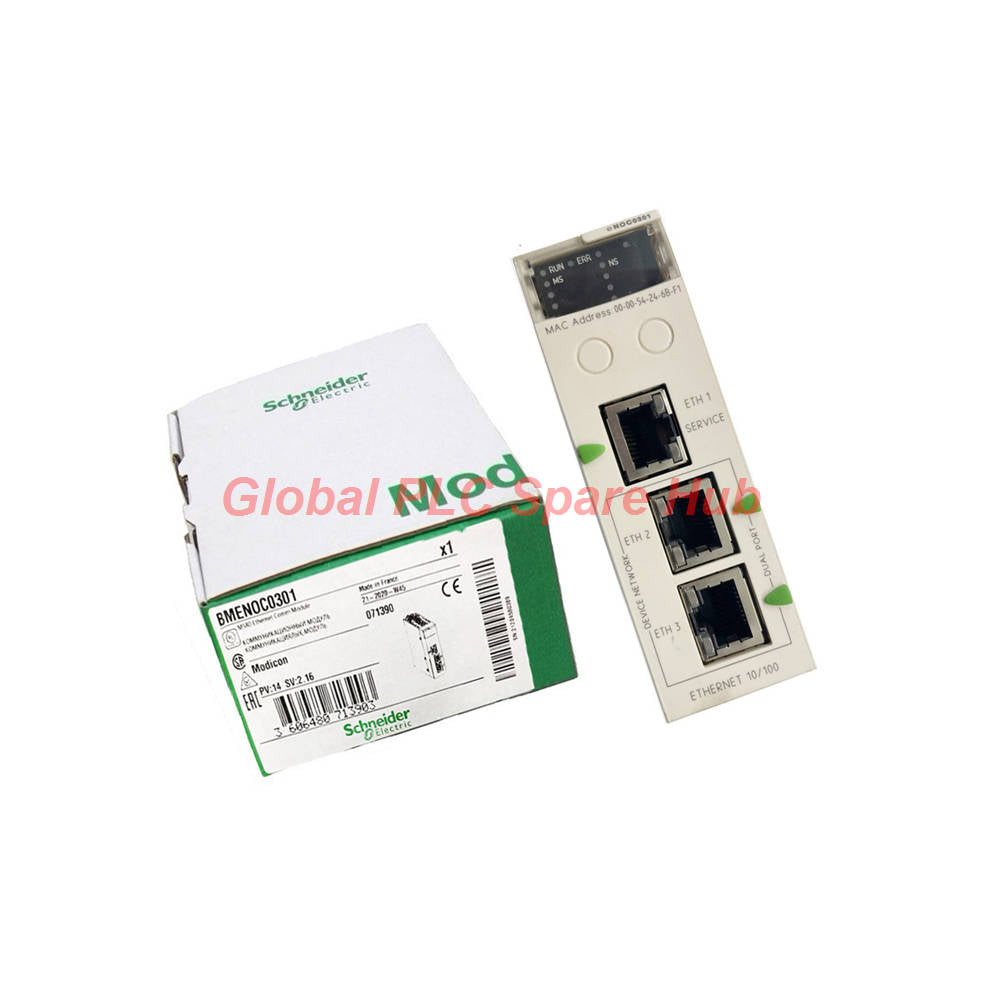

BMENOC0301 Schneider Electric Modicon M580 Ethernet Network Module

BMENOC0301 Schneider Electric Modicon M580 Ethernet Network Module

Manufacturer: Schneider Electric
Product No.: BMENOC0301
Condition： In stock
Product Type: Ethernet IP Module
Product Origin: DE
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Overview & Core Architecture

Manufacturer: Schneider Electric / Modicon

Model: BMENOC0301

Series: Modicon M580 X80

Product Type: Ethernet IP & Modbus TCP Network Communication Module

Condition: Factory New & Original Factory Packaging

Fulfillment: 24-48 Hour Global Express Dispatch via FedEx, UPS, and DHL

Warranty: Comprehensive 12-Month Factory Warranty

Global PLC Spare HUB's Insight: High-availability process control systems require robust deterministic networking to manage distributed I/O drops across plant floors. The BMENOC0301 network module provides high-speed Ethernet/IP and Modbus TCP connectivity directly on the M580 backplane, supporting advanced RSTP redundancy and FDR server management for mission-critical automation networks.

Advanced Technical Specifications Matrix

Processor Compatibility: Modicon M580 standalone, redundant, and safety CPUs (BMEP58, BMEH58)
Rack Placement: Main X80 Ethernet backplane rack slot utilizing 1 single slot width
Physical Network Ports: Three RJ45 ports featuring double shielded twisted pair 10/100 Mbit/s interfaces
Supported Protocols: Ethernet/IP I/O Scanner, Modbus TCP Messaging, SNMP, and FDR server
Network Redundancy Support: Rapid Spanning Tree Protocol (RSTP) and port mirroring capabilities
Power Consumption Profile: 900 mA at 3.3 V DC (for firmware version >= 13); 1800 mA at 3.3 V DC (version < 13)
Status LED Signatures: RUN, ERR, ETH MS (configuration status), and ETH NS (network status) indicators
Environmental Protection: IP20 rated open-style enclosure operating from 0°C to 60°C (32°F to 140°F)
Physical Dimensions & Weight: Width 32 mm, height 103.7 mm, length 86 mm, weighing 0.2 kg (0.4 lb)

Engineering Selection and Operational Guidance

When engineering M580 Ethernet architectures, verify that total rack power supply capacity can accommodate the 3.3V DC backplane current draw—especially for hardware revisions older than version 13 which require 1800 mA. The BMENOC0301 module installs directly into the primary Ethernet rack slot, enabling embedded multiport web server commissioning without external gateway hardware.

Industrial Application Scenarios & Diagnostic Capabilities

Target Machinery: Large municipal water treatment plants, oil and gas pipeline compressor stations, continuous chemical distillation columns, and power generation distributed control systems.
Diagnostic Function: Real-time network health auditing, Ethernet port traffic monitoring via port mirroring, and hardware status tracking through front-panel MS/NS dual-color LED indicators.
Failure Detection: Rapid isolation of dropped I/O scanner connections, IP address conflicts, cable breakages in RSTP ring topologies, and backplane power starvation faults.

Frequently Asked Questions

Q: What causes the ETH MS LED on the BMENOC0301 to flash red during startup?

A: A flashing red module status (MS) LED typically indicates a severe configuration mismatch, duplicate IP address assignment, or an unrecoverable internal hardware fault requiring firmware re-flashing.

Q: Can this communication module be deployed in safety-rated M580 controller racks?

A: Yes, the module is fully compatible with Modicon M580 safety CPUs (non-interfering type 1) when installed on standard X80 Ethernet backplane racks.

Q: How does the integrated FDR server function benefit plant maintenance engineers?

A: The Faulty Device Replacement (FDR) server automatically stores device configuration parameters, allowing automatic parameter restoration if a failed field device or drop is replaced on the network.

Q: What cabling specification is recommended for the RJ45 Ethernet ports in high-noise environments?

A: Always utilize double shielded twisted pair (STP) industrial Ethernet cables to prevent electromagnetic interference (EMI) from distorting 10/100 Mbit/s packets near large VFD drives.

Q: What is the maximum number of these communication modules allowed per single rack?

A: You can install a maximum of 4 modules per rack, provided the M580 CPU and backplane power supply can support the cumulative 3.3V DC current load.
