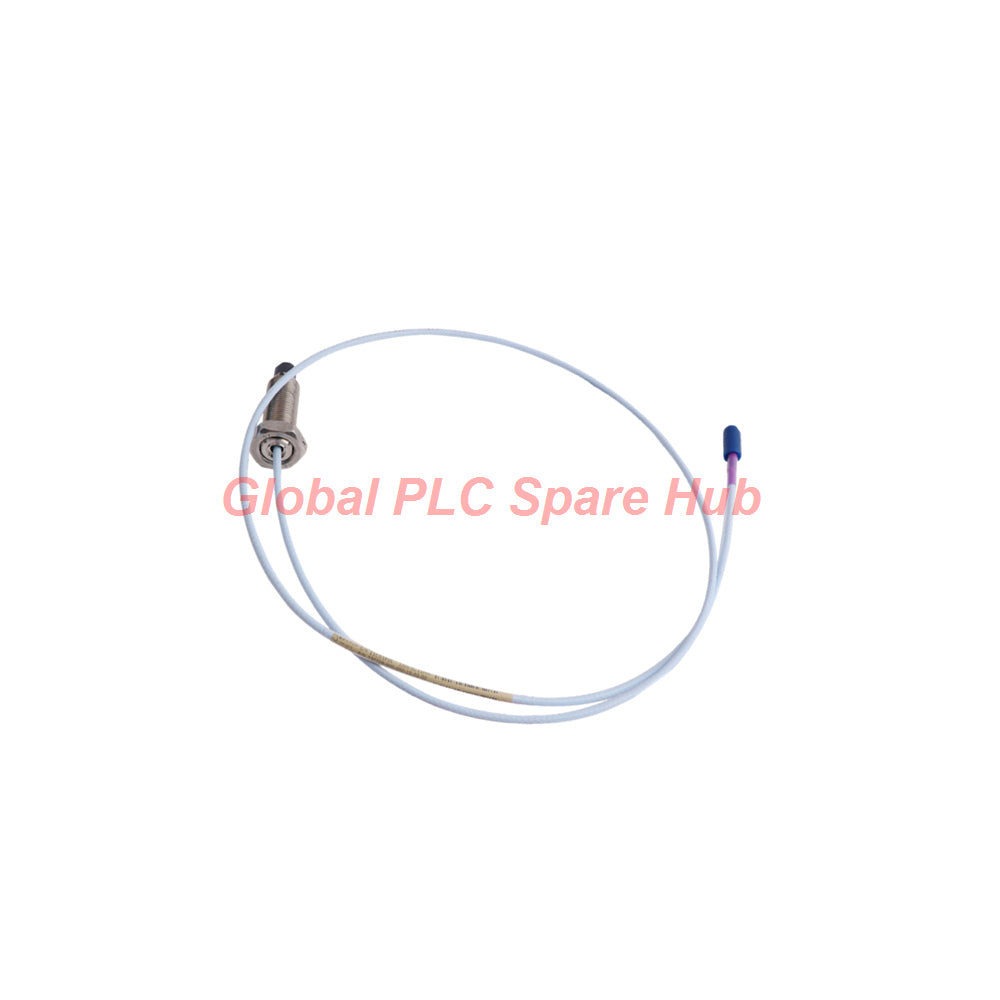

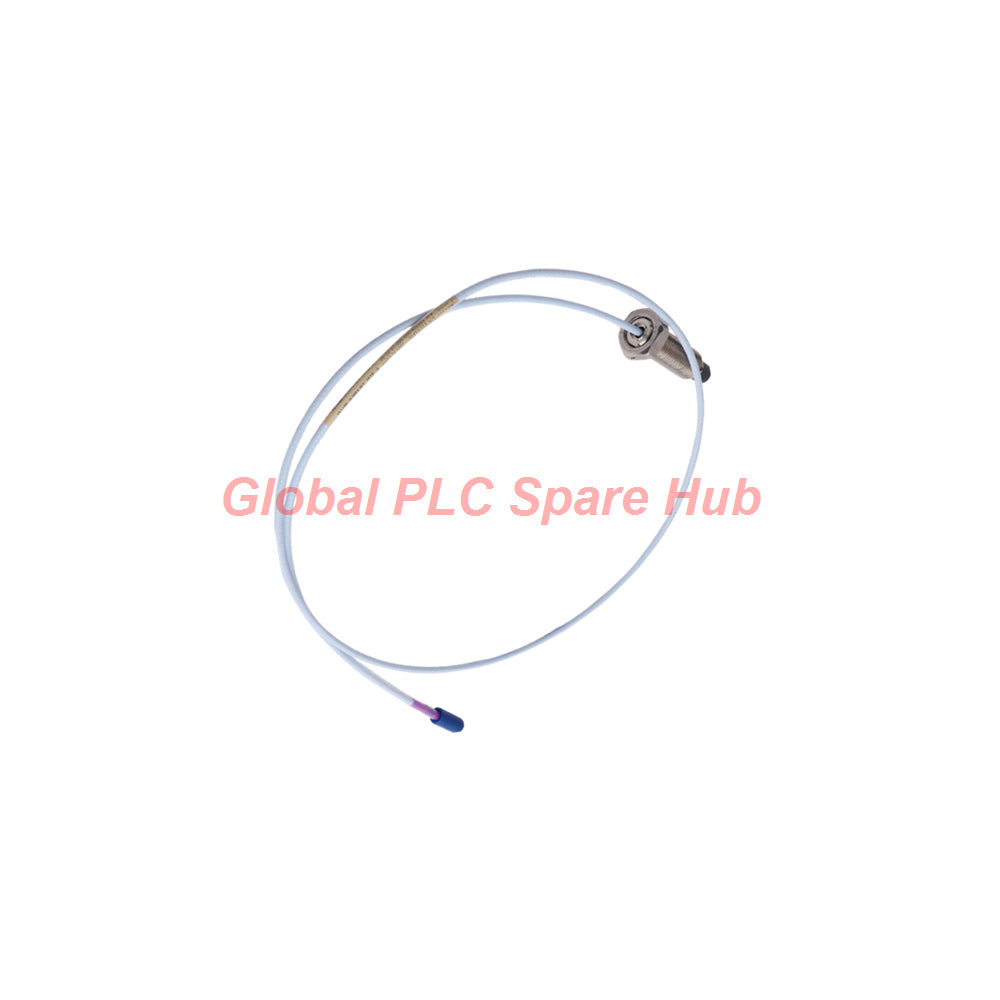

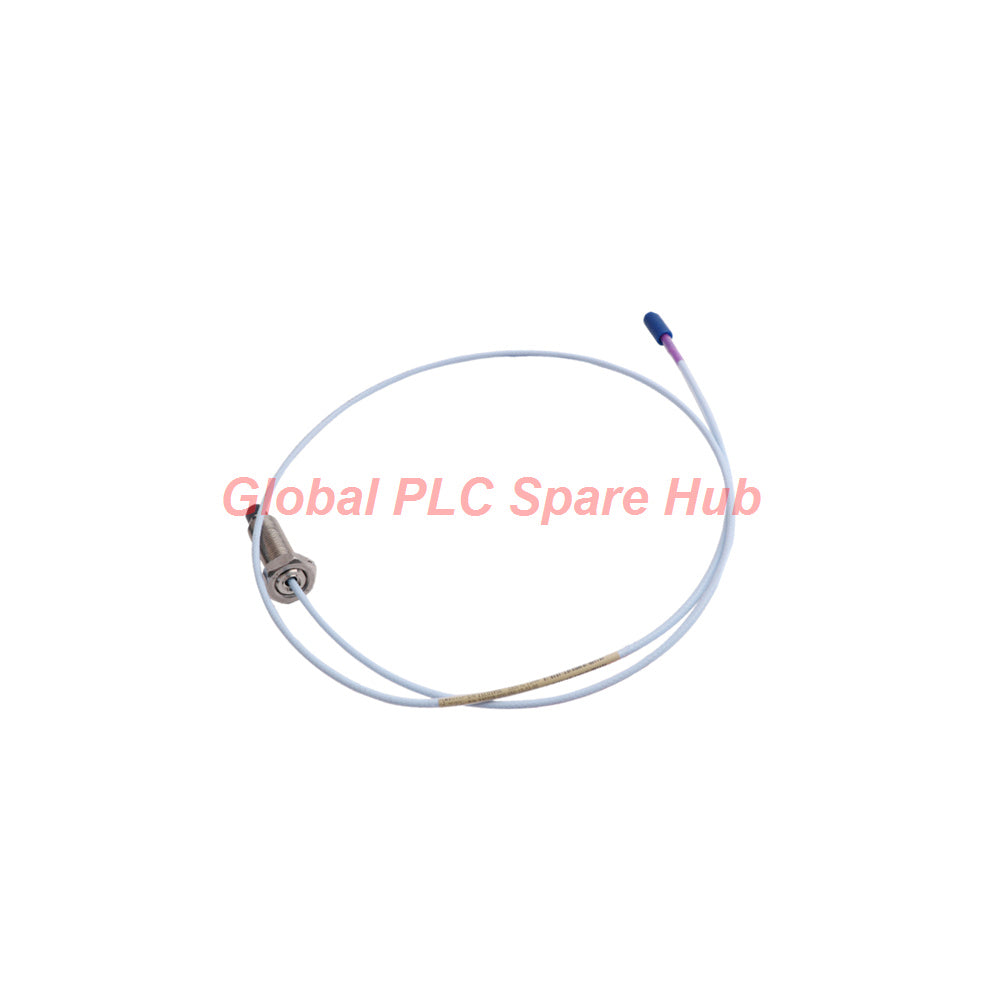

Bently Nevada 330709-000-030-10-02-00 3300 XL 11mm Proximity Probe

Product Overview

The Bently Nevada 330709-000-030-10-02-00 represents the advanced 3300 XL Series engineered for precision industrial vibration monitoring. This 330709-000-030-10-02-00 unit utilizes an 11 mm probe tip to measure dynamic and static shaft position changes accurately. Global PLC Spare HUB supplies this robust sensor to maintain high reliability in critical machinery protection systems. Plant engineers deploy this hardware to detect excessive vibration before catastrophic mechanical failures occur.

Technical Specifications

• Brand: Bently Nevada
• Model: 330709-000-030-10-02-00
• Series: 3300 XL Series
• Probe Tip Diameter: 11 mm
• Thread Size: M16 x 1.5
• Total Cable Length: 1.0 metre
• Connector Type: Miniature coaxial ClickLoc connector
• Probe DC Resistance: 5.9 ± 0.5 ohms
• Operating Temperature Range: -52°C to +177°C
• Probe Case Material: AISI 304 stainless steel
• Probe Tip Material: Polyphenylene sulfide

Installation Guidelines

• Technicians thread the 330709-000-030-10-02-00 sensor into a recommended minimum 152 mm shaft diameter application.
• Installers apply a maximum probe case torque of 63.3 N•m to secure the M16 x 1.5 thread securely.
• Engineers maintain a minimum bend radius of 25.4 mm during cable routing to prevent internal conductor damage.
• Operators ensure the maximum thread engagement depth does not exceed 24 mm during mechanical setup.

Commissioning and Maintenance

• Maintenance crews measure probe resistance values regularly to verify circuit integrity across the center conductor.
• Technicians inspect ClickLoc connectors frequently to eliminate signal degradation caused by loose physical coupling.
• Operators avoid exposing the pressure seal to temperatures below -34°C to prevent premature component failure.
• Engineers test system linearity during initial startup to guarantee precise gap voltage measurements.

Compatibility and Environmental Tolerance

• The 330709-000-030-10-02-00 integrates seamlessly with standard Bently Nevada 3300 XL monitoring systems and extension cables.
• The fluoroethylene propylene insulated cable withstands harsh chemical exposure within heavy industrial environments.
• Stainless steel housing protects internal components against corrosive process fluids and mechanical stress.
• The design resists electromagnetic cross-talk when operators respect the minimum 30.5 mm flat surface target size.

Certifications and Compliance

• Manufacturer Origin: Made in U.S.A.
• Agency Approval: Standard unapproved configuration suited for general industrial installation requirements.
• Compliance: Manufactured under strict quality management systems matching global industrial standards.
• Traceability: Each 330709-000-030-10-02-00 unit includes factory calibration data for strict regulatory audits.

Package Contents and Logistics

• Package Contents: One 330709-000-030-10-02-00 proximity probe, attached 1-meter cable, and protective cap.
• Warranty: 12-month comprehensive warranty covering material and manufacturing defects.
• Shipping Carriers: FedEx, UPS, and DHL.
• Dispatch Time: 24-48 hours from order confirmation.

Typical Applications and Diagnostic Capability

• Applications: Steam turbines, gas compressors, large electric motors, and industrial pumps.
• Diagnostics: Detects rotor imbalance, shaft misalignment, bearing wear, and oil whirl phenomena effectively.
• Global PLC Spare HUB's Insight: Field engineers in petrochemical plants rely on the 330709-000-030-10-02-00 to monitor high-speed turbine shafts continuously. For instance, detecting a 0.05 mm shift in radial vibration allows maintenance teams to schedule bearing replacements before unexpected outages happen.

Frequently Asked Questions

Q: What is the exact cable length of the 330709-000-030-10-02-00?

A: The sensor features a total cable length of 1.0 metre with an integrated ClickLoc connector.

Q: How do technicians handle the ClickLoc connector during installation?

A: Installers tighten the connector finger tight, applying a maximum torque limit of 0.565 N•m.

Q: Can the 330709-000-030-10-02-00 operate in cryogenic environments?

A: Operating temperatures extend down to -52°C, but operators must avoid sub-zero extremes that threaten the pressure seal.

Q: What target size is required for accurate measurement?

A: The target surface diameter must measure at least 30.5 mm to ensure proper eddy current generation.
